An object that monitors and reports back packet flows observed during a simulation. More...

#include <flow-monitor.h>

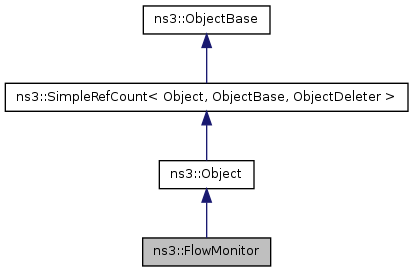

Inheritance diagram for ns3::FlowMonitor:

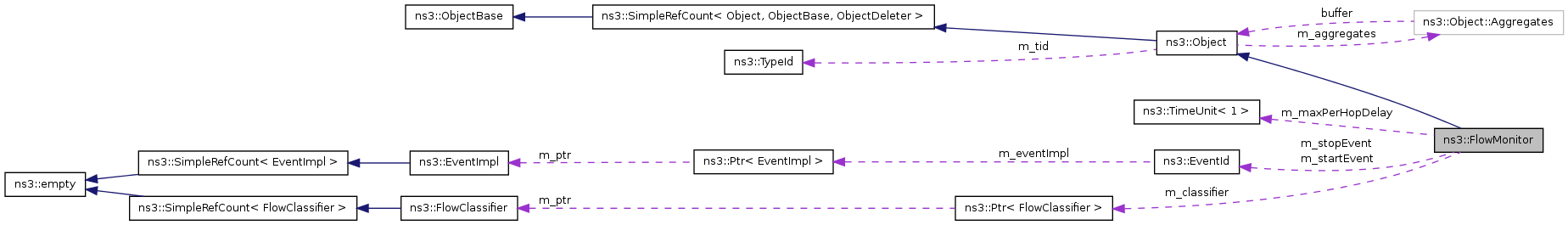

Collaboration diagram for ns3::FlowMonitor:

Classes
struct	FlowStats
	Structure that represents the measured metrics of an individual packet flow. More...
struct	TrackedPacket
Public Member Functions
TypeId	GetInstanceTypeId () const
void	SetFlowClassifier (Ptr< FlowClassifier > classifier)
	Set the FlowClassifier to be used by the flow monitor.
void	Start (const Time &time)
	Set the time, counting from the current time, from which to start monitoring flows.
void	Stop (const Time &time)
	Set the time, counting from the current time, from which to stop monitoring flows.
void	StartRightNow ()
	Begin monitoring flows right now.
void	StopRightNow ()
	End monitoring flows right now.
void	AddProbe (Ptr< FlowProbe > probe)
void	ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
void	ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)
void	CheckForLostPackets ()
	Check right now for packets that appear to be lost.
void	CheckForLostPackets (Time maxDelay)
std::map< FlowId, FlowStats >	GetFlowStats () const
std::vector< Ptr< FlowProbe > >	GetAllProbes () const
	Get a list of all FlowProbe's associated with this FlowMonitor.
void	SerializeToXmlStream (std::ostream &os, int indent, bool enableHistograms, bool enableProbes)
std::string	SerializeToXmlString (int indent, bool enableHistograms, bool enableProbes)
void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::FlowMonitor.
Protected Member Functions
virtual void	NotifyConstructionCompleted ()

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

The FlowMonitor class is responsible forcoordinating efforts regarding probes, and collects end-to-end flowstatistics.

Member Function Documentation

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe > probe )

Register a new FlowProbe that will begin monitoring and report events to this monitor. This method is normally only used by FlowProbe implementations.

void ns3::FlowMonitor::CheckForLostPackets ( Time maxDelay )

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay

std::map<FlowId, FlowStats> ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics. Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const [virtual]

Returns:: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

static TypeId ns3::FlowMonitor::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::FlowMonitor.

Attributes defined for this type:

MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 10000000000ns
- Flags: construct write read
StartTime: The time when the monitoring starts.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 0ns
- Flags: construct write
DelayBinWidth: The width used in the delay histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
JitterBinWidth: The width used in the jitter histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
PacketSizeBinWidth: The width used in the packetSize histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

virtual void ns3::FlowMonitor::NotifyConstructionCompleted ( ) [protected, virtual]

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

void ns3::FlowMonitor::ReportDrop	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

void ns3::FlowMonitor::ReportFirstTx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

void ns3::FlowMonitor::ReportForwarding	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

void ns3::FlowMonitor::ReportLastRx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being received.

void ns3::FlowMonitor::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead

Parameters:

	fileName	name or path of the output file that will be created
	enableHistograms	if true, include also the histograms in the output
	enableProbes	if true, include also the per-probe/flow pair statistics in the output

void ns3::FlowMonitor::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format

Parameters:

	os	the output stream
	indent	number of spaces to use as base indentation level
	enableHistograms	if true, include also the histograms in the output
	enableProbes	if true, include also the per-probe/flow pair statistics in the output

std::string ns3::FlowMonitor::SerializeToXmlString	(	int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string

Parameters:

	indent	number of spaces to use as base indentation level
	enableHistograms	if true, include also the histograms in the output
	enableProbes	if true, include also the per-probe/flow pair statistics in the output

Returns:: the XML output as string

The documentation for this class was generated from the following files:

src/contrib/flow-monitor/flow-monitor.h
doc/introspected-doxygen.h
