ns3::Ipv4ListRouting Class Reference
[Ipv4 List Routing]

#include <ipv4-list-routing.h>

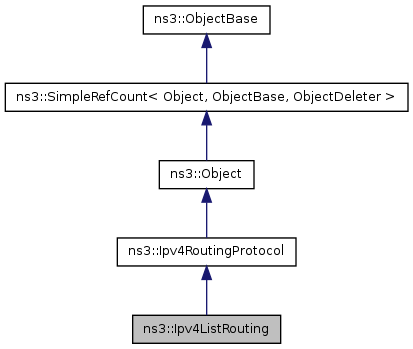

Inheritance diagram for ns3::Ipv4ListRouting:
Inheritance graph
[legend]

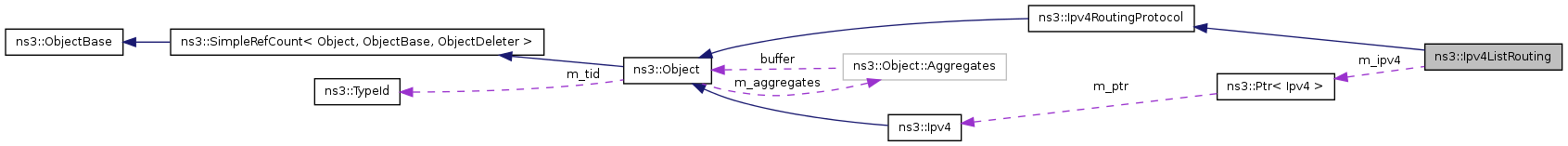

Collaboration diagram for ns3::Ipv4ListRouting:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void AddRoutingProtocol (Ptr< Ipv4RoutingProtocol > routingProtocol, int16_t priority)
 Register a new routing protocol to be used in this IPv4 stack.
virtual uint32_t GetNRoutingProtocols (void) const
virtual Ptr< Ipv4RoutingProtocol > GetRoutingProtocol (uint32_t index, int16_t &priority) const
virtual Ptr< Ipv4Route > RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
 Query routing cache for an existing route, for an outbound packet.
virtual bool RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
 Route an input packet (to be forwarded or locally delivered).
virtual void NotifyInterfaceUp (uint32_t interface)
virtual void NotifyInterfaceDown (uint32_t interface)
virtual void NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)
virtual void NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)
virtual void SetIpv4 (Ptr< Ipv4 > ipv4)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Ipv4ListRouting.

Protected Member Functions

void DoDispose (void)
void DoStart (void)

Detailed Description

This class is a specialization of Ipv4RoutingProtocol that allows other instances of Ipv4RoutingProtocol to be inserted in a prioritized list. Routing protocols in the list are consulted one by one, from highest to lowest priority, until a routing protocol is found that will take the packet (this corresponds to a non-zero return value to RouteOutput, or a return value of true to RouteInput). The order by which routing protocols with the same priority value are consulted is undefined.

Member Function Documentation

virtual void ns3::Ipv4ListRouting::AddRoutingProtocol ( Ptr< Ipv4RoutingProtocol >  routingProtocol,
int16_t  priority
) [virtual]

Register a new routing protocol to be used in this IPv4 stack.

Parameters:
routingProtocol new routing protocol implementation object
priority priority to give to this routing protocol. Values may range between -32768 and +32767.
void ns3::Ipv4ListRouting::DoDispose ( void   )  [protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

void ns3::Ipv4ListRouting::DoStart ( void   )  [protected, virtual]

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and _chain up_ to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

virtual uint32_t ns3::Ipv4ListRouting::GetNRoutingProtocols ( void   )  const [virtual]
Returns:
number of routing protocols in the list
virtual Ptr<Ipv4RoutingProtocol> ns3::Ipv4ListRouting::GetRoutingProtocol ( uint32_t  index,
int16_t &  priority
) const [virtual]

Return pointer to routing protocol stored at index, with the first protocol (index 0) the highest priority, the next one (index 1) the second highest priority, and so on. The priority parameter is an output parameter and it returns the integer priority of the protocol.

Returns:
pointer to routing protocol indexed by
Parameters:
index index of protocol to return
priority output parameter, set to the priority of the protocol being returned
static TypeId ns3::Ipv4ListRouting::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::Ipv4ListRouting.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv4RoutingProtocol.

virtual void ns3::Ipv4ListRouting::NotifyAddAddress ( uint32_t  interface,
Ipv4InterfaceAddress  address
) [virtual]
Parameters:
interface the index of the interface we are being notified about
address a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

virtual void ns3::Ipv4ListRouting::NotifyInterfaceDown ( uint32_t  interface  )  [virtual]
Parameters:
interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

virtual void ns3::Ipv4ListRouting::NotifyInterfaceUp ( uint32_t  interface  )  [virtual]
Parameters:
interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

virtual void ns3::Ipv4ListRouting::NotifyRemoveAddress ( uint32_t  interface,
Ipv4InterfaceAddress  address
) [virtual]
Parameters:
interface the index of the interface we are being notified about
address a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

virtual bool ns3::Ipv4ListRouting::RouteInput ( Ptr< const Packet >  p,
const Ipv4Header &  header,
Ptr< const NetDevice >  idev,
UnicastForwardCallback  ucb,
MulticastForwardCallback  mcb,
LocalDeliverCallback  lcb,
ErrorCallback  ecb
) [virtual]

Route an input packet (to be forwarded or locally delivered).

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters:
p received packet
header input parameter used to form a search key for a route
idev Pointer to ingress network device
ucb Callback for the case in which the packet is to be forwarded as unicast
mcb Callback for the case in which the packet is to be forwarded as multicast
lcb Callback for the case in which the packet is to be locally delivered
ecb Callback to call if there is an error in forwarding
Returns:
true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

virtual Ptr<Ipv4Route> ns3::Ipv4ListRouting::RouteOutput ( Ptr< Packet >  p,
const Ipv4Header &  header,
Ptr< NetDevice >  oif,
Socket::SocketErrno &  sockerr
) [virtual]

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

Parameters:
p packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header input parameter (used to form key to search for the route)
oif Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr Output parameter; socket errno
Returns:
a code that indicates what happened in the lookup

Implements ns3::Ipv4RoutingProtocol.

virtual void ns3::Ipv4ListRouting::SetIpv4 ( Ptr< Ipv4 >  ipv4  )  [virtual]
Parameters:
ipv4 the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implements ns3::Ipv4RoutingProtocol.

The documentation for this class was generated from the following files:
