IPv6 Extension ESP (Encapsulating Security Payload). More...

#include <ipv6-extension.h>

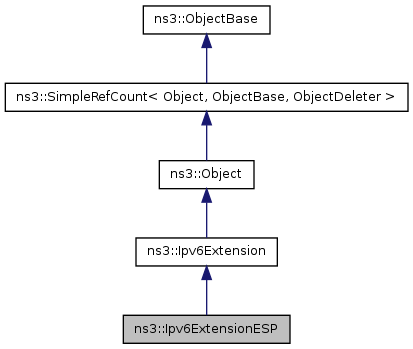

Inheritance diagram for ns3::Ipv6ExtensionESP:

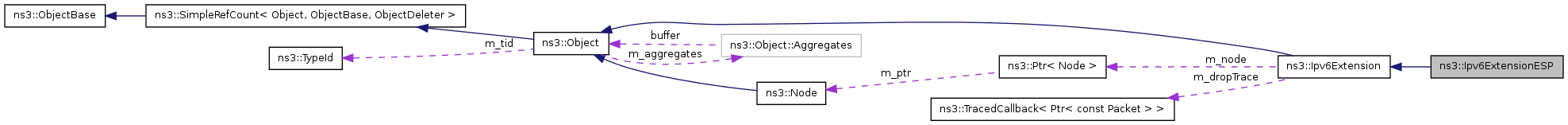

Collaboration diagram for ns3::Ipv6ExtensionESP:

Public Member Functions
	Ipv6ExtensionESP ()
	Constructor.
	~Ipv6ExtensionESP ()
	Destructor.
virtual uint8_t	GetExtensionNumber () const
	Get the extension number.
virtual uint8_t	Process (Ptr< Packet > &packet, uint8_t offset, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &isDropped)
	Process method Called from Ipv6L3Protocol::Receive.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.
Static Public Attributes
static const uint8_t	EXT_NUMBER = 50
	ESP extension number.

Detailed Description

IPv6 Extension ESP (Encapsulating Security Payload).

Member Function Documentation

virtual uint8_t ns3::Ipv6ExtensionESP::GetExtensionNumber ( ) const [virtual]

Get the extension number.

static TypeId ns3::Ipv6ExtensionESP::GetTypeId ( void ) [static]

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6ExtensionESP.

No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv6Extension:

ExtensionNumber: The IPv6 extension number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::Ipv6Extension:

Reimplemented from ns3::Ipv6Extension.

virtual uint8_t ns3::Ipv6ExtensionESP::Process	(	Ptr< Packet > &	packet,
		uint8_t	offset,
		Ipv6Header const &	ipv6Header,
		Ipv6Address	dst,
		uint8_t *	nextHeader,
		bool &	isDropped
	)			`[virtual]`

Process method Called from Ipv6L3Protocol::Receive.

Parameters:

	packet	the packet
	offset	the offset of the extension to process
	ipv6Header	the IPv6 header of packet received
	dst	destination address of the packet received (i.e. us)
	nextHeader	the next header
	isDropped	if the packet must be dropped

The documentation for this class was generated from the following files:
