ns3::Ipv6ExtensionRouting Class Reference

IPv6 Extension Routing If you want to implement a new IPv6 routing extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionRoutingDemux. More...

#include <ipv6-extension.h>

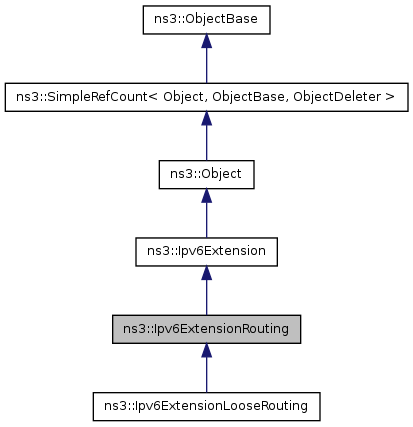

Inheritance diagram for ns3::Ipv6ExtensionRouting:

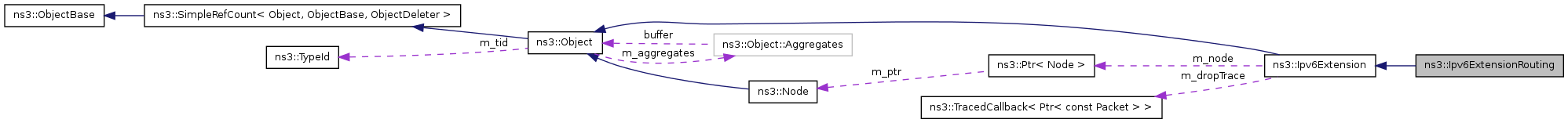

Collaboration diagram for ns3::Ipv6ExtensionRouting:

List of all members.

Public Member Functions
	Ipv6ExtensionRouting ()
	Constructor.
	~Ipv6ExtensionRouting ()
	Destructor.
virtual uint8_t	GetExtensionNumber () const
	Get the extension number.
virtual uint8_t	GetTypeRouting () const
	Get the type of routing.
virtual uint8_t	Process (Ptr< Packet > &packet, uint8_t offset, Ipv6Header const &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &isDropped)
	Process method.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.
Static Public Attributes
static const uint8_t	EXT_NUMBER = 43
	Routing extension number.

---

Detailed Description

IPv6 Extension Routing If you want to implement a new IPv6 routing extension, all you have to do is implement a subclass of this class and add it to an Ipv6ExtensionRoutingDemux.

---

Member Function Documentation

virtual uint8_t ns3::Ipv6ExtensionRouting::GetExtensionNumber

(

)

const [virtual]

Get the extension number.

Returns:

extension number

Implements ns3::Ipv6Extension.

static TypeId ns3::Ipv6ExtensionRouting::GetTypeId

(

void

)

[static]

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6ExtensionRouting.

Returns:

type identificator

No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv6Extension:

• ExtensionNumber: The IPv6 extension number.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::Ipv6Extension:

• Drop: Drop ipv6 packet

Reimplemented from ns3::Ipv6Extension.

Reimplemented in ns3::Ipv6ExtensionLooseRouting.

virtual uint8_t ns3::Ipv6ExtensionRouting::GetTypeRouting

(

)

const [virtual]

Get the type of routing.

Returns:

type of routing

Reimplemented in ns3::Ipv6ExtensionLooseRouting.

virtual uint8_t ns3::Ipv6ExtensionRouting::Process	(	Ptr< Packet > &	packet,
		uint8_t	offset,
		Ipv6Header const &	ipv6Header,
		Ipv6Address	dst,
		uint8_t *	nextHeader,
		bool &	isDropped
	)			[virtual]

Process method.

Called from Ipv6L3Protocol::Receive.

Parameters:

	packet	the packet
	offset	the offset of the extension to process
	ipv6Header	the IPv6 header of packet received
	dst	destination address of the packet received (i.e. us)
	nextHeader	the next header
	isDropped	if the packet must be dropped

Returns:

the size processed

Implements ns3::Ipv6Extension.

Reimplemented in ns3::Ipv6ExtensionLooseRouting.

---

The documentation for this class was generated from the following files:

• src/internet-stack/ipv6-extension.h
• doc/introspected-doxygen.h
