ns3::PacketMetadata Class Reference

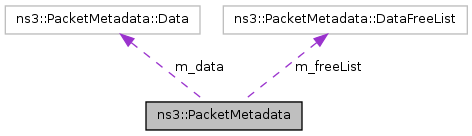

Collaboration diagram for ns3::PacketMetadata:

List of all members.

Classes
struct	Data
class	DataFreeList
struct	ExtraItem
struct	Item
class	ItemIterator
struct	SmallItem
Public Member Functions
	PacketMetadata (uint32_t uid, uint32_t size)
	PacketMetadata (PacketMetadata const &o)
PacketMetadata &	operator= (PacketMetadata const &o)
void	AddHeader (Header const &header, uint32_t size)
void	RemoveHeader (Header const &header, uint32_t size)
void	AddTrailer (Trailer const &trailer, uint32_t size)
void	RemoveTrailer (Trailer const &trailer, uint32_t size)
PacketMetadata	CreateFragment (uint32_t start, uint32_t end) const
void	AddAtEnd (PacketMetadata const &o)
void	AddPaddingAtEnd (uint32_t end)
void	RemoveAtStart (uint32_t start)
void	RemoveAtEnd (uint32_t end)
uint32_t	GetUid (void) const
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator i, uint32_t size) const
uint32_t	Deserialize (Buffer::Iterator i)
ItemIterator	BeginItem (Buffer buffer) const
Static Public Member Functions
static void	Enable (void)
static void	EnableChecking (void)
Friends
class	ItemIterator

---

Member Function Documentation

PacketMetadata ns3::PacketMetadata::CreateFragment	(	uint32_t	start,
		uint32_t	end
	)			const

Parameters:

	start	the amount of stuff to remove from the start
	end	the amount of stuff to remove from the end

Calling this method is equivalent to calling RemoveAtStart (start) and then, RemoveAtEnd (end).

---

The documentation for this class was generated from the following file:

• src/common/packet-metadata.h
