Pcap output for Packet logger. More...

#include <pcap-writer.h>

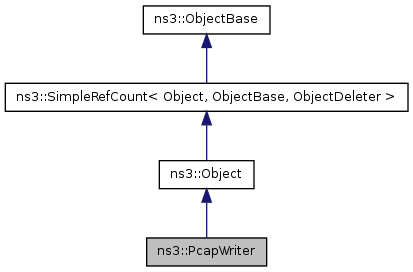

Inheritance diagram for ns3::PcapWriter:

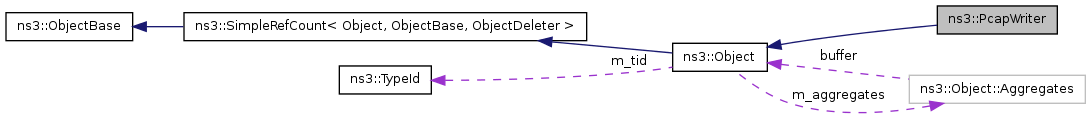

Collaboration diagram for ns3::PcapWriter:

Public Member Functions
void	Open (std::string const &name)
void	WriteEthernetHeader (void)
void	WriteIpHeader (void)
void	WriteWifiHeader (void)
void	WriteWifiRadiotapHeader (void)
void	WriteWifiPrismHeader (void)
void	WritePppHeader (void)
void	WritePacket (Ptr< const Packet > packet)
void	WriteWifiMonitorPacket (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, bool isTx, double signalDbm, double noiseDbm)
void	SetCaptureSize (uint32_t size)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PcapWriter.

Detailed Description

Pcap output for Packet logger.

Log Packets to a file in pcap format which can be read by pcap readers.

Member Function Documentation

static TypeId ns3::PcapWriter::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::PcapWriter.

Attributes defined for this type:

CaptureSize: Number of bytes to capture at the start of each packet written in the pcap file. Zero means capture all bytes.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

void ns3::PcapWriter::Open ( std::string const & name )

Parameters:

name

the name of the file to store packet log into. This method creates the file if it does not exist. If it exists, the file is emptied.

void ns3::PcapWriter::SetCaptureSize ( uint32_t size )

Set the maximum number of bytes to be captured for each packet.

Parameters:

size

the maximum number of bytes to be captured. If zero (default), the whole packet will be captured.

void ns3::PcapWriter::WriteEthernetHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be Packets with Ethernet/LLC/SNAP encapsulation. This method should be invoked before ns3::PcapWriter::writePacket and after ns3::PcapWriter::open.

void ns3::PcapWriter::WriteIpHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be IPv4 Packets. This method should be invoked before ns3::PcapWriter::WritePacket and after ns3::PcapWriter::Open.

void ns3::PcapWriter::WritePacket ( Ptr< const Packet > packet )

Parameters:

packet

packet to write to output file

void ns3::PcapWriter::WritePppHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be ppp Packets. This method should be invoked before ns3::PcapWriter::WritePacket and after ns3::PcapWriter::Open.

void ns3::PcapWriter::WriteWifiHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be 802.11 Packets. This method should be invoked before ns3::PcapWriter::WritePacket and after ns3::PcapWriter::Open.

void ns3::PcapWriter::WriteWifiMonitorPacket	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble,
		bool	isTx,
		double	signalDbm,
		double	noiseDbm
	)

Write a Packet, possibly adding wifi PHY layer information to it

Parameters:

	packet	the packet being received
	channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
	channelNumber	the channel number, as defined by the IEEE 802.11 standard.
	rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
	isShortPreamble	true if short preamble is used, false otherwise
	isTx	true if packet is being transmitted, false when packet is being received
	signalDbm	signal power in dBm
	noiseDbm	noise power in dBm

void ns3::PcapWriter::WriteWifiPrismHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be 802.11 Packets preceded by a prism header providing PHY layer info. This method should be invoked before ns3::PcapWriter::WritePacket and after ns3::PcapWriter::Open.

void ns3::PcapWriter::WriteWifiRadiotapHeader ( void )

Write a pcap header in the output file which specifies that the content of the file will be 802.11 Packets preceded by a radiotap header providing PHY layer info. This method should be invoked before ns3::PcapWriter::WritePacket and after ns3::PcapWriter::Open.

The documentation for this class was generated from the following files:

src/common/pcap-writer.h
doc/introspected-doxygen.h
