A ping6 application. More...

#include <ping6.h>

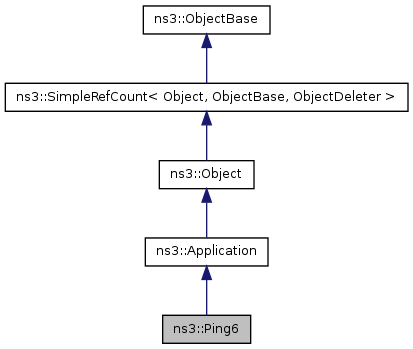

Inheritance diagram for ns3::Ping6:

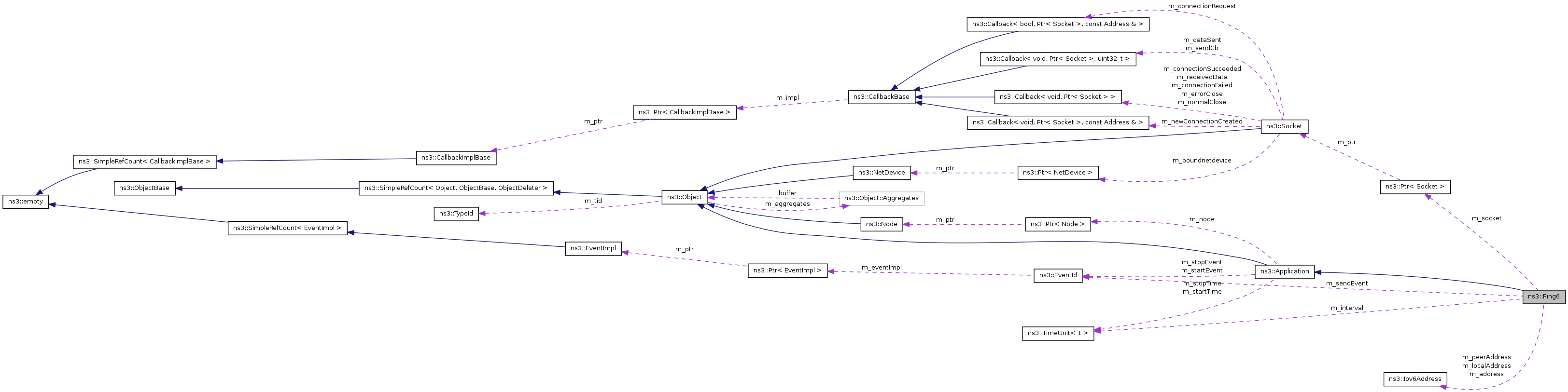

Collaboration diagram for ns3::Ping6:

Public Member Functions
	Ping6 ()
	Constructor.
virtual	~Ping6 ()
	Destructor.
void	SetLocal (Ipv6Address ipv6)
	Set the local address.
void	SetRemote (Ipv6Address ipv6)
	Set the remote peer.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.
void	SetRouters (std::vector< Ipv6Address > routers)
	Set routers for routing type 0 (loose routing).
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose this object;.

Detailed Description

A ping6 application.

Member Function Documentation

static TypeId ns3::Ping6::GetTypeId ( void ) [static]

Get the type ID.

This method returns the TypeId associated to ns3::Ping6.

This object is accessible through the following paths with Config::Set and Config::Connect:

Attributes defined for this type:

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 1000000000ns
- Flags: construct write read
RemoteIpv6: The Ipv6Address of the outbound packets
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
LocalIpv6: Local Ipv6Address of the sender
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
PacketSize: Size of packets generated
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

Attributes defined in parent class ns3::Application:

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 0ns
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

void ns3::Ping6::SetIfIndex ( uint32_t ifIndex )

Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters:

ifIndex

interface index

void ns3::Ping6::SetLocal ( Ipv6Address ipv6 )

Set the local address.

Parameters:

ipv6

the local IPv6 address

void ns3::Ping6::SetRemote ( Ipv6Address ipv6 )

Set the remote peer.

Parameters:

ipv6

IPv6 address of the peer

void ns3::Ping6::SetRouters ( std::vector< Ipv6Address > routers )

Set routers for routing type 0 (loose routing).

Parameters:

routers

routers addresses

The documentation for this class was generated from the following files:
