ns3::RandomDirection2dMobilityModel Class Reference

a RandomDirection mobility model More...

#include <random-direction-2d-mobility-model.h>

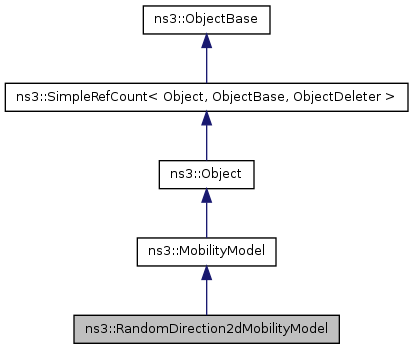

Inheritance diagram for ns3::RandomDirection2dMobilityModel:

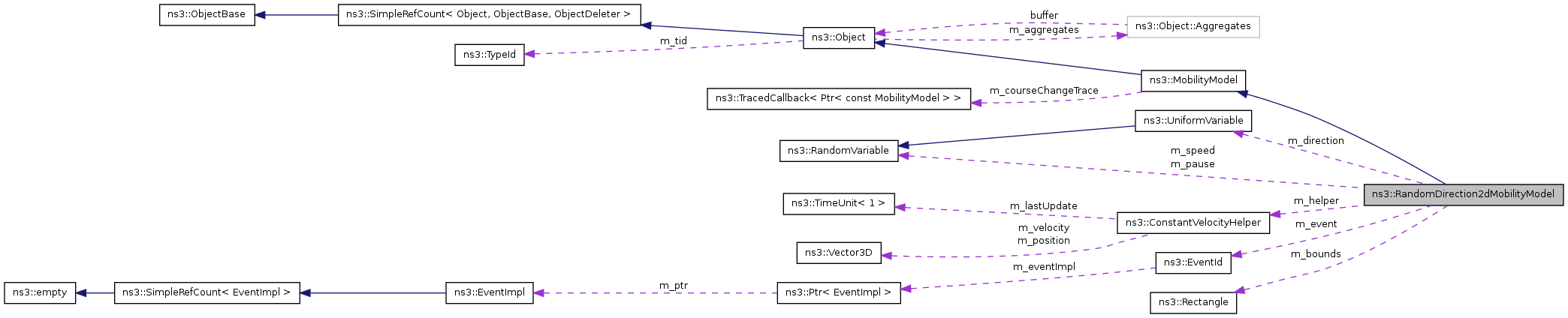

Collaboration diagram for ns3::RandomDirection2dMobilityModel:

List of all members.

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RandomDirection2dMobilityModel.

---

Detailed Description

a RandomDirection mobility model

The movement of objects is based on random directions: each object pauses for a specific delay, chooses a random direction and speed and then travels in the specific direction until it reaches one of the boundaries of the model. When it reaches the boundary, it pauses, selects a new direction and speed, aso.

---

Member Function Documentation

static TypeId ns3::RandomDirection2dMobilityModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RandomDirection2dMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel

Attributes defined for this type:

• Bounds: The 2d bounding area
  • Set with class: RectangleValue
  • Underlying type: Rectangle
  • Initial value: -100|100|-100|100
  • Flags: construct write read
• Speed: A random variable to control the speed (m/s).
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Uniform:1:2
  • Flags: construct write read
• Pause: A random variable to control the pause (s).
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Constant:2
  • Flags: construct write read

Attributes defined in parent class ns3::MobilityModel:

• Position: The current position of the mobility model.
  • Set with class: Vector3DValue
  • Underlying type: Vector3D
  • Flags: write read
• Velocity: The current velocity of the mobility model.
  • Set with class: Vector3DValue
  • Underlying type: Vector3D
  • Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:

• CourseChange: The value of the position and/or velocity vector changed

Reimplemented from ns3::MobilityModel.

---

The documentation for this class was generated from the following files:

• src/mobility/random-direction-2d-mobility-model.h
• doc/introspected-doxygen.h
