allocate random positions within a rectangle according to a pair of random variables. More...
#include <position-allocator.h>

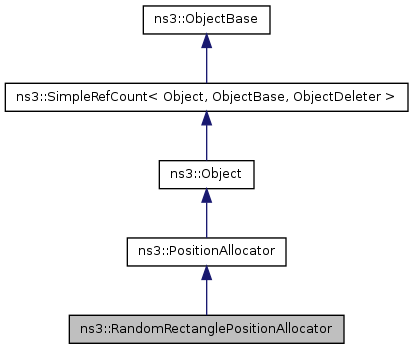

Inheritance diagram for ns3::RandomRectanglePositionAllocator:

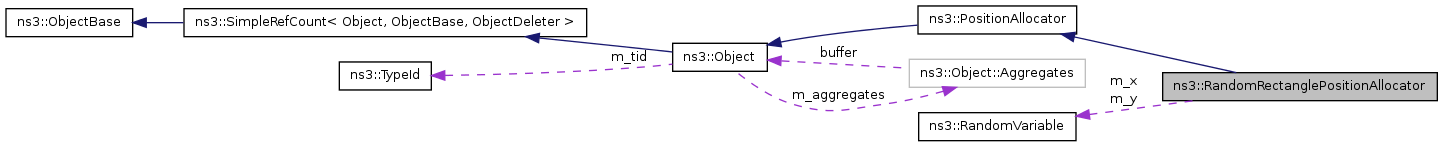

Collaboration diagram for ns3::RandomRectanglePositionAllocator:
Public Member Functions | |
| void | SetX (RandomVariable x) |
| void | SetY (RandomVariable y) |
| virtual Vector | GetNext (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomRectanglePositionAllocator. | |
Detailed Description
allocate random positions within a rectangle according to a pair of random variables.
Member Function Documentation
| virtual Vector ns3::RandomRectanglePositionAllocator::GetNext | ( | void | ) | const [virtual] |
- Returns:
- the next chosen position.
This method _must_ be implement in subclasses.
Implements ns3::PositionAllocator.
| static TypeId ns3::RandomRectanglePositionAllocator::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomRectanglePositionAllocator.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator
Attributes defined for this type:
-
X: A random variable which represents the x coordinate of a position in a random rectangle.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:1
- Flags: construct write read
-
Y: A random variable which represents the y coordinate of a position in a random rectangle.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:1
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::PositionAllocator.
The documentation for this class was generated from the following files:
- src/mobility/position-allocator.h
- doc/introspected-doxygen.h
