ns3::RandomWalk2dMobilityModel Class Reference

a 2D random walk position model More...

#include <random-walk-2d-mobility-model.h>

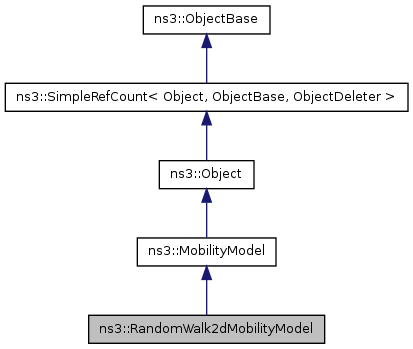

Inheritance diagram for ns3::RandomWalk2dMobilityModel:

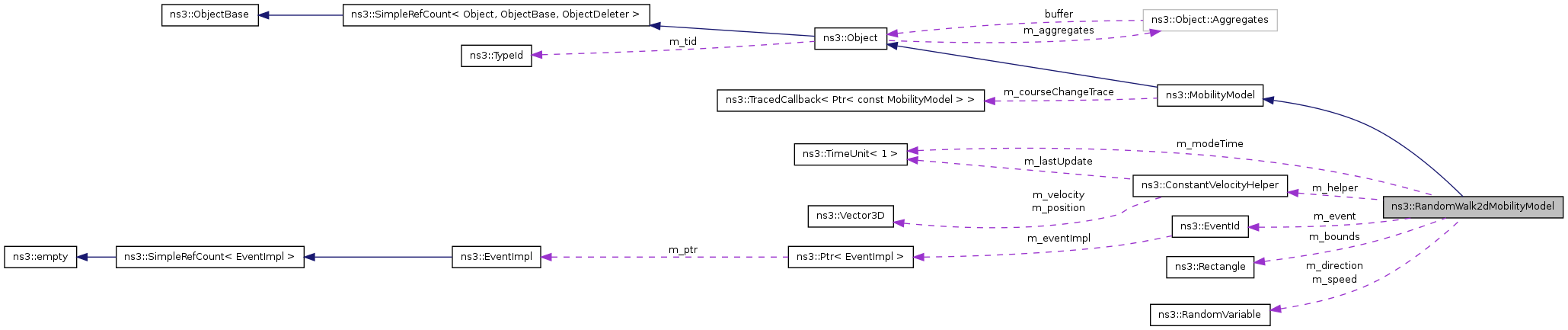

Collaboration diagram for ns3::RandomWalk2dMobilityModel:

List of all members.

Public Types
enum	Mode { MODE_DISTANCE, MODE_TIME }
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RandomWalk2dMobilityModel.

---

Detailed Description

a 2D random walk position model

Each instance moves with a speed and direction choosen at random with the user-provided random variables until either a fixed distance has been walked or until a fixed amount of time. If we hit one of the boundaries (specified by a rectangle), of the model, we rebound on the boundary with a reflexive angle and speed. This model is often identified as a brownian motion model.

---

Member Function Documentation

static TypeId ns3::RandomWalk2dMobilityModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RandomWalk2dMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel

Attributes defined for this type:

• Bounds: Bounds of the area to cruise.
  • Set with class: RectangleValue
  • Underlying type: Rectangle
  • Initial value: 0|0|100|100
  • Flags: construct write read
• Time: Change current direction and speed after moving for this delay.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 1000000000ns
  • Flags: construct write read
• Distance: Change current direction and speed after moving for this distance.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1
  • Flags: construct write read
• Mode: The mode indicates the condition used to change the current speed and direction
  • Set with class: ns3::EnumValue
  • Underlying type: Distance|Time
  • Initial value: Distance
  • Flags: construct write read
• Direction: A random variable used to pick the direction (gradients).
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Uniform:0:6.28318
  • Flags: construct write read
• Speed: A random variable used to pick the speed (m/s).
  • Set with class: RandomVariableValue
  • Underlying type: RandomVariable
  • Initial value: Uniform:2:4
  • Flags: construct write read

Attributes defined in parent class ns3::MobilityModel:

• Position: The current position of the mobility model.
  • Set with class: Vector3DValue
  • Underlying type: Vector3D
  • Flags: write read
• Velocity: The current velocity of the mobility model.
  • Set with class: Vector3DValue
  • Underlying type: Vector3D
  • Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:

• CourseChange: The value of the position and/or velocity vector changed

Reimplemented from ns3::MobilityModel.

---

The documentation for this class was generated from the following files:

• src/mobility/random-walk-2d-mobility-model.h
• doc/introspected-doxygen.h
