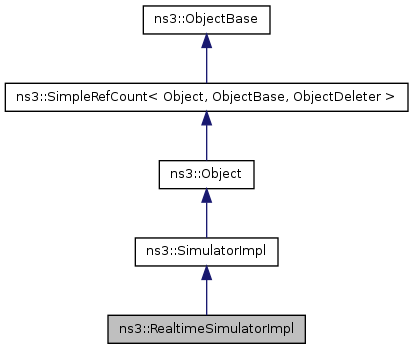

Inheritance diagram for ns3::RealtimeSimulatorImpl:

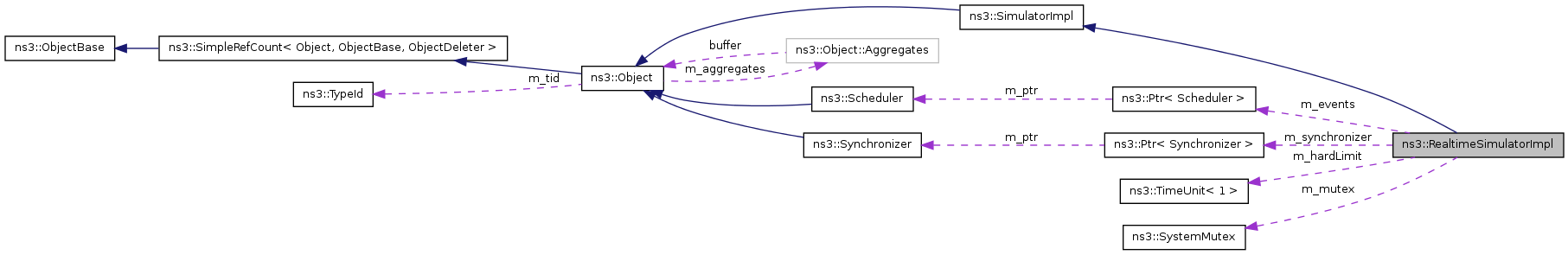

Collaboration diagram for ns3::RealtimeSimulatorImpl:
Public Types | |
| enum | SynchronizationMode { SYNC_BEST_EFFORT, SYNC_HARD_LIMIT } |
Public Member Functions | |
| virtual void | Destroy () |
| virtual bool | IsFinished (void) const |
| virtual Time | Next (void) const |
| virtual void | Stop (void) |
| virtual void | Stop (Time const &time) |
| virtual EventId | Schedule (Time const &time, EventImpl *event) |
| virtual void | ScheduleWithContext (uint32_t context, Time const &time, EventImpl *event) |
| virtual EventId | ScheduleNow (EventImpl *event) |
| virtual EventId | ScheduleDestroy (EventImpl *event) |
| virtual void | Remove (const EventId &ev) |
| virtual void | Cancel (const EventId &ev) |
| virtual bool | IsExpired (const EventId &ev) const |
| virtual void | Run (void) |
| virtual void | RunOneEvent (void) |
| virtual Time | Now (void) const |
| virtual Time | GetDelayLeft (const EventId &id) const |
| virtual Time | GetMaximumSimulationTime (void) const |
| virtual void | SetScheduler (ObjectFactory schedulerFactory) |
| virtual uint32_t | GetContext (void) const |
| void | ScheduleRealtimeWithContext (uint32_t context, Time const &time, EventImpl *event) |
| void | ScheduleRealtime (Time const &time, EventImpl *event) |
| void | ScheduleRealtimeNowWithContext (uint32_t context, EventImpl *event) |
| void | ScheduleRealtimeNow (EventImpl *event) |
| Time | RealtimeNow (void) const |
| void | SetSynchronizationMode (RealtimeSimulatorImpl::SynchronizationMode mode) |
| RealtimeSimulatorImpl::SynchronizationMode | GetSynchronizationMode (void) const |
| void | SetHardLimit (Time limit) |
| Time | GetHardLimit (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RealtimeSimulatorImpl. | |
Member Enumeration Documentation
Member Function Documentation
| static TypeId ns3::RealtimeSimulatorImpl::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RealtimeSimulatorImpl.
Attributes defined for this type:
-
SynchronizationMode: What to do if the simulation cannot keep up with real time.
- Set with class: ns3::EnumValue
- Underlying type: BestEffort|HardLimit
- Initial value: BestEffort
- Flags: construct write
- HardLimit: Maximum acceptable real-time jitter (used in conjunction with SynchronizationMode=HardLimit)
No TraceSources defined for this type.
Reimplemented from ns3::Object.
The documentation for this class was generated from the following files:
- src/simulator/realtime-simulator-impl.h
- doc/introspected-doxygen.h
