ns3::V4Ping Class Reference

an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT. More...

#include <v4ping.h>

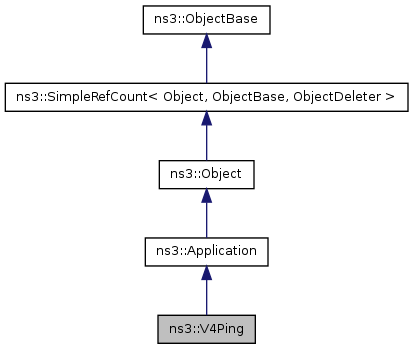

Inheritance diagram for ns3::V4Ping:

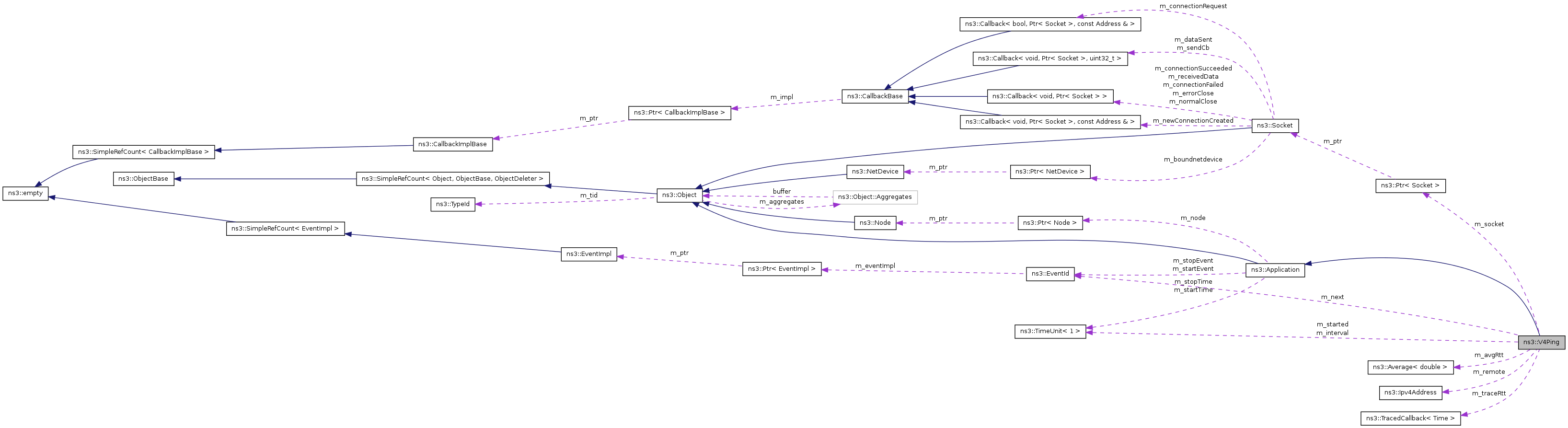

Collaboration diagram for ns3::V4Ping:

List of all members.

Public Member Functions
	V4Ping ()
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::V4Ping.

---

Detailed Description

an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT.

Note: The RTT calculated is reported through a trace source.

---

Constructor & Destructor Documentation

ns3::V4Ping::V4Ping

(

)

create a pinger applications

---

Member Function Documentation

static TypeId ns3::V4Ping::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::V4Ping.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/ApplicationList/[i]/$ns3::V4Ping

Attributes defined for this type:

• Remote: The address of the machine we want to ping.
  • Set with class: Ipv4AddressValue
  • Underlying type: Ipv4Address
  • Initial value: 102.102.102.102
  • Flags: construct write read
• Verbose: Produce usual output.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• Interval: Wait interval seconds between sending each packet.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 1000000000ns
  • Flags: construct write read
• Size: The number of data bytes to be sent, real packet will be 8 (ICMP) + 20 (IP) bytes longer.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 16:4294967295
  • Initial value: 56
  • Flags: construct write read

Attributes defined in parent class ns3::Application:

• StartTime: Time at which the application will start
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• StopTime: Time at which the application will stop
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read

TraceSources defined for this type:

• Rtt: The rtt calculated by the ping.

Reimplemented from ns3::Application.

---

The documentation for this class was generated from the following files:

• src/applications/v4ping/v4ping.h
• doc/introspected-doxygen.h
