Inheritance diagram for ns3::WifiMacHeader:

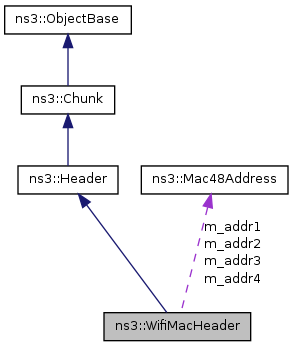

Collaboration diagram for ns3::WifiMacHeader:
Public Types | |
| enum | QosAckPolicy { NORMAL_ACK = 0, NO_ACK = 1, NO_EXPLICIT_ACK = 2, BLOCK_ACK = 3 } |
| enum | AddressType { ADDR1, ADDR2, ADDR3, ADDR4 } |
Public Member Functions | |
| virtual TypeId | GetInstanceTypeId (void) const |
| virtual void | Print (std::ostream &os) const |
| virtual uint32_t | GetSerializedSize (void) const |
| virtual void | Serialize (Buffer::Iterator start) const |
| virtual uint32_t | Deserialize (Buffer::Iterator start) |
| void | SetAssocReq (void) |
| void | SetAssocResp (void) |
| void | SetProbeReq (void) |
| void | SetProbeResp (void) |
| void | SetBeacon (void) |
| void | SetTypeData (void) |
| void | SetAction () |
| void | SetMultihopAction () |
| void | SetDsFrom (void) |
| void | SetDsNotFrom (void) |
| void | SetDsTo (void) |
| void | SetDsNotTo (void) |
| void | SetAddr1 (Mac48Address address) |
| void | SetAddr2 (Mac48Address address) |
| void | SetAddr3 (Mac48Address address) |
| void | SetAddr4 (Mac48Address address) |
| void | SetType (enum WifiMacType type) |
| void | SetRawDuration (uint16_t duration) |
| void | SetDuration (Time duration) |
| void | SetId (uint16_t id) |
| void | SetSequenceNumber (uint16_t seq) |
| void | SetFragmentNumber (uint8_t frag) |
| void | SetNoMoreFragments (void) |
| void | SetMoreFragments (void) |
| void | SetRetry (void) |
| void | SetNoRetry (void) |
| void | SetQosTid (uint8_t tid) |
| void | SetQosEosp () |
| void | SetQosNoEosp () |
| void | SetQosAckPolicy (enum QosAckPolicy) |
| void | SetQosAmsdu (void) |
| void | SetQosNoAmsdu (void) |
| void | SetQosTxopLimit (uint8_t txop) |
| Mac48Address | GetAddr1 (void) const |
| Mac48Address | GetAddr2 (void) const |
| Mac48Address | GetAddr3 (void) const |
| Mac48Address | GetAddr4 (void) const |
| enum WifiMacType | GetType (void) const |
| bool | IsFromDs (void) const |
| bool | IsToDs (void) const |
| bool | IsData (void) const |
| bool | IsQosData (void) const |
| bool | IsCtl (void) const |
| bool | IsMgt (void) const |
| bool | IsCfpoll (void) const |
| bool | IsRts (void) const |
| bool | IsCts (void) const |
| bool | IsAck (void) const |
| bool | IsAssocReq (void) const |
| bool | IsAssocResp (void) const |
| bool | IsReassocReq (void) const |
| bool | IsReassocResp (void) const |
| bool | IsProbeReq (void) const |
| bool | IsProbeResp (void) const |
| bool | IsBeacon (void) const |
| bool | IsDisassociation (void) const |
| bool | IsAuthentication (void) const |
| bool | IsDeauthentication (void) const |
| bool | IsAction () const |
| bool | IsMultihopAction () const |
| uint16_t | GetRawDuration (void) const |
| Time | GetDuration (void) const |
| uint16_t | GetSequenceControl (void) const |
| uint16_t | GetSequenceNumber (void) const |
| uint16_t | GetFragmentNumber (void) const |
| bool | IsRetry (void) const |
| bool | IsMoreFragments (void) const |
| bool | IsQosBlockAck (void) const |
| bool | IsQosNoAck (void) const |
| bool | IsQosAck (void) const |
| bool | IsQosEosp (void) const |
| bool | IsQosAmsdu (void) const |
| uint8_t | GetQosTid (void) const |
| enum QosAckPolicy | GetQosAckPolicy (void) const |
| uint8_t | GetQosTxopLimit (void) const |
| uint32_t | GetSize (void) const |
| const char * | GetTypeString (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::WifiMacHeader. | |
Member Function Documentation
| virtual uint32_t ns3::WifiMacHeader::Deserialize | ( | Buffer::Iterator | start | ) | [virtual] |
- Parameters:
-
start an iterator which points to where the header should written.
- Returns:
- the number of bytes read.
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Implements ns3::Header.
| virtual TypeId ns3::WifiMacHeader::GetInstanceTypeId | ( | void | ) | const [virtual] |
- Returns:
- the TypeId associated to the most-derived type of this instance.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
| virtual uint32_t ns3::WifiMacHeader::GetSerializedSize | ( | void | ) | const [virtual] |
- Returns:
- the expected size of the header.
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.
| static TypeId ns3::WifiMacHeader::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::WifiMacHeader.
No Attributes defined for this type.
No TraceSources defined for this type.
Reimplemented from ns3::Header.
| virtual void ns3::WifiMacHeader::Print | ( | std::ostream & | os | ) | const [virtual] |
- Parameters:
-
os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5
Implements ns3::Header.
| virtual void ns3::WifiMacHeader::Serialize | ( | Buffer::Iterator | start | ) | const [virtual] |
- Parameters:
-
start an iterator which points to where the header should be written.
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
The documentation for this class was generated from the following files:
- src/devices/wifi/wifi-mac-header.h
- doc/introspected-doxygen.h
