ns3::WifiRemoteStation Class Reference

hold per-remote-station state. More...

#include <wifi-remote-station-manager.h>

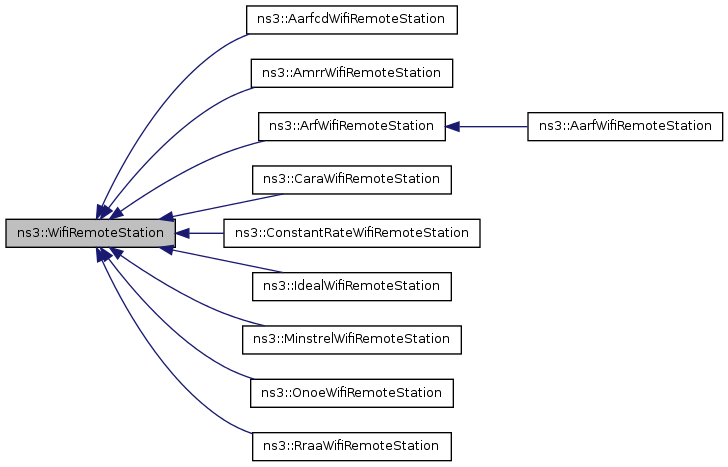

Inheritance diagram for ns3::WifiRemoteStation:

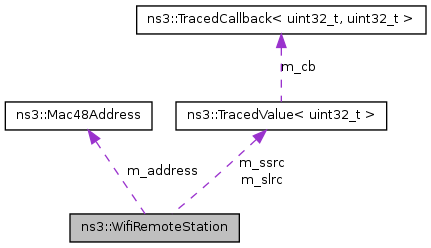

Collaboration diagram for ns3::WifiRemoteStation:

List of all members.

Public Member Functions
void	Reset (void)
void	AddSupportedMode (WifiMode mode)
bool	IsBrandNew (void) const
bool	IsAssociated (void) const
bool	IsWaitAssocTxOk (void) const
void	RecordWaitAssocTxOk (void)
void	RecordGotAssocTxOk (void)
void	RecordGotAssocTxFailed (void)
void	RecordDisassociated (void)
void	PrepareForQueue (Ptr< const Packet > packet, uint32_t fullPacketSize)
WifiMode	GetDataMode (Ptr< const Packet > packet, uint32_t fullPacketSize)
WifiMode	GetRtsMode (Ptr< const Packet > packet)
void	ReportRtsFailed (void)
void	ReportDataFailed (void)
void	ReportRtsOk (double ctsSnr, WifiMode ctsMode, double rtsSnr)
void	ReportDataOk (double ackSnr, WifiMode ackMode, double dataSnr)
void	ReportFinalRtsFailed (void)
void	ReportFinalDataFailed (void)
void	ReportRxOk (double rxSnr, WifiMode txMode)
virtual bool	NeedRts (Ptr< const Packet > packet)
virtual bool	NeedRtsRetransmission (Ptr< const Packet > packet)
virtual bool	NeedDataRetransmission (Ptr< const Packet > packet)
virtual bool	NeedFragmentation (Ptr< const Packet > packet)
virtual uint32_t	GetFragmentSize (Ptr< const Packet > packet, uint32_t fragmentNumber)
virtual uint32_t	GetFragmentOffset (Ptr< const Packet > packet, uint32_t fragmentNumber)
virtual bool	IsLastFragment (Ptr< const Packet > packet, uint32_t fragmentNumber)
WifiMode	GetCtsMode (WifiMode rtsMode)
WifiMode	GetAckMode (WifiMode dataMode)
double	GetAvgSlrc () const
void	SetAddress (Mac48Address address)
Mac48Address	GetAddress ()
Static Public Member Functions
static TypeId	GetTypeId (void)
Protected Member Functions
uint32_t	GetNSupportedModes (void) const
WifiMode	GetSupportedMode (uint32_t i) const

---

Detailed Description

hold per-remote-station state.

The state in this class is used to keep track of association status if we are in an infrastructure network and to perform the selection of tx parameters on a per-packet basis.

---

Member Function Documentation

void ns3::WifiRemoteStation::AddSupportedMode

(

WifiMode

mode

)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. The set of supported modes includes the BSSBasicRateSet.

WifiMode ns3::WifiRemoteStation::GetAckMode

(

WifiMode

dataMode

)

Parameters:

dataMode

the transmission mode used to send an ACK we just received

Returns:

the transmission mode to use for the ACK to complete the data/ACK handshake.

Mac48Address ns3::WifiRemoteStation::GetAddress

(

)

get the address of the remote stationt represented by this instance of WifiRemoteStation

Returns:

the MAC address of the remote station

double ns3::WifiRemoteStation::GetAvgSlrc

(

)

const

Returns:

exponentially weighted average SLRC, this is used by Airtime link metric of 802.11s

WifiMode ns3::WifiRemoteStation::GetCtsMode

(

WifiMode

rtsMode

)

Parameters:

rtsMode

the transmission mode used to send an RTS we just received

Returns:

the transmission mode to use for the CTS to complete the RTS/CTS handshake.

WifiMode ns3::WifiRemoteStation::GetDataMode	(	Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters:

	packet	the packet to send
	fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

Returns:

the transmission mode to use to send this packet

virtual uint32_t ns3::WifiRemoteStation::GetFragmentOffset	(	Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)			[virtual]

Parameters:

	packet	the packet to send
	fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns:

the offset within the original packet where this fragment starts.

virtual uint32_t ns3::WifiRemoteStation::GetFragmentSize	(	Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)			[virtual]

Parameters:

	packet	the packet to send
	fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns:

the size of the corresponding fragment.

WifiMode ns3::WifiRemoteStation::GetRtsMode

(

Ptr< const Packet >

packet

)

Parameters:

packet

the packet to send

Returns:

the transmission mode to use to send the RTS prior to the transmission of the data packet itself.

virtual bool ns3::WifiRemoteStation::IsLastFragment	(	Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)			[virtual]

Parameters:

	packet	the packet to send
	fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns:

true if this is the last fragment, false otherwise.

virtual bool ns3::WifiRemoteStation::NeedDataRetransmission

(

Ptr< const Packet >

packet

)

[virtual]

Parameters:

packet

the packet to send

Returns:

true if we want to resend a packet after a failed transmission attempt, false otherwise.

virtual bool ns3::WifiRemoteStation::NeedFragmentation

(

Ptr< const Packet >

packet

)

[virtual]

Parameters:

packet

the packet to send

Returns:

true if this packet should be fragmented, false otherwise.

virtual bool ns3::WifiRemoteStation::NeedRts

(

Ptr< const Packet >

packet

)

[virtual]

Parameters:

packet

the packet to send

Returns:

true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Reimplemented in ns3::RraaWifiRemoteStation.

virtual bool ns3::WifiRemoteStation::NeedRtsRetransmission

(

Ptr< const Packet >

packet

)

[virtual]

Parameters:

packet

the packet to send

Returns:

true if we want to restart a failed RTS/CTS handshake, false otherwise.

void ns3::WifiRemoteStation::PrepareForQueue	(	Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters:

	packet	the packet to queue
	fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

This method is typically invoked just before queuing a packet for transmission. It is a no-op unless the IsLowLatency attribute of the attached ns3::WifiRemoteStationManager is set to false, in which case, the tx parameters of the packet are calculated and stored in the packet as a tag. These tx parameters are later retrieved from GetDadaMode and GetRtsMode.

void ns3::WifiRemoteStation::ReportDataFailed

(

void

)

Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

void ns3::WifiRemoteStation::ReportDataOk	(	double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

Should be invoked whenever we receive the Ack associated to a data packet we just sent.

void ns3::WifiRemoteStation::ReportFinalDataFailed

(

void

)

Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false

void ns3::WifiRemoteStation::ReportFinalRtsFailed

(

void

)

Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false

void ns3::WifiRemoteStation::ReportRtsFailed

(

void

)

Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

void ns3::WifiRemoteStation::ReportRtsOk	(	double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

Should be invoked whenever we receive the Cts associated to an RTS we just sent.

void ns3::WifiRemoteStation::ReportRxOk	(	double	rxSnr,
		WifiMode	txMode
	)

Parameters:

	rxSnr	the snr of the packet received
	txMode	the transmission mode used for the packet received.

Should be invoked whenever a packet is successfully received.

void ns3::WifiRemoteStation::Reset

(

void

)

Invoked in an AP upon disassociation of a specific STA.

void ns3::WifiRemoteStation::SetAddress

(

Mac48Address

address

)

set the address of the remote stationt represented by this instance of WifiRemoteStation

Parameters:

address

the MAC address of the remote station

---

The documentation for this class was generated from the following file:

• src/devices/wifi/wifi-remote-station-manager.h
