airtime link metric calculator More...
#include <airtime-metric.h>

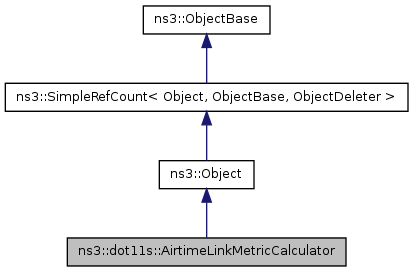

Inheritance diagram for ns3::dot11s::AirtimeLinkMetricCalculator:

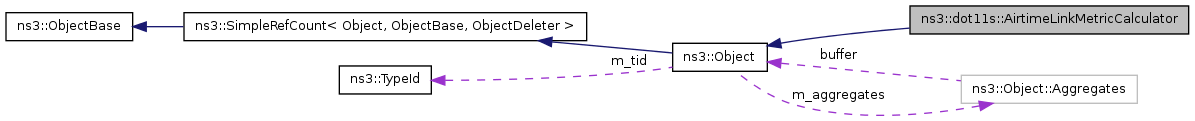

Collaboration diagram for ns3::dot11s::AirtimeLinkMetricCalculator:
Public Member Functions | |
| void | SetPhyStandard (WifiPhyStandard standard) |
| uint32_t | CalculateMetric (Mac48Address peerAddress, Ptr< MeshWifiInterfaceMac > mac) |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| This method returns the TypeId associated to ns3::dot11s::AirtimeLinkMetricCalculator. | |
Detailed Description
airtime link metric calculator
Airtime link metric is defined in 11B.10 of 802.11s Draft D3.0 as:
airtime = (O + Bt/r)* (1 + average retry counter), where
o -- the PHY dependent channel access which includes frame headers, training sequences, access protocol frames, etc. bt -- the test packet length in bits (8192 by default), r -- the current bitrate of the packet,
Final result is expressed in units of 0.01 Time Unit = 10.24 us (as required by 802.11s draft)
Member Function Documentation
| static TypeId ns3::dot11s::AirtimeLinkMetricCalculator::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::dot11s::AirtimeLinkMetricCalculator.
Attributes defined for this type:
-
TestLength: Rate should be estimated using test length.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 1024
- Flags: construct write read
-
Dot11MacHeaderLength: Length of the 802.11 header
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 36
- Flags: construct write read
-
Dot11sMeshHeaderLength: Length of the mesh header
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 6
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::Object.
The documentation for this class was generated from the following files:
- src/devices/mesh/dot11s/airtime-metric.h
- doc/introspected-doxygen.h
