ns3::olsr::RoutingProtocol Class Reference [OLSR]

OLSR routing protocol for IPv4. More...

#include <olsr-routing-protocol.h>

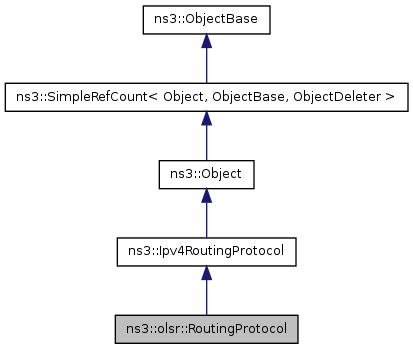

Inheritance diagram for ns3::olsr::RoutingProtocol:

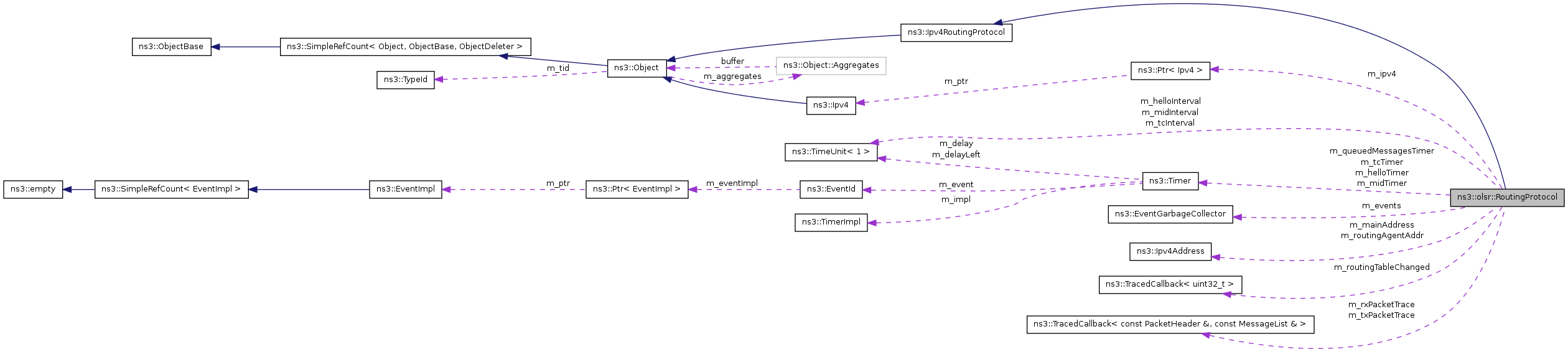

Collaboration diagram for ns3::olsr::RoutingProtocol:

List of all members.

Public Member Functions
void	SetMainInterface (uint32_t interface)
	Set the OLSR main address to the first address on the indicated interface.
void	Dump (void)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::olsr::RoutingProtocol.
Protected Member Functions
virtual void	DoStart (void)
Friends
class	OlsrMprTestCase

---

Detailed Description

OLSR routing protocol for IPv4.

---

Member Function Documentation

virtual void ns3::olsr::RoutingProtocol::DoStart

(

void

)

[protected, virtual]

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and _chain up_ to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

void ns3::olsr::RoutingProtocol::Dump

(

void

)

Dump the neighbor table, two-hop neighbor table, and routing table to logging output (NS_LOG_DEBUG log level). If logging is disabled, this function does nothing.

static TypeId ns3::olsr::RoutingProtocol::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::olsr::RoutingProtocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::olsr::RoutingProtocol

Attributes defined for this type:

• HelloInterval: HELLO messages emission interval.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 2000000000ns
  • Flags: construct write read
• TcInterval: TC messages emission interval.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 5000000000ns
  • Flags: construct write read
• MidInterval: MID messages emission interval. Normally it is equal to TcInterval.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 5000000000ns
  • Flags: construct write read
• Willingness: Willingness of a node to carry and forward traffic for other nodes.
  • Set with class: ns3::EnumValue
  • Underlying type: never|low|default|high|always
  • Initial value: default
  • Flags: construct write read

TraceSources defined for this type:

• Rx: Receive OLSR packet.
• Tx: Send OLSR packet.
• RoutingTableChanged: The OLSR routing table has changed.

Reimplemented from ns3::Ipv4RoutingProtocol.

void ns3::olsr::RoutingProtocol::SetMainInterface

(

uint32_t

interface

)

Set the OLSR main address to the first address on the indicated interface.

Parameters:

interface

IPv4 interface index

---

The documentation for this class was generated from the following files:

• src/routing/olsr/olsr-routing-protocol.h
• doc/introspected-doxygen.h
