ns3::ConstantSpeedPropagationDelayModel Class Reference

the propagation speed is constant More...

#include <propagation-delay-model.h>

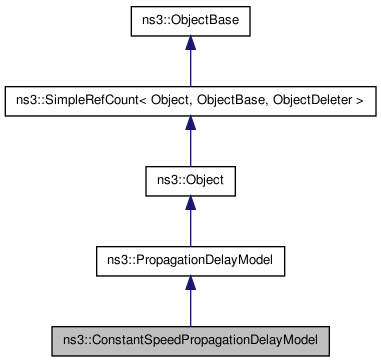

Inheritance diagram for ns3::ConstantSpeedPropagationDelayModel:

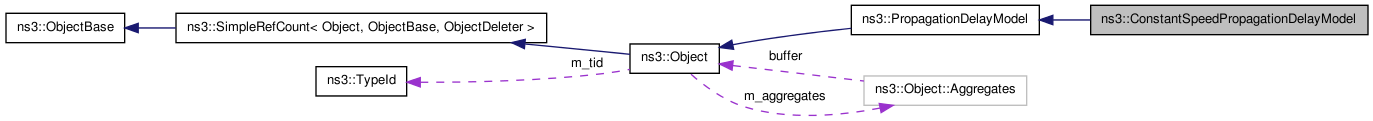

Collaboration diagram for ns3::ConstantSpeedPropagationDelayModel:

List of all members.

Public Member Functions
	ConstantSpeedPropagationDelayModel ()
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
void	SetSpeed (double speed)
double	GetSpeed (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantSpeedPropagationDelayModel.

---

Detailed Description

the propagation speed is constant

---

Constructor & Destructor Documentation

ns3::ConstantSpeedPropagationDelayModel::ConstantSpeedPropagationDelayModel

(

)

Use the default parameters from PropagationDelayConstantSpeed.

---

Member Function Documentation

virtual Time ns3::ConstantSpeedPropagationDelayModel::GetDelay	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)			const [virtual]

Parameters:

	a	the source
	b	the destination

Returns:

the calculated propagation delay

Calculate the propagation delay between the specified source and destination.

Implements ns3::PropagationDelayModel.

double ns3::ConstantSpeedPropagationDelayModel::GetSpeed

(

void

)

const

Returns:

the current propagation speed (m/s).

static TypeId ns3::ConstantSpeedPropagationDelayModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::ConstantSpeedPropagationDelayModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ConstantSpeedPropagationDelayModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel

Attributes defined for this type:

• Speed: The speed (m/s)
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 3e+08
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationDelayModel.

void ns3::ConstantSpeedPropagationDelayModel::SetSpeed

(

double

speed

)

Parameters:

speed

the new speed (m/s)

---

The documentation for this class was generated from the following files:

• src/common/propagation-delay-model.h
• doc/introspected-doxygen.h
