ns3::Cost231PropagationLossModel Class Reference

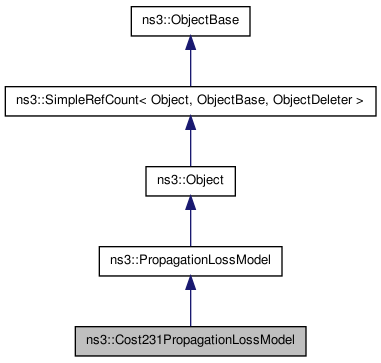

Inheritance diagram for ns3::Cost231PropagationLossModel:
Inheritance graph
[legend]

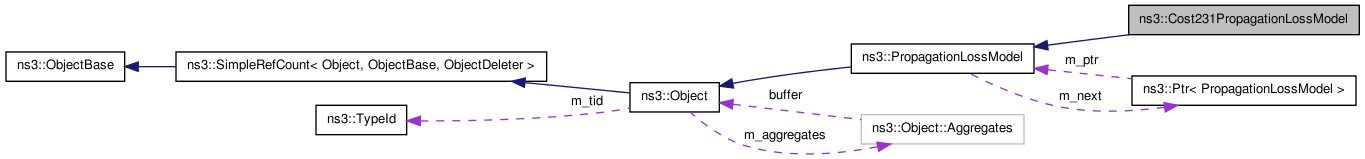

Collaboration diagram for ns3::Cost231PropagationLossModel:
Collaboration graph
[legend]

List of all members.

Public Types

enum  Environment { SubUrban, MediumCity, Metropolitan }

Public Member Functions

double GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
void SetBSAntennaHeight (double height)
void SetSSAntennaHeight (double height)
void SetEnvironment (Environment env)
void SetLambda (double lambda)
void SetMinDistance (double minDistance)
double GetBSAntennaHeight (void) const
double GetSSAntennaHeight (void) const
Environment GetEnvironment (void) const
double GetMinDistance (void) const
double GetLambda (void) const
void SetLambda (double frequency, double speed)
double GetShadowing (void)
void SetShadowing (double shadowing)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Cost231PropagationLossModel.

Member Function Documentation

double ns3::Cost231PropagationLossModel::GetLoss ( Ptr< MobilityModel >  a,
Ptr< MobilityModel >  b
) const
Parameters:
a the mobility model of the source
b the mobility model of the destination
Returns:
the propagation loss (in dBm)
static TypeId ns3::Cost231PropagationLossModel::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::Cost231PropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Cost231PropagationLossModel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PropagationLossModel/$ns3::Cost231PropagationLossModel

Attributes defined for this type:

  • Lambda: The wavelength (default is 2.3 GHz at 300 000 km/s).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.130435
    • Flags: construct write read
  • Frequency: The Frequency (default is 2.3 GHz).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2.3e+09
    • Flags: construct write read
  • BSAntennaHeight: BS Antenna Height (default is 50m).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 50
    • Flags: construct write read
  • SSAntennaHeight: SS Antenna Height (default is 3m).
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 3
    • Flags: construct write read
  • MinDistance: The distance under which the propagation model refuses to give results (m)
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.
