ns3::Dcf Class Reference

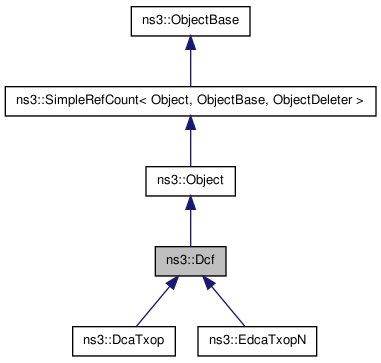

Inheritance diagram for ns3::Dcf:

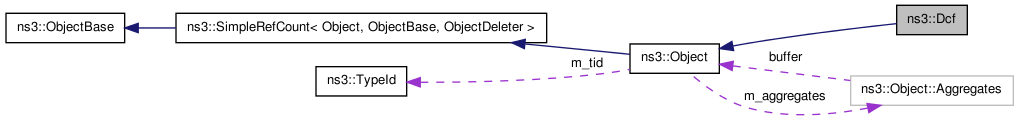

Collaboration diagram for ns3::Dcf:

List of all members.

Public Member Functions
virtual void	SetMinCw (uint32_t minCw)=0
virtual void	SetMaxCw (uint32_t maxCw)=0
virtual void	SetAifsn (uint32_t aifsn)=0
virtual uint32_t	GetMinCw (void) const =0
virtual uint32_t	GetMaxCw (void) const =0
virtual uint32_t	GetAifsn (void) const =0
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Dcf.

---

Member Function Documentation

static TypeId ns3::Dcf::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::Dcf.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Dcf
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Dcf

Attributes defined for this type:

• MinCw: The minimum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 15
  • Flags: construct write read
• MaxCw: The maximum value of the contention window.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1023
  • Flags: construct write read
• Aifsn: The AIFSN: the default value conforms to simple DCA.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::DcaTxop, and ns3::EdcaTxopN.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/dcf.h
• doc/introspected-doxygen.h
