ns3::Dot11sStack Class Reference

Helper class to allow easy installation of 802.11s stack. More...

#include <dot11s-installer.h>

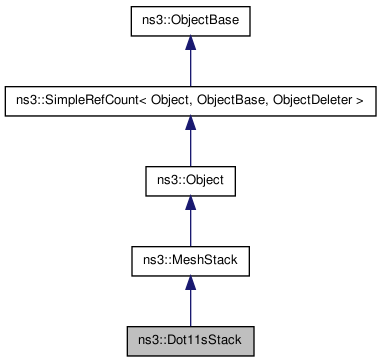

Inheritance diagram for ns3::Dot11sStack:

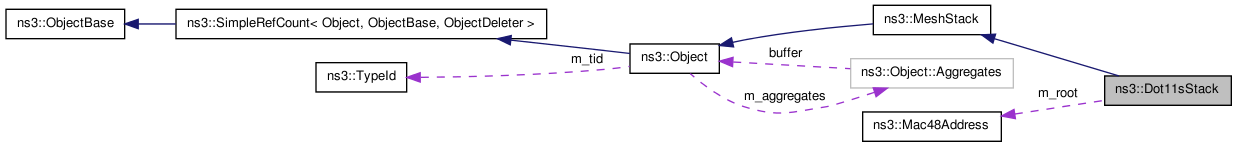

Collaboration diagram for ns3::Dot11sStack:

List of all members.

Public Member Functions
	Dot11sStack ()
	~Dot11sStack ()
void	DoDispose ()
bool	InstallStack (Ptr< MeshPointDevice > mp)
	Install an 802.11s stack.
void	Report (const Ptr< MeshPointDevice > mp, std::ostream &)
	Iterate through the referenced devices and protocols and print their statistics.
void	ResetStats (const Ptr< MeshPointDevice > mp)
	Reset the statistics on the referenced devices and protocols.
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::Dot11sStack.

---

Detailed Description

Helper class to allow easy installation of 802.11s stack.

---

Constructor & Destructor Documentation

ns3::Dot11sStack::Dot11sStack

(

)

Create a Dot11sStack() installer helper.

ns3::Dot11sStack::~Dot11sStack

(

)

Destroy a Dot11sStack() installer helper.

---

Member Function Documentation

void ns3::Dot11sStack::DoDispose

(

)

[virtual]

Break any reference cycles in the installer helper. Required for ns-3 Object support.

Reimplemented from ns3::Object.

static TypeId ns3::Dot11sStack::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::Dot11sStack.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Dot11sStack
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Dot11sStack

Attributes defined for this type:

• Root: The MAC address of root mesh point.
  • Set with class: Mac48AddressValue
  • Underlying type: Mac48Address
  • Initial value: ff:ff:ff:ff:ff:ff
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

bool ns3::Dot11sStack::InstallStack

(

Ptr< MeshPointDevice >

mp

)

[virtual]

Install an 802.11s stack.

Parameters:

mp

The Ptr<MeshPointDevice> to use when setting up the PMP.

Implements ns3::MeshStack.

---

The documentation for this class was generated from the following files:

• src/helper/dot11s-installer.h
• doc/introspected-doxygen.h
