ns3::Ipv4EndPoint Class Reference

A representation of an internet endpoint/connection. More...

#include <ipv4-end-point.h>

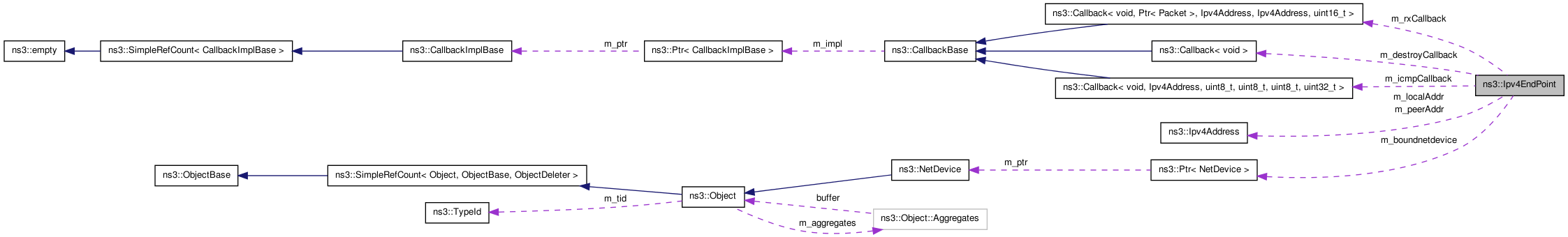

Collaboration diagram for ns3::Ipv4EndPoint:

List of all members.

Public Member Functions
	Ipv4EndPoint (Ipv4Address address, uint16_t port)
Ipv4Address	GetLocalAddress (void)
void	SetLocalAddress (Ipv4Address address)
uint16_t	GetLocalPort (void)
Ipv4Address	GetPeerAddress (void)
uint16_t	GetPeerPort (void)
void	SetPeer (Ipv4Address address, uint16_t port)
void	BindToNetDevice (Ptr< NetDevice > netdevice)
Ptr< NetDevice >	GetBoundNetDevice (void)
void	SetRxCallback (Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint16_t > callback)
void	SetIcmpCallback (Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t > callback)
void	SetDestroyCallback (Callback< void > callback)
void	ForwardUp (Ptr< Packet > p, Ipv4Address saddr, Ipv4Address daddr, uint16_t sport)
void	ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

---

Detailed Description

A representation of an internet endpoint/connection.

This class provides an internet four-tuple (source and destination ports and addresses). These are used in the ns3::Ipv4EndPointDemux as targets of lookups. The class also has a callback for notification to higher layers that a packet from a lower layer was received. In the ns3 internet-stack, these notifications are automatically registered to be received by the corresponding socket.

---

The documentation for this class was generated from the following file:

• src/internet-stack/ipv4-end-point.h
