An IPv6 end point, four tuples identification. More...
#include <ipv6-end-point.h>

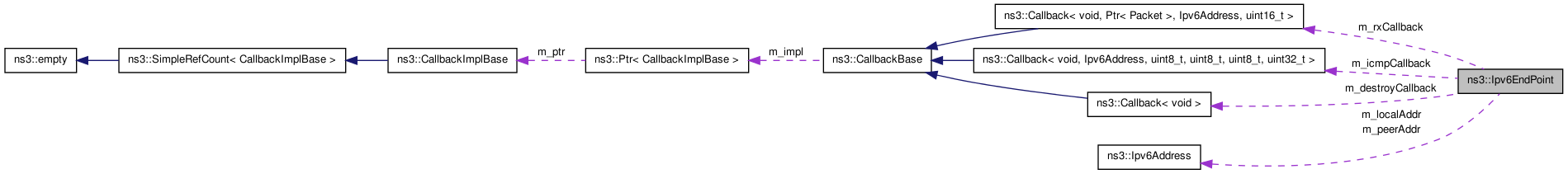

Collaboration diagram for ns3::Ipv6EndPoint:
Public Member Functions | |
| Ipv6EndPoint (Ipv6Address addr, uint16_t port) | |
| Constructor. | |
| ~Ipv6EndPoint () | |
| Destructor. | |
| Ipv6Address | GetLocalAddress () |
| Get the local address. | |
| void | SetLocalAddress (Ipv6Address addr) |
| Set the local address. | |
| uint16_t | GetLocalPort () |
| Get the local port. | |
| void | SetLocalPort (uint16_t port) |
| Set the local port. | |
| Ipv6Address | GetPeerAddress () |
| Get the peer address. | |
| uint16_t | GetPeerPort () |
| Get the peer port. | |
| void | SetPeer (Ipv6Address addr, uint16_t port) |
| Set the peer informations (address and port). | |
| void | SetRxCallback (Callback< void, Ptr< Packet >, Ipv6Address, uint16_t > callback) |
| Set the reception callback. | |
| void | SetIcmpCallback (Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback) |
| Set the ICMP callback. | |
| void | SetDestroyCallback (Callback< void > callback) |
| Set the default destroy callback. | |
| void | ForwardUp (Ptr< Packet > p, Ipv6Address addr, uint16_t port) |
| Forward the packet to the upper level. | |
| void | ForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info) |
| Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception. | |
Detailed Description
An IPv6 end point, four tuples identification.
Constructor & Destructor Documentation
| ns3::Ipv6EndPoint::Ipv6EndPoint | ( | Ipv6Address | addr, | |
| uint16_t | port | |||
| ) |
Constructor.
- Parameters:
-
addr the IPv6 address port the port
Member Function Documentation
| void ns3::Ipv6EndPoint::ForwardIcmp | ( | Ipv6Address | src, | |
| uint8_t | ttl, | |||
| uint8_t | type, | |||
| uint8_t | code, | |||
| uint32_t | info | |||
| ) |
Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception.
- Parameters:
-
src source IPv6 address ttl time-to-live type ICMPv6 type code ICMPv6 code info ICMPv6 info
| void ns3::Ipv6EndPoint::ForwardUp | ( | Ptr< Packet > | p, | |
| Ipv6Address | addr, | |||
| uint16_t | port | |||
| ) |
Forward the packet to the upper level.
- Parameters:
-
p the packet addr source address port source port
| Ipv6Address ns3::Ipv6EndPoint::GetLocalAddress | ( | ) |
Get the local address.
- Returns:
- the local address
| uint16_t ns3::Ipv6EndPoint::GetLocalPort | ( | ) |
Get the local port.
- Returns:
- the local port
| Ipv6Address ns3::Ipv6EndPoint::GetPeerAddress | ( | ) |
Get the peer address.
- Returns:
- the peer address
| uint16_t ns3::Ipv6EndPoint::GetPeerPort | ( | ) |
Get the peer port.
- Returns:
- the peer port
| void ns3::Ipv6EndPoint::SetDestroyCallback | ( | Callback< void > | callback | ) |
Set the default destroy callback.
- Parameters:
-
callback callback function
| void ns3::Ipv6EndPoint::SetIcmpCallback | ( | Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > | callback | ) |
Set the ICMP callback.
- Parameters:
-
callback callback function
| void ns3::Ipv6EndPoint::SetLocalAddress | ( | Ipv6Address | addr | ) |
Set the local address.
- Parameters:
-
addr the address to set
| void ns3::Ipv6EndPoint::SetLocalPort | ( | uint16_t | port | ) |
Set the local port.
- Parameters:
-
port the port to set
| void ns3::Ipv6EndPoint::SetPeer | ( | Ipv6Address | addr, | |
| uint16_t | port | |||
| ) |
Set the peer informations (address and port).
- Parameters:
-
addr peer address port peer port
| void ns3::Ipv6EndPoint::SetRxCallback | ( | Callback< void, Ptr< Packet >, Ipv6Address, uint16_t > | callback | ) |
Set the reception callback.
- Parameters:
-
callback callback function
The documentation for this class was generated from the following file:
- src/internet-stack/ipv6-end-point.h
