ns3::Ipv6L4Protocol Class Reference

IPv6 L4 protocol abstract class. More...

#include <ipv6-l4-protocol.h>

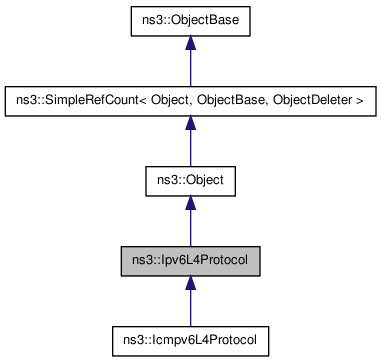

Inheritance diagram for ns3::Ipv6L4Protocol:

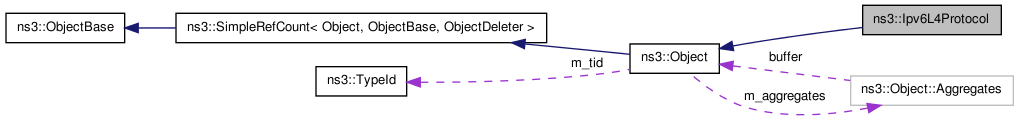

Collaboration diagram for ns3::Ipv6L4Protocol:

List of all members.

Public Types
enum	RxStatus_e { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_UNREACH }
	Status of receive. More...
Public Member Functions
virtual	~Ipv6L4Protocol ()
	Destructor.
virtual int	GetProtocolNumber () const =0
	Get the protocol number.
virtual enum RxStatus_e	Receive (Ptr< Packet > p, Ipv6Address const &src, Ipv6Address const &dst, Ptr< Ipv6Interface > incomingInterface)=0
	Receive method.
virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t *payload)
	ICMPv6 receive method.
Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type identifier.

---

Detailed Description

IPv6 L4 protocol abstract class.

---

Member Enumeration Documentation

enum ns3::Ipv6L4Protocol::RxStatus_e

Status of receive.

Enumerator:

RX_OK	Receive OK
RX_CSUM_FAILED	Checksum of layer 4 protocol failed
RX_ENDPOINT_UNREACH	Destination unreachable

---

Member Function Documentation

virtual int ns3::Ipv6L4Protocol::GetProtocolNumber

(

)

const [pure virtual]

Get the protocol number.

Returns:

protocol number

Implemented in ns3::Icmpv6L4Protocol.

static TypeId ns3::Ipv6L4Protocol::GetTypeId

(

void

)

[static]

Get the type identifier.

This method returns the TypeId associated to ns3::Ipv6L4Protocol.

Returns:

type identifier

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6L4Protocol
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6L4Protocol

Attributes defined for this type:

• ProtocolNumber: The IPv6 protocol number.
  • Set with class: ns3::UintegerValue
  • Underlying type: int32_t 18446744071562067968:2147483647
  • Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::Icmpv6L4Protocol.

virtual enum RxStatus_e ns3::Ipv6L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv6Address const &	src,
		Ipv6Address const &	dst,
		Ptr< Ipv6Interface >	incomingInterface
	)			[pure virtual]

Receive method.

Called from lower-level layers to send the packet up in the stack.

Parameters:

	p	packet to forward up
	src	source address of packet received
	dst	address of packet received
	incomingInterface	the Ipv6Interface on which the packet arrived

Returns:

status (OK, destination unreachable or checksum failed)

Implemented in ns3::Icmpv6L4Protocol.

virtual void ns3::Ipv6L4Protocol::ReceiveIcmp	(	Ipv6Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo,
		Ipv6Address	payloadSource,
		Ipv6Address	payloadDestination,
		const uint8_t *	payload
	)			[virtual]

ICMPv6 receive method.

Parameters:

	icmpSource	the source address of the ICMPv6 message
	icmpTtl	the ttl of the ICMPv6 message
	icmpType	the 'type' field of the ICMPv6 message
	icmpCode	the 'code' field of the ICMPv6 message
	icmpInfo	extra information dependent on the ICMPv6 message generated by Icmpv6L4Protocol
	payloadSource	the source address of the packet which triggered the ICMPv6 message
	payloadDestination	the destination address of the packet which triggered the ICMPv6 message.
	payload	the first 8 bytes of the UDP header of the packet which triggered the ICMPv6 message.

---

The documentation for this class was generated from the following files:

• src/internet-stack/ipv6-l4-protocol.h
• doc/introspected-doxygen.h
