IPv6 raw socket. More...

#include <ipv6-raw-socket-impl.h>

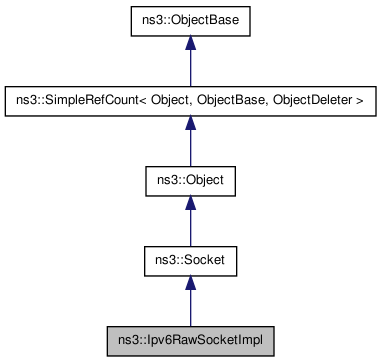

Inheritance diagram for ns3::Ipv6RawSocketImpl:

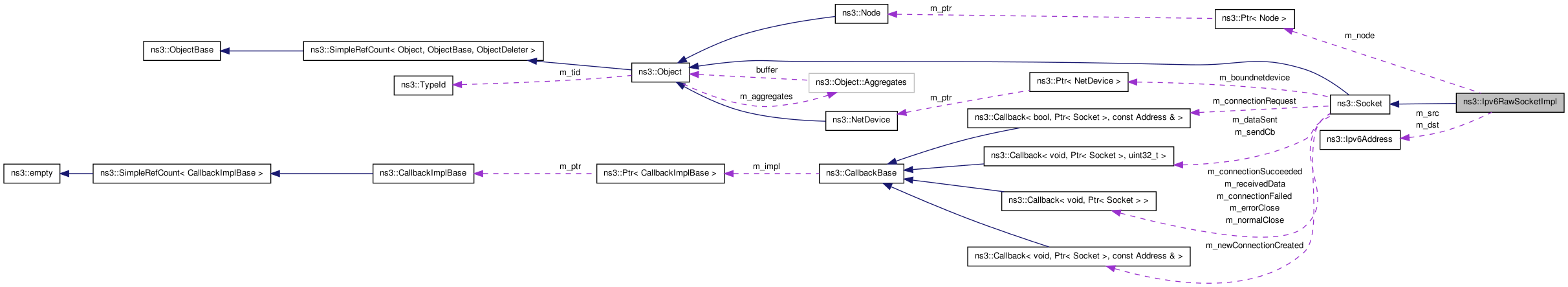

Collaboration diagram for ns3::Ipv6RawSocketImpl:

Classes
struct	Data
	IPv6 raw data and additionnal information.
Public Member Functions
	Ipv6RawSocketImpl ()
	Constructor.
virtual	~Ipv6RawSocketImpl ()
	Destructor.
void	SetNode (Ptr< Node > node)
	Set the node.
virtual enum Socket::SocketErrno	GetErrno () const
	Get last error number.
virtual Ptr< Node >	GetNode () const
	Get node.
virtual int	Bind (const Address &address)
	Bind the socket to address.
virtual int	Bind ()
	Bind socket.
virtual int	GetSockName (Address &address) const
	Get socket address.
virtual int	Close ()
	Close the socket.
virtual int	ShutdownSend ()
	Shutdown send capability.
virtual int	ShutdownRecv ()
	Shutdown receive capability.
virtual int	Connect (const Address &address)
	Connect to address.
virtual int	Listen ()
	Listen.
virtual uint32_t	GetTxAvailable () const
	Get TX size available.
virtual uint32_t	GetRxAvailable () const
	Get RX size available.
virtual int	Send (Ptr< Packet > p, uint32_t flags)
	Send a packet.
virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)
	Send a packet.
virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)
	Receive packet.
virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)
	Receive packet.
void	SetProtocol (uint16_t protocol)
	Set protocol field.
bool	ForwardUp (Ptr< const Packet > p, Ipv6Header hdr, Ptr< NetDevice > device)
	Forward up to receive method.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID of this class.

Detailed Description

IPv6 raw socket.

Member Function Documentation

virtual int ns3::Ipv6RawSocketImpl::Bind ( const Address & address ) [virtual]

Bind the socket to address.

Parameters:

address

bind to this address

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::Bind ( ) [virtual]

Bind socket.

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::Close ( ) [virtual]

Close the socket.

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::Connect ( const Address & address ) [virtual]

Connect to address.

Parameters:

address

address

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

bool ns3::Ipv6RawSocketImpl::ForwardUp	(	Ptr< const Packet >	p,
		Ipv6Header	hdr,
		Ptr< NetDevice >	device
	)

Forward up to receive method.

Parameters:

	p	packet
	hdr	IPv6 header
	device	device

Returns:: true if forwarded, false otherwise

virtual enum Socket::SocketErrno ns3::Ipv6RawSocketImpl::GetErrno ( ) const [virtual]

Get last error number.

Returns:: error number

Implements ns3::Socket.

virtual Ptr<Node> ns3::Ipv6RawSocketImpl::GetNode ( ) const [virtual]

Get node.

Returns:: node associated with this raw socket.

Implements ns3::Socket.

virtual uint32_t ns3::Ipv6RawSocketImpl::GetRxAvailable ( ) const [virtual]

Get RX size available.

Returns:: RX size

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::GetSockName ( Address & address ) const [virtual]

Get socket address.

Parameters:

address

socket address if method success

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual uint32_t ns3::Ipv6RawSocketImpl::GetTxAvailable ( ) const [virtual]

Get TX size available.

Returns:: TX size

Implements ns3::Socket.

static TypeId ns3::Ipv6RawSocketImpl::GetTypeId ( void ) [static]

Get the type ID of this class.

This method returns the TypeId associated to ns3::Ipv6RawSocketImpl.

Returns:: type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv6RawSocketImpl
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv6RawSocketImpl

Attributes defined for this type:

Protocol: Protocol number to match.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
IcmpFilter: Any ICMPv6 header whose type field matches a bit in this filter is dropped.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

virtual int ns3::Ipv6RawSocketImpl::Listen ( ) [virtual]

Listen.

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual Ptr<Packet> ns3::Ipv6RawSocketImpl::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)			`[virtual]`

Receive packet.

Parameters:

	maxSize	maximum size
	flags	additionnal flags

Returns:: packet received

Implements ns3::Socket.

virtual Ptr<Packet> ns3::Ipv6RawSocketImpl::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)			`[virtual]`

Receive packet.

Parameters:

	maxSize	maximum size
	flags	additionnal flags
	fromAddress	source address

Returns:: packet received

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)			`[virtual]`

Send a packet.

Parameters:

	p	packet to send
	flags	additionnal flags

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	toAddress
	)			`[virtual]`

Send a packet.

Parameters:

	p	packet to send
	flags	additionnal flags
	toAddress	destination address

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

void ns3::Ipv6RawSocketImpl::SetNode ( Ptr< Node > node )

Set the node.

Parameters:

node

node to set

void ns3::Ipv6RawSocketImpl::SetProtocol ( uint16_t protocol )

Set protocol field.

Parameters:

protocol

protocol to set

virtual int ns3::Ipv6RawSocketImpl::ShutdownRecv ( ) [virtual]

Shutdown receive capability.

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

virtual int ns3::Ipv6RawSocketImpl::ShutdownSend ( ) [virtual]

Shutdown send capability.

Returns:: 0 if success, -1 otherwise

Implements ns3::Socket.

The documentation for this class was generated from the following files:

src/internet-stack/ipv6-raw-socket-impl.h
doc/introspected-doxygen.h
