Static routing protocol for IP version 6 stack. More...

#include <ipv6-static-routing.h>

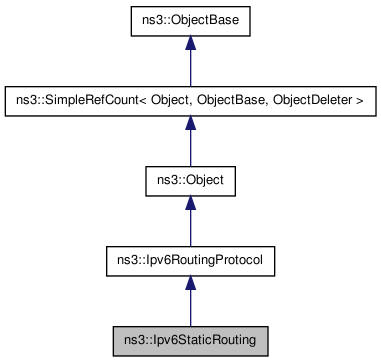

Inheritance diagram for ns3::Ipv6StaticRouting:

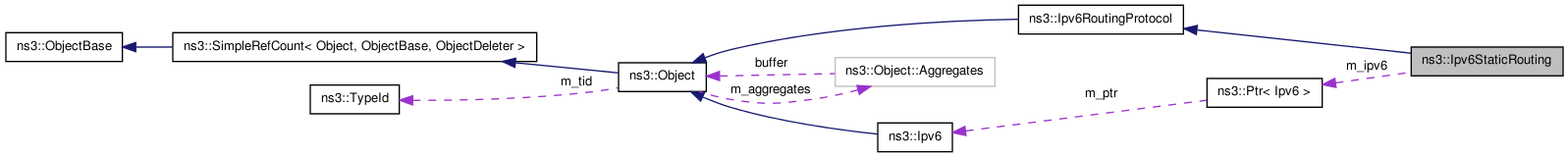

Collaboration diagram for ns3::Ipv6StaticRouting:

Public Member Functions
	Ipv6StaticRouting ()
	Constructor.
virtual	~Ipv6StaticRouting ()
	Destructor.
void	AddHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
	Add route to host.
void	AddHostRouteTo (Ipv6Address dest, uint32_t interface, uint32_t metric=0)
	Add route to host.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, uint32_t metric=0)
	Add route to network.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse, uint32_t metric=0)
	Add route to network.
void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface, uint32_t metric=0)
	Add route to network.
void	SetDefaultRoute (Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address("::"), uint32_t metric=0)
	Set the default route.
uint32_t	GetNRoutes ()
	Get the number or entries in the routing table.
Ipv6RoutingTableEntry	GetDefaultRoute ()
	Get the default route.
Ipv6RoutingTableEntry	GetRoute (uint32_t i)
	Get a specified route.
uint32_t	GetMetric (uint32_t index)
	Get a metric for route from the static unicast routing table.
void	RemoveRoute (uint32_t i)
	Remove a route from the routing table.
void	RemoveRoute (Ipv6Address network, Ipv6Prefix prefix, uint32_t ifIndex, Ipv6Address prefixToUse)
	Remove a route from the routing table.
void	AddMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Add a multicast route for a given multicast source and group.
void	SetDefaultMulticastRoute (uint32_t outputInterface)
	Set the default multicast route.
uint32_t	GetNMulticastRoutes () const
	Get the number of entries in the multicast routing table.
Ipv6MulticastRoutingTableEntry	GetMulticastRoute (uint32_t i) const
	Get the specified multicast route.
bool	RemoveMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface)
	Remove a static multicast route.
void	RemoveMulticastRoute (uint32_t i)
	Remove a multicast route.
bool	HasNetworkDest (Ipv6Address dest, uint32_t interfaceIndex)
	If the destination is already present in network destination list.
virtual Ptr< Ipv6Route >	RouteOutput (Ptr< Packet > p, const Ipv6Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet.
virtual bool	RouteInput (Ptr< const Packet > p, const Ipv6Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered).
virtual void	NotifyInterfaceUp (uint32_t interface)
	Notify when specified interface goes UP.
virtual void	NotifyInterfaceDown (uint32_t interface)
	Notify when specified interface goes DOWN.
virtual void	NotifyAddAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address.
virtual void	NotifyRemoveAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address.
virtual void	NotifyAddRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify a new route.
virtual void	NotifyRemoveRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify route removing.
virtual void	SetIpv6 (Ptr< Ipv6 > ipv6)
	Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol.
Static Public Member Functions
static TypeId	GetTypeId ()
	The interface Id associated with this class.
Protected Member Functions
void	DoDispose ()
	Dispose this object.

Detailed Description

Static routing protocol for IP version 6 stack.

See also:: Ipv6RoutingProtocol; Ipv6ListRouting

Member Function Documentation

void ns3::Ipv6StaticRouting::AddHostRouteTo	(	Ipv6Address	dest,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address("::")`,
		uint32_t	metric = `0`
	)

Add route to host.

Parameters:

	dest	destination address
	nextHop	next hop address to route the packet
	interface	interface index
	prefixToUse	prefix that should be used for source address for this destination
	metric	metric of route in case of multiple routes to same destination

void ns3::Ipv6StaticRouting::AddHostRouteTo	(	Ipv6Address	dest,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to host.

Parameters:

	dest	destination address.
	interface	interface index
	metric	metric of route in case of multiple routes to same destination

void ns3::Ipv6StaticRouting::AddMulticastRoute	(	Ipv6Address	origin,
		Ipv6Address	group,
		uint32_t	inputInterface,
		std::vector< uint32_t >	outputInterfaces
	)

Add a multicast route for a given multicast source and group.

Parameters:

	origin	IPv6 address of the source
	group	the multicast group address.
	inputInterface	the interface index
	outputInterfaces	the list of output interface indices over which the packet should be sent (excluding the inputInterface).

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters:

	network	network address
	networkPrefix	network prefix*
	nextHop	next hop address to route the packet
	interface	interface index
	metric	metric of route in case of multiple routes to same destination

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters:

	network	network address
	networkPrefix	network prefix*
	nextHop	next hop address to route the packet
	interface	interface index
	prefixToUse	prefix that should be used for source address for this destination
	metric	metric of route in case of multiple routes to same destination

void ns3::Ipv6StaticRouting::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface,
		uint32_t	metric = `0`
	)

Add route to network.

Parameters:

	network	network address
	networkPrefix	network prefix
	interface	interface index
	metric	metric of route in case of multiple routes to same destination

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetDefaultRoute ( )

Get the default route.

If multiple default routes exist, the one with lowest metric is returned.

Returns:: default Ipv6Route

uint32_t ns3::Ipv6StaticRouting::GetMetric ( uint32_t index )

Get a metric for route from the static unicast routing table.

Parameters:

index

The index (into the routing table) of the route to retrieve.

Returns:: If route is set, the metric is returned. If not, an infinity metric (0xffffffff) is returned

Ipv6MulticastRoutingTableEntry ns3::Ipv6StaticRouting::GetMulticastRoute ( uint32_t i ) const

Get the specified multicast route.

Parameters:

i

index

Returns:: the route whose index is i

uint32_t ns3::Ipv6StaticRouting::GetNMulticastRoutes ( ) const

Get the number of entries in the multicast routing table.

Returns:: number of entries

uint32_t ns3::Ipv6StaticRouting::GetNRoutes ( )

Get the number or entries in the routing table.

Returns:: number of entries

Ipv6RoutingTableEntry ns3::Ipv6StaticRouting::GetRoute ( uint32_t i )

Get a specified route.

Parameters:

i

index

Returns:: the route whose index is i

static TypeId ns3::Ipv6StaticRouting::GetTypeId ( ) [static]

The interface Id associated with this class.

Returns:: type identifier

Reimplemented from ns3::Ipv6RoutingProtocol.

bool ns3::Ipv6StaticRouting::HasNetworkDest	(	Ipv6Address	dest,
		uint32_t	interfaceIndex
	)

If the destination is already present in network destination list.

Parameters:

	dest	destination address
	interfaceIndex	interface index

Returns:: true if dest is already in list, false otherwise

virtual void ns3::Ipv6StaticRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)			`[virtual]`

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Parameters:

	interface	the index of the interface we are being notified about
	address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

virtual void ns3::Ipv6StaticRouting::NotifyAddRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)			`[virtual]`

Notify a new route.

Typically this is used to add another route from IPv6 stack (i.e. ICMPv6 redirect case, ...).

Parameters:

	dst	destination address
	mask	destination mask
	nextHop	nextHop for this destination
	interface	output interface
	prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

virtual void ns3::Ipv6StaticRouting::NotifyInterfaceDown ( uint32_t interface ) [virtual]

Notify when specified interface goes DOWN.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters:

interface

the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

virtual void ns3::Ipv6StaticRouting::NotifyInterfaceUp ( uint32_t interface ) [virtual]

Notify when specified interface goes UP.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters:

interface

the index of the interface we are being notified about

Implements ns3::Ipv6RoutingProtocol.

virtual void ns3::Ipv6StaticRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)			`[virtual]`

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Parameters:

	interface	the index of the interface we are being notified about
	address	a new address being added to an interface

Implements ns3::Ipv6RoutingProtocol.

virtual void ns3::Ipv6StaticRouting::NotifyRemoveRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)			`[virtual]`

Notify route removing.

Parameters:

	dst	destination address
	mask	destination mask
	nextHop	nextHop for this destination
	interface	output interface
	prefixToUse	prefix to use as source with this route

Implements ns3::Ipv6RoutingProtocol.

void ns3::Ipv6StaticRouting::RemoveMulticastRoute ( uint32_t i )

Remove a multicast route.

Parameters:

i

index of route to remove

bool ns3::Ipv6StaticRouting::RemoveMulticastRoute	(	Ipv6Address	origin,
		Ipv6Address	group,
		uint32_t	inputInterface
	)

Remove a static multicast route.

Parameters:

	origin	IPv6 address of the source
	group	the multicast group address.
	inputInterface	the input interface index

void ns3::Ipv6StaticRouting::RemoveRoute ( uint32_t i )

Remove a route from the routing table.

Parameters:

i

index

void ns3::Ipv6StaticRouting::RemoveRoute	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		uint32_t	ifIndex,
		Ipv6Address	prefixToUse
	)

Remove a route from the routing table.

Parameters:

	network	IPv6 network
	prefix	IPv6 prefix
	ifIndex	interface index
	prefixToUse	IPv6 prefix to use with this route (multihoming)

virtual bool ns3::Ipv6StaticRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv6Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)			`[virtual]`

Route an input packet (to be forwarded or locally delivered).

This lookup is used in the forwarding process. The packet is handed over to the Ipv6RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input (). There are four valid outcomes, and a matching callbacks to handle each.

Parameters:

	p	received packet
	header	input parameter used to form a search key for a route
	idev	Pointer to ingress network device
	ucb	Callback for the case in which the packet is to be forwarded as unicast
	mcb	Callback for the case in which the packet is to be forwarded as multicast
	lcb	Callback for the case in which the packet is to be locally delivered
	ecb	Callback to call if there is an error in forwarding

Returns:: true if the Ipv6RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv6RoutingProtocol.

virtual Ptr<Ipv6Route> ns3::Ipv6StaticRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)			`[virtual]`

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output ()

Parameters:

	p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
	header	input parameter (used to form key to search for the route)
	oif	Output interface device. May be zero, or may be bound via socket options to a particular output interface.
	sockerr	Output parameter; socket errno

Returns:: a code that indicates what happened in the lookup

Implements ns3::Ipv6RoutingProtocol.

void ns3::Ipv6StaticRouting::SetDefaultMulticastRoute ( uint32_t outputInterface )

Set the default multicast route.

Parameters:

outputInterface

default output interface

void ns3::Ipv6StaticRouting::SetDefaultRoute	(	Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address("::")`,
		uint32_t	metric = `0`
	)

Set the default route.

Parameters:

	nextHop	next hop address to route the packet
	interface	interface index
	prefixToUse	prefix to use (i.e for multihoming)
	metric	metric of route in case of multiple routes to same destination

virtual void ns3::Ipv6StaticRouting::SetIpv6 ( Ptr< Ipv6 > ipv6 ) [virtual]

Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol.

Parameters:

ipv6

the ipv6 object this routing protocol is being associated with

Implements ns3::Ipv6RoutingProtocol.

The documentation for this class was generated from the following file:

src/routing/static-routing/ipv6-static-routing.h

ns3::Ipv6StaticRouting Class Reference [Ipv6StaticRouting]

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Function Documentation

ns3::Ipv6StaticRouting Class Reference
[Ipv6StaticRouting]
