Public Member Functions | Static Public Member Functions

ns3::ListScheduler Class Reference
[Scheduler]

a std::list event scheduler More...

#include <list-scheduler.h>

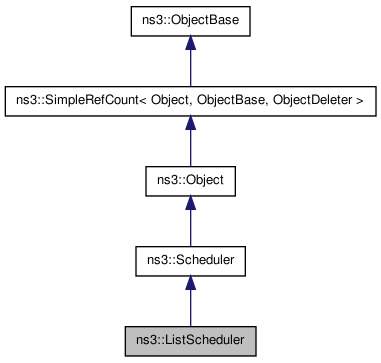

Inheritance diagram for ns3::ListScheduler:
Inheritance graph
[legend]

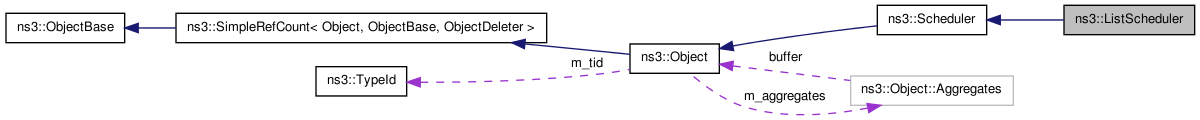

Collaboration diagram for ns3::ListScheduler:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void Insert (const Event &ev)
virtual bool IsEmpty (void) const
virtual Event PeekNext (void) const
virtual Event RemoveNext (void)
virtual void Remove (const Event &ev)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::ListScheduler.

Detailed Description

a std::list event scheduler

This class implements an event scheduler using an std::list data structure, that is, a double linked-list.

Member Function Documentation

static TypeId ns3::ListScheduler::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::ListScheduler.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Scheduler/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ListScheduler
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Scheduler/$ns3::ListScheduler

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Scheduler.

virtual void ns3::ListScheduler::Insert ( const Event &  ev  )  [virtual]
Parameters:
ev event to store in the event list

Implements ns3::Scheduler.

virtual bool ns3::ListScheduler::IsEmpty ( void   )  const [virtual]
Returns:
true if the event list is empty and false otherwise.

Implements ns3::Scheduler.

virtual Event ns3::ListScheduler::PeekNext ( void   )  const [virtual]
Returns:
a pointer to the next earliest event. The caller takes ownership of the returned pointer.

This method cannot be invoked if the list is empty.

Implements ns3::Scheduler.

virtual void ns3::ListScheduler::Remove ( const Event &  ev  )  [virtual]
Parameters:
ev the event to remove

This methods cannot be invoked if the list is empty.

Implements ns3::Scheduler.

virtual Event ns3::ListScheduler::RemoveNext ( void   )  [virtual]

This method cannot be invoked if the list is empty. Remove the next earliest event from the event list.

Implements ns3::Scheduler.

The documentation for this class was generated from the following files:
