ns3::MsduStandardAggregator Class Reference

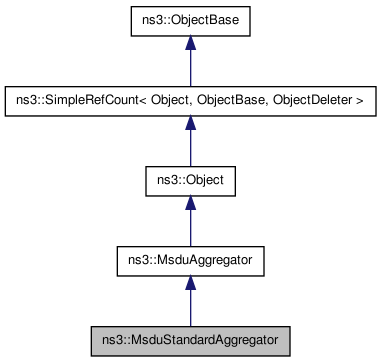

Inheritance diagram for ns3::MsduStandardAggregator:

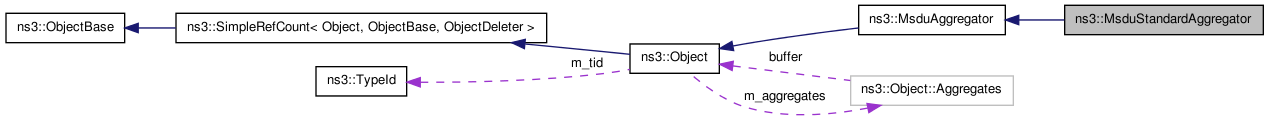

Collaboration diagram for ns3::MsduStandardAggregator:

List of all members.

Public Member Functions
virtual bool	Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MsduStandardAggregator.

---

Member Function Documentation

virtual bool ns3::MsduStandardAggregator::Aggregate	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket,
		Mac48Address	src,
		Mac48Address	dest
	)			[virtual]

Parameters:

	packet	Packet we have to insert into aggregatedPacket.
	aggregatedPacket	Packet that will contain packet, if aggregation is possible,
	src	Source address of packet.
	dest	Destination address of packet.

This method performs an MSDU aggregation. Returns true if packet can be aggregated to aggregatedPacket, false otherwise.

Implements ns3::MsduAggregator.

static TypeId ns3::MsduStandardAggregator::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::MsduStandardAggregator.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MsduAggregator/$ns3::MsduStandardAggregator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MsduStandardAggregator

Attributes defined for this type:

• MaxAmsduSize: Max length in byte of an A-MSDU
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7935
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::MsduAggregator.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/msdu-standard-aggregator.h
• doc/introspected-doxygen.h
