Neighbor-index data structure for nix-vector routing. More...

#include <nix-vector.h>

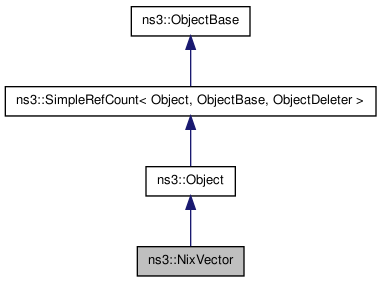

Inheritance diagram for ns3::NixVector:

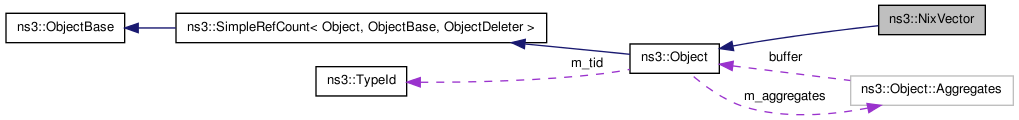

Collaboration diagram for ns3::NixVector:

Public Member Functions
	NixVector (const NixVector &o)
Ptr< NixVector >	Copy (void) const
NixVector &	operator= (const NixVector &o)
void	AddNeighborIndex (uint32_t newBits, uint32_t numberOfBits)
uint32_t	ExtractNeighborIndex (uint32_t numberOfBits)
uint32_t	GetRemainingBits (void)
uint32_t	GetSerializedSize (void) const
uint32_t	Serialize (uint32_t *buffer, uint32_t maxSize) const
uint32_t	Deserialize (uint32_t *buffer, uint32_t size)
uint32_t	BitCount (uint32_t numberOfNeighbors) const
void	DumpNixVector (std::ostream &os) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::NixVector.
Friends
std::ostream &	operator<< (std::ostream &outs, const NixVector &nix)

Detailed Description

Neighbor-index data structure for nix-vector routing.

This data structure holds a vector of "neighbor-indexes" for a simulation specific routing protocol, nix-vector routing. Theses neighbor-indexes correspond to the net-device which a node should use to route a packet. A nix-vector is built (or fetched from a cache) on-demand. The nix-vector is transmitted with the packet, and along each hop of the route, the current node extracts the appropriate neighbor-index and routes the packet.

Member Function Documentation

void ns3::NixVector::AddNeighborIndex	(	uint32_t	newBits,
		uint32_t	numberOfBits
	)

Parameters:

	newBits	the neighbor-index to be added to the vector
	numberOfBits	the number of bits that newBits contains

Adds the neighbor index to the vector using a fair amount of bit manipulation to pack everything in efficiently.

Note: This function assumes that the number of bits to be added is always less than or equal to 32, ie., you can only span one entry of a nix-vector at a time. This is reasonable, since 32 bits gives you 2^32 possible neighbors.

uint32_t ns3::NixVector::BitCount ( uint32_t numberOfNeighbors ) const

Returns:: number of bits of numberOfNeighbors

Parameters:

numberOfNeighbors

the total number of neighbors

This function is used to determine the number of bits of numberOfNeighbors so that this value can be passed in to AddNeighborIndex or ExtractNeighborIndex.

uint32_t ns3::NixVector::Deserialize	(	uint32_t *	buffer,
		uint32_t	size
	)

Returns:: zero if a complete nix-vector is not deserialized

Parameters:

	buffer	points to buffer for deserialization
	size	number of bytes to deserialize

The raw character buffer containing all the nix-vector information is deserialized into this nix-vector.

uint32_t ns3::NixVector::ExtractNeighborIndex ( uint32_t numberOfBits )

Returns:: the neighbor index

Parameters:

numberOfBits

the number of bits to extract from the vector

Extracts the number of bits specified from the vector and returns the value extracted

Note: This function assumes that the number of bits to be extracted is always less than or equal to 32, ie., you can only span one entry of a nix-vector at a time. This is reasonable, since 32 bits gives you 2^32 possible neighbors.

uint32_t ns3::NixVector::GetRemainingBits ( void )

Returns:: number of bits remaining in the nix-vector (ie m_total - m_used)

uint32_t ns3::NixVector::GetSerializedSize ( void ) const

Returns:: the number of bytes required for serialization

static TypeId ns3::NixVector::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::NixVector.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::NixVector
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::NixVector

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

uint32_t ns3::NixVector::Serialize	(	uint32_t *	buffer,
		uint32_t	maxSize
	)			const

Returns:: zero if buffer not large enough

Parameters:

	buffer	points to serialization buffer
	maxSize	max number of bytes to write

This nix-vector is serialized into the raw character buffer parameter.

The documentation for this class was generated from the following files:

src/common/nix-vector.h
doc/introspected-doxygen.h
