ns3::Ping6 Class Reference [Ping6]

A ping6 application. More...

#include <ping6.h>

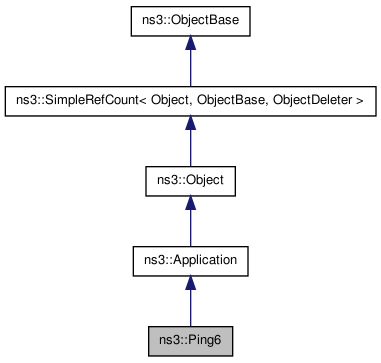

Inheritance diagram for ns3::Ping6:

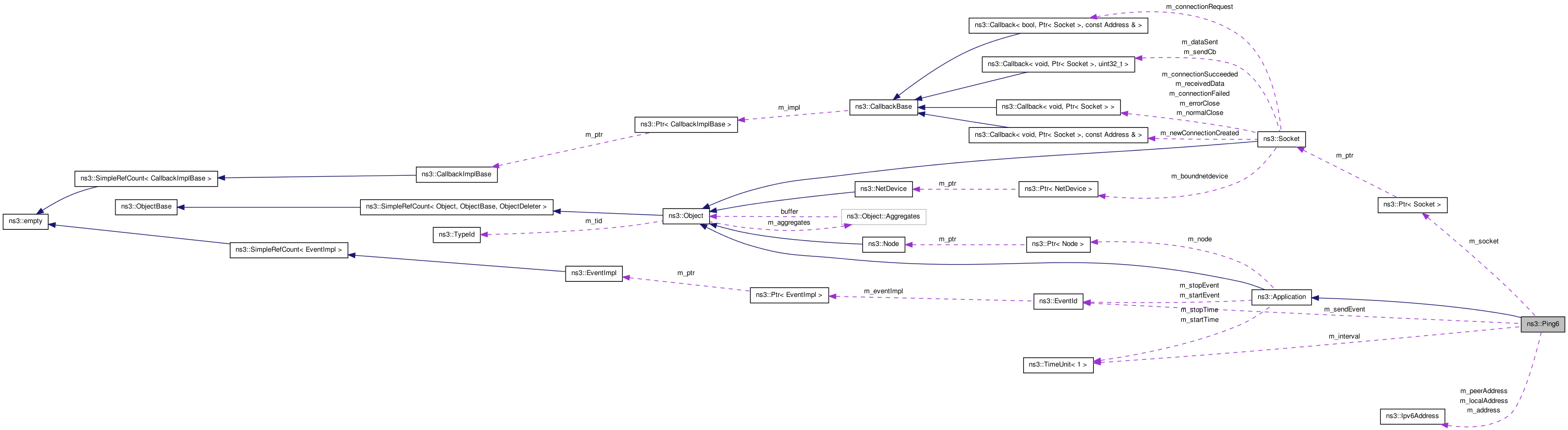

Collaboration diagram for ns3::Ping6:

List of all members.

Public Member Functions
	Ping6 ()
	Constructor.
virtual	~Ping6 ()
	Destructor.
void	SetLocal (Ipv6Address ipv6)
	Set the local address.
void	SetRemote (Ipv6Address ipv6)
	Set the remote peer.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.
void	SetRouters (std::vector< Ipv6Address > routers)
	Set routers for routing type 0 (loose routing).
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose this object;.

---

Detailed Description

A ping6 application.

---

Member Function Documentation

static TypeId ns3::Ping6::GetTypeId

(

void

)

[static]

Get the type ID.

This method returns the TypeId associated to ns3::Ping6.

Returns:

type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/ApplicationList/[i]/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Application/$ns3::Ping6
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ping6

Attributes defined for this type:

• MaxPackets: The maximum number of packets the application will send
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 100
  • Flags: construct write read
• Interval: The time to wait between packets
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 1000000000ns
  • Flags: construct write read
• RemoteIpv6: The Ipv6Address of the outbound packets
  • Set with class: Ipv6AddressValue
  • Underlying type: Ipv6Address
  • Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
  • Flags: construct write read
• LocalIpv6: Local Ipv6Address of the sender
  • Set with class: Ipv6AddressValue
  • Underlying type: Ipv6Address
  • Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
  • Flags: construct write read
• PacketSize: Size of packets generated
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 100
  • Flags: construct write read

Attributes defined in parent class ns3::Application:

• StartTime: Time at which the application will start
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• StopTime: Time at which the application will stop
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

void ns3::Ping6::SetIfIndex

(

uint32_t

ifIndex

)

Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters:

ifIndex

interface index

void ns3::Ping6::SetLocal

(

Ipv6Address

ipv6

)

Set the local address.

Parameters:

ipv6

the local IPv6 address

void ns3::Ping6::SetRemote

(

Ipv6Address

ipv6

)

Set the remote peer.

Parameters:

ipv6

IPv6 address of the peer

void ns3::Ping6::SetRouters

(

std::vector< Ipv6Address >

routers

)

Set routers for routing type 0 (loose routing).

Parameters:

routers

routers addresses

---

The documentation for this class was generated from the following files:

• src/applications/ping6/ping6.h
• doc/introspected-doxygen.h
