create qos MAC layers for a ns3::WifiNetDevice. This class can create MACs of type ns3::QapWifiMac, ns3::QstaWifiMac, and, ns3::QadhocWifiMac More...

#include <qos-wifi-mac-helper.h>

Inheritance diagram for ns3::QosWifiMacHelper:

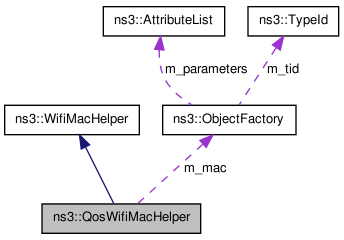

Collaboration diagram for ns3::QosWifiMacHelper:

Public Member Functions
	QosWifiMacHelper ()
void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetMsduAggregatorForAc (AccessClass accessClass, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
Static Public Member Functions
static QosWifiMacHelper	Default (void)

Detailed Description

create qos MAC layers for a ns3::WifiNetDevice. This class can create MACs of type ns3::QapWifiMac, ns3::QstaWifiMac, and, ns3::QadhocWifiMac

Constructor & Destructor Documentation

ns3::QosWifiMacHelper::QosWifiMacHelper ( )

Create a QosWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer.

static QosWifiMacHelper ns3::QosWifiMacHelper::Default ( void ) [static]

Create a mac helper in a default working state.

void ns3::QosWifiMacHelper::SetMsduAggregatorForAc	(	AccessClass	accessClass,
		std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`
	)

Set the class, type and attributes for the Msdu aggregator

Parameters:

	accessClass	access class for which we are setting aggregator. Possibilities are: AC_BK, AC_BE, AC_VI, AC_VO.
	type	the type of ns3::WifiMac to create.
	n0	the name of the attribute to set
	v0	the value of the attribute to set
	n1	the name of the attribute to set
	v1	the value of the attribute to set
	n2	the name of the attribute to set
	v2	the value of the attribute to set
	n3	the name of the attribute to set
	v3	the value of the attribute to set

All the attributes specified in this method should exist in the requested aggregator.

void ns3::QosWifiMacHelper::SetType	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue()`
	)

Set the underlying type of the MAC and its attributes.

Parameters:

	type	the type of ns3::WifiMac to create.
	n0	the name of the attribute to set
	v0	the value of the attribute to set
	n1	the name of the attribute to set
	v1	the value of the attribute to set
	n2	the name of the attribute to set
	v2	the value of the attribute to set
	n3	the name of the attribute to set
	v3	the value of the attribute to set
	n4	the name of the attribute to set
	v4	the value of the attribute to set
	n5	the name of the attribute to set
	v5	the value of the attribute to set
	n6	the name of the attribute to set
	v6	the value of the attribute to set
	n7	the name of the attribute to set
	v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

The documentation for this class was generated from the following file:
