ns3::Radvd Class Reference [Radvd]

Router advertisement daemon. More...

#include <radvd.h>

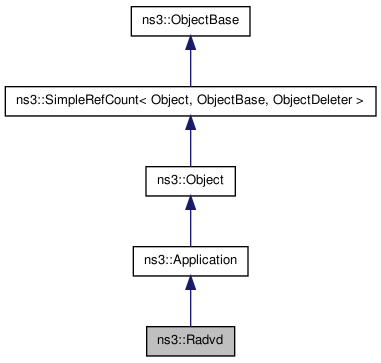

Inheritance diagram for ns3::Radvd:

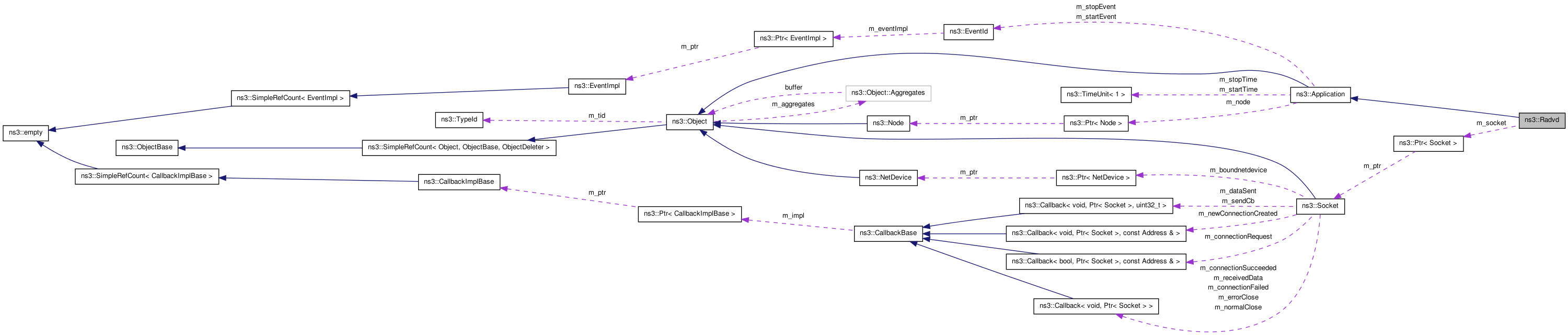

Collaboration diagram for ns3::Radvd:

List of all members.

Public Member Functions
	Radvd ()
	Constructor.
virtual	~Radvd ()
	Destructor.
void	AddConfiguration (Ptr< RadvdInterface > routerInterface)
	Add configuration for an interface;.
Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Attributes
static const uint32_t	MAX_RA_DELAY_TIME = 500
	Default value for maximum delay of RA (ms).
Protected Member Functions
virtual void	DoDispose ()
	Dispose the instance.

---

Detailed Description

Router advertisement daemon.

---

Member Function Documentation

void ns3::Radvd::AddConfiguration

(

Ptr< RadvdInterface >

routerInterface

)

Add configuration for an interface;.

Parameters:

routerInterface

configuration

static TypeId ns3::Radvd::GetTypeId

(

void

)

[static]

Get the type ID.

This method returns the TypeId associated to ns3::Radvd.

Returns:

type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/ApplicationList/[i]/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Application/$ns3::Radvd
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Radvd

No Attributes defined for this type.
Attributes defined in parent class ns3::Application:

• StartTime: Time at which the application will start
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• StopTime: Time at which the application will stop
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

---

The documentation for this class was generated from the following files:

• src/applications/radvd/radvd.h
• doc/introspected-doxygen.h
