a RandomDirection mobility model More...
#include <random-direction-2d-mobility-model.h>

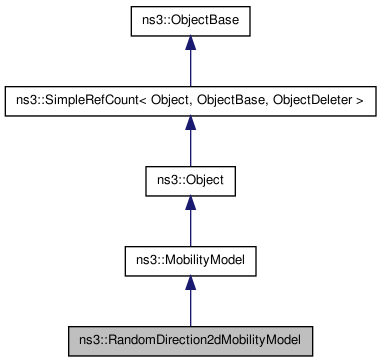

Inheritance diagram for ns3::RandomDirection2dMobilityModel:

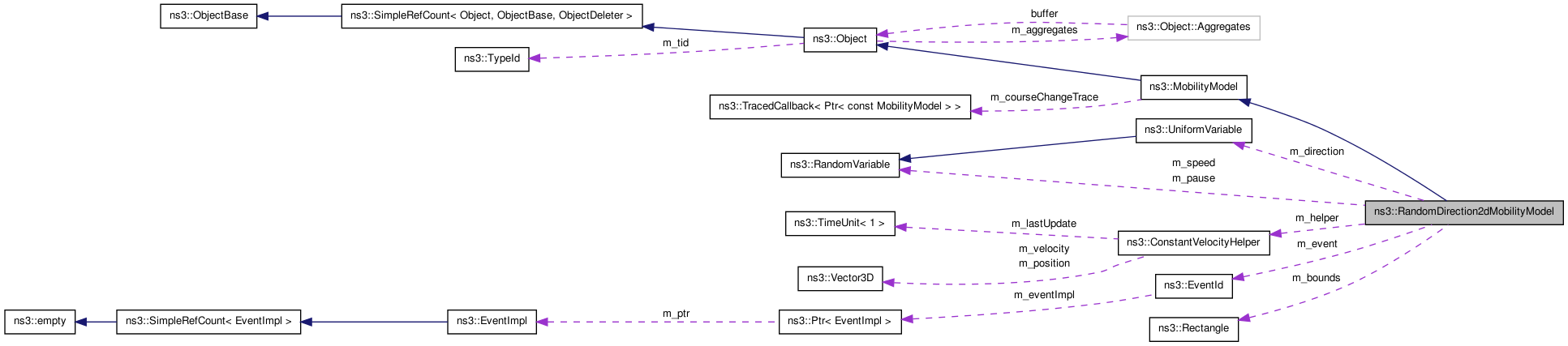

Collaboration diagram for ns3::RandomDirection2dMobilityModel:
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomDirection2dMobilityModel. | |
Detailed Description
a RandomDirection mobility model
The movement of objects is based on random directions: each object pauses for a specific delay, chooses a random direction and speed and then travels in the specific direction until it reaches one of the boundaries of the model. When it reaches the boundary, it pauses, selects a new direction and speed, aso.
Member Function Documentation
| static TypeId ns3::RandomDirection2dMobilityModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomDirection2dMobilityModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Child/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::HierarchicalMobilityModel/Parent/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RandomDirection2dMobilityModel
Attributes defined for this type:
-
Bounds: The 2d bounding area
- Set with class: RectangleValue
- Underlying type: Rectangle
- Initial value: -100|100|-100|100
- Flags: construct write read
-
Speed: A random variable to control the speed (m/s).
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:1:2
- Flags: construct write read
-
Pause: A random variable to control the pause (s).
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Constant:2
- Flags: construct write read
Attributes defined in parent class ns3::MobilityModel:
-
Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
-
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:
- CourseChange: The value of the position and/or velocity vector changed
Reimplemented from ns3::MobilityModel.
The documentation for this class was generated from the following files:
- src/mobility/random-direction-2d-mobility-model.h
- doc/introspected-doxygen.h
