the propagation delay is random More...
#include <propagation-delay-model.h>

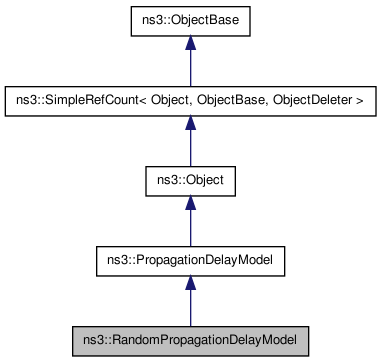

Inheritance diagram for ns3::RandomPropagationDelayModel:

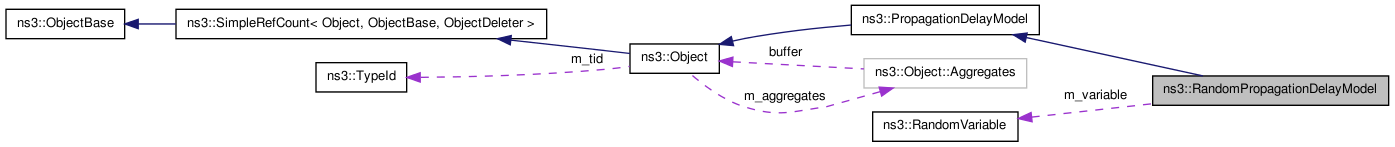

Collaboration diagram for ns3::RandomPropagationDelayModel:
Public Member Functions | |
| RandomPropagationDelayModel () | |
| virtual Time | GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomPropagationDelayModel. | |
Detailed Description
the propagation delay is random
Constructor & Destructor Documentation
| ns3::RandomPropagationDelayModel::RandomPropagationDelayModel | ( | ) |
Use the default parameters from PropagationDelayRandomDistribution.
Member Function Documentation
| virtual Time ns3::RandomPropagationDelayModel::GetDelay | ( | Ptr< MobilityModel > | a, | |
| Ptr< MobilityModel > | b | |||
| ) | const [virtual] |
- Parameters:
-
a the source b the destination
- Returns:
- the calculated propagation delay
Calculate the propagation delay between the specified source and destination.
Implements ns3::PropagationDelayModel.
| static TypeId ns3::RandomPropagationDelayModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomPropagationDelayModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PropagationDelayModel/$ns3::RandomPropagationDelayModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RandomPropagationDelayModel
Attributes defined for this type:
-
Variable: The random variable which generates random delays (s).
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:1
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::PropagationDelayModel.
The documentation for this class was generated from the following files:
- src/common/propagation-delay-model.h
- doc/introspected-doxygen.h
