ns3::RealtimeSimulatorImpl Class Reference

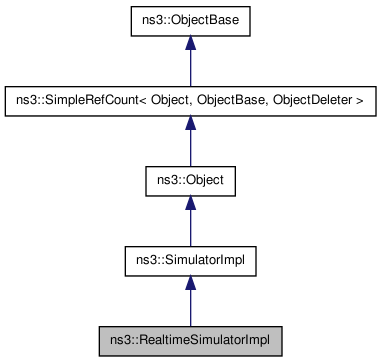

Inheritance diagram for ns3::RealtimeSimulatorImpl:

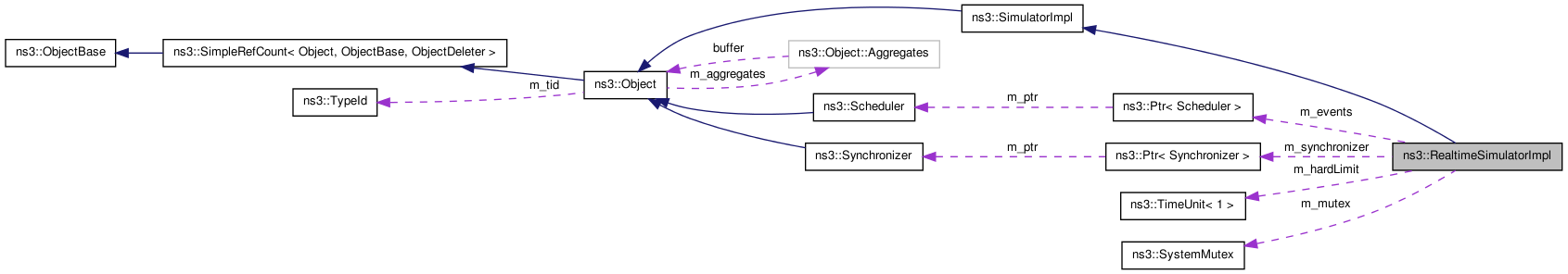

Collaboration diagram for ns3::RealtimeSimulatorImpl:

List of all members.

Public Types
enum	SynchronizationMode { SYNC_BEST_EFFORT, SYNC_HARD_LIMIT }
Public Member Functions
virtual void	Destroy ()
virtual bool	IsFinished (void) const
virtual Time	Next (void) const
virtual void	Stop (void)
virtual void	Stop (Time const &time)
virtual EventId	Schedule (Time const &time, EventImpl *event)
virtual void	ScheduleWithContext (uint32_t context, Time const &time, EventImpl *event)
virtual EventId	ScheduleNow (EventImpl *event)
virtual EventId	ScheduleDestroy (EventImpl *event)
virtual void	Remove (const EventId &ev)
virtual void	Cancel (const EventId &ev)
virtual bool	IsExpired (const EventId &ev) const
virtual void	Run (void)
virtual void	RunOneEvent (void)
virtual Time	Now (void) const
virtual Time	GetDelayLeft (const EventId &id) const
virtual Time	GetMaximumSimulationTime (void) const
virtual void	SetScheduler (ObjectFactory schedulerFactory)
virtual uint32_t	GetSystemId (void) const
virtual uint32_t	GetContext (void) const
void	ScheduleRealtimeWithContext (uint32_t context, Time const &time, EventImpl *event)
void	ScheduleRealtime (Time const &time, EventImpl *event)
void	ScheduleRealtimeNowWithContext (uint32_t context, EventImpl *event)
void	ScheduleRealtimeNow (EventImpl *event)
Time	RealtimeNow (void) const
void	SetSynchronizationMode (RealtimeSimulatorImpl::SynchronizationMode mode)
RealtimeSimulatorImpl::SynchronizationMode	GetSynchronizationMode (void) const
void	SetHardLimit (Time limit)
Time	GetHardLimit (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RealtimeSimulatorImpl.

---

Member Enumeration Documentation

enum ns3::RealtimeSimulatorImpl::SynchronizationMode

Enumeration of the types of packets supported in the class.

Enumerator:

SYNC_HARD_LIMIT

Make a best effort to keep synced to real-time

---

Member Function Documentation

static TypeId ns3::RealtimeSimulatorImpl::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RealtimeSimulatorImpl.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RealtimeSimulatorImpl
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RealtimeSimulatorImpl

Attributes defined for this type:

• SynchronizationMode: What to do if the simulation cannot keep up with real time.
  • Set with class: ns3::EnumValue
  • Underlying type: BestEffort|HardLimit
  • Initial value: BestEffort
  • Flags: construct write
• HardLimit: Maximum acceptable real-time jitter (used in conjunction with SynchronizationMode=HardLimit)
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 100000000ns
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/simulator/realtime-simulator-impl.h
• doc/introspected-doxygen.h
