ns3::RraaWifiManager Class Reference

Robust Rate Adaptation Algorithm. More...

#include <rraa-wifi-manager.h>

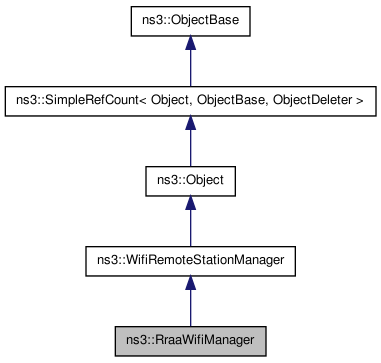

Inheritance diagram for ns3::RraaWifiManager:
Inheritance graph
[legend]

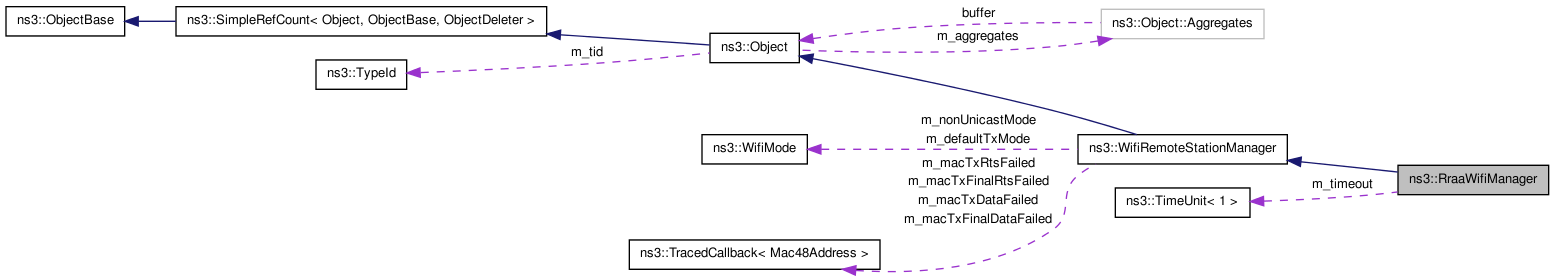

Collaboration diagram for ns3::RraaWifiManager:
Collaboration graph
[legend]

List of all members.

Classes

struct  ThresholdsItem

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::RraaWifiManager.

Detailed Description

Robust Rate Adaptation Algorithm.

This is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06.

Member Function Documentation

static TypeId ns3::RraaWifiManager::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::RraaWifiManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiRemoteStationManager/$ns3::RraaWifiManager

Attributes defined for this type:

  • Basic: If true the RRAA-BASIC algorithm will be used, otherwise the RRAA wil be used
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • Timeout: Timeout for the RRAA BASIC loss estimaton block (s)
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: 50000000ns
    • Flags: construct write read
  • ewndFor54mbps: ewnd parameter for 54 Mbs data mode
  • ewndFor48mbps: ewnd parameter for 48 Mbs data mode
  • ewndFor36mbps: ewnd parameter for 36 Mbs data mode
  • ewndFor24mbps: ewnd parameter for 24 Mbs data mode
  • ewndFor18mbps: ewnd parameter for 18 Mbs data mode
  • ewndFor12mbps: ewnd parameter for 12 Mbs data mode
  • ewndFor9mbps: ewnd parameter for 9 Mbs data mode
  • ewndFor6mbps: ewnd parameter for 6 Mbs data mode
  • poriFor48mbps: Pori parameter for 48 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.047
    • Flags: construct write read
  • poriFor36mbps: Pori parameter for 36 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.115
    • Flags: construct write read
  • poriFor24mbps: Pori parameter for 24 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1681
    • Flags: construct write read
  • poriFor18mbps: Pori parameter for 18 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1325
    • Flags: construct write read
  • poriFor12mbps: Pori parameter for 12 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1861
    • Flags: construct write read
  • poriFor9mbps: Pori parameter for 9 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.1434
    • Flags: construct write read
  • poriFor6mbps: Pori parameter for 6 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read
  • pmtlFor54mbps: Pmtl parameter for 54 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.094
    • Flags: construct write read
  • pmtlFor48mbps: Pmtl parameter for 48 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.23
    • Flags: construct write read
  • pmtlFor36mbps: Pmtl parameter for 36 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3363
    • Flags: construct write read
  • pmtlFor24mbps: Pmtl parameter for 24 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.265
    • Flags: construct write read
  • pmtlFor18mbps: Pmtl parameter for 18 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3722
    • Flags: construct write read
  • pmtlFor12mbps: Pmtl parameter for 12 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.2868
    • Flags: construct write read
  • pmtlFor9mbps: Pmtl parameter for 9 Mbs data mode
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.3932
    • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager:

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If a data packet is bigger than this value, we use an RTS/CTS handshake before sending the data. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If a data packet is bigger than this value, we fragment it such that the size of the fragments are equal or smaller than this value. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiRemoteStationManager:

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Reimplemented from ns3::WifiRemoteStationManager.

The documentation for this class was generated from the following files:
