ns3::RttEstimator Class Reference

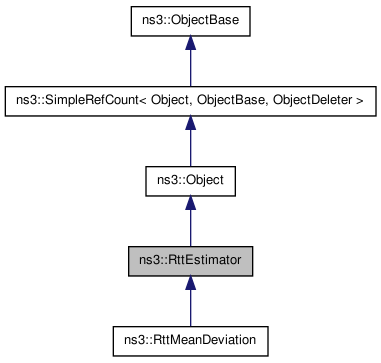

Inheritance diagram for ns3::RttEstimator:

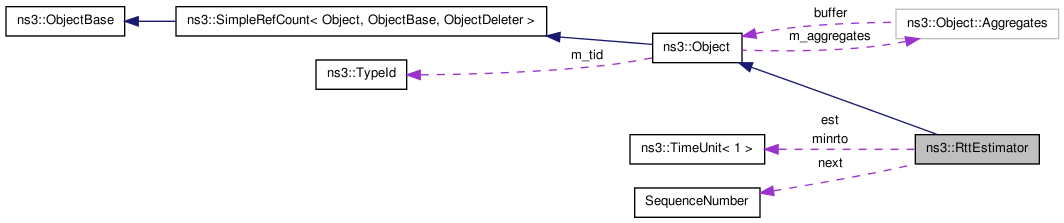

Collaboration diagram for ns3::RttEstimator:

List of all members.

Public Member Functions
	RttEstimator (const RttEstimator &)
virtual void	SentSeq (SequenceNumber, uint32_t)
virtual Time	AckSeq (SequenceNumber)
virtual void	ClearSent ()
virtual void	Measurement (Time t)=0
virtual Time	Estimate ()=0
virtual Time	RetransmitTimeout ()=0
void	Init (SequenceNumber s)
virtual Ptr< RttEstimator >	Copy () const =0
virtual void	IncreaseMultiplier ()
virtual void	ResetMultiplier ()
virtual void	Reset ()
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RttEstimator.
Public Attributes
Time	est
Time	minrto
uint32_t	nSamples
double	multiplier

---

Member Function Documentation

static TypeId ns3::RttEstimator::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RttEstimator.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RttEstimator
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RttEstimator

Attributes defined for this type:

• MaxMultiplier: XXX
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 64
  • Flags: construct write read
• InitialEstimation: XXX
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 1000000000ns
  • Flags: construct write read
• MinRTO: Minimum retransmit timeout value
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 200000000ns
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::RttMeanDeviation.

---

The documentation for this class was generated from the following files:

• src/internet-stack/rtt-estimator.h
• doc/introspected-doxygen.h
