ns3::UdpSocket Class Reference
[Socket]

(abstract) base class of all UdpSockets More...

#include <udp-socket.h>

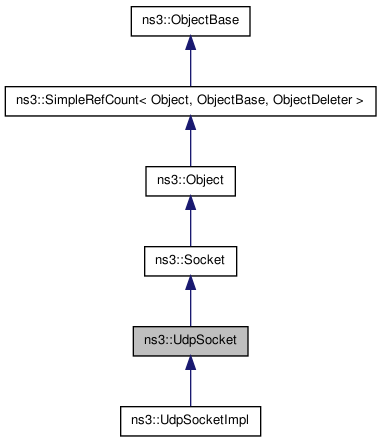

Inheritance diagram for ns3::UdpSocket:
Inheritance graph
[legend]

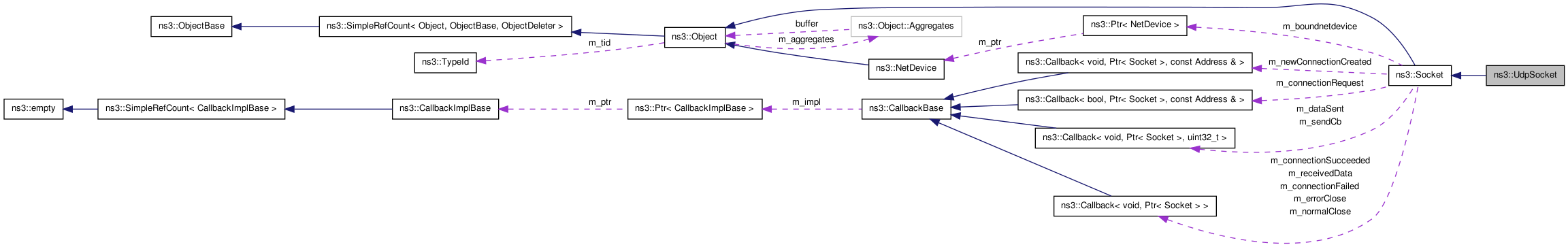

Collaboration diagram for ns3::UdpSocket:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual int MulticastJoinGroup (uint32_t interface, const Address &groupAddress)=0
 Corresponds to socket option MCAST_JOIN_GROUP.
virtual int MulticastLeaveGroup (uint32_t interface, const Address &groupAddress)=0
 Corresponds to socket option MCAST_LEAVE_GROUP.

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::UdpSocket.

Detailed Description

(abstract) base class of all UdpSockets

This class exists solely for hosting UdpSocket attributes that can be reused across different implementations, and for declaring UDP-specific multicast API.

Member Function Documentation

static TypeId ns3::UdpSocket::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::UdpSocket.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UdpSocket
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UdpSocket

Attributes defined for this type:

  • RcvBufSize: UdpSocket maximum receive buffer size (bytes)
  • IpTtl: socket-specific TTL for unicast IP packets (if non-zero)
  • IpMulticastTtl: socket-specific TTL for multicast IP packets (if non-zero)
  • IpMulticastIf: interface index for outgoing multicast on this socket; -1 indicates to use default interface
    • Set with class: ns3::IntegerValue
    • Underlying type: int32_t -2147483648:2147483647
    • Initial value: -1
    • Flags: construct write read
  • IpMulticastLoop: whether outgoing multicast sent also to loopback interface
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read
  • MtuDiscover: If enabled, every outgoing ip packet will have the DF flag set.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::UdpSocketImpl.

virtual int ns3::UdpSocket::MulticastJoinGroup ( uint32_t  interface,
const Address &  groupAddress
) [pure virtual]

Corresponds to socket option MCAST_JOIN_GROUP.

Parameters:
interface interface number, or 0
groupAddress multicast group address
Returns:
on success, zero is returned. On error, -1 is returned, and errno is set appropriately

Enable reception of multicast datagrams for this socket on the interface number specified. If zero is specified as the interface, then a single local interface is chosen by system. In the future, this function will generate trigger IGMP joins as necessary when IGMP is implemented, but for now, this just enables multicast datagram reception in the system if not already enabled for this interface/groupAddress combination.

Attention:
IGMP is not yet implemented in ns-3

This function may be called repeatedly on a given socket but each join must be for a different multicast address, or for the same multicast address but on a different interface from previous joins. This enables host multihoming, and the ability to join the same group on different interfaces.

Implemented in ns3::UdpSocketImpl.

virtual int ns3::UdpSocket::MulticastLeaveGroup ( uint32_t  interface,
const Address &  groupAddress
) [pure virtual]

Corresponds to socket option MCAST_LEAVE_GROUP.

Parameters:
interface interface number, or 0
groupAddress multicast group address
Returns:
on success, zero is returned. On error, -1 is returned, and errno is set appropriately

Disable reception of multicast datagrams for this socket on the interface number specified. If zero is specified as the interfaceIndex, then a single local interface is chosen by system. In the future, this function will generate trigger IGMP leaves as necessary when IGMP is implemented, but for now, this just disables multicast datagram reception in the system if this socket is the last for this interface/groupAddress combination.

Attention:
IGMP is not yet implemented in ns-3

Implemented in ns3::UdpSocketImpl.

The documentation for this class was generated from the following files:
