ns3::UdpSocketFactory Class Reference [Socket]

API to create UDP socket instances. More...

#include <udp-socket-factory.h>

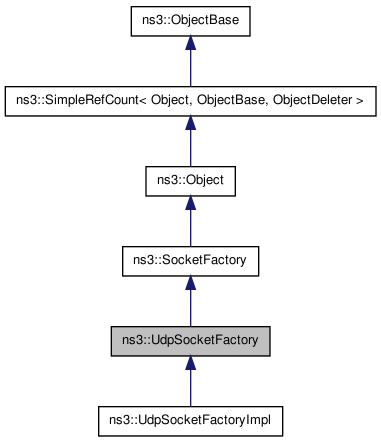

Inheritance diagram for ns3::UdpSocketFactory:

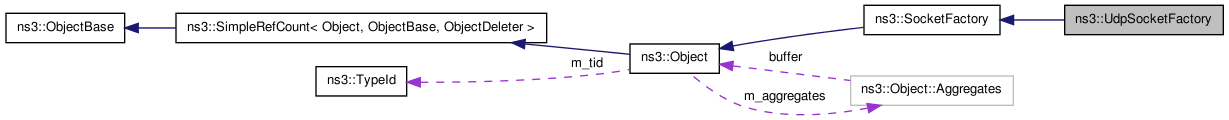

Collaboration diagram for ns3::UdpSocketFactory:

List of all members.

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UdpSocketFactory.

---

Detailed Description

API to create UDP socket instances.

This abstract class defines the API for UDP socket factory. All UDP implementations must provide an implementation of CreateSocket below.

See also:

UdpSocketFactoryImpl

---

Member Function Documentation

static TypeId ns3::UdpSocketFactory::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UdpSocketFactory.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SocketFactory/$ns3::UdpSocketFactory
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UdpSocketFactory

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::SocketFactory.

---

The documentation for this class was generated from the following files:

• src/node/udp-socket-factory.h
• doc/introspected-doxygen.h
