ns3::UplinkSchedulerRtps Class Reference

This class implements a simple uplink scheduler for rtPS flows. More...

#include <bs-uplink-scheduler-rtps.h>

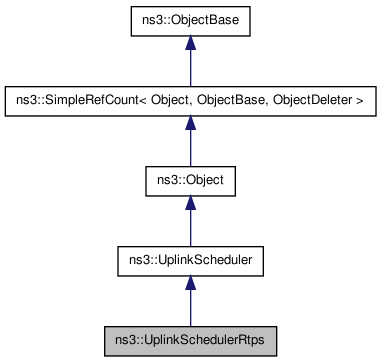

Inheritance diagram for ns3::UplinkSchedulerRtps:

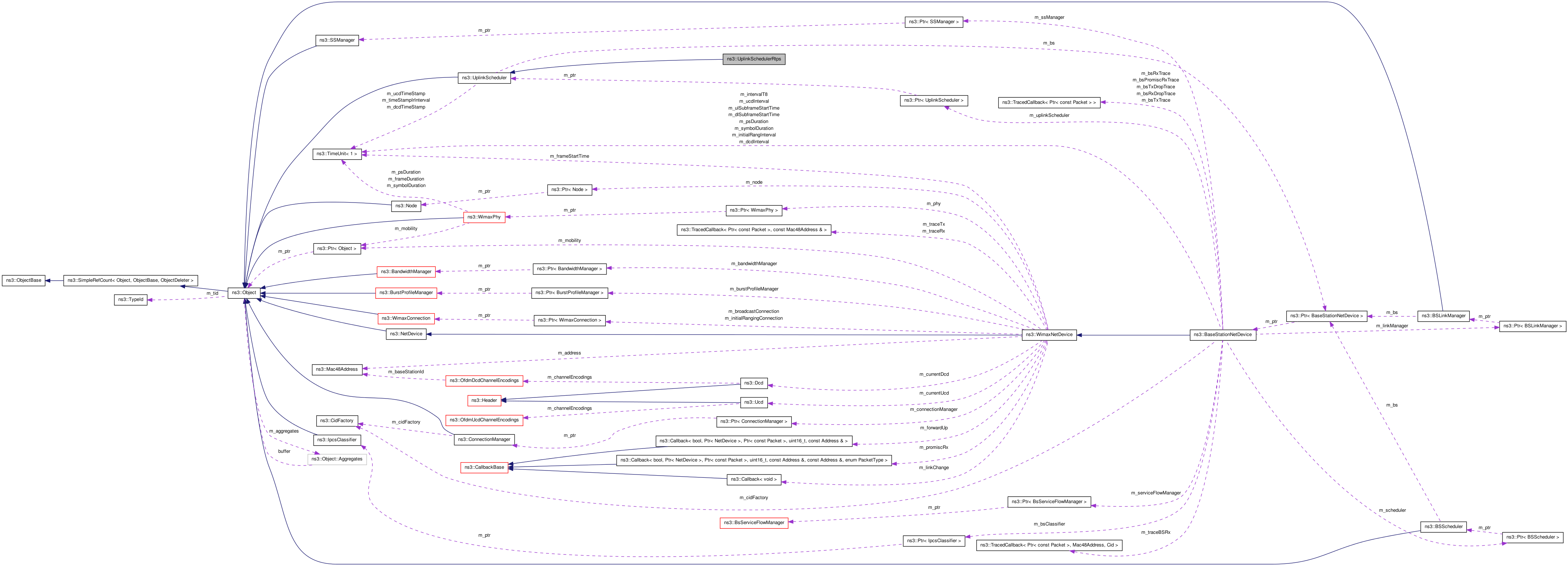

Collaboration diagram for ns3::UplinkSchedulerRtps:

List of all members.

Public Member Functions
	UplinkSchedulerRtps (Ptr< BaseStationNetDevice > bs)
std::list< OfdmUlMapIe >	GetUplinkAllocations (void) const
void	GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)
uint32_t	CalculateAllocationStartTime (void)
void	AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void	Schedule (void)
	Schedule function.
void	ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void	ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
bool	ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void	ULSchedulerRTPSConnection (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
	Uplink Scheduler for rtPS connections.
void	AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)
void	SetupServiceFlow (SSRecord *ssRecord, ServiceFlow *serviceFlow)
void	ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)
void	InitOnce (void)
void	OnSetRequestedBandwidth (ServiceFlowRecord *sfr)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UplinkSchedulerRtps.

---

Detailed Description

This class implements a simple uplink scheduler for rtPS flows.

The UL-rtPS-Scheduler work in this way: At the beginning of the UL sub-frame some symbols are allocated to the rangingInterval Messages, DSA Messages, UGS grants and UGS/rtPS/nrtPS/BE poll. Then, the remaining available symbols are allocated to the all rtPS flows according to their requestedBandwidth. The bandwidth saturation control has been implemented to redistribute the resource if the sum of requestedBandwidth exceed the available bandwidth. At the end, if there are some free symbols, their are allocated to nrtPS and BE Connections.

---

Member Function Documentation

void ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate	(	bool &	,
		bool &	,
		bool &	,
		bool &
	)			[virtual]

Determines if channel descriptors sent in the current frame are required to be updated

Implements ns3::UplinkScheduler.

static TypeId ns3::UplinkSchedulerRtps::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UplinkSchedulerRtps.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::BaseStationNetDevice/UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UplinkScheduler/$ns3::UplinkSchedulerRtps
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UplinkSchedulerRtps

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::UplinkScheduler.

void ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection	(	uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

Uplink Scheduler for rtPS connections.

Parameters:

	symbolsToAllocation	symbols to allocation for UpLink Subframe
	availableSymbols	available symbols for rtPS flows

This method represent the UL Scheduler for rtPS connections. The scheduler is designed to serve all rtPS connections that have at least one packet to transmit, every UL Subframe. The methos selects all rtPS connection that have al least one packet to transmit. To each rtPS connections are allocated, at the beginning, the bandwidth to transmit a quota of data equal to (RequestedBandwidth - GrantedBandwidth). If the sum of all pre-allocated bandwidth exceed the available symbols for rtPS connections, the Channel Saturation Control function is called to redistribute the available bandwidth.

---

The documentation for this class was generated from the following files:

• src/devices/wimax/bs-uplink-scheduler-rtps.h
• doc/introspected-doxygen.h
