Information element, as defined in 802.11-2007 standard. More...
#include <wifi-information-element-vector.h>

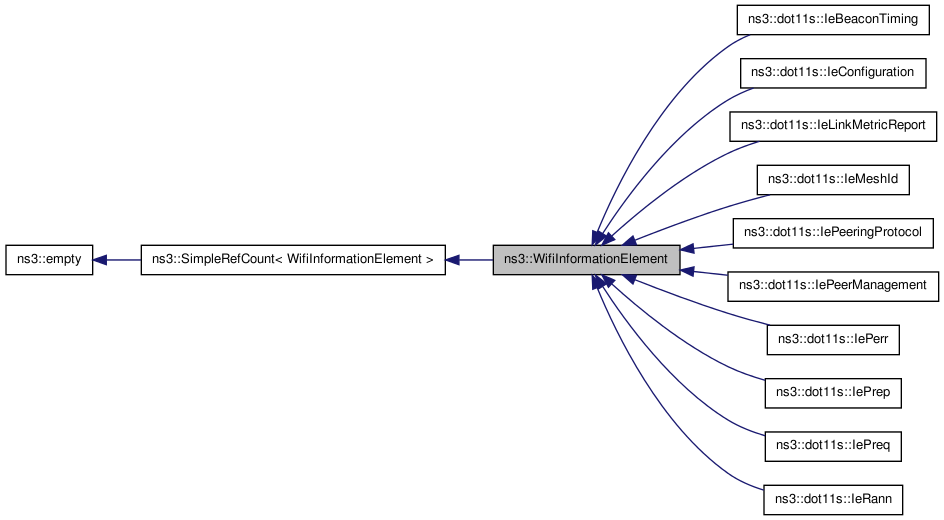

Inheritance diagram for ns3::WifiInformationElement:

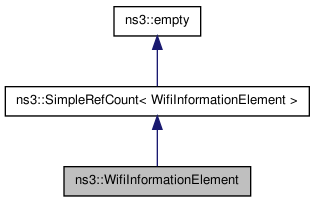

Collaboration diagram for ns3::WifiInformationElement:
Public Member Functions | |
| virtual bool | operator== (WifiInformationElement const &a) |
| Compare two IE by ID & Length, than it calls DynamicCast and compares the body of elements. | |
Each subclass must implement | |
| virtual void | Print (std::ostream &os) const =0 |
| virtual WifiElementId | ElementId () const =0 |
| Own unique Element ID. | |
| virtual uint8_t | GetInformationSize () const =0 |
| Length of serialized information. | |
| virtual void | SerializeInformation (Buffer::Iterator start) const =0 |
| Serialize information. | |
| virtual uint8_t | DeserializeInformation (Buffer::Iterator start, uint8_t length)=0 |
| Deserialize information. | |
Friends | |
| bool | operator< (WifiInformationElement const &a, WifiInformationElement const &b) |
| Compare information elements using Element ID. | |
Detailed Description
Information element, as defined in 802.11-2007 standard.
Elements are defined to have a common general format consisting of a 1 octet Element ID field, a 1 octet length field, and a variable-length element-specific information field. Each element is assigned a unique Element ID as defined in this standard. The Length field specifies the number of octets in the Information field.
The documentation for this class was generated from the following file:
- src/devices/mesh/wifi-information-element-vector.h
