802.11 PHY layer model More...

#include <wifi-phy.h>

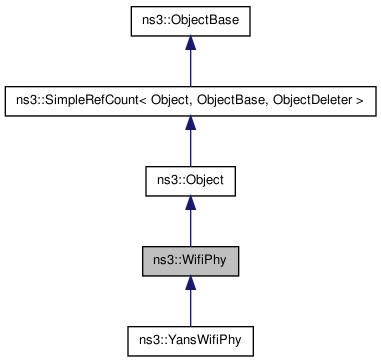

Inheritance diagram for ns3::WifiPhy:

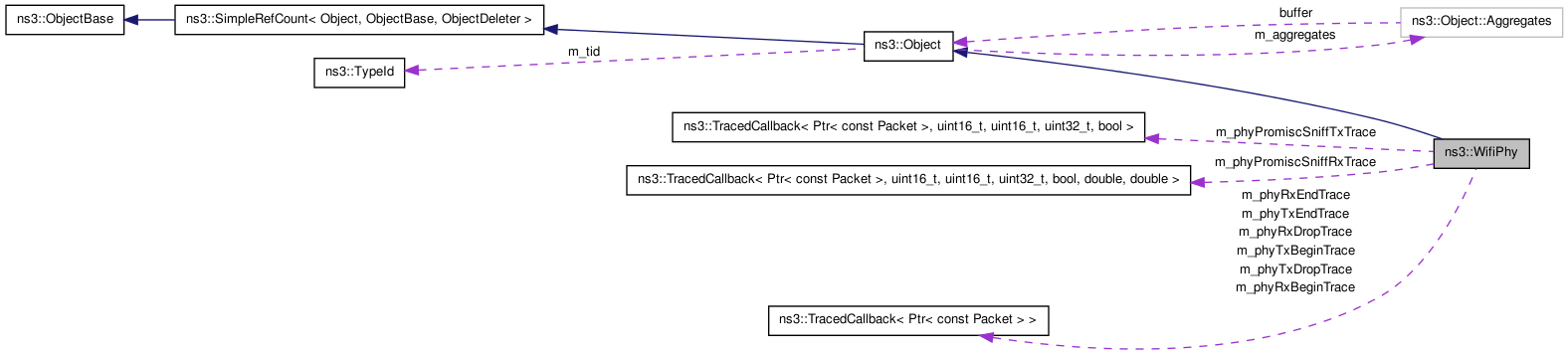

Collaboration diagram for ns3::WifiPhy:

Public Types
enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING }
typedef Callback< void, Ptr < Packet >, double, WifiMode, enum WifiPreamble >	RxOkCallback
typedef Callback< void, Ptr < const Packet >, double >	RxErrorCallback
Public Member Functions
virtual double	GetTxPowerStart (void) const =0
virtual double	GetTxPowerEnd (void) const =0
virtual uint32_t	GetNTxPower (void) const =0
virtual void	SetReceiveOkCallback (RxOkCallback callback)=0
virtual void	SetReceiveErrorCallback (RxErrorCallback callback)=0
virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, uint8_t txPowerLevel)=0
virtual void	RegisterListener (WifiPhyListener *listener)=0
virtual bool	IsStateIdle (void)=0
virtual bool	IsStateCcaBusy (void)=0
virtual bool	IsStateBusy (void)=0
virtual bool	IsStateRx (void)=0
virtual bool	IsStateTx (void)=0
virtual bool	IsStateSwitching (void)=0
virtual Time	GetStateDuration (void)=0
virtual Time	GetDelayUntilIdle (void)=0
virtual Time	GetLastRxStartTime (void) const =0
virtual Time	CalculateTxDuration (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble) const =0
virtual uint32_t	GetNModes (void) const =0
virtual WifiMode	GetMode (uint32_t mode) const =0
virtual double	CalculateSnr (WifiMode txMode, double ber) const =0
virtual void	SetChannelNumber (uint16_t id)=0
	Set channel number.
virtual uint16_t	GetChannelNumber () const =0
	Return current channel number, see SetChannelNumber().
virtual void	ConfigureStandard (enum WifiPhyStandard standard)=0
virtual Ptr< WifiChannel >	GetChannel (void) const =0
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyPromiscSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm)
void	NotifyPromiscSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiPhy.
static WifiMode	Get6mba (void)
static WifiMode	Get9mba (void)
static WifiMode	Get12mba (void)
static WifiMode	Get18mba (void)
static WifiMode	Get24mba (void)
static WifiMode	Get36mba (void)
static WifiMode	Get48mba (void)
static WifiMode	Get54mba (void)
static WifiMode	Get1mbb (void)
static WifiMode	Get2mbb (void)
static WifiMode	Get5_5mbb (void)
static WifiMode	Get11mbb (void)
static WifiMode	Get3mb10Mhz (void)
static WifiMode	Get4_5mb10Mhz (void)
static WifiMode	Get6mb10Mhz (void)
static WifiMode	Get9mb10Mhz (void)
static WifiMode	Get12mb10Mhz (void)
static WifiMode	Get18mb10Mhz (void)
static WifiMode	Get24mb10Mhz (void)
static WifiMode	Get27mb10Mhz (void)
static WifiMode	Get1_5mb5Mhz (void)
static WifiMode	Get2_25mb5Mhz (void)
static WifiMode	Get3mb5Mhz (void)
static WifiMode	Get4_5mb5Mhz (void)
static WifiMode	Get6mb5Mhz (void)
static WifiMode	Get9mb5Mhz (void)
static WifiMode	Get12mb5Mhz (void)
static WifiMode	Get13_5mb5Mhz (void)

Detailed Description

802.11 PHY layer model

Member Typedef Documentation

typedef Callback<void,Ptr<const Packet>, double> ns3::WifiPhy::RxErrorCallback

arg1: packet received unsuccessfully arg2: snr of packet

typedef Callback<void,Ptr<Packet>, double, WifiMode, enum WifiPreamble> ns3::WifiPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet.

Member Enumeration Documentation

enum ns3::WifiPhy::State

The state of the PHY layer.

Enumerator:

IDLE	The PHY layer is IDLE.
CCA_BUSY	The PHY layer has sense the medium busy through the CCA mechanism
TX	The PHY layer is sending a packet.
RX	The PHY layer is receiving a packet.
SWITCHING	The PHY layer is switching to other channel.

Member Function Documentation

virtual double ns3::WifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)			const `[pure virtual]`

Parameters:

	txMode	the transmission mode
	ber	the probability of bit error rate

Returns:: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble
	)			const `[pure virtual]`

Parameters:

	size	the number of bytes in the packet to send
	payloadMode	the transmission mode to use for this packet
	preamble	the type of preamble to use for this packet.

Returns:: the total amount of time this PHY will stay busy for the transmission of these bytes.

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetDelayUntilIdle ( void ) [pure virtual]

Returns:: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE _before_ the delay returned by this method but it could become really idle later.

Implemented in ns3::YansWifiPhy.

virtual WifiMode ns3::WifiPhy::GetMode ( uint32_t mode ) const [pure virtual]

Parameters:

mode

index in array of supported modes

Returns:: the mode whose index is specified.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNModes ( void ) const [pure virtual]

Returns:: the number of transmission modes supported by this PHY.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNTxPower ( void ) const [pure virtual]

Returns:: the number of tx power levels available for this PHY.

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetStateDuration ( void ) [pure virtual]

Returns:: the amount of time since the current state has started.

Implemented in ns3::YansWifiPhy.

static TypeId ns3::WifiPhy::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::WifiPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiPhy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/Phy
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiPhy

No Attributes defined for this type.
TraceSources defined for this type:

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
PromiscSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
PromiscSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Reimplemented from ns3::Object.

Reimplemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateBusy ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateCcaBusy ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateIdle ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateRx ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSwitching ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateTx ( void ) [pure virtual]

Returns:: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implemented in ns3::YansWifiPhy.

void ns3::WifiPhy::NotifyPromiscSniffRx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble,
		double	signalDbm,
		double	noiseDbm
	)

Public method used to fire a PromiscSniffer trace for a wifi packet being received. Implemented for encapsulation purposes.

Parameters:

	packet	the packet being received
	channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
	channelNumber	the channel on which the packet is received
	rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
	isShortPreamble	true if short preamble is used, false otherwise
	signalDbm	signal power in dBm
	noiseDbm	noise power in dBm

void ns3::WifiPhy::NotifyPromiscSniffTx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble
	)

Public method used to fire a PromiscSniffer trace for a wifi packet being transmitted. Implemented for encapsulation purposes.

Parameters:

	packet	the packet being transmitted
	channelFreqMhz	the frequency in MHz at which the packet is transmitted.
	channelNumber	the channel on which the packet is transmitted
	rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
	isShortPreamble	true if short preamble is used, false otherwise

void ns3::WifiPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyRxBegin trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyRxDrop trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyRxEnd trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyTxBegin trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyTxDrop trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyTxEnd trace. Implemented for encapsulation purposes.

virtual void ns3::WifiPhy::RegisterListener ( WifiPhyListener * listener ) [pure virtual]

Parameters:

listener

the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		uint8_t	txPowerLevel
	)			`[pure virtual]`

Parameters:

	packet	the packet to send
	mode	the transmission mode to use to send this packet
	preamble	the type of preamble to use to send this packet.
	txPowerLevel	a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
