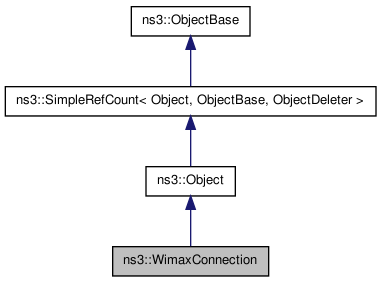

Inheritance diagram for ns3::WimaxConnection:

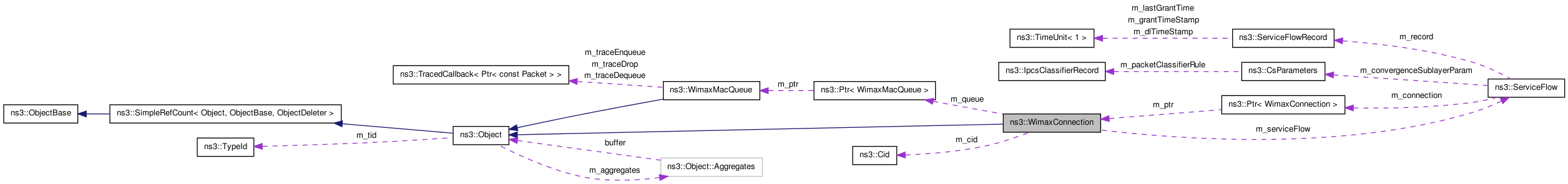

Collaboration diagram for ns3::WimaxConnection:
Public Types | |
|
typedef std::list< Ptr< const Packet > > | FragmentsQueue |
Public Member Functions | |
| WimaxConnection (Cid cid, enum Cid::Type type) | |
| Cid | GetCid (void) const |
| enum Cid::Type | GetType (void) const |
| Ptr< WimaxMacQueue > | GetQueue (void) const |
| void | SetServiceFlow (ServiceFlow *serviceFlow) |
| set the service flow associated to this connection | |
| ServiceFlow * | GetServiceFlow (void) const |
| uint8_t | GetSchedulingType (void) const |
| bool | Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr) |
| enqueue a packet in the queue of the connection | |
| Ptr< Packet > | Dequeue (MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC) |
| dequeue a packet from the queue of the connection | |
| Ptr< Packet > | Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte) |
| bool | HasPackets (void) const |
| bool | HasPackets (MacHeaderType::HeaderType packetType) const |
| std::string | GetTypeStr (void) const |
| const FragmentsQueue | GetFragmentsQueue (void) const |
| get a queue of received fragments | |
| void | FragmentEnqueue (Ptr< const Packet > fragment) |
| enqueue a received packet (that is a fragment) into the fragments queue | |
| void | ClearFragmentsQueue (void) |
| delete all enqueued fragments | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::WimaxConnection. | |
Member Function Documentation
| Ptr<Packet> ns3::WimaxConnection::Dequeue | ( | MacHeaderType::HeaderType | packetType = MacHeaderType::HEADER_TYPE_GENERIC |
) |
dequeue a packet from the queue of the connection
- Parameters:
-
packetType the type of the packet to dequeue
| bool ns3::WimaxConnection::Enqueue | ( | Ptr< Packet > | packet, | |
| const MacHeaderType & | hdrType, | |||
| const GenericMacHeader & | hdr | |||
| ) |
enqueue a packet in the queue of the connection
- Parameters:
-
packet the packet to be enqueued hdrType the header type of the packet hdr the header of the packet
enqueue a received packet (that is a fragment) into the fragments queue
- Parameters:
-
fragment received fragment
| Ptr<WimaxMacQueue> ns3::WimaxConnection::GetQueue | ( | void | ) | const |
- Returns:
- the queue of the connection
| uint8_t ns3::WimaxConnection::GetSchedulingType | ( | void | ) | const |
- Returns:
- the scheduling type of this connection
| ServiceFlow* ns3::WimaxConnection::GetServiceFlow | ( | void | ) | const |
- Returns:
- the service flow associated to this connection
| static TypeId ns3::WimaxConnection::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::WimaxConnection.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/InitialRangingConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/BasicConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/PrimaryConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxConnection
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection
Attributes defined for this type:
-
Type: Connection type
- Set with class: ns3::EnumValue
- Underlying type: Broadcast|InitialRanging|Basic|Primary|Transport|Multicast|Padding
- Flags: read
-
TxQueue: Transmit queue
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxMacQueue >
- Flags: read
No TraceSources defined for this type.
Reimplemented from ns3::Object.
| bool ns3::WimaxConnection::HasPackets | ( | MacHeaderType::HeaderType | packetType | ) | const |
- Returns:
- true if the connection has at least one packet of type packetType in its queue, false otherwise
- Parameters:
-
packetType type of packet to check in the queue
| bool ns3::WimaxConnection::HasPackets | ( | void | ) | const |
- Returns:
- true if the connection has at least one packet in its queue, false otherwise
| void ns3::WimaxConnection::SetServiceFlow | ( | ServiceFlow * | serviceFlow | ) |
set the service flow associated to this connection
- Parameters:
-
serviceFlow The service flow to be associated to this connection
The documentation for this class was generated from the following files:
- src/devices/wimax/wimax-connection.h
- doc/introspected-doxygen.h
