OLSR routing protocol for IPv4. More...

#include <olsr-routing-protocol.h>

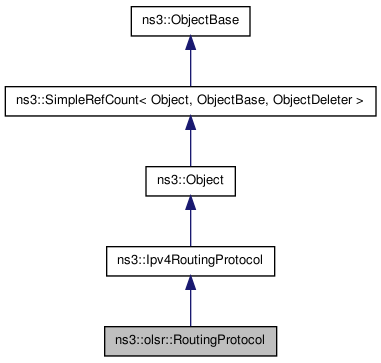

Inheritance diagram for ns3::olsr::RoutingProtocol:

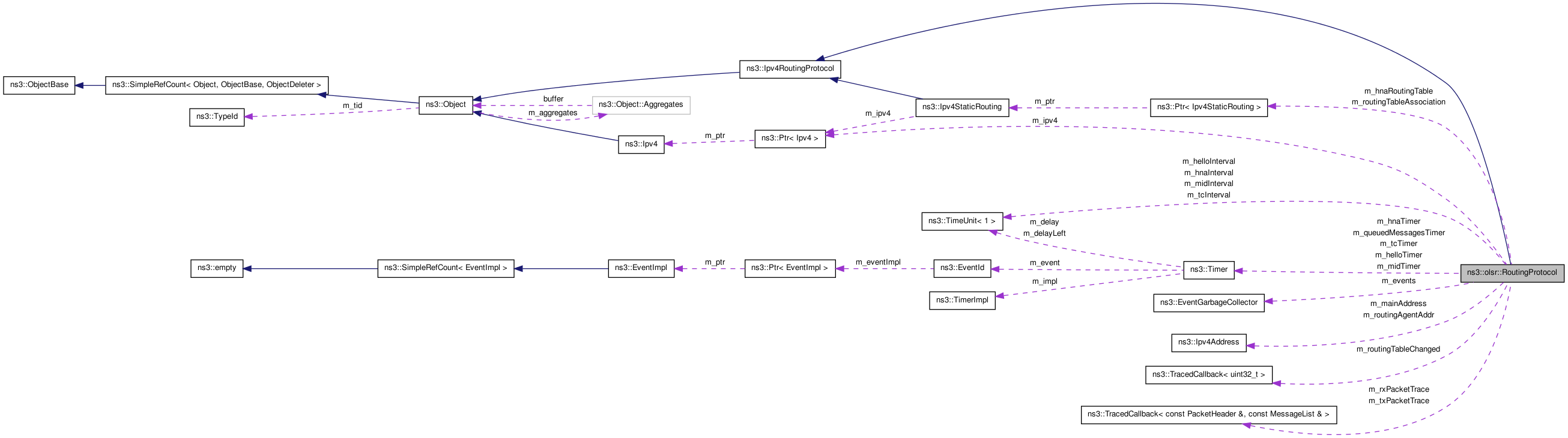

Collaboration diagram for ns3::olsr::RoutingProtocol:

Public Member Functions
void	SetMainInterface (uint32_t interface)
	Set the OLSR main address to the first address on the indicated interface.
void	Dump (void)
std::vector< RoutingTableEntry >	GetRoutingTableEntries () const
std::set< uint32_t >	GetInterfaceExclusions () const
void	SetInterfaceExclusions (std::set< uint32_t > exceptions)
void	AddHostNetworkAssociation (Ipv4Address networkAddr, Ipv4Mask netmask)
	Inject Association to be sent in HNA message.
void	SetRoutingTableAssociation (Ptr< Ipv4StaticRouting > routingTable)
	Inject Associations from an Ipv4StaticRouting instance.
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::olsr::RoutingProtocol.
Protected Member Functions
virtual void	DoStart (void)
Friends
class	OlsrMprTestCase

Detailed Description

OLSR routing protocol for IPv4.

Member Function Documentation

virtual void ns3::olsr::RoutingProtocol::DoStart ( void ) [protected, virtual]

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and _chain up_ to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

void ns3::olsr::RoutingProtocol::Dump ( void )

Dump the neighbor table, two-hop neighbor table, and routing table to logging output (NS_LOG_DEBUG log level). If logging is disabled, this function does nothing.

std::vector<RoutingTableEntry> ns3::olsr::RoutingProtocol::GetRoutingTableEntries ( ) const

Return the list of routing table entries discovered by OLSR

static TypeId ns3::olsr::RoutingProtocol::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::olsr::RoutingProtocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv4RoutingProtocol/$ns3::olsr::RoutingProtocol
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::olsr::RoutingProtocol

Attributes defined for this type:

HelloInterval: HELLO messages emission interval.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 2000000000ns
- Flags: construct write read
TcInterval: TC messages emission interval.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5000000000ns
- Flags: construct write read
MidInterval: MID messages emission interval. Normally it is equal to TcInterval.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5000000000ns
- Flags: construct write read
HnaInterval: HNA messages emission interval. Normally it is equal to TcInterval.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5000000000ns
- Flags: construct write read
Willingness: Willingness of a node to carry and forward traffic for other nodes.
- Set with class: ns3::EnumValue
- Underlying type: never|low|default|high|always
- Initial value: default
- Flags: construct write read

TraceSources defined for this type:

Rx: Receive OLSR packet.
Tx: Send OLSR packet.
RoutingTableChanged: The OLSR routing table has changed.

Reimplemented from ns3::Ipv4RoutingProtocol.

void ns3::olsr::RoutingProtocol::SetMainInterface ( uint32_t interface )

Set the OLSR main address to the first address on the indicated interface.

Parameters:

interface

IPv4 interface index

The documentation for this class was generated from the following files:

src/routing/olsr/olsr-routing-protocol.h
doc/introspected-doxygen.h
