BasicEnergyUpdateTest Class Reference

Inheritance diagram for BasicEnergyUpdateTest:

Collaboration diagram for BasicEnergyUpdateTest:

Public Member Functions
	BasicEnergyUpdateTest ()
virtual	~BasicEnergyUpdateTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
void	DoRun (void)
bool	StateSwitchTest (WifiPhy::State state)

Private Attributes
ObjectFactory	m_deviceEnergyModel
ObjectFactory	m_energySource
double	m_timeS
double	m_tolerance

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Test case of update remaining energy for BasicEnergySource and WifiRadioEnergyModel.

Definition at line 46 of file basic-energy-model-test.cc.

Constructor & Destructor Documentation

BasicEnergyUpdateTest::BasicEnergyUpdateTest

(

)

Definition at line 72 of file basic-energy-model-test.cc.

References m_timeS, and m_tolerance.

BasicEnergyUpdateTest::~BasicEnergyUpdateTest ( )

virtual

Definition at line 79 of file basic-energy-model-test.cc.

Member Function Documentation

void BasicEnergyUpdateTest::DoRun ( void  )

private

Definition at line 84 of file basic-energy-model-test.cc.

References ns3::IDLE, m_deviceEnergyModel, m_energySource, NS_TEST_ASSERT_MSG_EQ, ns3::ObjectFactory::SetTypeId(), and StateSwitchTest().

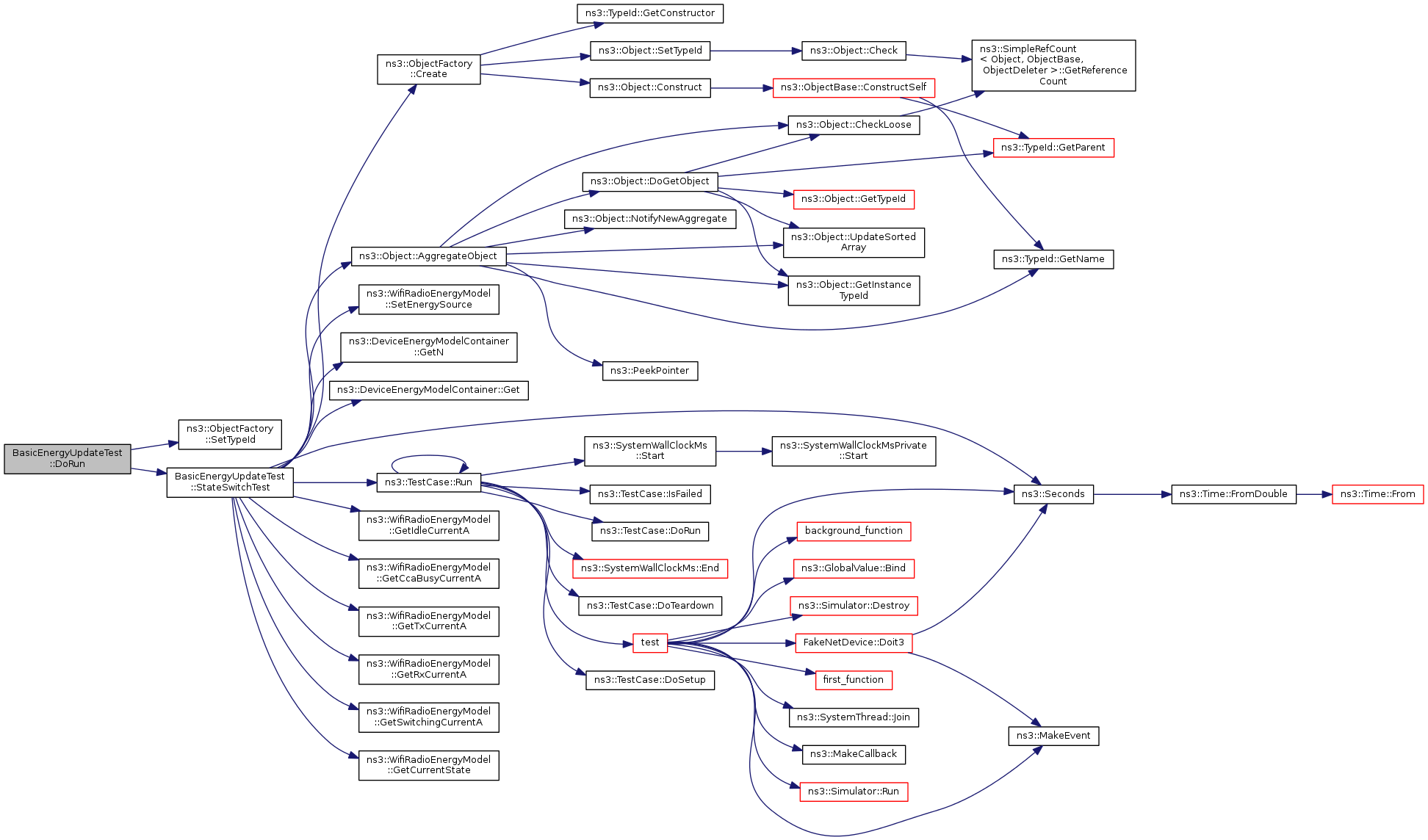

Here is the call graph for this function:

bool BasicEnergyUpdateTest::StateSwitchTest ( WifiPhy::State  state )

private

Parameters

state

Radio state to switch to.

Returns

False if no error occurs.

Runs simulation for a while, check if final state & remaining energy is correctly updated.

Definition at line 99 of file basic-energy-model-test.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), ns3::DeviceEnergyModelContainer::Get(), ns3::WifiRadioEnergyModel::GetCcaBusyCurrentA(), ns3::WifiRadioEnergyModel::GetCurrentState(), ns3::WifiRadioEnergyModel::GetIdleCurrentA(), ns3::DeviceEnergyModelContainer::GetN(), ns3::WifiRadioEnergyModel::GetRxCurrentA(), ns3::WifiRadioEnergyModel::GetSwitchingCurrentA(), ns3::WifiRadioEnergyModel::GetTxCurrentA(), ns3::IDLE, m_deviceEnergyModel, m_energySource, m_timeS, m_tolerance, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ_RETURNS_BOOL, NS_TEST_ASSERT_MSG_EQ_TOL_RETURNS_BOOL, NS_TEST_ASSERT_MSG_NE_RETURNS_BOOL, ns3::TestCase::Run(), ns3::Seconds(), and ns3::WifiRadioEnergyModel::SetEnergySource().

Referenced by DoRun().

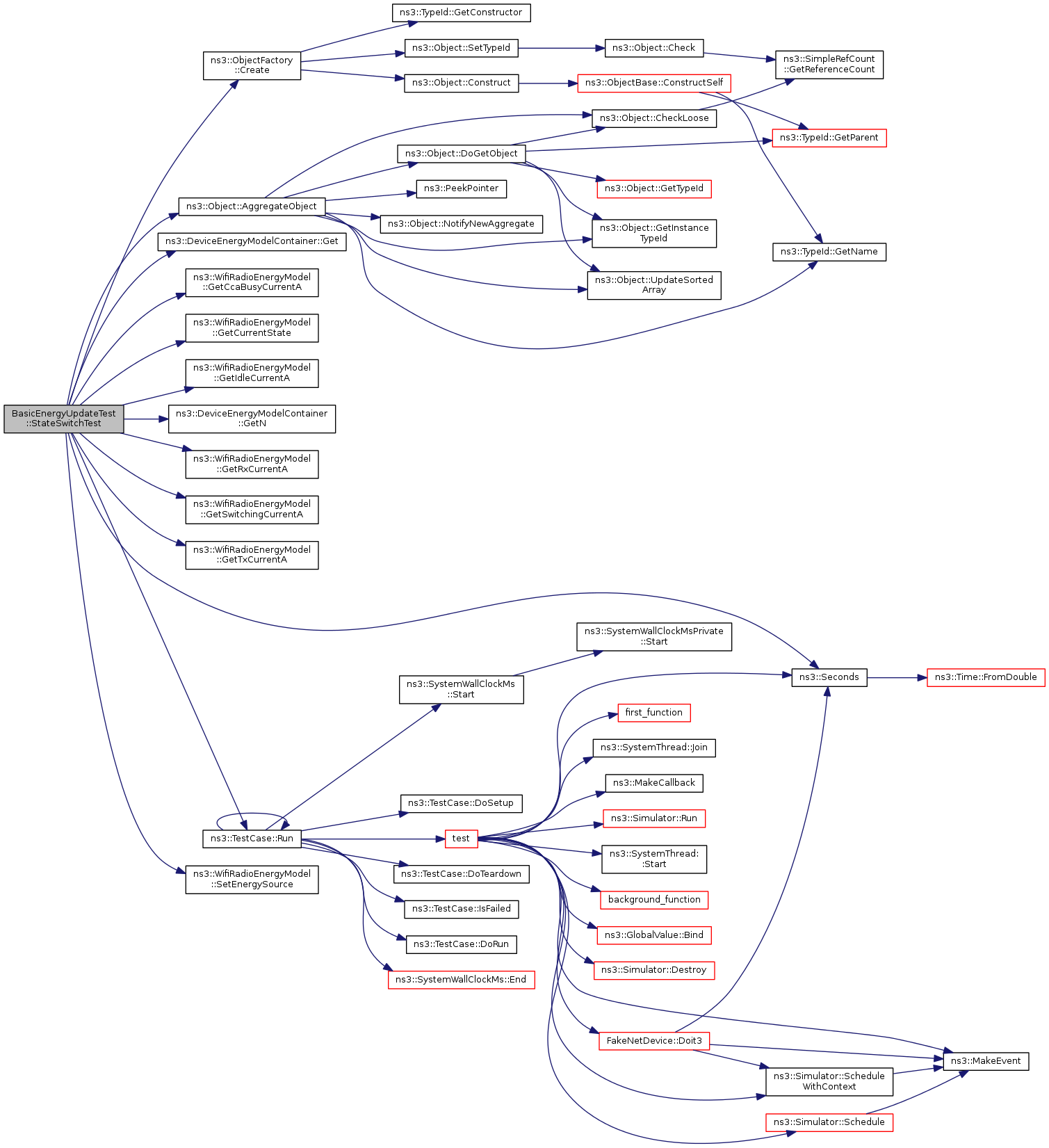

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory BasicEnergyUpdateTest::m_deviceEnergyModel

private

Definition at line 69 of file basic-energy-model-test.cc.

Referenced by DoRun(), and StateSwitchTest().

ObjectFactory BasicEnergyUpdateTest::m_energySource

private

Definition at line 68 of file basic-energy-model-test.cc.

Referenced by DoRun(), and StateSwitchTest().

double BasicEnergyUpdateTest::m_timeS

private

Definition at line 65 of file basic-energy-model-test.cc.

Referenced by BasicEnergyUpdateTest(), and StateSwitchTest().

double BasicEnergyUpdateTest::m_tolerance

private

Definition at line 66 of file basic-energy-model-test.cc.

Referenced by BasicEnergyUpdateTest(), and StateSwitchTest().

---

The documentation for this class was generated from the following file:

• src/energy/test/basic-energy-model-test.cc
