802.11 PHY layer model More...

#include <wifi-phy.h>

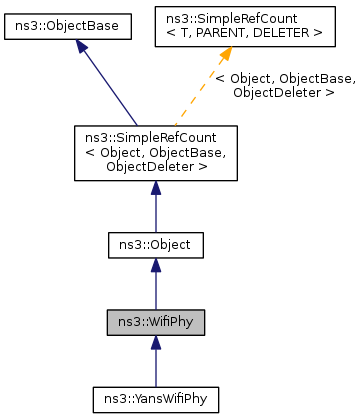

Inheritance diagram for ns3::WifiPhy:

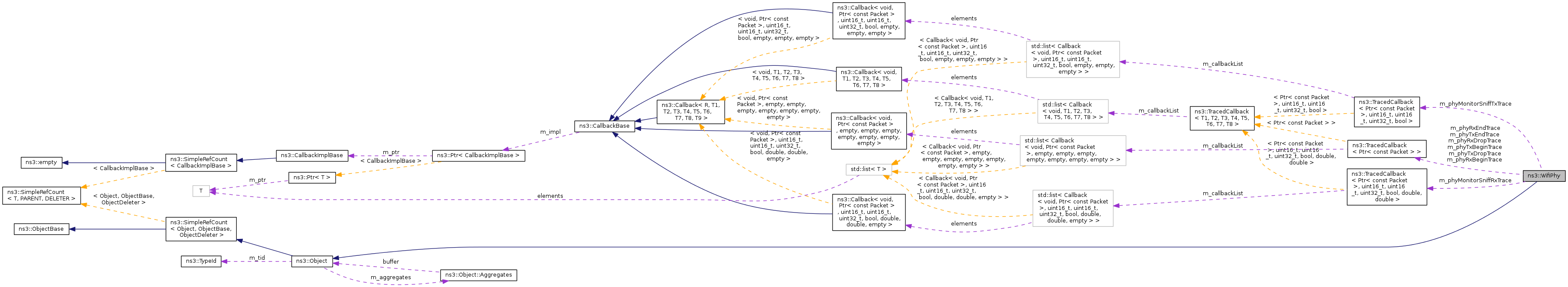

Collaboration diagram for ns3::WifiPhy:

Public Types
typedef Callback< void, Ptr < const Packet >, double >	RxErrorCallback
typedef Callback< void, Ptr < Packet >, double, WifiMode, enum WifiPreamble >	RxOkCallback
enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING }

Public Member Functions
	WifiPhy ()
virtual	~WifiPhy ()
virtual int64_t	AssignStreams (int64_t stream)=0
virtual double	CalculateSnr (WifiMode txMode, double ber) const =0
virtual void	ConfigureStandard (enum WifiPhyStandard standard)=0
virtual Ptr< WifiChannel >	GetChannel (void) const =0
virtual uint16_t	GetChannelNumber () const =0
	Return current channel number, see SetChannelNumber()
virtual Time	GetDelayUntilIdle (void)=0
virtual Time	GetLastRxStartTime (void) const =0
virtual WifiMode	GetMode (uint32_t mode) const =0
virtual uint32_t	GetNModes (void) const =0
virtual uint32_t	GetNTxPower (void) const =0
virtual Time	GetStateDuration (void)=0
virtual double	GetTxPowerEnd (void) const =0
virtual double	GetTxPowerStart (void) const =0
virtual bool	IsStateBusy (void)=0
virtual bool	IsStateCcaBusy (void)=0
virtual bool	IsStateIdle (void)=0
virtual bool	IsStateRx (void)=0
virtual bool	IsStateSwitching (void)=0
virtual bool	IsStateTx (void)=0
void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm)
void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble)
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)

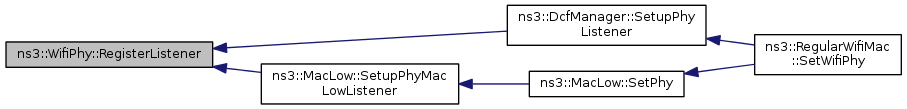

virtual void	RegisterListener (WifiPhyListener *listener)=0
virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, uint8_t txPowerLevel)=0
virtual void	SetChannelNumber (uint16_t id)=0
	Set channel number.
virtual void	SetReceiveErrorCallback (RxErrorCallback callback)=0
virtual void	SetReceiveOkCallback (RxOkCallback callback)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static Time	CalculateTxDuration (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble)
static WifiMode	GetDsssRate11Mbps ()
static WifiMode	GetDsssRate1Mbps ()
static WifiMode	GetDsssRate2Mbps ()
static WifiMode	GetDsssRate5_5Mbps ()
static WifiMode	GetErpOfdmRate12Mbps ()
static WifiMode	GetErpOfdmRate18Mbps ()
static WifiMode	GetErpOfdmRate24Mbps ()
static WifiMode	GetErpOfdmRate36Mbps ()
static WifiMode	GetErpOfdmRate48Mbps ()
static WifiMode	GetErpOfdmRate54Mbps ()
static WifiMode	GetErpOfdmRate6Mbps ()
static WifiMode	GetErpOfdmRate9Mbps ()
static WifiMode	GetOfdmRate12Mbps ()
static WifiMode	GetOfdmRate12MbpsBW10MHz ()
static WifiMode	GetOfdmRate12MbpsBW5MHz ()
static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate18Mbps ()
static WifiMode	GetOfdmRate18MbpsBW10MHz ()
static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate24Mbps ()
static WifiMode	GetOfdmRate24MbpsBW10MHz ()

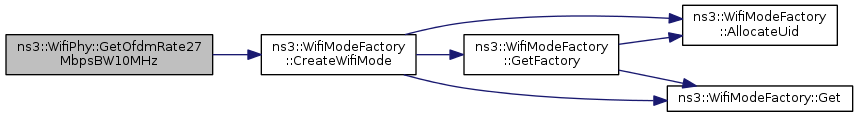

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
static WifiMode	GetOfdmRate36Mbps ()
static WifiMode	GetOfdmRate3MbpsBW10MHz ()
static WifiMode	GetOfdmRate3MbpsBW5MHz ()
static WifiMode	GetOfdmRate48Mbps ()
static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate54Mbps ()
static WifiMode	GetOfdmRate6Mbps ()
static WifiMode	GetOfdmRate6MbpsBW10MHz ()
static WifiMode	GetOfdmRate6MbpsBW5MHz ()
static WifiMode	GetOfdmRate9Mbps ()
static WifiMode	GetOfdmRate9MbpsBW10MHz ()
static WifiMode	GetOfdmRate9MbpsBW5MHz ()
static uint32_t	GetPayloadDurationMicroSeconds (uint32_t size, WifiMode payloadMode)
static uint32_t	GetPlcpHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)
static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)
static uint32_t	GetPlcpPreambleDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiPhy.

Private Attributes
TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, bool, double, double >	m_phyMonitorSniffRxTrace
TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, bool >	m_phyMonitorSniffTxTrace
TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

802.11 PHY layer model

Definition at line 117 of file wifi-phy.h.

Member Typedef Documentation

typedef Callback<void,Ptr<const Packet>, double> ns3::WifiPhy::RxErrorCallback

arg1: packet received unsuccessfully arg2: snr of packet

Definition at line 158 of file wifi-phy.h.

typedef Callback<void,Ptr<Packet>, double, WifiMode, enum WifiPreamble> ns3::WifiPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet.

Definition at line 153 of file wifi-phy.h.

Member Enumeration Documentation

enum ns3::WifiPhy::State

The state of the PHY layer.

Enumerator:

IDLE	The PHY layer is IDLE.
CCA_BUSY	The PHY layer has sense the medium busy through the CCA mechanism
TX	The PHY layer is sending a packet.
RX	The PHY layer is receiving a packet.
SWITCHING	The PHY layer is switching to other channel.

Definition at line 123 of file wifi-phy.h.

Constructor & Destructor Documentation

ns3::WifiPhy::WifiPhy ( )

Definition at line 86 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

ns3::WifiPhy::~WifiPhy ( )

virtual

Definition at line 91 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual int64_t ns3::WifiPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::YansWifiPhy.

virtual double ns3::WifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

pure virtual

Parameters

txMode	the transmission mode
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implemented in ns3::YansWifiPhy.

Referenced by ns3::IdealWifiManager::SetupPhy().

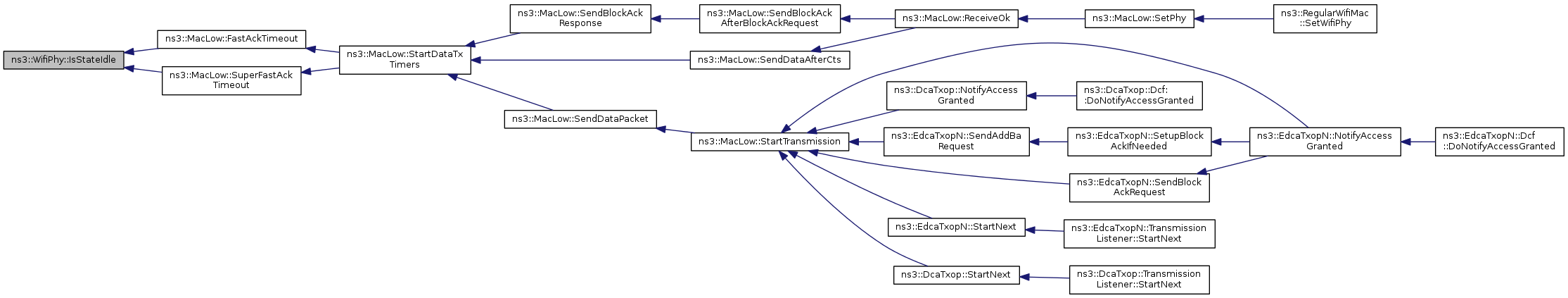

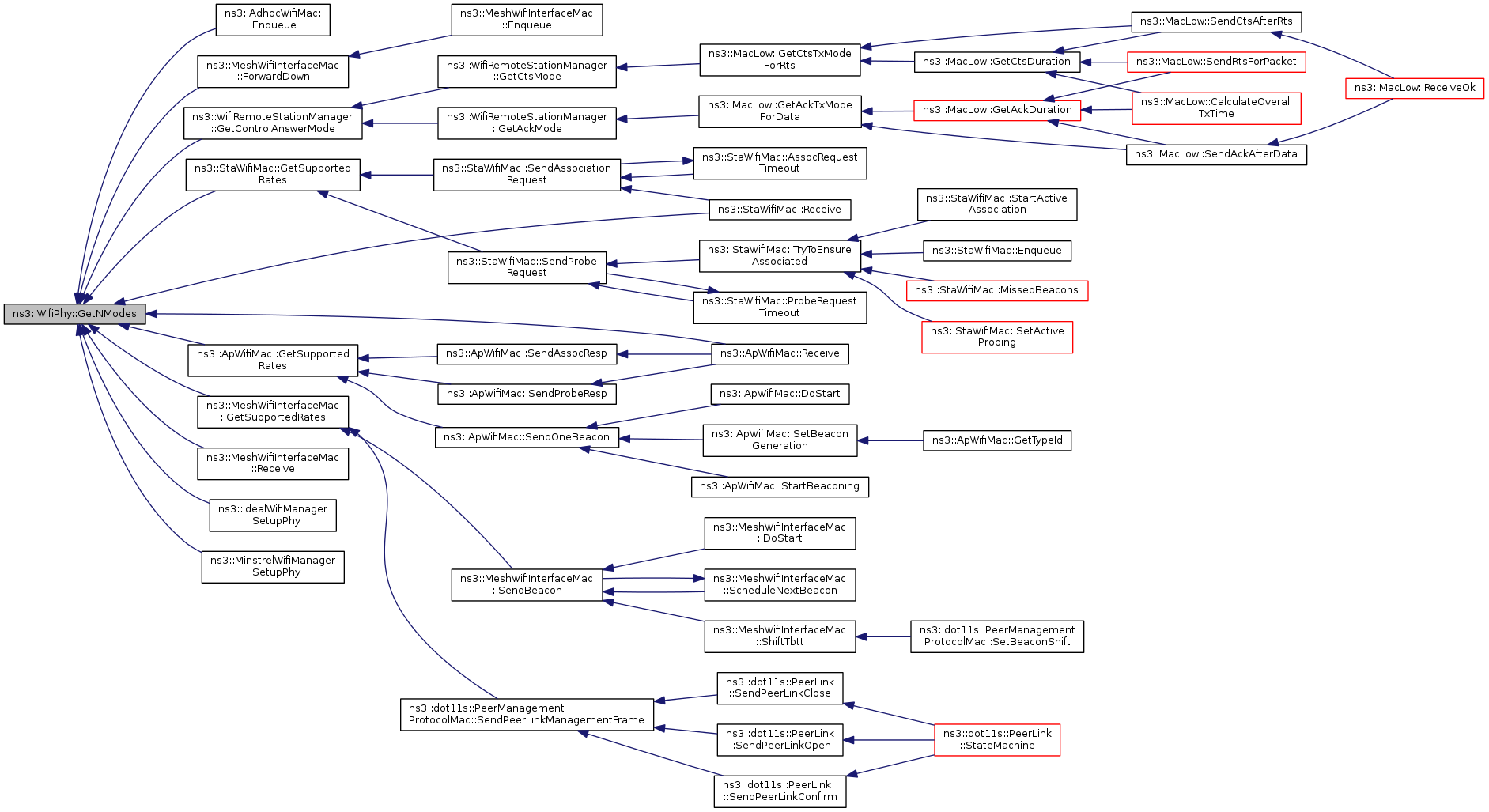

Here is the caller graph for this function:

Time ns3::WifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble
	)

static

Parameters

size	the number of bytes in the packet to send
payloadMode	the transmission mode to use for this packet
preamble	the type of preamble to use for this packet.

Returns: the total amount of time this PHY will stay busy for the transmission of these bytes.

Definition at line 294 of file wifi-phy.cc.

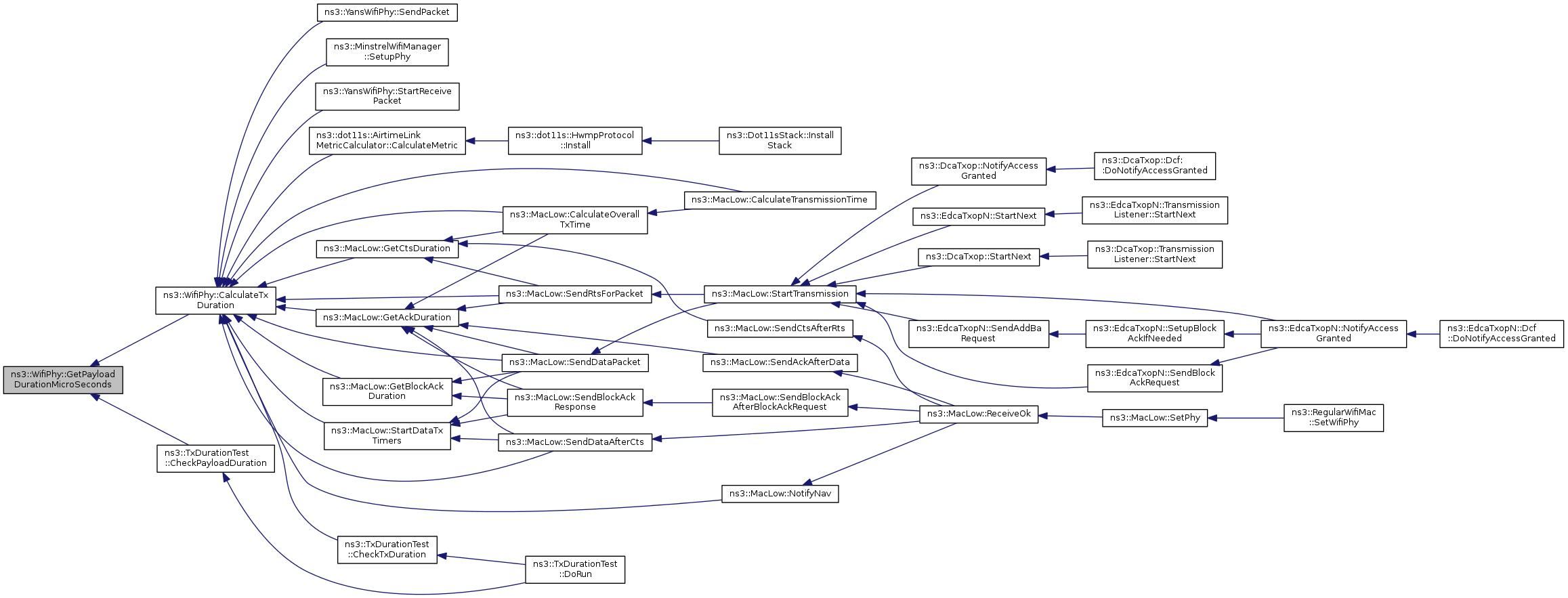

References GetPayloadDurationMicroSeconds(), GetPlcpHeaderDurationMicroSeconds(), GetPlcpPreambleDurationMicroSeconds(), and ns3::MicroSeconds().

Referenced by ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::TxDurationTest::CheckTxDuration(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::MacLow::GetCtsDuration(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), ns3::MinstrelWifiManager::SetupPhy(), ns3::MacLow::StartDataTxTimers(), and ns3::YansWifiPhy::StartReceivePacket().

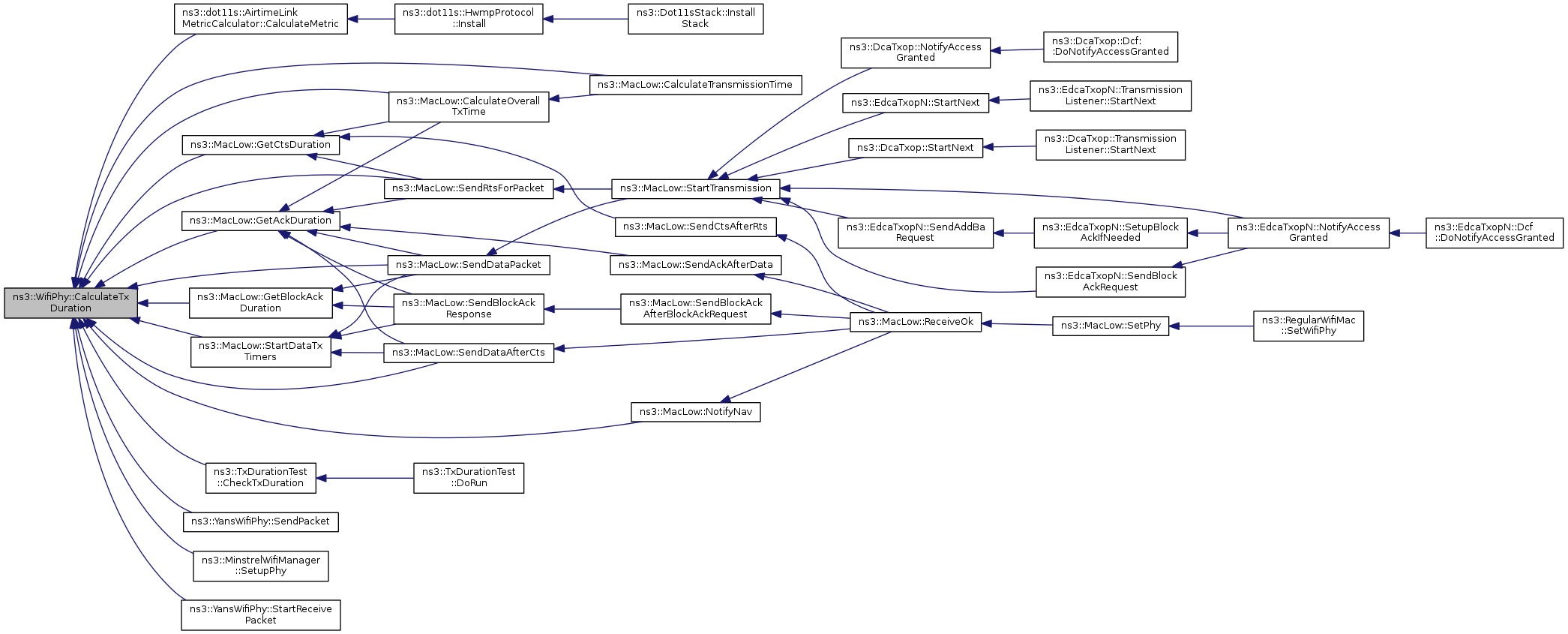

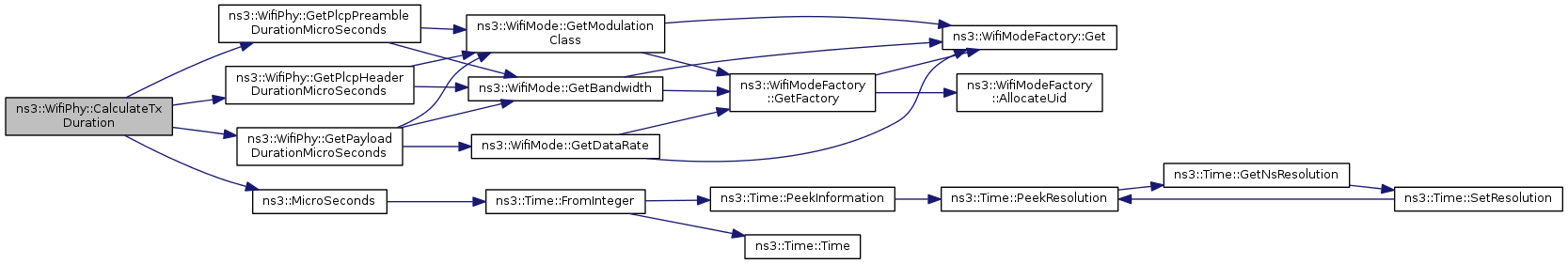

Here is the call graph for this function:

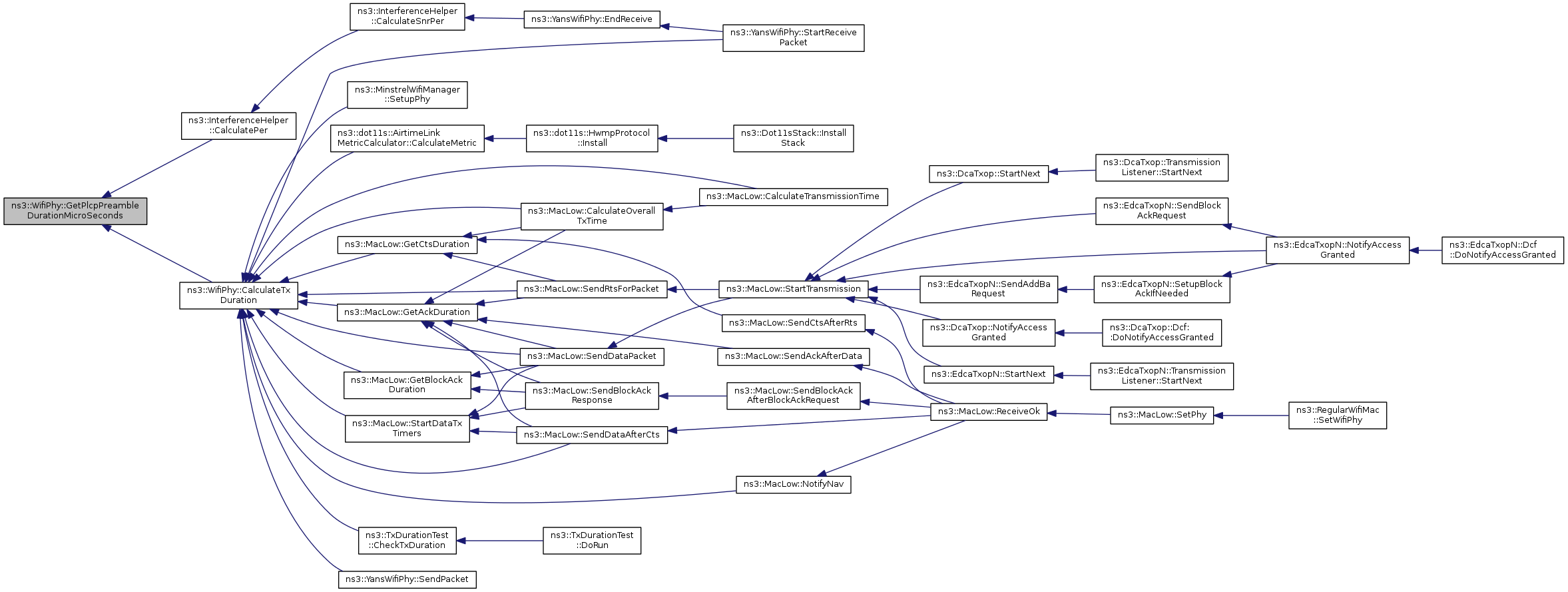

Here is the caller graph for this function:

virtual void ns3::WifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

pure virtual

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MeshHelper::CreateInterface(), and ns3::WifiHelper::Install().

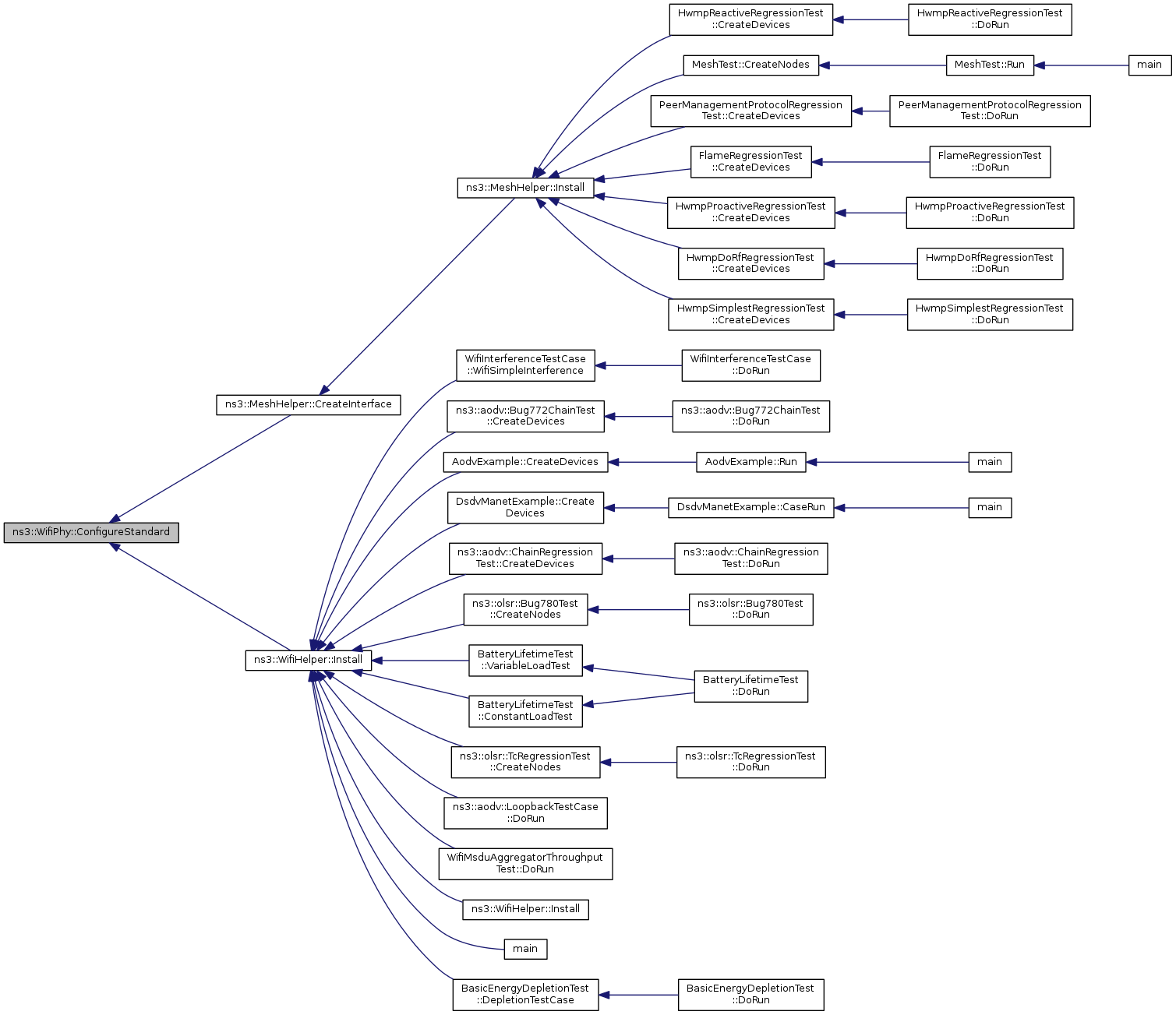

Here is the caller graph for this function:

virtual Ptr<WifiChannel> ns3::WifiPhy::GetChannel ( void ) const

pure virtual

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiNetDevice::DoGetChannel(), and ns3::WifiNetDevice::GetChannel().

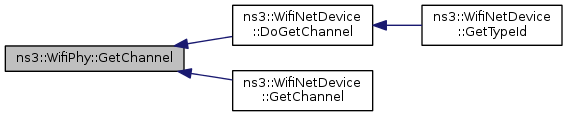

Here is the caller graph for this function:

virtual uint16_t ns3::WifiPhy::GetChannelNumber ( ) const

pure virtual

Return current channel number, see SetChannelNumber()

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetDelayUntilIdle ( void )

pure virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implemented in ns3::YansWifiPhy.

WifiMode ns3::WifiPhy::GetDsssRate11Mbps ( )

static

Definition at line 400 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

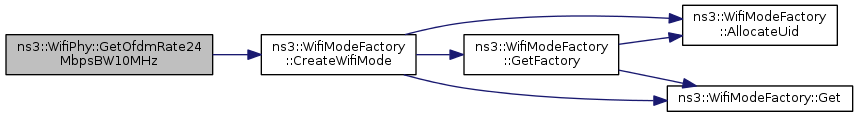

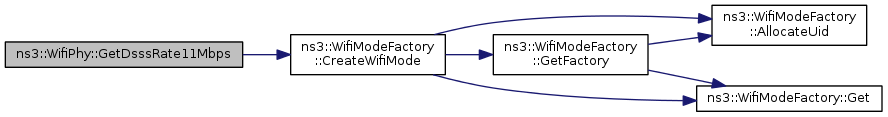

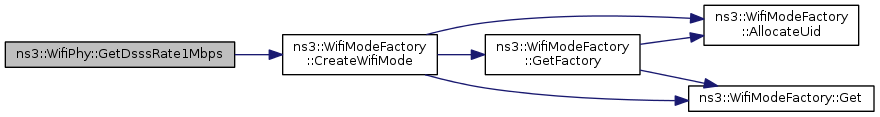

Here is the call graph for this function:

Here is the caller graph for this function:

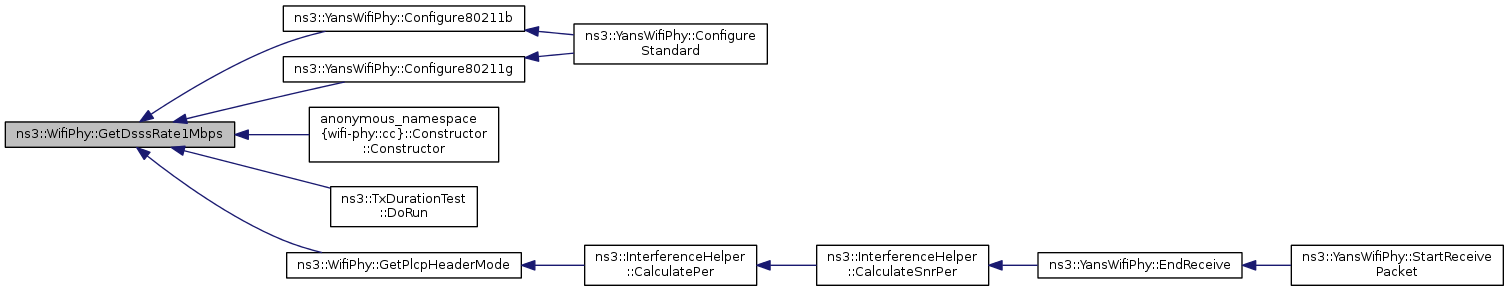

WifiMode ns3::WifiPhy::GetDsssRate1Mbps ( )

static

Clause 15 rates (DSSS)

Definition at line 357 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

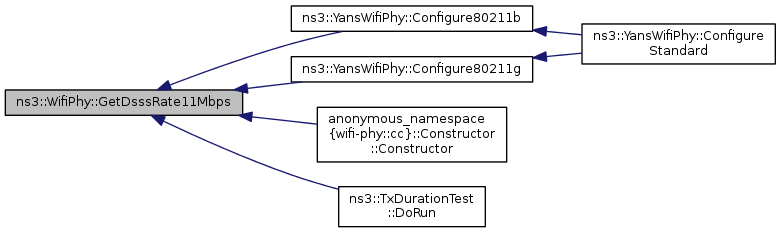

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate2Mbps ( )

static

Definition at line 370 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::TxDurationTest::DoRun(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate5_5Mbps ( )

static

Clause 18 rates (HR/DSSS)

Definition at line 387 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

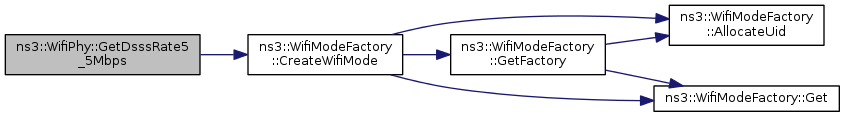

Here is the call graph for this function:

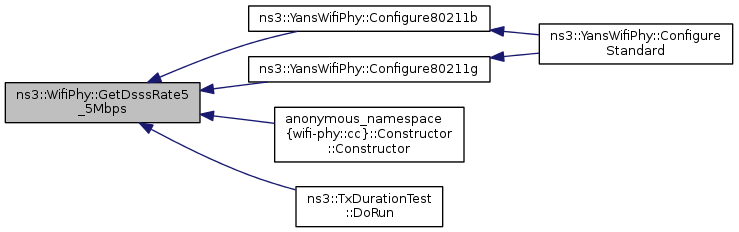

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate12Mbps ( )

static

Definition at line 443 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

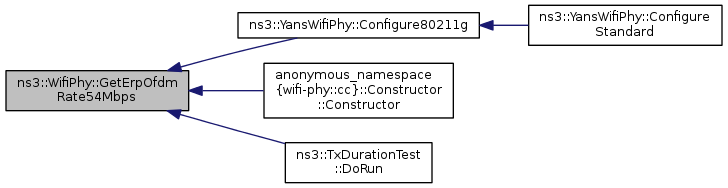

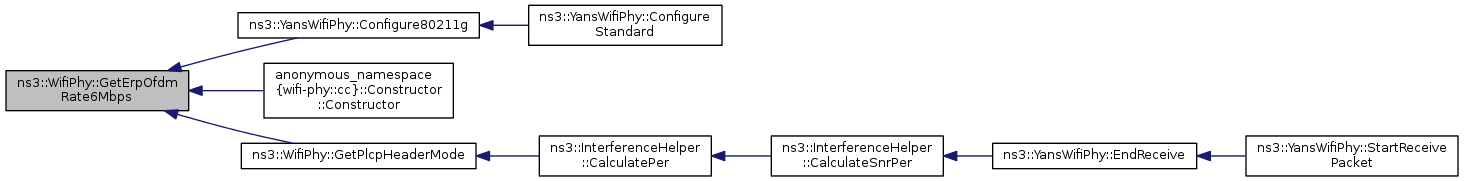

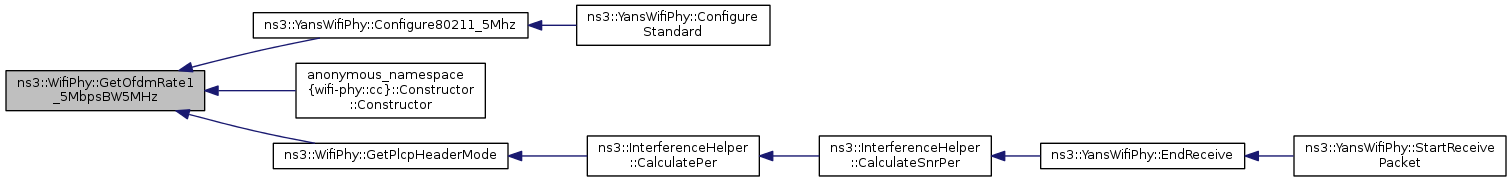

WifiMode ns3::WifiPhy::GetErpOfdmRate18Mbps ( )

static

Definition at line 456 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate24Mbps ( )

static

Definition at line 469 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

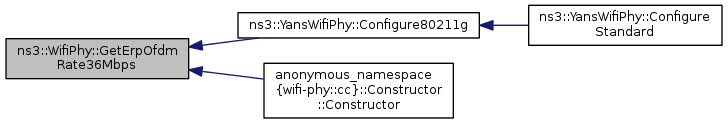

WifiMode ns3::WifiPhy::GetErpOfdmRate36Mbps ( )

static

Definition at line 482 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate48Mbps ( )

static

Definition at line 495 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate54Mbps ( )

static

Definition at line 508 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate6Mbps ( )

static

Clause 19.5 rates (ERP-OFDM)

Definition at line 417 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate9Mbps ( )

static

Definition at line 430 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetLastRxStartTime ( void ) const

pure virtual

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::NavCounterResetCtsMissed().

Here is the caller graph for this function:

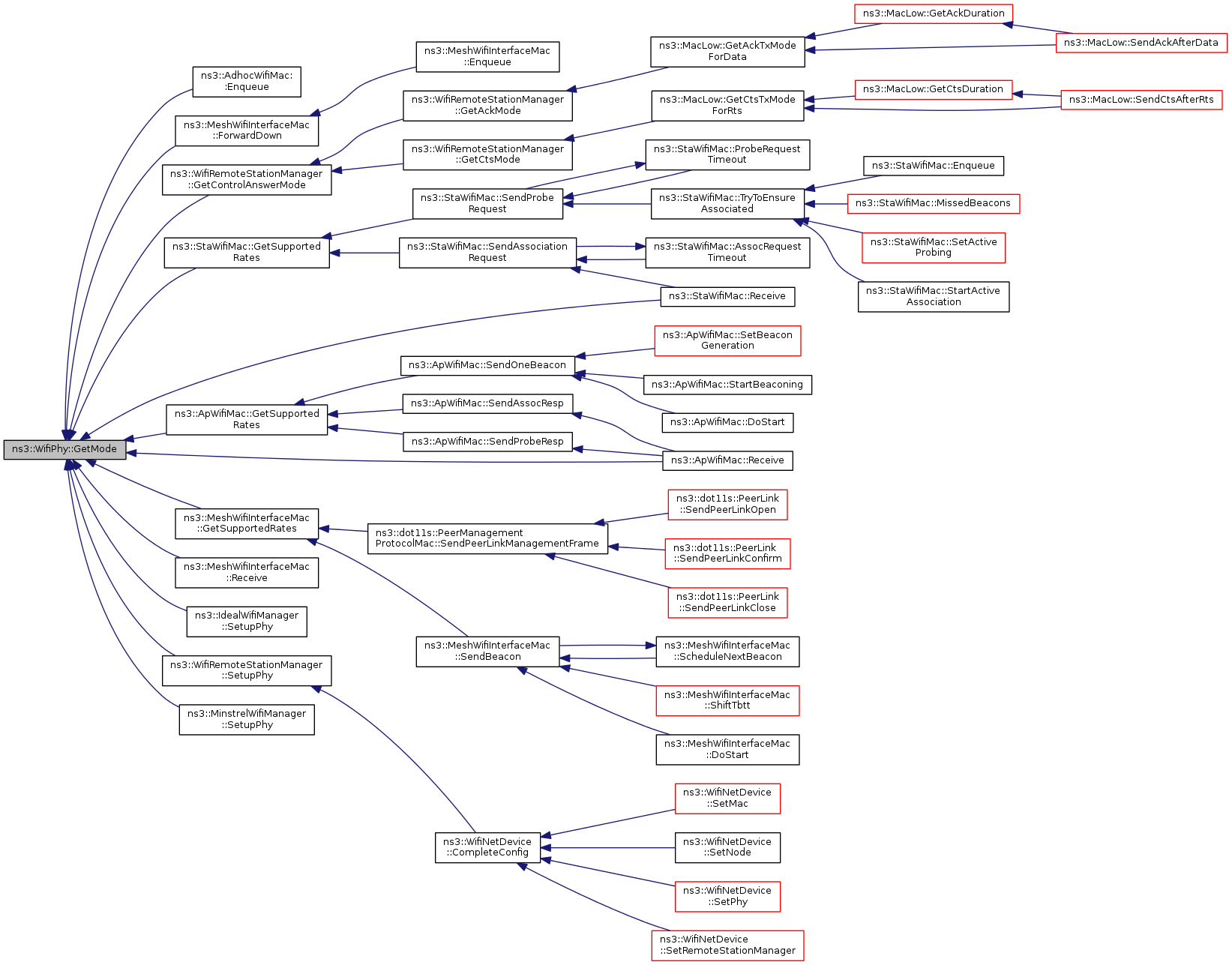

virtual WifiMode ns3::WifiPhy::GetMode ( uint32_t mode ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See Also: WifiPhy::GetNModes()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::IdealWifiManager::SetupPhy(), ns3::WifiRemoteStationManager::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNModes ( void ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See Also: WifiPhy::GetMode()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::IdealWifiManager::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNTxPower ( void ) const

pure virtual

Returns: the number of tx power levels available for this PHY.

Implemented in ns3::YansWifiPhy.

WifiMode ns3::WifiPhy::GetOfdmRate12Mbps ( )

static

Definition at line 551 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz ( )

static

Definition at line 682 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz ( )

static

Definition at line 813 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz ( )

static

Definition at line 826 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18Mbps ( )

static

Definition at line 564 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz ( )

static

Definition at line 695 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz ( )

static

Definition at line 735 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

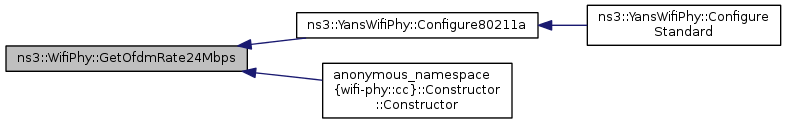

WifiMode ns3::WifiPhy::GetOfdmRate24Mbps ( )

static

Definition at line 577 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz ( )

static

Definition at line 708 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz ( )

static

Definition at line 721 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz ( )

static

Definition at line 748 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate36Mbps ( )

static

Definition at line 590 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz ( )

static

Definition at line 630 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz ( )

static

Definition at line 761 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate48Mbps ( )

static

Definition at line 603 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

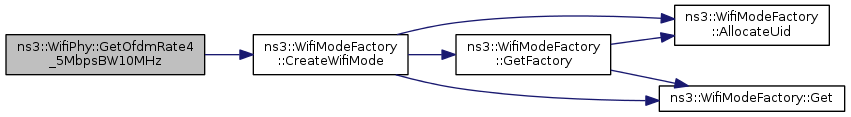

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz ( )

static

Definition at line 643 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz ( )

static

Definition at line 774 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

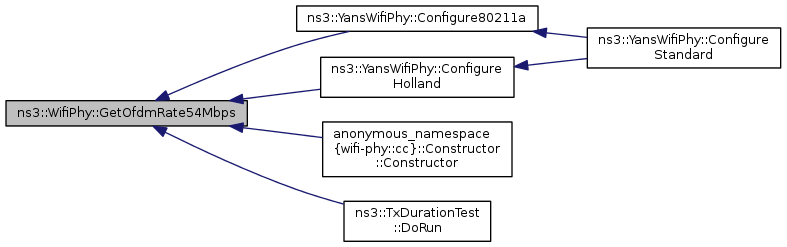

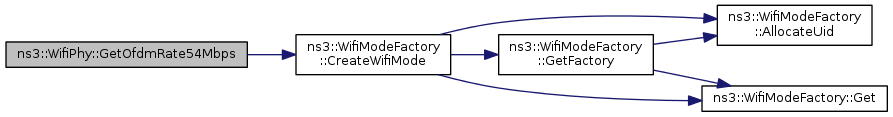

WifiMode ns3::WifiPhy::GetOfdmRate54Mbps ( )

static

Definition at line 616 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::TxDurationTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6Mbps ( )

static

Clause 17 rates (OFDM)

Definition at line 525 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

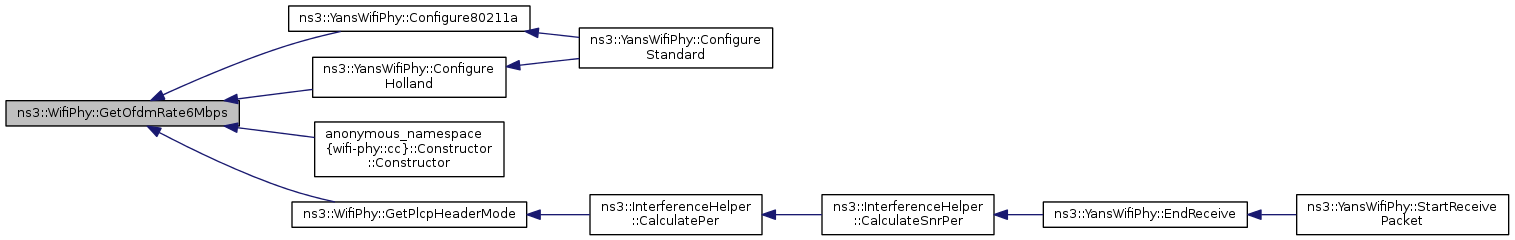

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz ( )

static

Definition at line 656 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

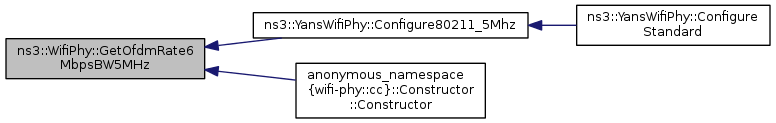

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz ( )

static

Definition at line 787 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9Mbps ( )

static

Definition at line 538 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz ( )

static

Definition at line 669 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), ns3::YansWifiPhy::Configure80211p_CCH(), ns3::YansWifiPhy::Configure80211p_SCH(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz ( )

static

Definition at line 800 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

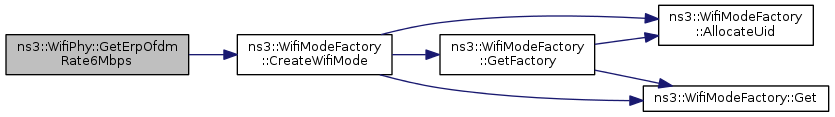

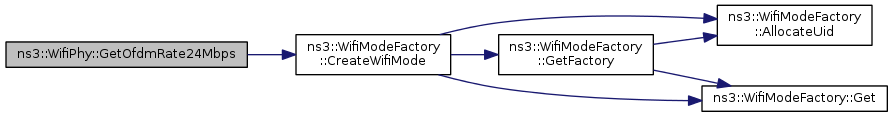

Here is the call graph for this function:

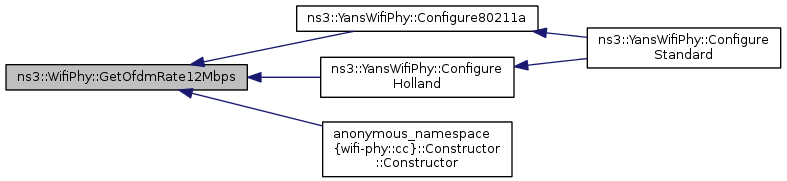

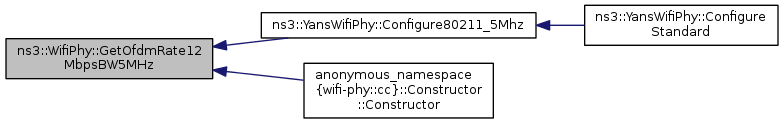

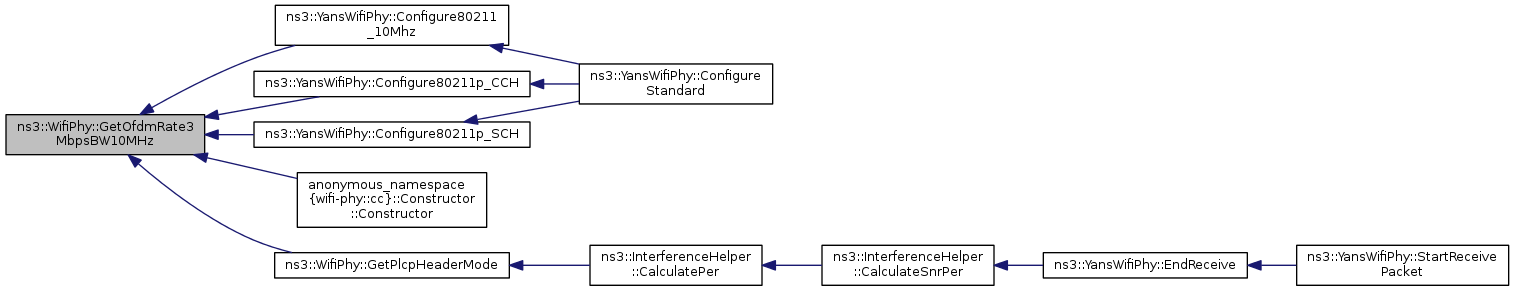

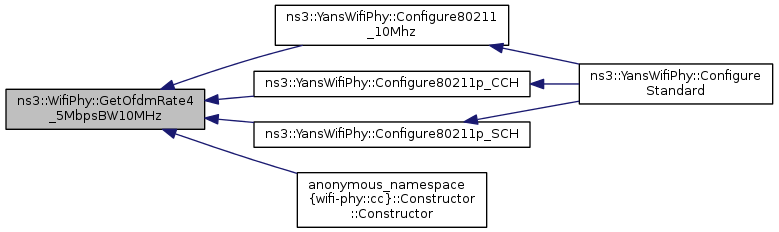

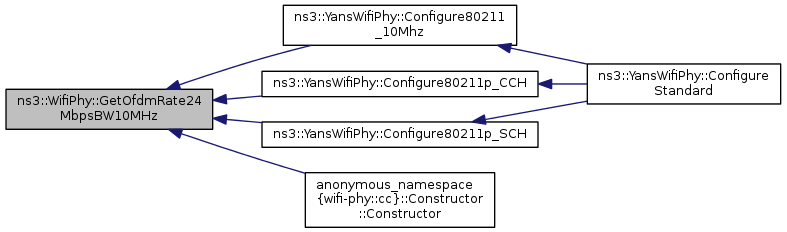

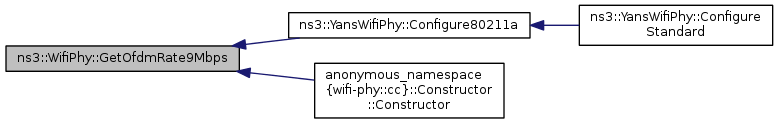

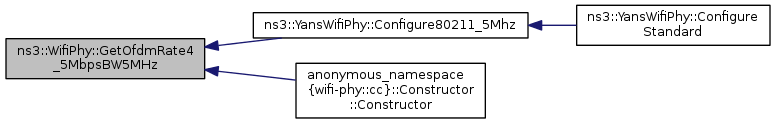

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPayloadDurationMicroSeconds	(	uint32_t	size,
		WifiMode	payloadMode
	)

static

Parameters

size	the number of bytes in the packet to send
payloadMode	the WifiMode use for the transmission of the payload

Returns: the duration of the payload in microseconds

Definition at line 235 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by CalculateTxDuration(), and ns3::TxDurationTest::CheckPayloadDuration().

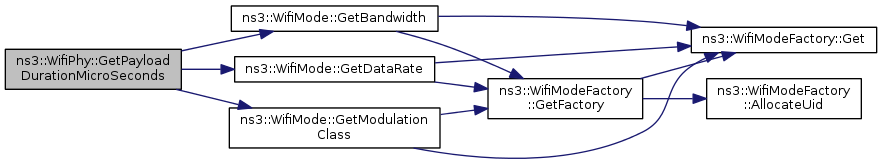

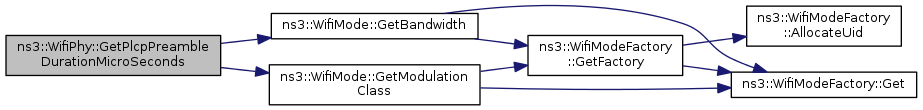

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the duration of the PLCP header in microseconds

Definition at line 141 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

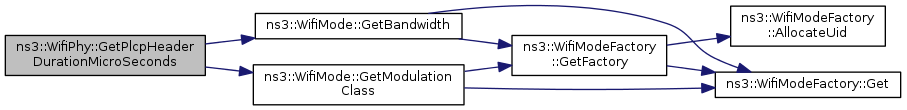

Here is the call graph for this function:

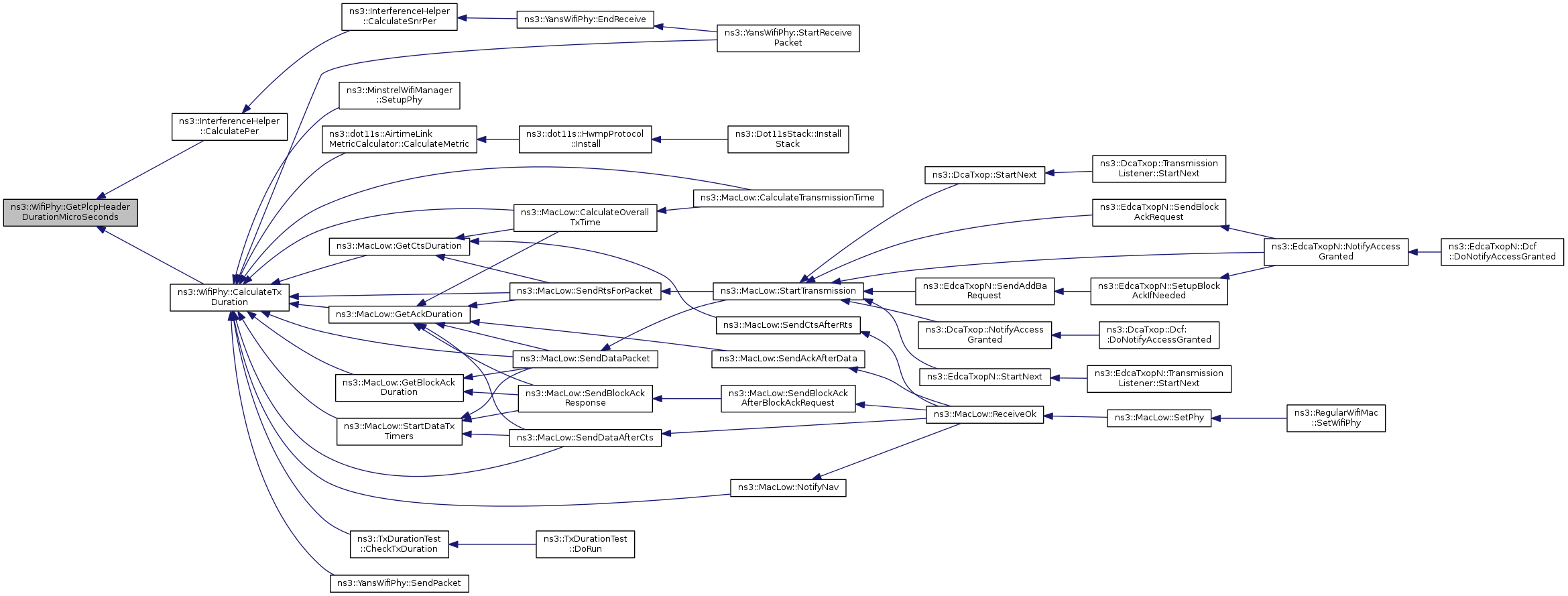

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetPlcpHeaderMode	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the WifiMode used for the transmission of the PLCP header

Definition at line 98 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), GetDsssRate1Mbps(), GetDsssRate2Mbps(), GetErpOfdmRate6Mbps(), ns3::WifiMode::GetModulationClass(), GetOfdmRate1_5MbpsBW5MHz(), GetOfdmRate3MbpsBW10MHz(), GetOfdmRate6Mbps(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_PREAMBLE_LONG.

Referenced by ns3::InterferenceHelper::CalculatePer().

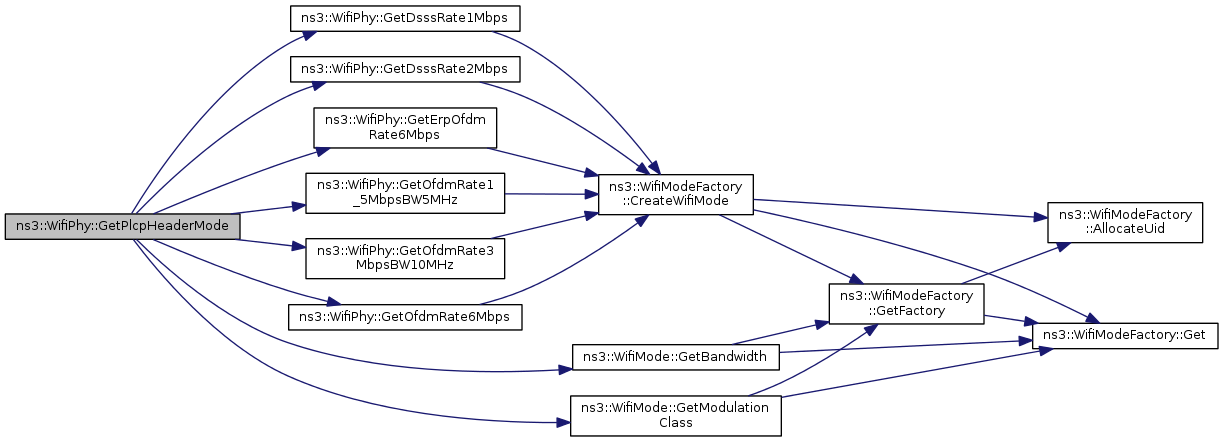

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds	(	WifiMode	payloadMode,
		WifiPreamble	preamble
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble

Returns: the duration of the PLCP preamble in microseconds

Definition at line 189 of file wifi-phy.cc.

References ns3::WifiMode::GetBandwidth(), ns3::WifiMode::GetModulationClass(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePer(), and CalculateTxDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetStateDuration ( void )

pure virtual

Returns: the amount of time since the current state has started.

Implemented in ns3::YansWifiPhy.

virtual double ns3::WifiPhy::GetTxPowerEnd ( void ) const

pure virtual

Implemented in ns3::YansWifiPhy.

virtual double ns3::WifiPhy::GetTxPowerStart ( void ) const

pure virtual

Implemented in ns3::YansWifiPhy.

TypeId ns3::WifiPhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::WifiPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy

No Attributes defined for this type.
TraceSources defined for this type:

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Reimplemented from ns3::Object.

Reimplemented in ns3::YansWifiPhy.

Definition at line 54 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace, m_phyMonitorSniffTxTrace, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

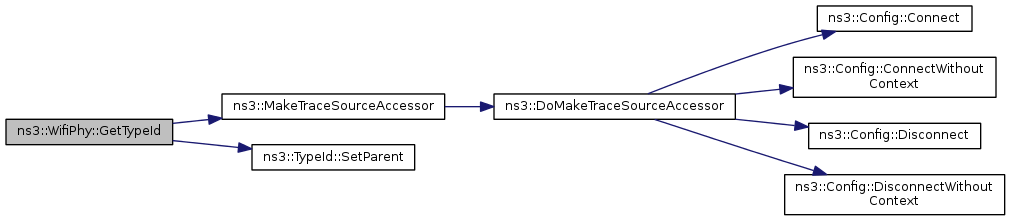

Here is the call graph for this function:

virtual bool ns3::WifiPhy::IsStateBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateCcaBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateIdle ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::FastAckTimeout(), and ns3::MacLow::SuperFastAckTimeout().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::IsStateRx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSwitching ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateTx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::StartTransmission().

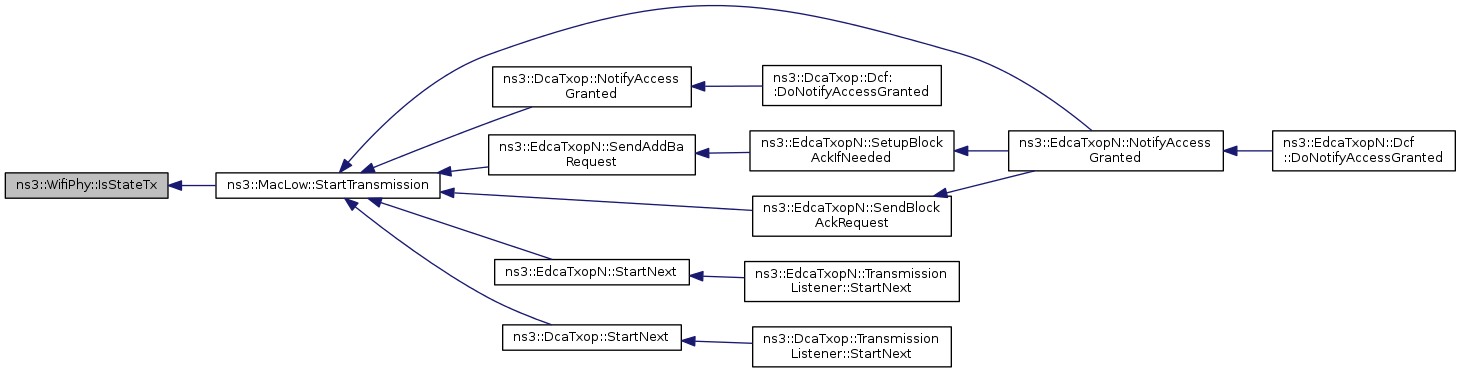

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffRx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble,
		double	signalDbm,
		double	noiseDbm
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being received. Implemented for encapsulation purposes.

Parameters

packet	the packet being received
channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
channelNumber	the channel on which the packet is received
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
isShortPreamble	true if short preamble is used, false otherwise
signalDbm	signal power in dBm
noiseDbm	noise power in dBm

Definition at line 340 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffTx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		bool	isShortPreamble
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. Implemented for encapsulation purposes.

Parameters

packet	the packet being transmitted
channelFreqMhz	the frequency in MHz at which the packet is transmitted.
channelNumber	the channel on which the packet is transmitted
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
isShortPreamble	true if short preamble is used, false otherwise

Definition at line 346 of file wifi-phy.cc.

References m_phyMonitorSniffTxTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyRxBegin trace. Implemented for encapsulation purposes.

Definition at line 322 of file wifi-phy.cc.

References m_phyRxBeginTrace.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyRxDrop trace. Implemented for encapsulation purposes.

Definition at line 334 of file wifi-phy.cc.

References m_phyRxDropTrace.

Referenced by ns3::YansWifiPhy::EndReceive(), and ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyRxEnd trace. Implemented for encapsulation purposes.

Definition at line 328 of file wifi-phy.cc.

References m_phyRxEndTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyTxBegin trace. Implemented for encapsulation purposes.

Definition at line 304 of file wifi-phy.cc.

References m_phyTxBeginTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyTxDrop trace. Implemented for encapsulation purposes.

Definition at line 316 of file wifi-phy.cc.

References m_phyTxDropTrace.

void ns3::WifiPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyTxEnd trace. Implemented for encapsulation purposes.

Definition at line 310 of file wifi-phy.cc.

References m_phyTxEndTrace.

virtual void ns3::WifiPhy::RegisterListener ( WifiPhyListener * listener )

pure virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DcfManager::SetupPhyListener(), and ns3::MacLow::SetupPhyMacLowListener().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		uint8_t	txPowerLevel
	)

pure virtual

Parameters

packet	the packet to send
mode	the transmission mode to use to send this packet
preamble	the type of preamble to use to send this packet.
txPowerLevel	a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::ForwardDown().

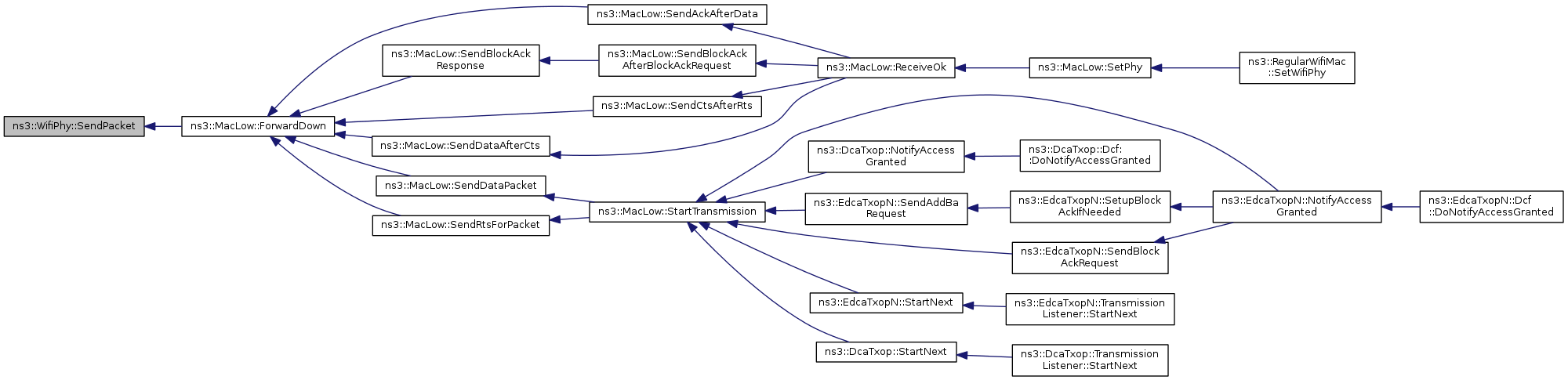

Here is the caller graph for this function:
