network packets More...

#include <packet.h>

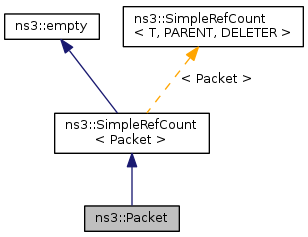

Inheritance diagram for ns3::Packet:

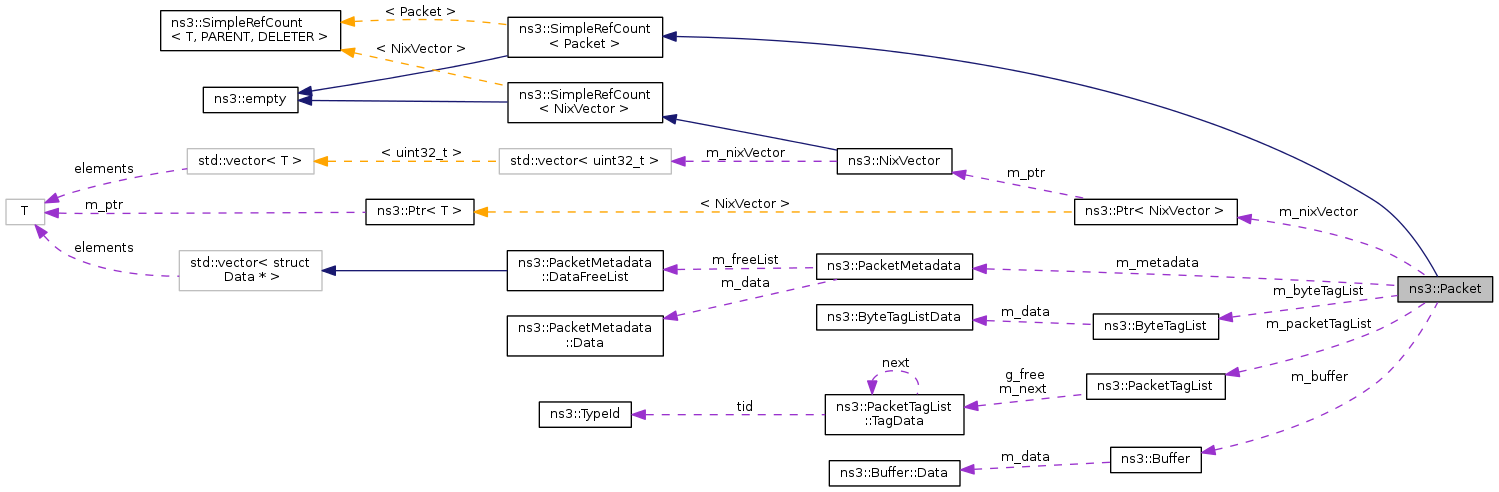

Collaboration diagram for ns3::Packet:

Public Member Functions
	Packet ()
	Packet (const Packet &o)
	Packet (uint32_t size)
	Packet (uint8_t const *buffer, uint32_t size, bool magic)
	Packet (uint8_t const *buffer, uint32_t size)
void	AddAtEnd (Ptr< const Packet > packet)
void	AddByteTag (const Tag &tag) const
void	AddHeader (const Header &header)
void	AddPacketTag (const Tag &tag) const
void	AddPaddingAtEnd (uint32_t size)
void	AddTrailer (const Trailer &trailer)
PacketMetadata::ItemIterator	BeginItem (void) const
Ptr< Packet >	Copy (void) const
uint32_t	CopyData (uint8_t *buffer, uint32_t size) const
void	CopyData (std::ostream *os, uint32_t size) const
Ptr< Packet >	CreateFragment (uint32_t start, uint32_t length) const
bool	FindFirstMatchingByteTag (Tag &tag) const
ByteTagIterator	GetByteTagIterator (void) const
Ptr< NixVector >	GetNixVector (void) const
PacketTagIterator	GetPacketTagIterator (void) const
uint32_t	GetSerializedSize (void) const
uint32_t	GetSize (void) const
uint64_t	GetUid (void) const
Packet &	operator= (const Packet &o)
uint8_t const *	PeekData (void) const NS_DEPRECATED
uint32_t	PeekHeader (Header &header) const
bool	PeekPacketTag (Tag &tag) const
uint32_t	PeekTrailer (Trailer &trailer)
void	Print (std::ostream &os) const
void	PrintByteTags (std::ostream &os) const
void	PrintPacketTags (std::ostream &os) const
void	RemoveAllByteTags (void)
void	RemoveAllPacketTags (void)
void	RemoveAtEnd (uint32_t size)
void	RemoveAtStart (uint32_t size)
uint32_t	RemoveHeader (Header &header)
bool	RemovePacketTag (Tag &tag)
uint32_t	RemoveTrailer (Trailer &trailer)
uint32_t	Serialize (uint8_t *buffer, uint32_t maxSize) const
void	SetNixVector (Ptr< NixVector >)
Public Member Functions inherited from ns3::SimpleRefCount< Packet >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Static Public Member Functions
static void	EnableChecking (void)
static void	EnablePrinting (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Packet >
static void	Cleanup (void)

Private Member Functions
	Packet (const Buffer &buffer, const ByteTagList &byteTagList, const PacketTagList &packetTagList, const PacketMetadata &metadata)
uint32_t	Deserialize (uint8_t const *buffer, uint32_t size)

Private Attributes
Buffer	m_buffer
ByteTagList	m_byteTagList
PacketMetadata	m_metadata
Ptr< NixVector >	m_nixVector
PacketTagList	m_packetTagList

Static Private Attributes
static uint32_t	m_globalUid = 0

Detailed Description

network packets

Each network packet contains a byte buffer, a set of byte tags, a set of packet tags, and metadata.

The byte buffer stores the serialized content of the headers and trailers added to a packet. The serialized representation of these headers is expected to match that of real network packets bit for bit (although nothing forces you to do this) which means that the content of a packet buffer is expected to be that of a real packet.

The metadata describes the type of the headers and trailers which were serialized in the byte buffer. The maintenance of metadata is optional and disabled by default. To enable it, you must call Packet::EnablePrinting and this will allow you to get non-empty output from Packet::Print. If you wish to only enable checking of metadata, and do not need any printing capability, you can call Packet::EnableChecking: its runtime cost is lower than Packet::EnablePrinting.

The set of tags contain simulation-specific information which cannot be stored in the packet byte buffer because the protocol headers or trailers have no standard-conformant field for this information. So-called 'byte' tags are used to tag a subset of the bytes in the packet byte buffer while 'packet' tags are used to tag the packet itself. The main difference between these two kinds of tags is what happens when packets are copied, fragmented, and reassembled: 'byte' tags follow bytes while 'packet' tags follow packets. Another important difference between these two kinds of tags is that byte tags cannot be removed and are expected to be written once, and read many times, while packet tags are expected to be written once, read many times, and removed exactly once. An example of a 'byte' tag is a FlowIdTag which contains a flow id and is set by the application generating traffic. An example of a 'packet' tag is a cross-layer qos class id set by an application and processed by a lower-level MAC layer.

Implementing a new type of Header or Trailer for a new protocol is pretty easy and is a matter of creating a subclass of the ns3::Header or of the ns3::Trailer base class, and implementing the methods described in their respective API documentation.

Implementing a new type of Tag requires roughly the same amount of work and this work is described in the ns3::Tag API documentation.

The performance aspects of the Packet API are discussed in Packet Performance

Definition at line 203 of file packet.h.

Constructor & Destructor Documentation

ns3::Packet::Packet ( )

Create an empty packet with a new uid (as returned by getUid).

Definition at line 128 of file packet.cc.

References m_globalUid.

Referenced by CreateFragment().

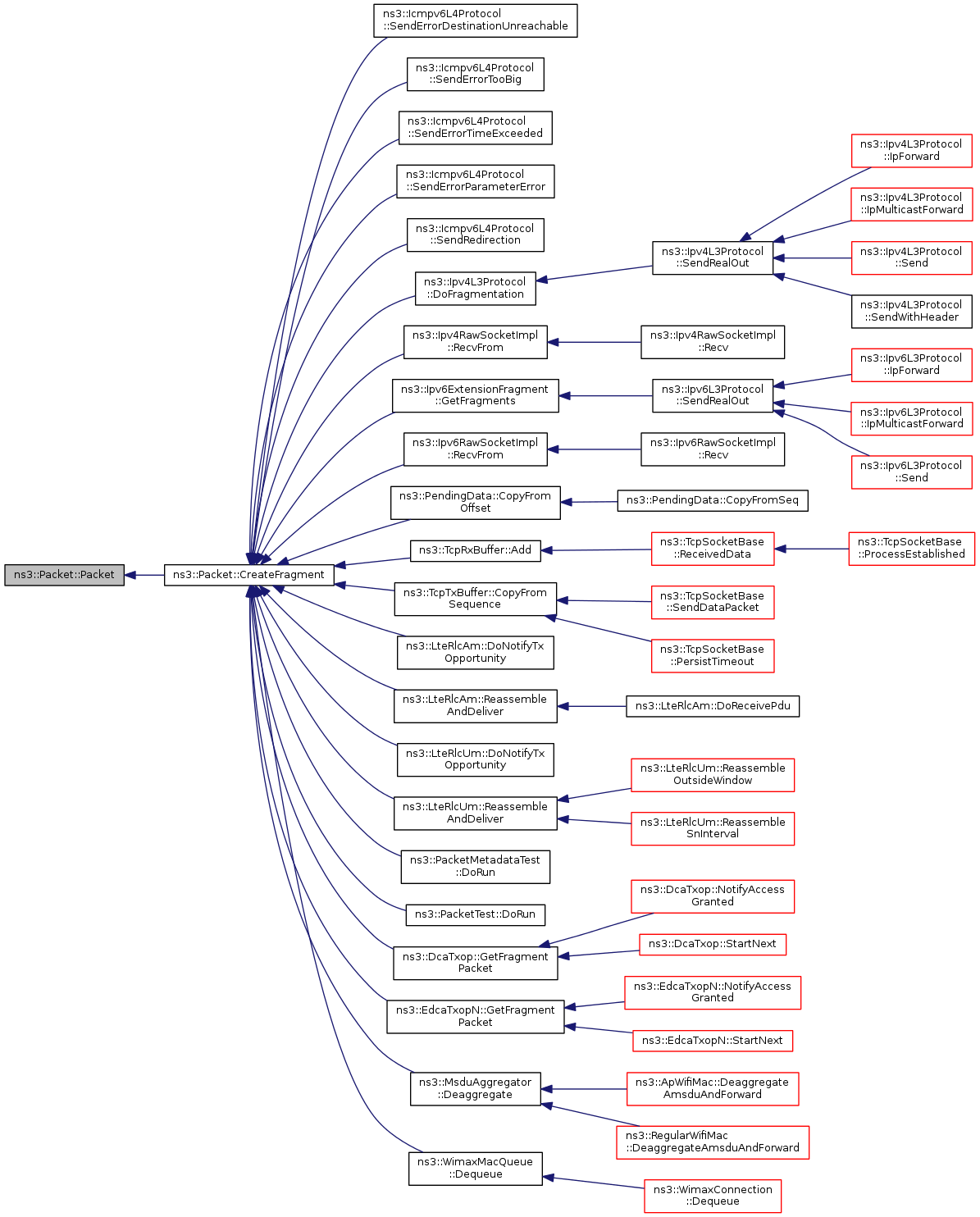

Here is the caller graph for this function:

ns3::Packet::Packet ( const Packet & o )

Definition at line 144 of file packet.cc.

References ns3::NixVector::Copy(), and m_nixVector.

Here is the call graph for this function:

ns3::Packet::Packet ( uint32_t size )

Create a packet with a zero-filled payload. The memory necessary for the payload is not allocated: it will be allocated at any later point if you attempt to fragment this packet or to access the zero-filled bytes. The packet is allocated with a new uid (as returned by getUid).

Parameters

size	the size of the zero-filled payload

Definition at line 170 of file packet.cc.

References m_globalUid.

ns3::Packet::Packet	(	uint8_t const *	buffer,
		uint32_t	size,
		bool	magic
	)

Create a new packet from the serialized buffer. This new packet is identical to the serialized packet contained in the buffer and is magically deserialized for you

Parameters

buffer	the serialized packet to be created
size	the size of the packet for deserialization
magic	allows packet deserialization; asserts when set to false

Definition at line 185 of file packet.cc.

References Deserialize(), and NS_ASSERT.

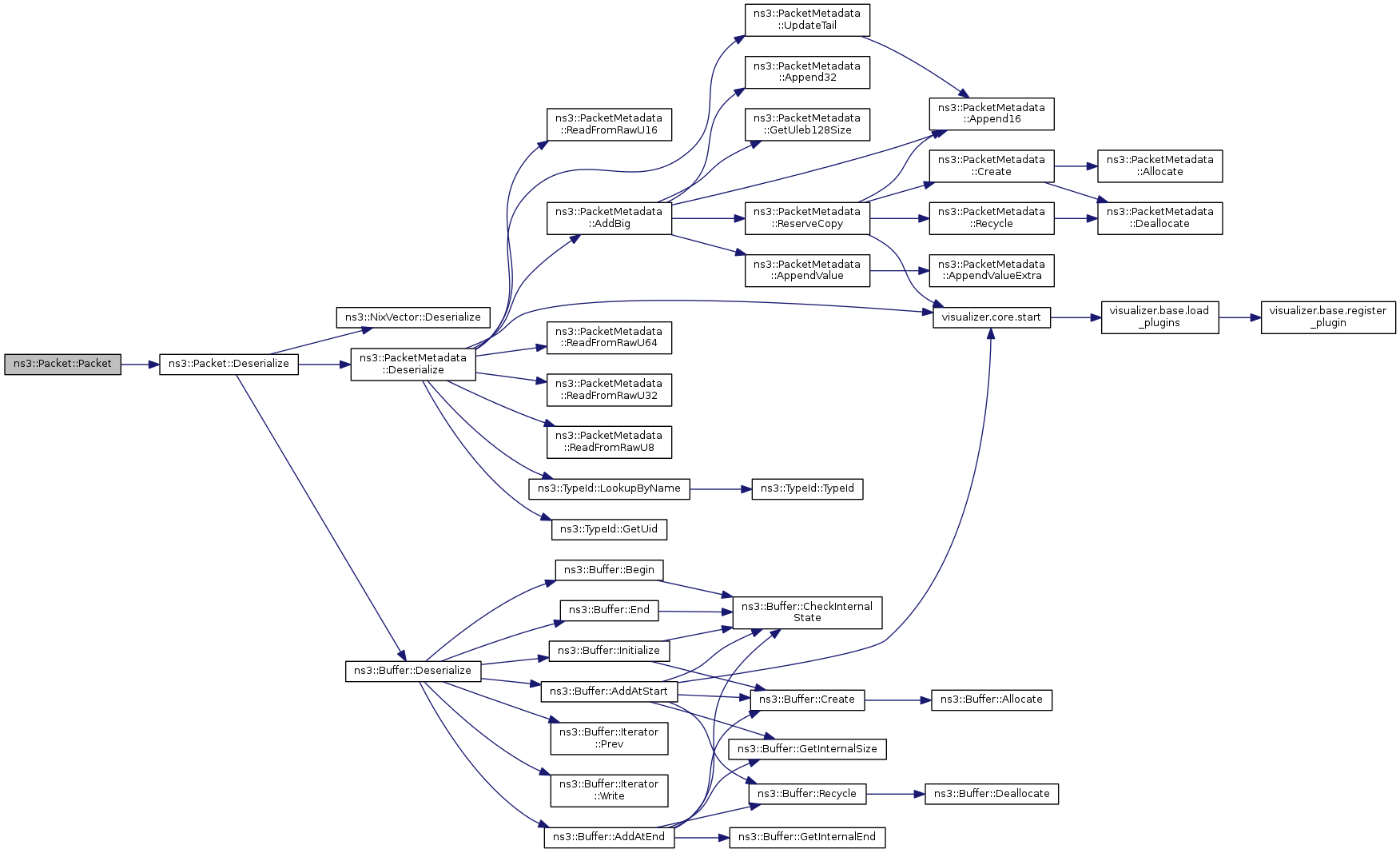

Here is the call graph for this function:

ns3::Packet::Packet	(	uint8_t const *	buffer,
		uint32_t	size
	)

Create a packet with payload filled with the content of this buffer. The input data is copied: the input buffer is untouched.

Parameters

buffer	the data to store in the packet.
size	the size of the input buffer.

Definition at line 196 of file packet.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), m_buffer, m_globalUid, and ns3::Buffer::Iterator::Write().

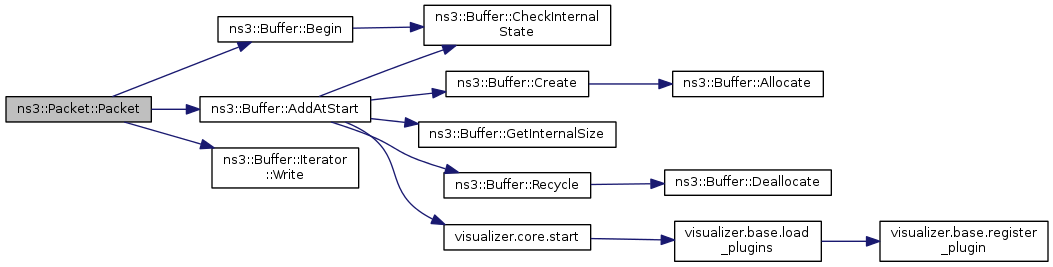

Here is the call graph for this function:

ns3::Packet::Packet	(	const Buffer &	buffer,
		const ByteTagList &	byteTagList,
		const PacketTagList &	packetTagList,
		const PacketMetadata &	metadata
	)

private

Definition at line 215 of file packet.cc.

Member Function Documentation

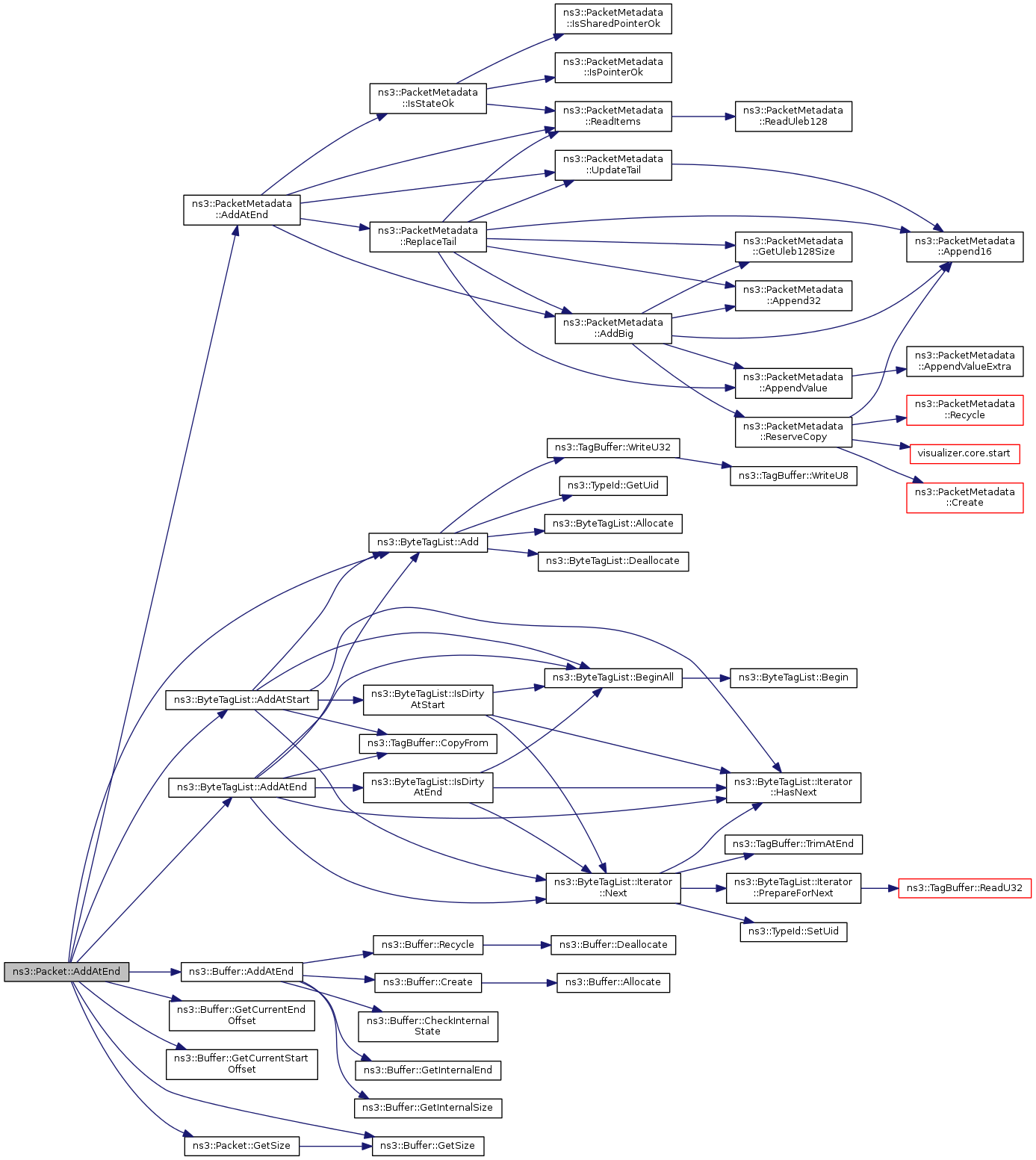

void ns3::Packet::AddAtEnd ( Ptr< const Packet > packet )

Concatenate the input packet at the end of the current packet. This does not alter the uid of either packet.

Parameters

packet packet to concatenate

Definition at line 315 of file packet.cc.

References ns3::ByteTagList::Add(), ns3::ByteTagList::AddAtEnd(), ns3::PacketMetadata::AddAtEnd(), ns3::Buffer::AddAtEnd(), ns3::ByteTagList::AddAtStart(), ns3::Buffer::GetCurrentEndOffset(), ns3::Buffer::GetCurrentStartOffset(), GetSize(), ns3::Buffer::GetSize(), m_buffer, m_byteTagList, m_metadata, and NS_LOG_FUNCTION.

Referenced by ns3::OriginatorRxStatus::AccumulateLastFragment(), ns3::CsmaNetDevice::AddHeader(), ns3::MsduStandardAggregator::Aggregate(), ns3::PendingData::CopyFromOffset(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), Ns3WimaxFragmentationTestCase::DoRun(), ns3::PacketTest::DoRun(), ns3::PacketMetadataTest::DoRun(), ns3::Ipv6ExtensionFragment::Fragments::GetPacket(), ns3::Ipv4L3Protocol::Fragments::GetPacket(), ns3::Ipv6ExtensionFragment::Fragments::GetPartialPacket(), ns3::Ipv4L3Protocol::Fragments::GetPartialPacket(), ns3::LteRlcUm::ReassembleAndDeliver(), ns3::LteRlcAm::ReassembleAndDeliver(), ns3::olsr::RoutingProtocol::SendQueuedMessages(), and ns3::Icmpv6L4Protocol::SendRedirection().

Here is the call graph for this function:

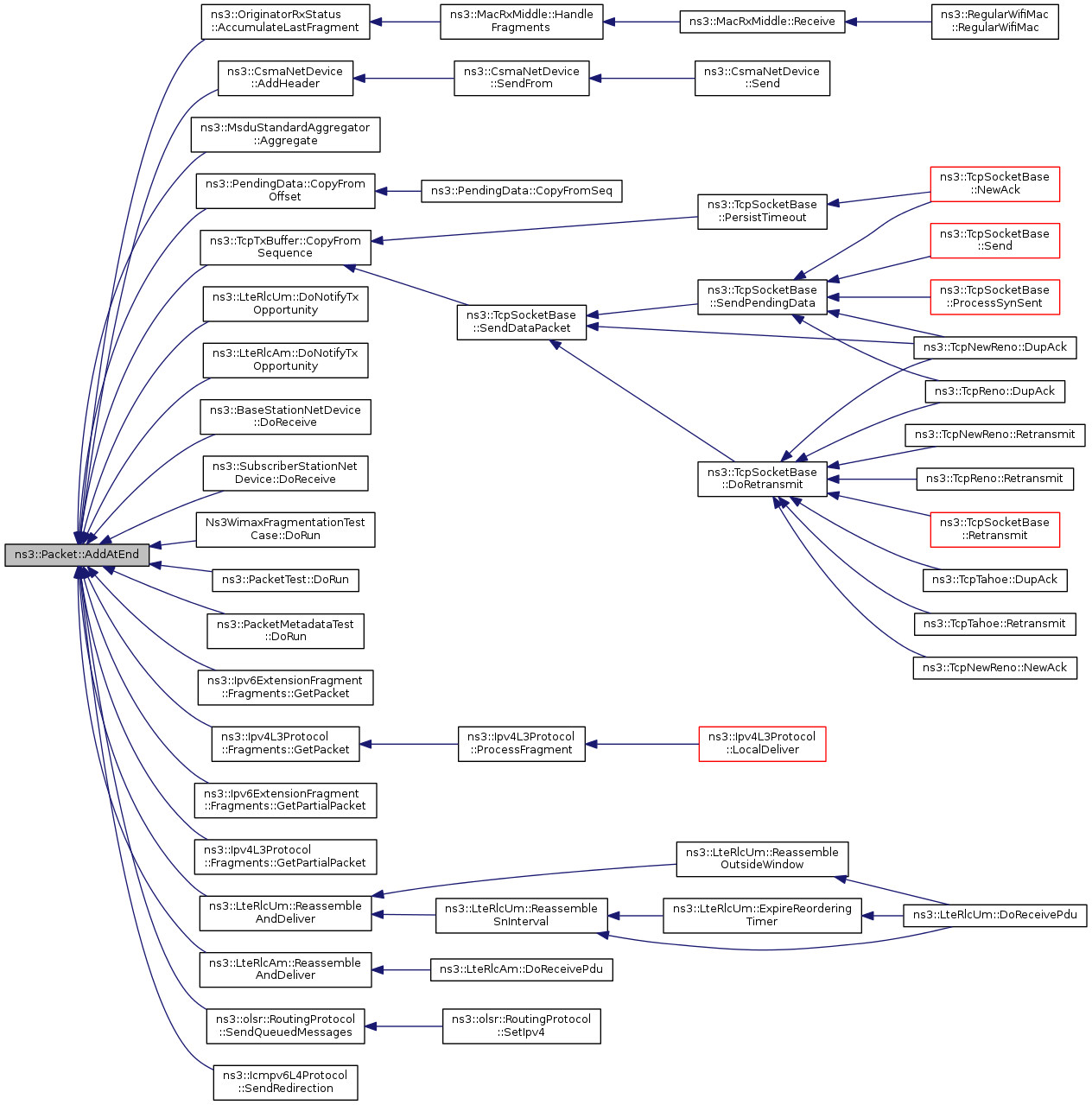

Here is the caller graph for this function:

void ns3::Packet::AddByteTag ( const Tag & tag ) const

Parameters

tag	the new tag to add to this packet

Tag each byte included in this packet with the new tag.

Note that adding a tag is a const operation which is pretty un-intuitive. The rationale is that the content and behavior of a packet is not changed when a tag is added to a packet: any code which was not aware of the new tag is going to work just the same if the new tag is added. The real reason why adding a tag was made a const operation is to allow a trace sink which gets a packet to tag the packet, even if the packet is const (and most trace sources should use const packets because it would be totally evil to allow a trace sink to modify the content of a packet).

Definition at line 806 of file packet.cc.

References ns3::Buffer::GetCurrentEndOffset(), ns3::Buffer::GetCurrentStartOffset(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Tag::GetSerializedSize(), list, m_buffer, m_byteTagList, NS_LOG_FUNCTION, and ns3::Tag::Serialize().

Referenced by ns3::AnimationInterface::CsmaPhyTxBeginTrace(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcSm::DoNotifyTxOpportunity(), ns3::PacketTest::DoRun(), ns3::LtePdcp::DoTransmitRrcPdu(), ns3::AnimationInterface::LteSpectrumPhyTxStart(), ns3::AnimationInterface::LteTxTrace(), ns3::DelayJitterEstimation::PrepareTx(), CollisionExperiment::SendA(), CollisionExperiment::SendB(), ns3::PyViz::TraceNetDevTxCommon(), ns3::AnimationInterface::UanPhyGenTxTrace(), ns3::AnimationInterface::WifiPhyTxBeginTrace(), and ns3::AnimationInterface::WimaxTxTrace().

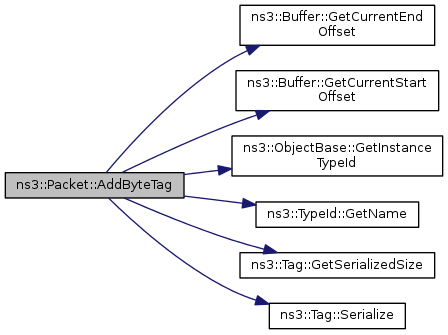

Here is the call graph for this function:

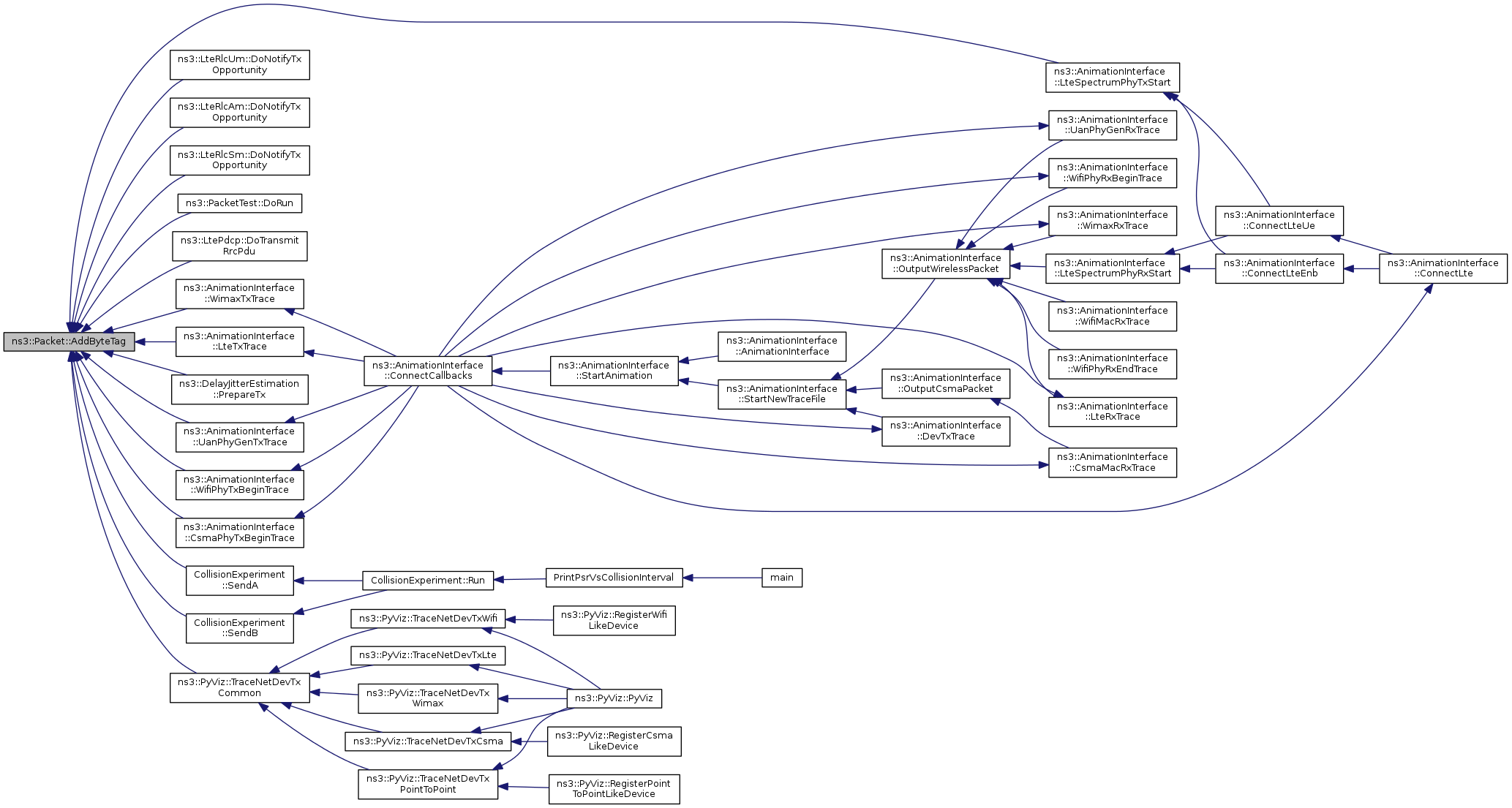

Here is the caller graph for this function:

void ns3::Packet::AddHeader ( const Header & header )

Add header to this packet. This method invokes the Header::GetSerializedSize and Header::Serialize methods to reserve space in the buffer and request the header to serialize itself in the packet buffer.

Parameters

header a reference to the header to add to this packet.

Definition at line 251 of file packet.cc.

References ns3::ByteTagList::AddAtStart(), ns3::Buffer::AddAtStart(), ns3::PacketMetadata::AddHeader(), ns3::Buffer::Begin(), ns3::Buffer::GetCurrentStartOffset(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Header::GetSerializedSize(), m_buffer, m_byteTagList, m_metadata, NS_LOG_FUNCTION, and ns3::Header::Serialize().

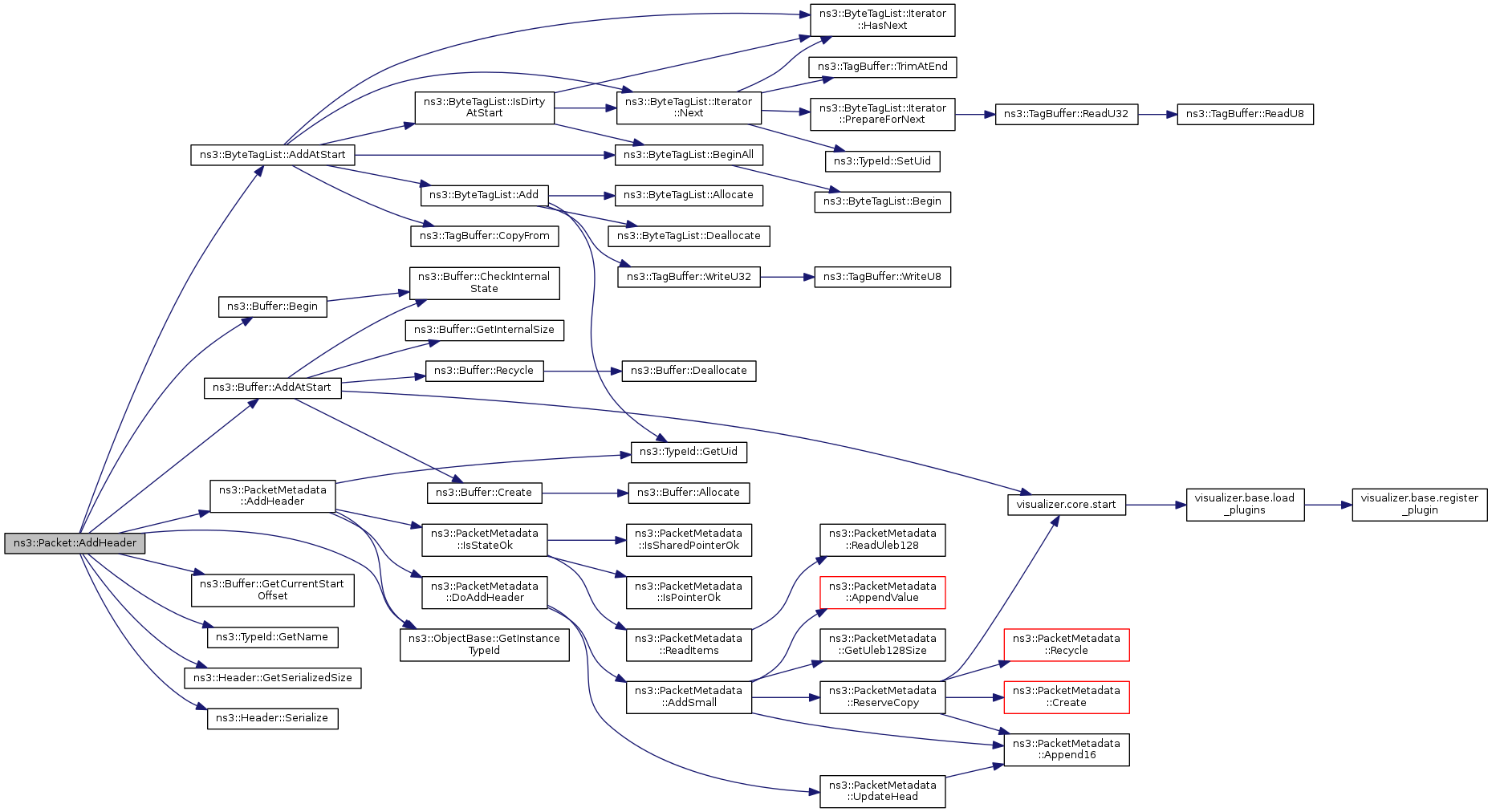

Here is the call graph for this function:

void ns3::Packet::AddPacketTag ( const Tag & tag ) const

Parameters

tag	the tag to store in this packet

Add a tag to this packet. This method calls the Tag::GetSerializedSize and, then, Tag::Serialize.

Note that this method is const, that is, it does not modify the state of this packet, which is fairly un-intuitive.

Definition at line 839 of file packet.cc.

References ns3::PacketTagList::Add(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Tag::GetSerializedSize(), m_packetTagList, and NS_LOG_FUNCTION.

Referenced by benchD(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteEnbRrc::DoReceiveRrcPdu(), ns3::LteDownlinkSinrTestCase::DoRun(), ns3::LteUplinkSinrTestCase::DoRun(), ns3::PacketTest::DoRun(), ns3::UdpSocketImpl::DoSendTo(), ns3::LteRlcUm::DoTransmitPdcpPdu(), ns3::LteRlcAm::DoTransmitPdcpPdu(), ns3::LteUeMac::DoTransmitPdu(), ns3::LteEnbMac::DoTransmitPdu(), ns3::dot11s::HwmpProtocol::ForwardUnicast(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::PacketSocket::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), main(), ns3::WifiRemoteStationManager::PrepareForQueue(), ns3::dot11s::HwmpProtocol::ProactivePathResolved(), ns3::dsr::DsrOptionRreq::Process(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), ns3::NscTcpSocketImpl::ReadPendingData(), ns3::flame::FlameProtocolMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), ns3::TcpSocketBase::Recv(), ns3::dot11s::HwmpProtocol::RequestRoute(), ns3::flame::FlameProtocol::RequestRoute(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::LteRadioBearerTagUdpClient::Send(), ns3::Radvd::Send(), ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendCtsAfterRts(), ns3::dsr::DsrRouting::SendErrorRequest(), ns3::dsr::DsrRouting::SendInitialRequest(), ns3::Icmpv6L4Protocol::SendMessage(), ns3::Ipv4FlowProbe::SendOutgoingLogger(), ns3::EpcEnbApplication::SendToLteSocket(), and ns3::LteSpectrumPhy::StartTx().

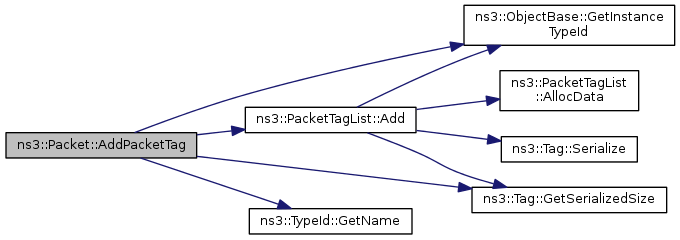

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Packet::AddPaddingAtEnd ( uint32_t size )

Parameters

size	number of padding bytes to add.

Definition at line 331 of file packet.cc.

References ns3::ByteTagList::AddAtEnd(), ns3::Buffer::AddAtEnd(), ns3::PacketMetadata::AddPaddingAtEnd(), ns3::Buffer::GetCurrentEndOffset(), m_buffer, m_byteTagList, m_metadata, and NS_LOG_FUNCTION.

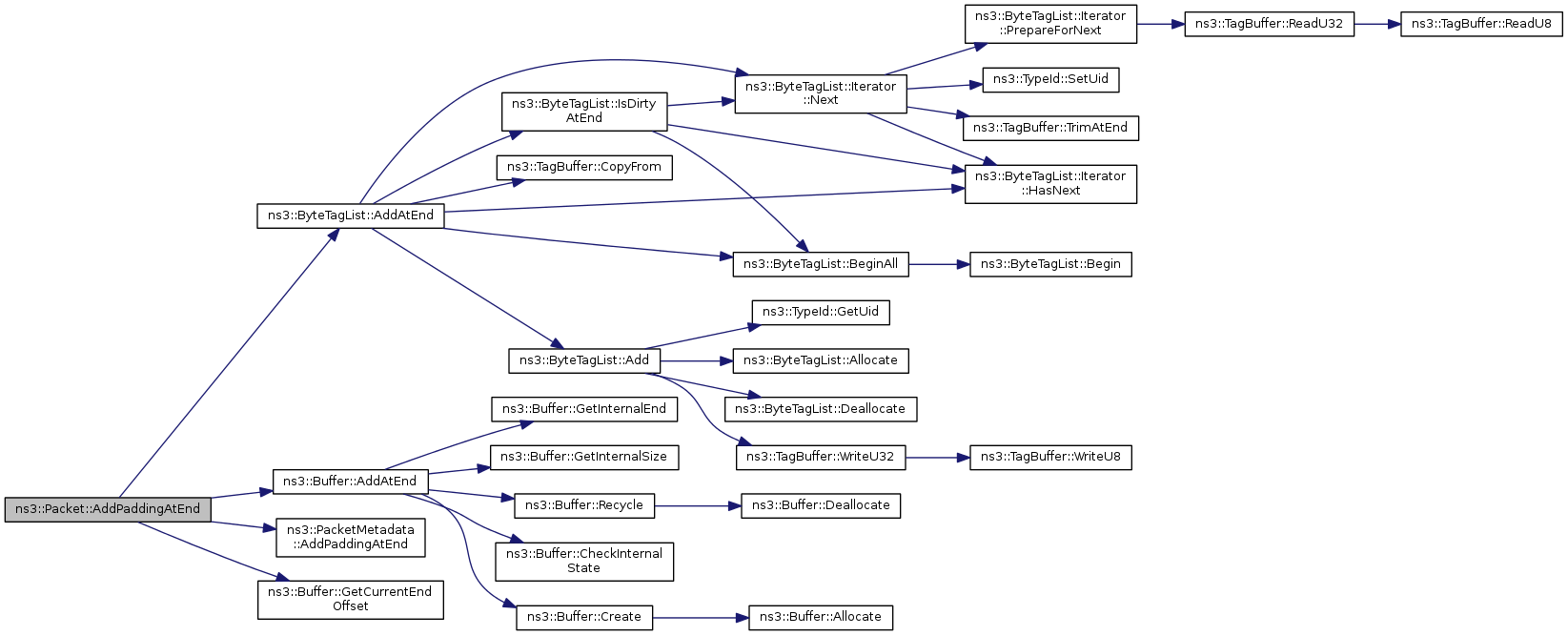

Here is the call graph for this function:

void ns3::Packet::AddTrailer ( const Trailer & trailer )

Add trailer to this packet. This method invokes the Trailer::GetSerializedSize and Trailer::Serialize methods to reserve space in the buffer and request the trailer to serialize itself in the packet buffer.

Parameters

trailer a reference to the trailer to add to this packet.

Definition at line 282 of file packet.cc.

References ns3::ByteTagList::AddAtEnd(), ns3::Buffer::AddAtEnd(), ns3::PacketMetadata::AddTrailer(), ns3::Buffer::End(), ns3::Buffer::GetCurrentEndOffset(), ns3::Buffer::GetCurrentStartOffset(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Trailer::GetSerializedSize(), m_buffer, m_byteTagList, m_metadata, NS_LOG_FUNCTION, and ns3::Trailer::Serialize().

Referenced by ns3::CsmaNetDevice::AddHeader(), ns3::PacketTest::DoRun(), ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::SendRtsForPacket().

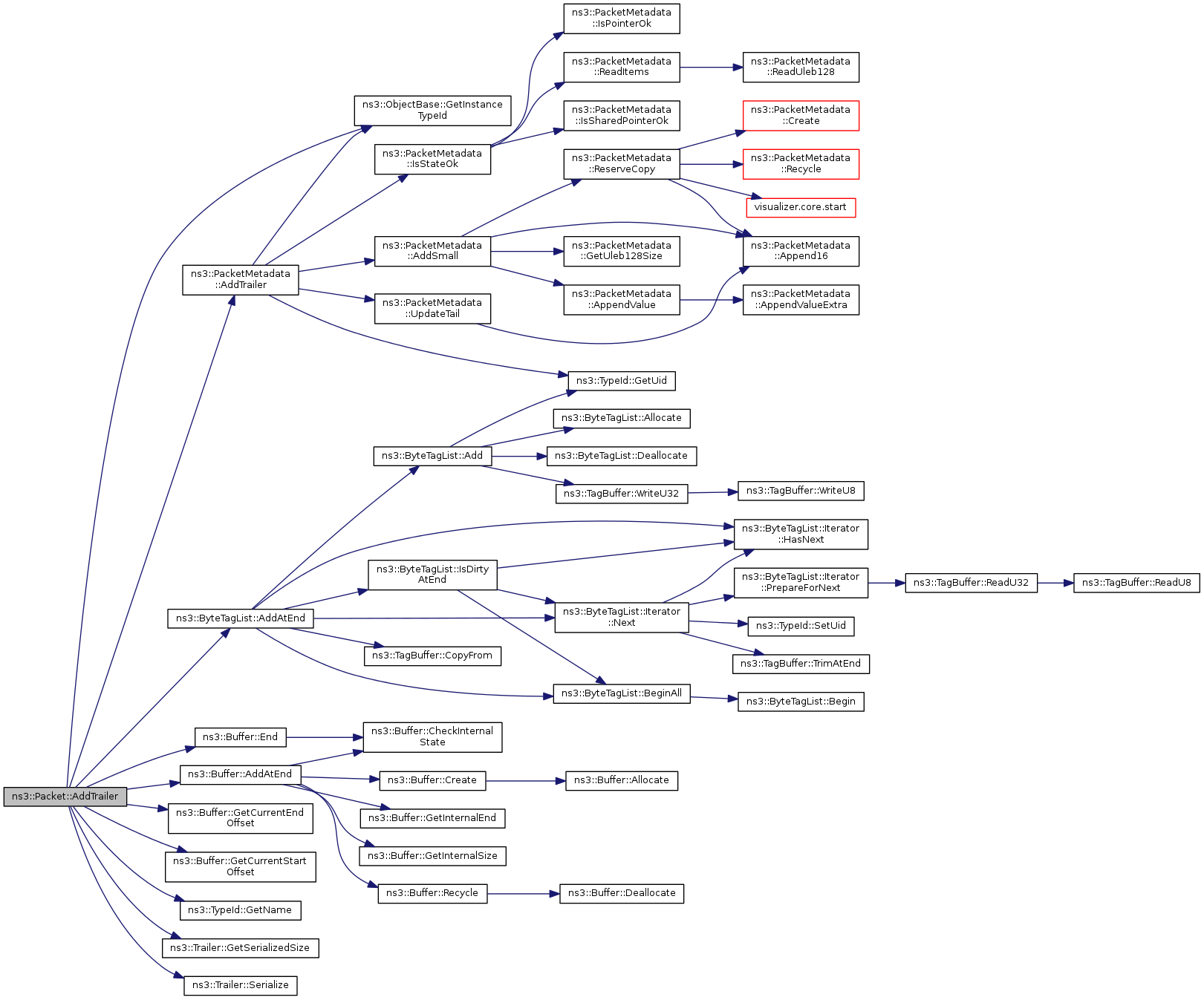

Here is the call graph for this function:

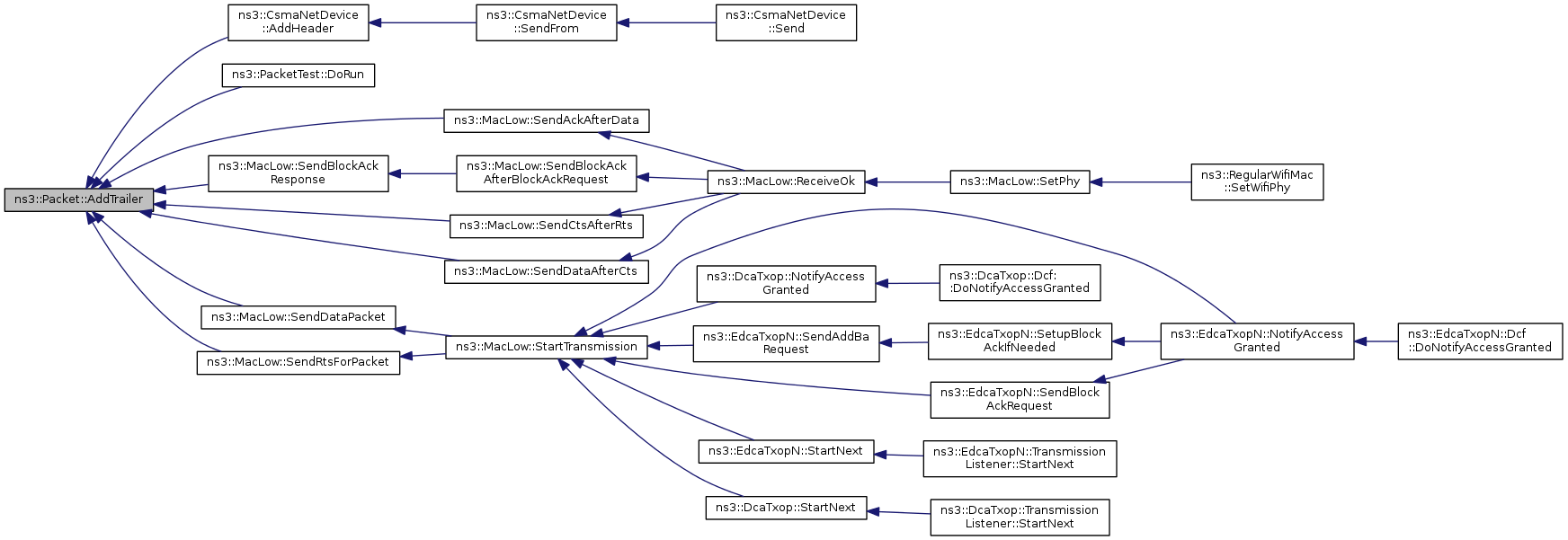

Here is the caller graph for this function:

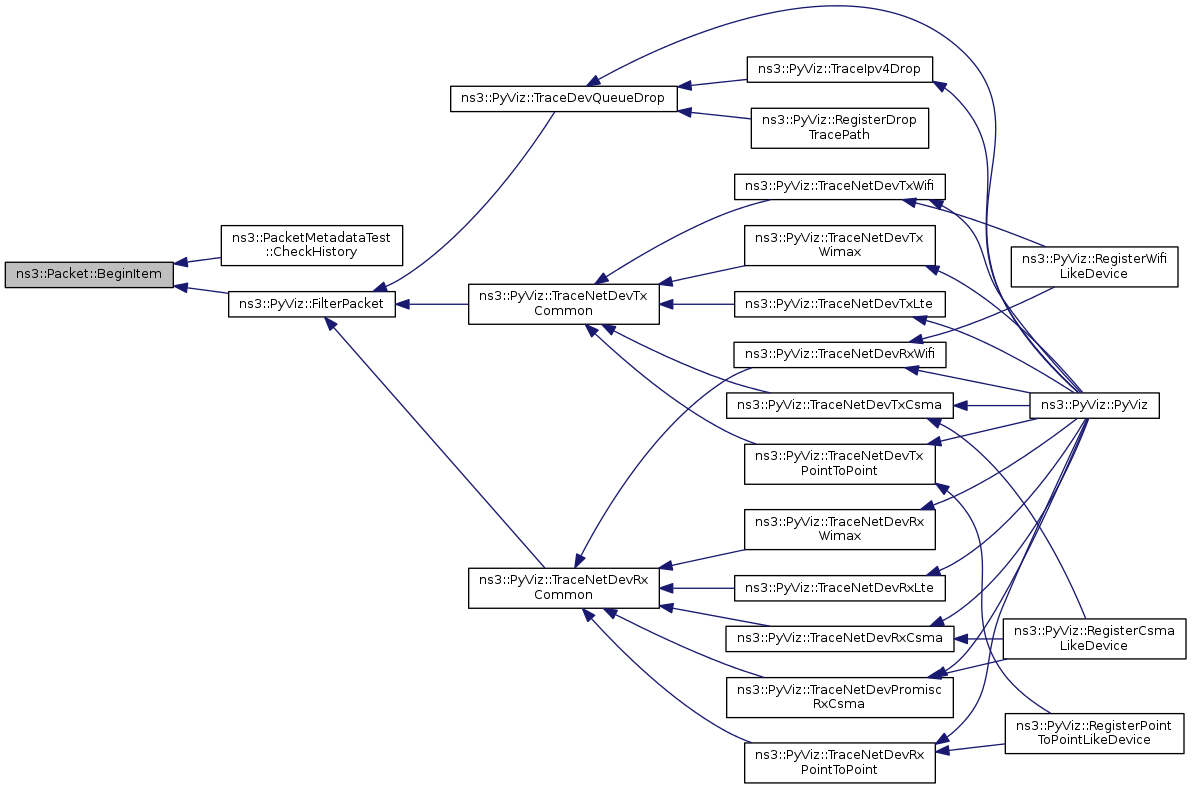

PacketMetadata::ItemIterator ns3::Packet::BeginItem ( void ) const

Returns: an iterator which points to the first 'item' stored in this buffer. Note that this iterator will point to an empty array of items if you don't call EnablePrinting or EnableChecking before.

See Also: EnablePrinting EnableChecking

Definition at line 544 of file packet.cc.

References ns3::PacketMetadata::BeginItem(), m_buffer, and m_metadata.

Referenced by ns3::PacketMetadataTest::CheckHistory(), and ns3::PyViz::FilterPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::Packet::Copy ( void ) const

Returns: a COW copy of the packet.

The returns packet will behave like an independent copy of the original packet, even though they both share the same datasets internally.

Definition at line 120 of file packet.cc.

References ns3::PacketTagIterator::Packet.

uint32_t ns3::Packet::CopyData	(	uint8_t *	buffer,
		uint32_t	size
	)		const

Parameters

buffer	a pointer to a byte buffer where the packet data should be copied.
size	the size of the byte buffer.

Returns: the number of bytes read from the packet

No more than size bytes will be copied by this function.

Definition at line 379 of file packet.cc.

References ns3::Buffer::CopyData(), and m_buffer.

Here is the call graph for this function:

void ns3::Packet::CopyData	(	std::ostream *	os,
		uint32_t	size
	)		const

Parameters

os	pointer to output stream in which we want to write the packet data.
size	the maximum number of bytes we want to write in the output stream.

Definition at line 385 of file packet.cc.

References ns3::Buffer::CopyData(), and m_buffer.

Here is the call graph for this function:

Ptr< Packet > ns3::Packet::CreateFragment	(	uint32_t	start,
		uint32_t	length
	)		const

Create a new packet which contains a fragment of the original packet. The returned packet shares the same uid as this packet.

Parameters

start	offset from start of packet to start of fragment to create
length	length of fragment to create

Returns: a fragment of the original packet

Definition at line 226 of file packet.cc.

References ns3::PacketMetadata::CreateFragment(), ns3::Buffer::CreateFragment(), ns3::Buffer::GetSize(), m_buffer, m_byteTagList, m_metadata, m_packetTagList, NS_ASSERT, NS_LOG_FUNCTION, and Packet().

Referenced by ns3::TcpRxBuffer::Add(), ns3::PendingData::CopyFromOffset(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::MsduAggregator::Deaggregate(), ns3::WimaxMacQueue::Dequeue(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::PacketTest::DoRun(), ns3::PacketMetadataTest::DoRun(), ns3::EdcaTxopN::GetFragmentPacket(), ns3::DcaTxop::GetFragmentPacket(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::LteRlcUm::ReassembleAndDeliver(), ns3::LteRlcAm::ReassembleAndDeliver(), ns3::Ipv4RawSocketImpl::RecvFrom(), ns3::Ipv6RawSocketImpl::RecvFrom(), ns3::Icmpv6L4Protocol::SendErrorDestinationUnreachable(), ns3::Icmpv6L4Protocol::SendErrorParameterError(), ns3::Icmpv6L4Protocol::SendErrorTimeExceeded(), ns3::Icmpv6L4Protocol::SendErrorTooBig(), and ns3::Icmpv6L4Protocol::SendRedirection().

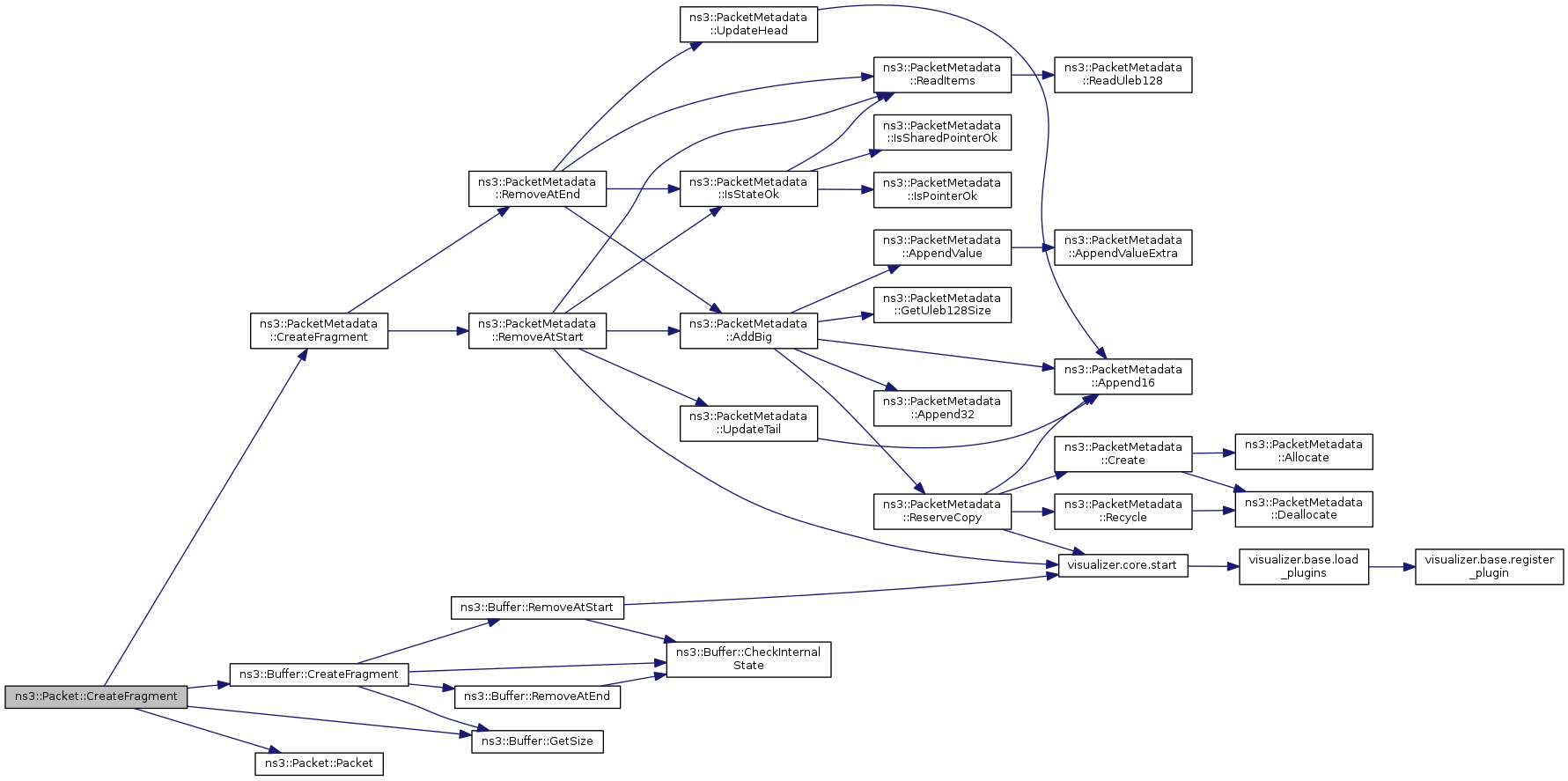

Here is the call graph for this function:

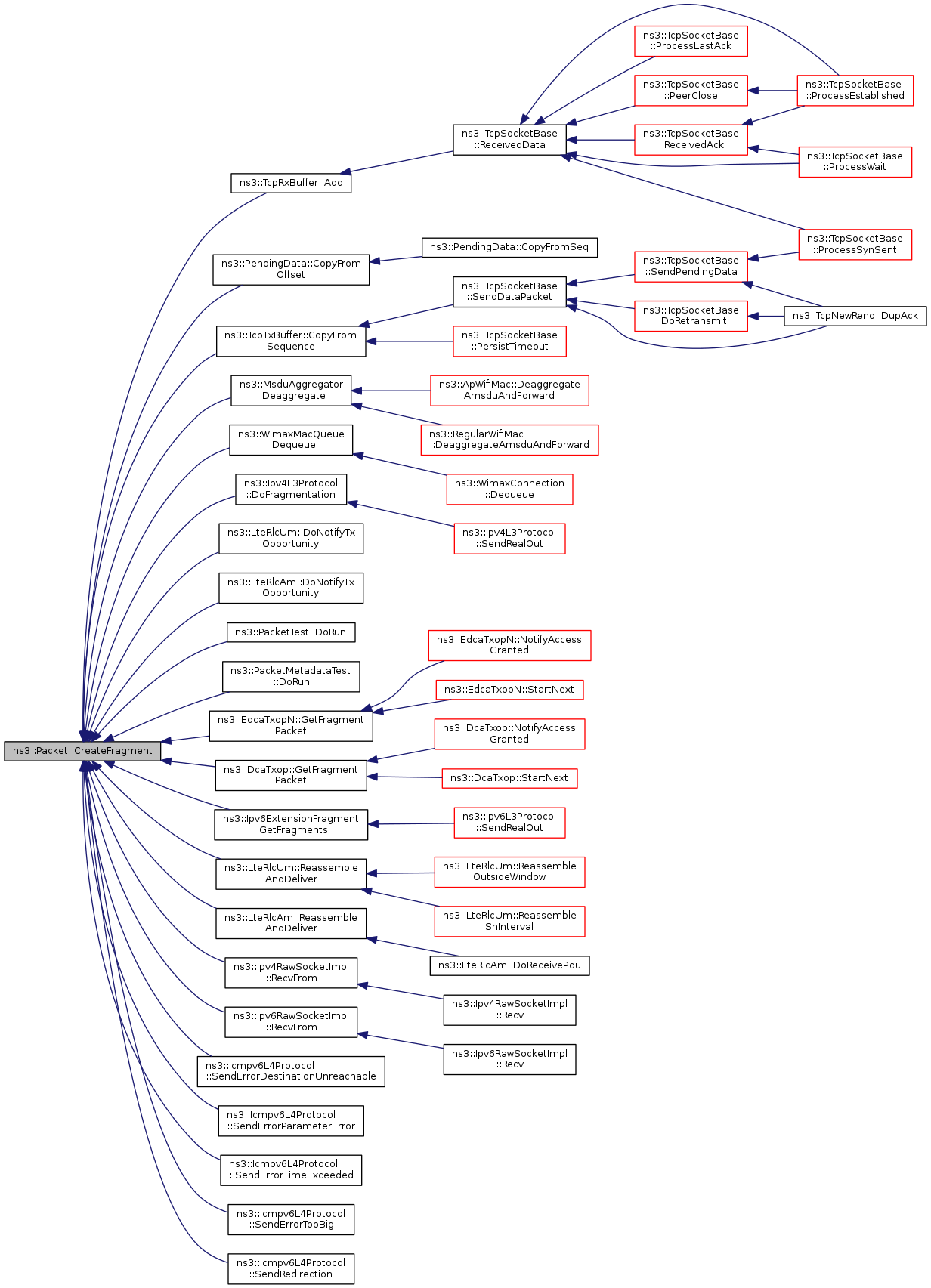

Here is the caller graph for this function:

uint32_t ns3::Packet::Deserialize	(	uint8_t const *	buffer,
		uint32_t	size
	)

private

Definition at line 724 of file packet.cc.

References ns3::NixVector::Deserialize(), ns3::PacketMetadata::Deserialize(), ns3::Buffer::Deserialize(), m_buffer, m_metadata, m_nixVector, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Packet().

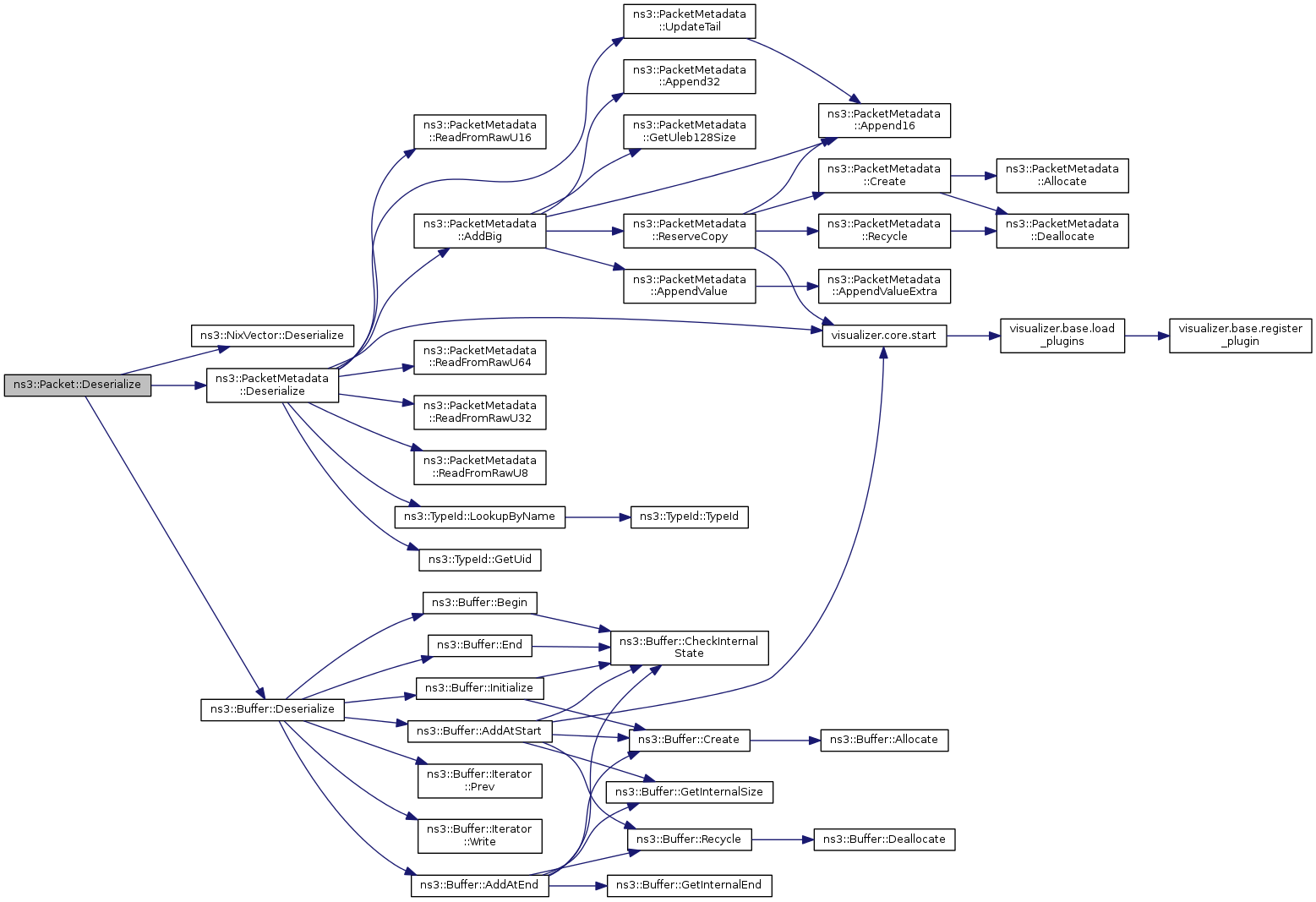

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Packet::EnableChecking ( void )

static

The packet metadata is also used to perform extensive sanity checks at runtime when performing operations on a Packet. For example, this metadata is used to verify that when you remove a header from a packet, this same header was actually present at the front of the packet. These errors will be detected and will abort the program.

Definition at line 557 of file packet.cc.

References NS_LOG_FUNCTION_NOARGS.

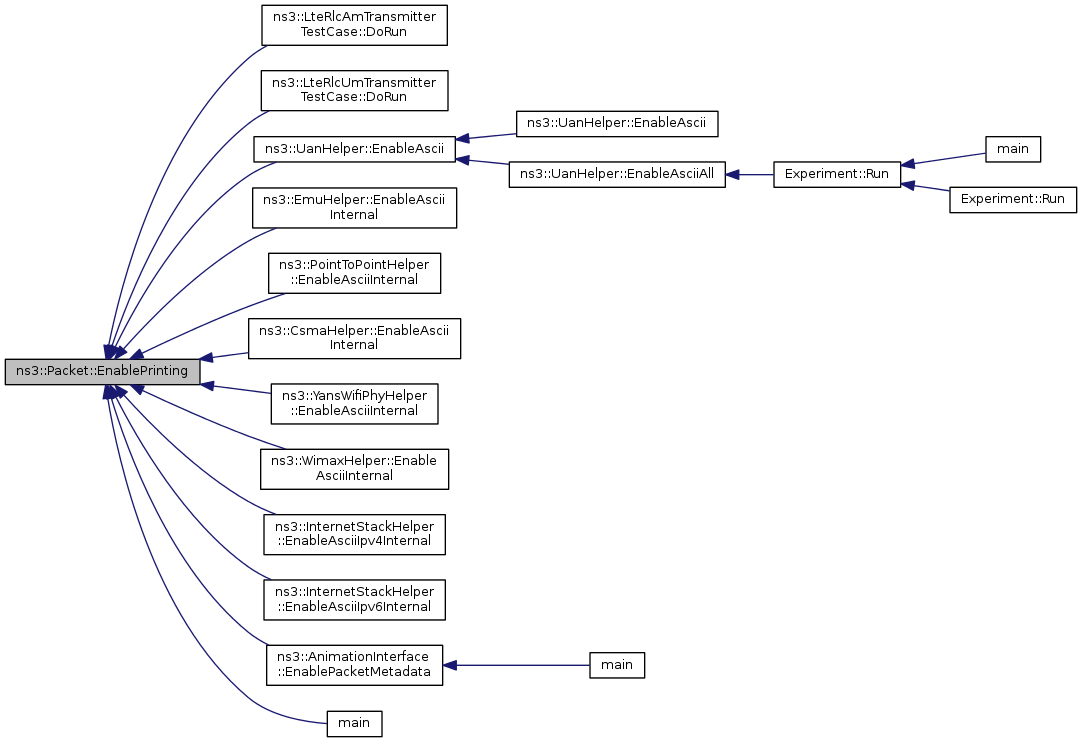

void ns3::Packet::EnablePrinting ( void )

static

By default, packets do not keep around enough metadata to perform the operations requested by the Print methods. If you want to be able the Packet::Print method, you need to invoke this method at least once during the simulation setup and before any packet is created.

Definition at line 550 of file packet.cc.

References ns3::PacketMetadata::Enable(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::LteRlcAmTransmitterTestCase::DoRun(), ns3::LteRlcUmTransmitterTestCase::DoRun(), ns3::UanHelper::EnableAscii(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::WimaxHelper::EnableAsciiInternal(), ns3::InternetStackHelper::EnableAsciiIpv4Internal(), ns3::InternetStackHelper::EnableAsciiIpv6Internal(), ns3::AnimationInterface::EnablePacketMetadata(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Packet::FindFirstMatchingByteTag ( Tag & tag ) const

Parameters

tag	the tag to search in this packet

Returns: true if the requested tag type was found, false otherwise.

If the requested tag type is found, it is copied in the user's provided tag instance.

Definition at line 822 of file packet.cc.

References GetByteTagIterator(), ns3::ObjectBase::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LtePdcp::DoReceivePdu(), ns3::LteRlcSm::DoReceivePdu(), CollisionExperiment::Receive(), ns3::DelayJitterEstimation::RecordRx(), and ns3::PyViz::TraceNetDevRxCommon().

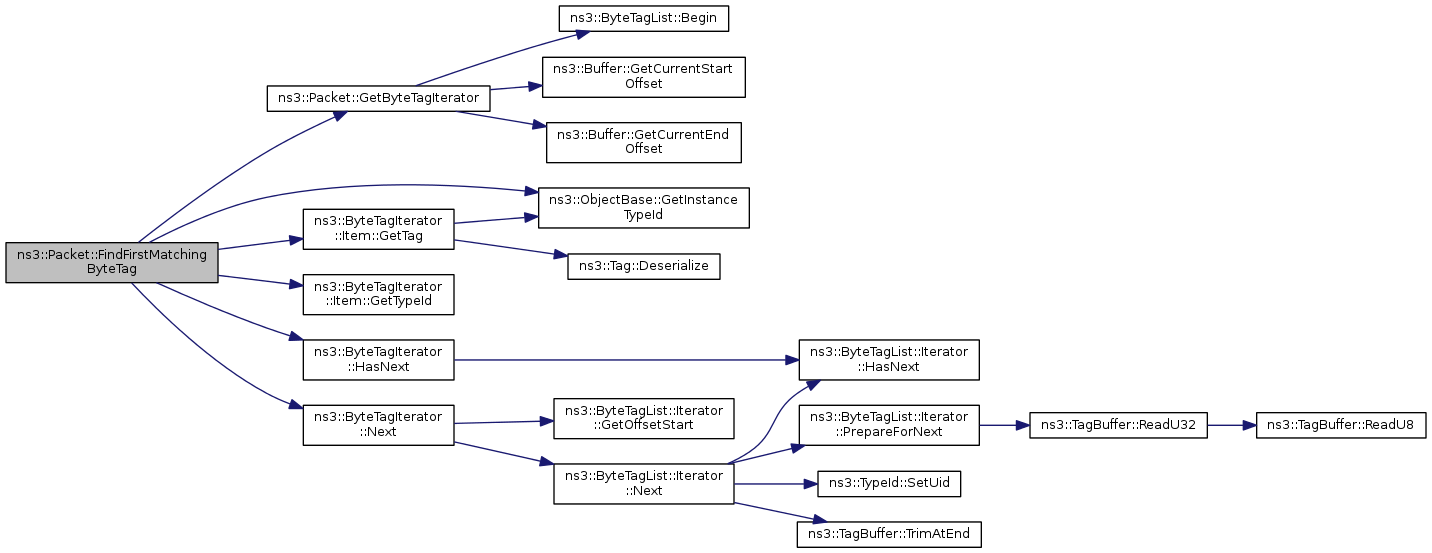

Here is the call graph for this function:

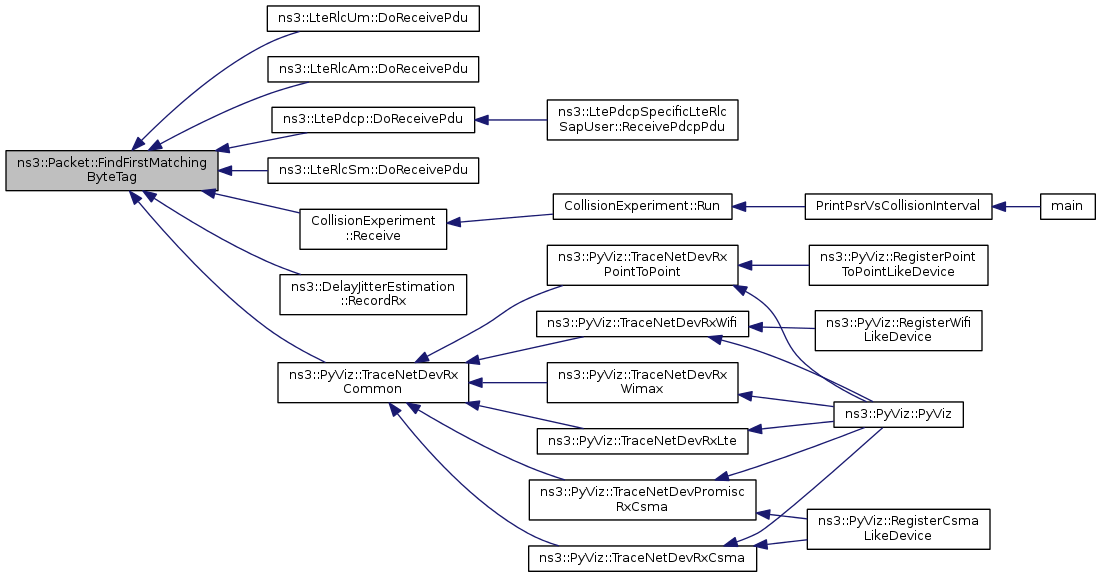

Here is the caller graph for this function:

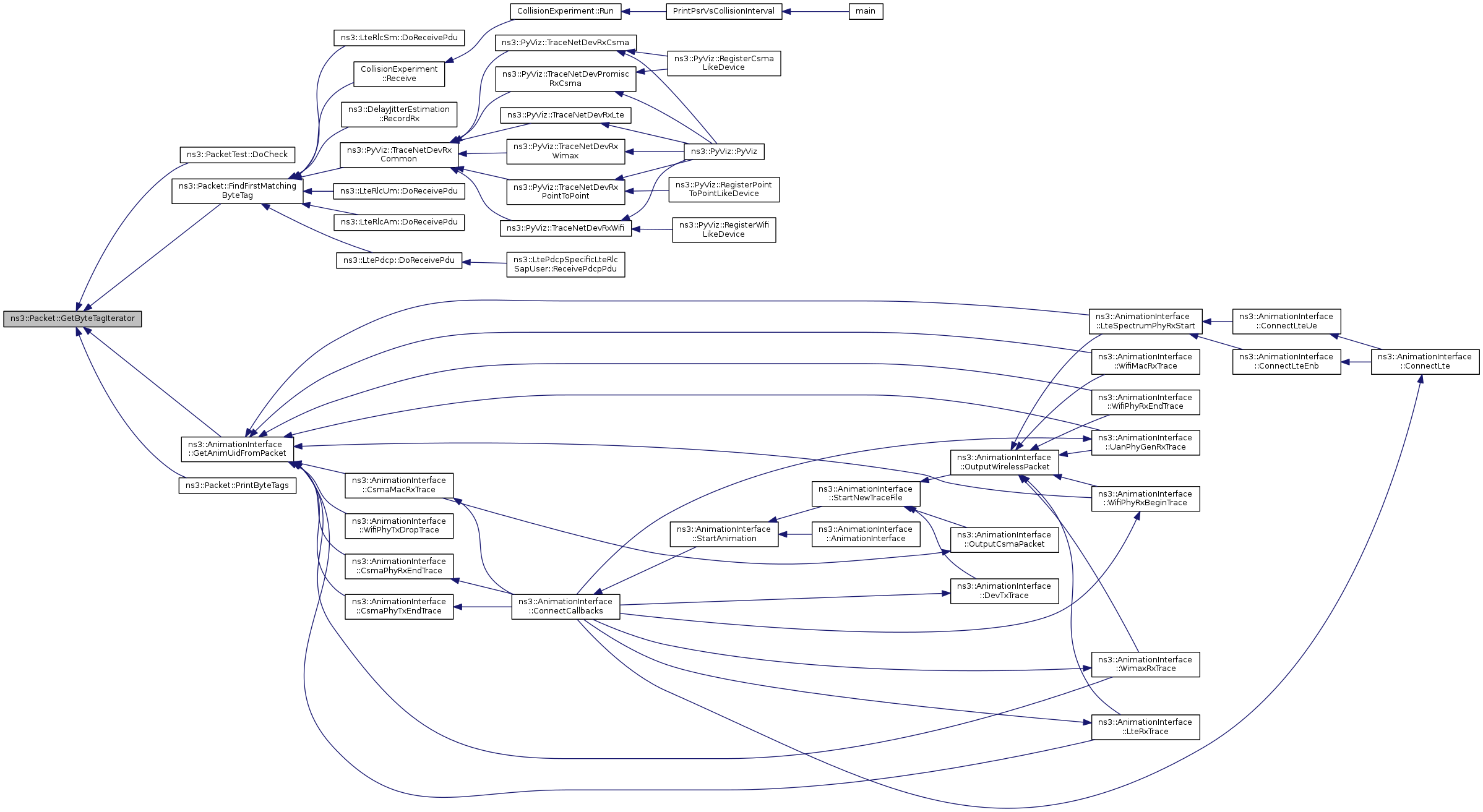

ByteTagIterator ns3::Packet::GetByteTagIterator ( void ) const

Returns: an iterator over the set of byte tags included in this packet.

Definition at line 816 of file packet.cc.

References ns3::ByteTagList::Begin(), ns3::Buffer::GetCurrentEndOffset(), ns3::Buffer::GetCurrentStartOffset(), m_buffer, and m_byteTagList.

Referenced by ns3::PacketTest::DoCheck(), FindFirstMatchingByteTag(), ns3::AnimationInterface::GetAnimUidFromPacket(), and PrintByteTags().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< NixVector > ns3::Packet::GetNixVector ( void ) const

Definition at line 245 of file packet.cc.

References m_nixVector.

Referenced by ns3::Ipv4NixVectorRouting::RouteInput().

Here is the caller graph for this function:

PacketTagIterator ns3::Packet::GetPacketTagIterator ( void ) const

Returns: an object which can be used to iterate over the list of packet tags.

Definition at line 888 of file packet.cc.

References ns3::PacketTagList::Head(), and m_packetTagList.

Referenced by PrintPacketTags().

Here is the call graph for this function:

Here is the caller graph for this function:

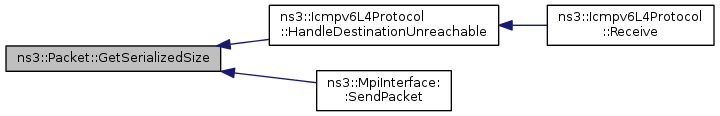

uint32_t ns3::Packet::GetSerializedSize ( void ) const

For packet serializtion, the total size is checked in order to determine the size of the buffer required for serialization

Returns: number of bytes required for packet serialization

Definition at line 563 of file packet.cc.

References ns3::NixVector::GetSerializedSize(), ns3::PacketMetadata::GetSerializedSize(), ns3::Buffer::GetSerializedSize(), m_buffer, m_metadata, and m_nixVector.

Referenced by ns3::Icmpv6L4Protocol::HandleDestinationUnreachable(), and ns3::MpiInterface::SendPacket().

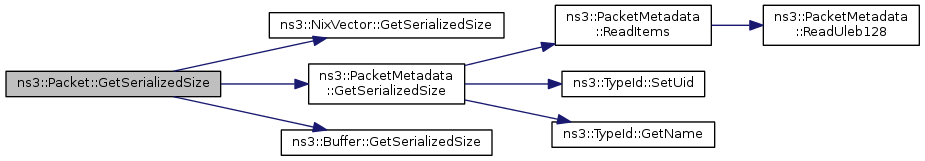

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Packet::GetSize ( void ) const

inline

Returns: the size in bytes of the packet (including the zero-filled initial payload)

Definition at line 620 of file packet.h.

References ns3::Buffer::GetSize(), and m_buffer.

Here is the call graph for this function:

uint64_t ns3::Packet::GetUid ( void ) const

A packet is allocated a new uid when it is created empty or with zero-filled payload.

Note: This uid is an internal uid and cannot be counted on to provide an accurate counter of how many "simulated packets" of a particular protocol are in the system. It is not trivial to make this uid into such a counter, because of questions such as what should the uid be when the packet is sent over broadcast media, or when fragmentation occurs. If a user wants to trace actual packet counts, he or she should look at e.g. the IP ID field or transport sequence numbers, or other packet or frame counters at other protocol layers.

Returns: an integer identifier which uniquely identifies this packet.

Definition at line 391 of file packet.cc.

References ns3::PacketMetadata::GetUid(), and m_metadata.

Referenced by ns3::dsdv::RoutingProtocol::DeferredRouteOutput(), ns3::aodv::RoutingProtocol::DeferredRouteOutput(), ns3::ListErrorModel::DoCorrupt(), ns3::Icmpv6L4Protocol::DoDAD(), ns3::aodv::RequestQueue::Drop(), ns3::dsr::SendBuffer::Drop(), ns3::dsdv::PacketQueue::Drop(), ns3::dsr::ErrorBuffer::Drop(), ns3::dsdv::RoutingProtocol::Drop(), ns3::dsr::ErrorBuffer::DropLink(), ns3::aodv::RequestQueue::Enqueue(), ns3::dsr::SendBuffer::Enqueue(), ns3::dsdv::PacketQueue::Enqueue(), ns3::dsr::ErrorBuffer::Enqueue(), ns3::BridgeNetDevice::ForwardBroadcast(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::BridgeNetDevice::ForwardUnicast(), ns3::PacketSocket::ForwardUp(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::UdpServer::HandleRead(), ns3::aodv::DuplicatePacketDetection::IsDuplicate(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::CsmaChannel::PropagationCompleteEvent(), ns3::CsmaNetDevice::Receive(), ns3::TapBridge::ReceiveFromBridgedDevice(), ns3::BridgeNetDevice::ReceiveFromDevice(), ns3::MeshPointDevice::ReceiveFromDevice(), ns3::Node::ReceiveFromDevice(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::RedQueueTestCase::RunRedTest(), ns3::UdpClient::Send(), ns3::LteRadioBearerTagUdpClient::Send(), ns3::PointToPointNetDevice::Send(), ns3::dsr::DsrRouting::Send(), ns3::EmuNetDevice::SendFrom(), ns3::CsmaNetDevice::SendFrom(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::dsdv::RoutingProtocol::SendTriggeredUpdate(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::PyViz::TraceDevQueueDrop(), ns3::PyViz::TraceNetDevRxCommon(), ns3::PyViz::TraceNetDevRxWifi(), ns3::PyViz::TraceNetDevTxCommon(), ns3::PyViz::TraceNetDevTxWifi(), ns3::CsmaNetDevice::TransmitAbort(), ns3::CsmaNetDevice::TransmitCompleteEvent(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointRemoteChannel::TransmitStart(), ns3::PointToPointChannel::TransmitStart(), ns3::CsmaChannel::TransmitStart(), ns3::PointToPointNetDevice::TransmitStart(), and ns3::CsmaNetDevice::TransmitStart().

Here is the call graph for this function:

Packet & ns3::Packet::operator= ( const Packet & o )

Definition at line 155 of file packet.cc.

References ns3::NixVector::Copy(), m_buffer, m_byteTagList, m_metadata, m_nixVector, and m_packetTagList.

Here is the call graph for this function:

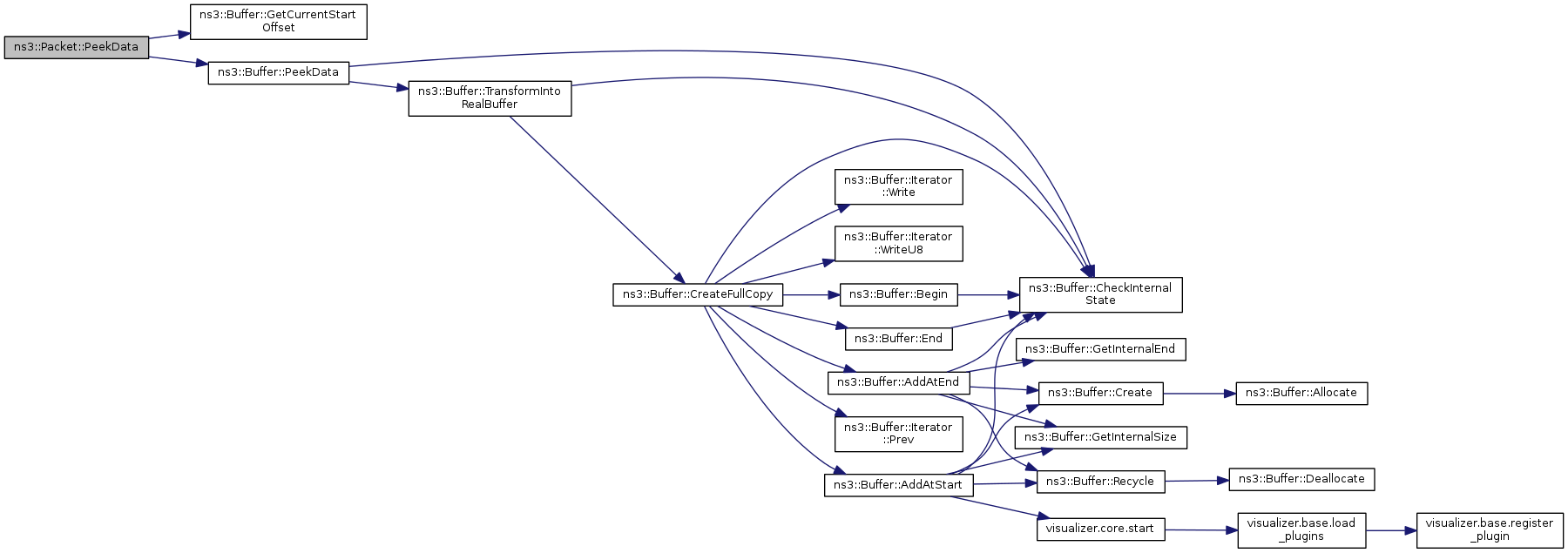

uint8_t const * ns3::Packet::PeekData ( void ) const

If you try to change the content of the buffer returned by this method, you will die. Note that this method is now deprecated and will be removed in the next version of ns-3. If you need to get access to the content of the byte buffer of a packet, you need to call ns3::Packet::CopyData to perform an explicit copy.

Returns: a pointer to the internal buffer of the packet.

Definition at line 366 of file packet.cc.

References data, ns3::Buffer::GetCurrentStartOffset(), m_buffer, m_byteTagList, NS_LOG_FUNCTION, and ns3::Buffer::PeekData().

Referenced by ns3::PacketTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Packet::PeekHeader ( Header & header ) const

Deserialize but does not remove the header from the internal buffer. This method invokes Header::Deserialize.

Parameters

header a reference to the header to read from the internal buffer.

Returns: the number of bytes read from the packet.

Definition at line 275 of file packet.cc.

References ns3::Buffer::Begin(), ns3::Header::Deserialize(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), m_buffer, and NS_LOG_FUNCTION.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::Ipv4FlowClassifier::Classify(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::EdcaTxopN::GotAck(), ns3::Icmpv4L4Protocol::HandleDestUnreach(), ns3::Icmpv4L4Protocol::HandleTimeExceeded(), ns3::UanMacRc::IsPhy1Ok(), ns3::UdpL4Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacRcGw::SendPacket(), ns3::UanMacRc::SendPacket(), SinkRx(), ns3::PyViz::TraceNetDevPromiscRxCsma(), ns3::PyViz::TraceNetDevRxCsma(), ns3::PyViz::TraceNetDevRxWifi(), ns3::PyViz::TraceNetDevTxCsma(), ns3::PyViz::TraceNetDevTxWifi(), ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame(), and ns3::AnimationInterface::WifiPhyRxBeginTrace().

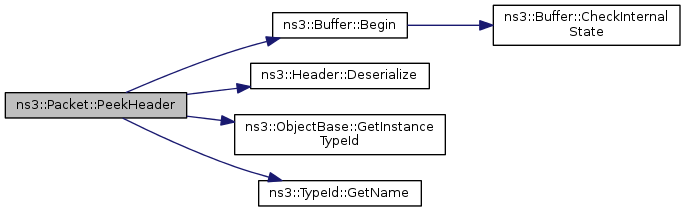

Here is the call graph for this function:

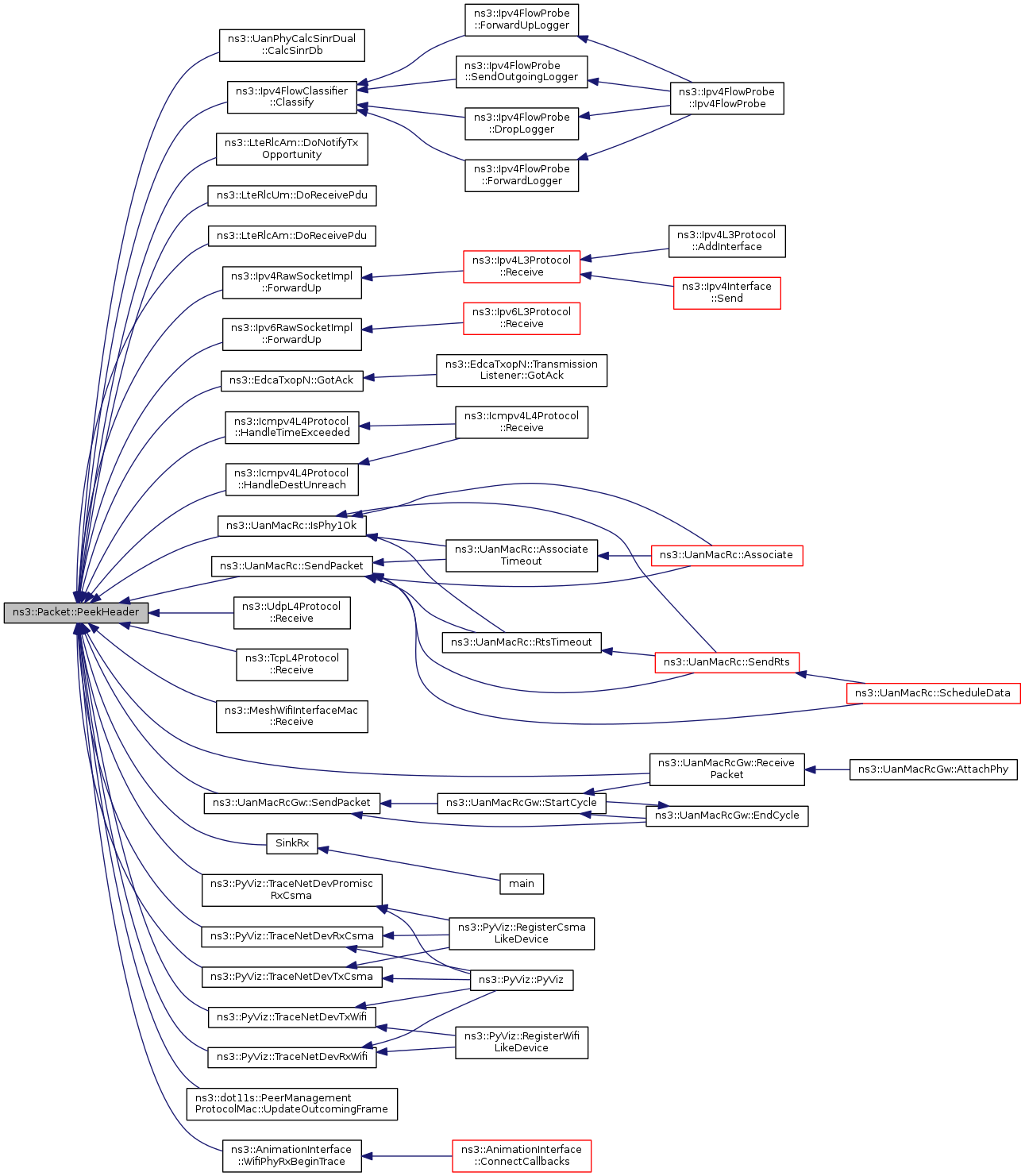

Here is the caller graph for this function:

bool ns3::Packet::PeekPacketTag ( Tag & tag ) const

Parameters

tag	the tag to search in this packet

Returns: true if the requested tag is found, false otherwise.

Search a matching tag and call Tag::Deserialize if it is found.

Definition at line 852 of file packet.cc.

References m_packetTagList, and ns3::PacketTagList::Peek().

Referenced by ns3::PacketTest::DoRun(), DynamicGlobalRoutingTestCase::HandleRead(), main(), ns3::QosUtilsGetTidForPacket(), ns3::flame::FlameProtocolMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), ns3::UdpSocketImpl::RecvFrom(), ns3::NscTcpSocketImpl::RecvFrom(), ns3::PacketSocket::RecvFrom(), ns3::dot11s::HwmpProtocol::RequestRoute(), ns3::flame::FlameProtocol::RequestRoute(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::RouteOutput(), and DynamicGlobalRoutingTestCase::SinkRx().

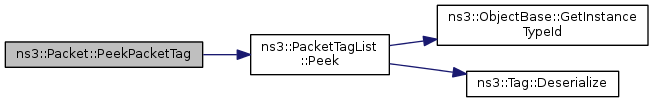

Here is the call graph for this function:

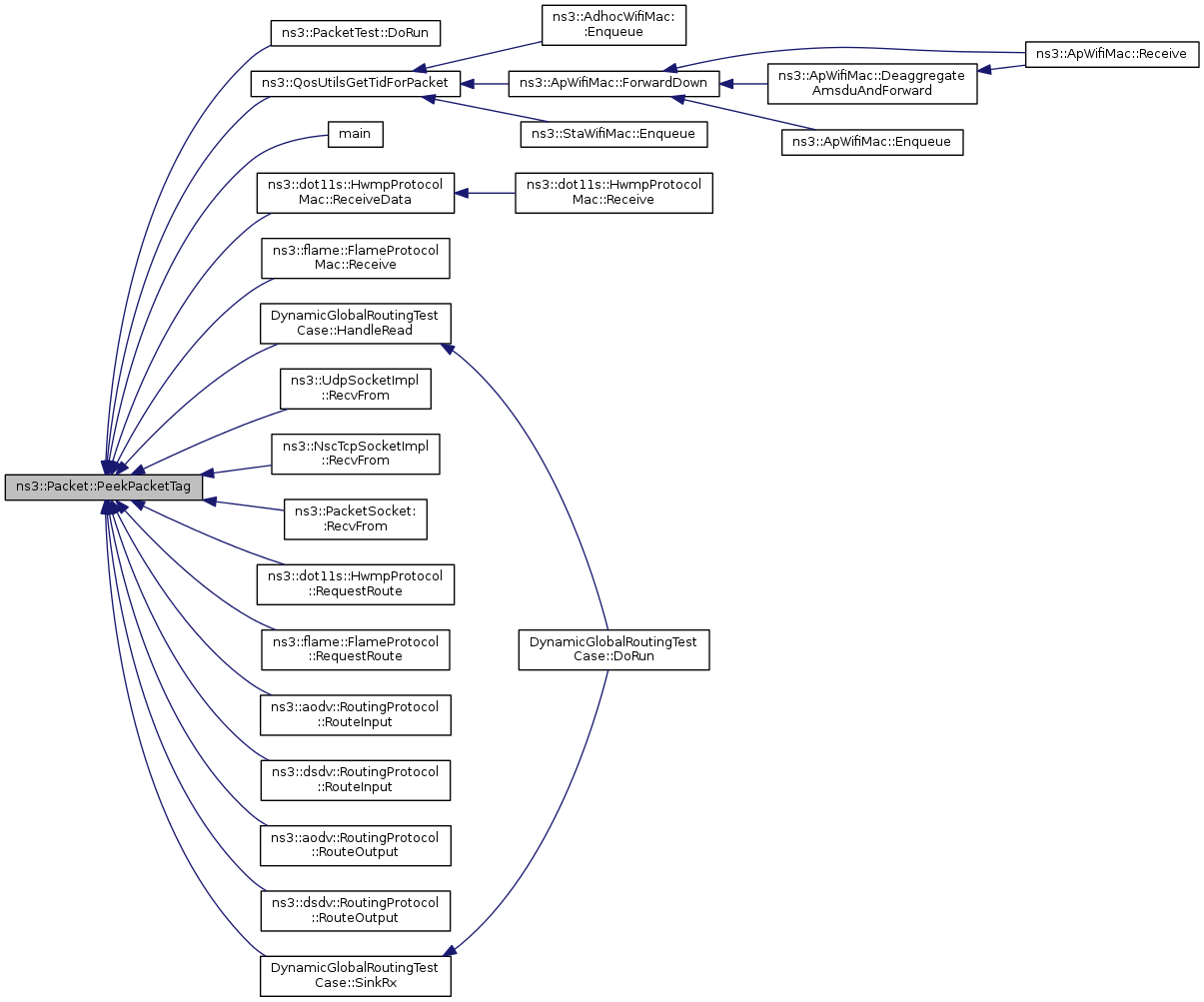

Here is the caller graph for this function:

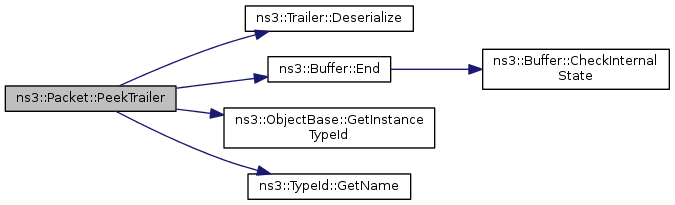

uint32_t ns3::Packet::PeekTrailer ( Trailer & trailer )

Deserialize but does not remove a trailer from the internal buffer. This method invokes the Trailer::Deserialize method.

Parameters

trailer a reference to the trailer to read from the internal buffer.

Returns: the number of bytes read from the end of the packet.

Definition at line 307 of file packet.cc.

References ns3::Trailer::Deserialize(), ns3::Buffer::End(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), m_buffer, and NS_LOG_FUNCTION.

Here is the call graph for this function:

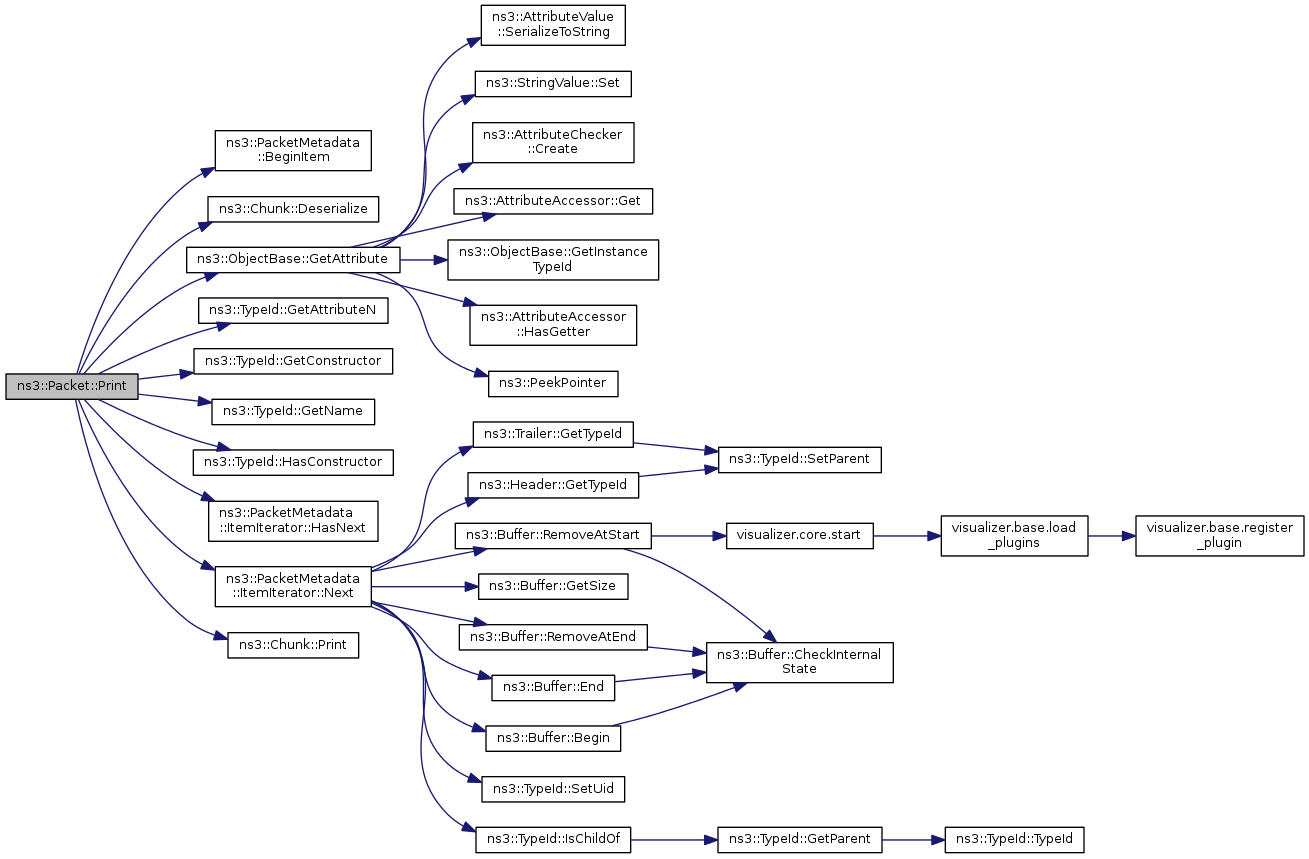

void ns3::Packet::Print ( std::ostream & os ) const

Parameters

os	output stream in which the data should be printed.

Iterate over the headers and trailers present in this packet, from the first header to the last trailer and invoke, for each of them, the user-provided method Header::DoPrint or Trailer::DoPrint methods.

Definition at line 427 of file packet.cc.

Referenced by ns3::Ipv4L3Protocol::DoFragmentation(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::AnimationInterface::GetPacketMetadata(), main(), and ns3::operator<<().

Here is the call graph for this function:

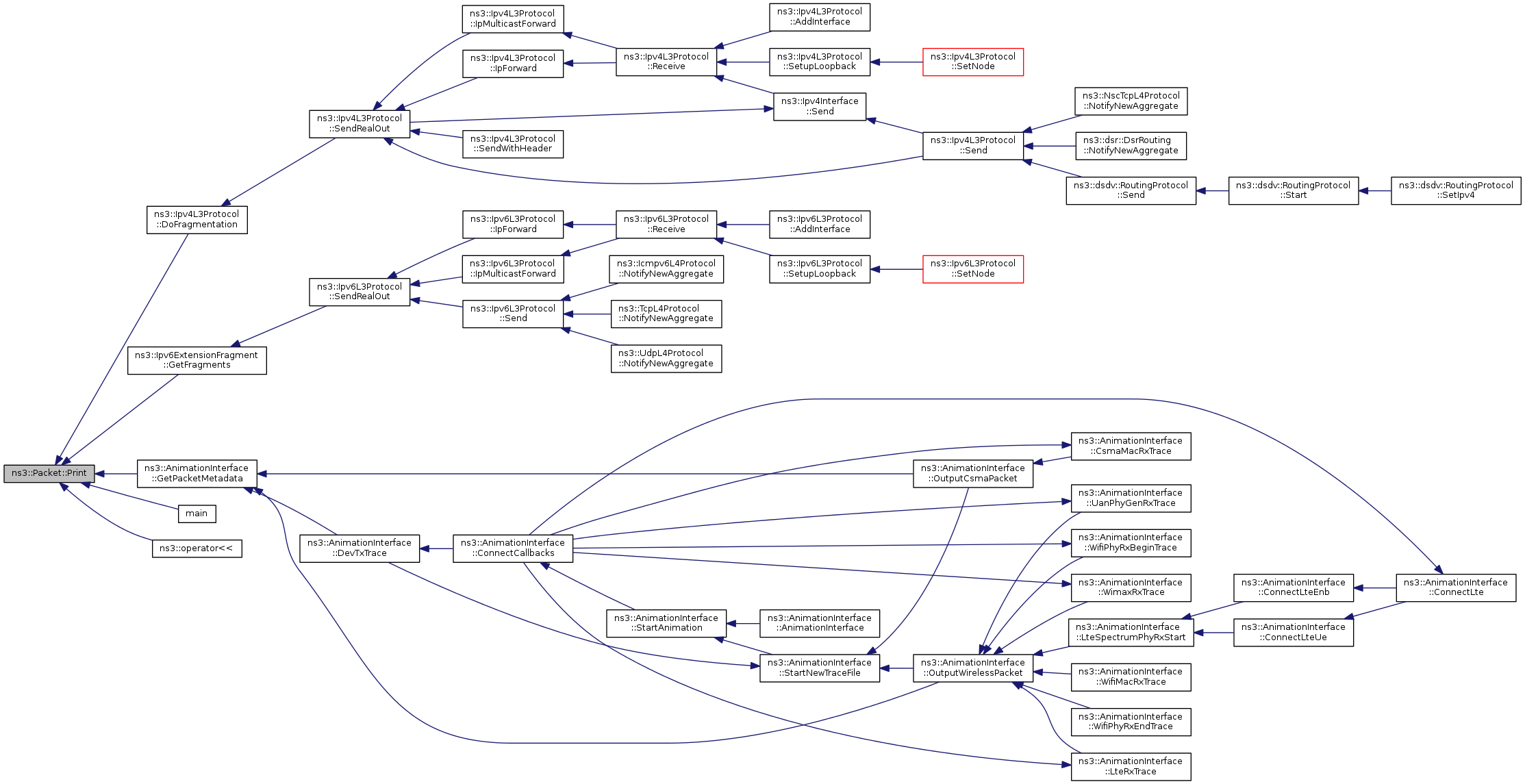

Here is the caller graph for this function:

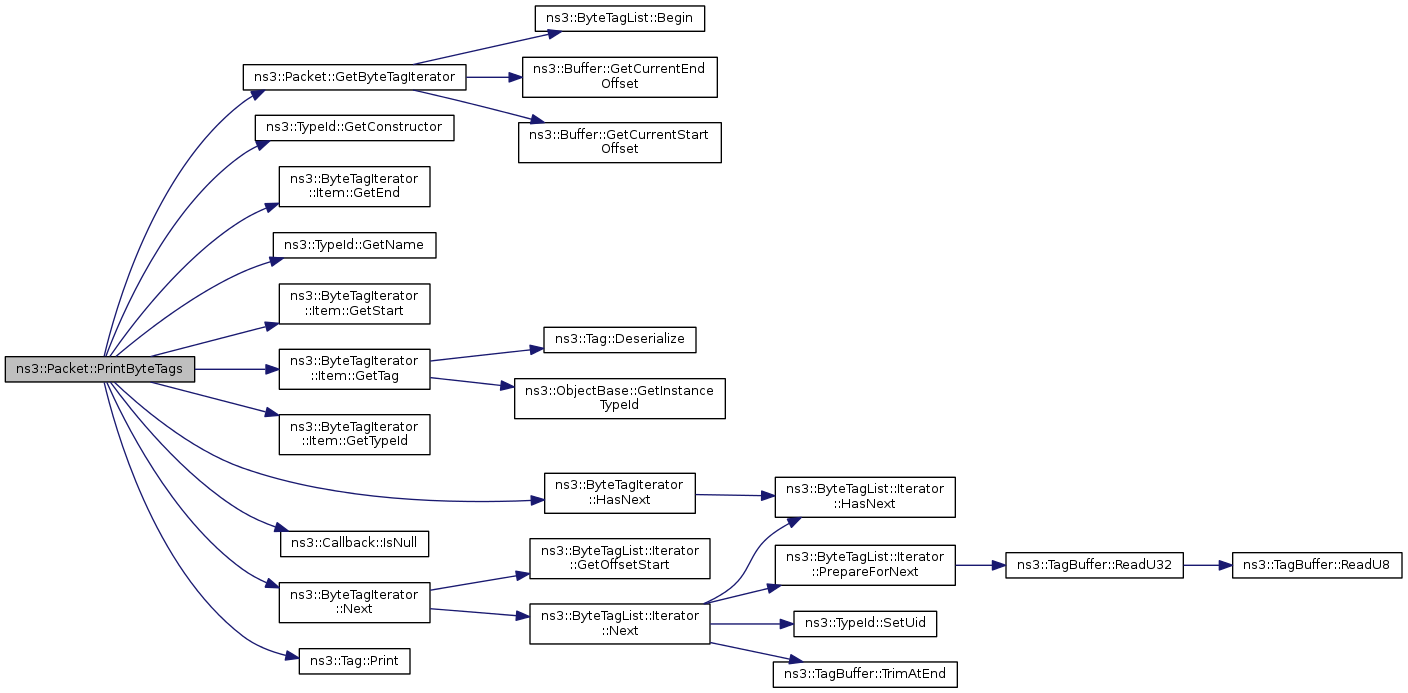

void ns3::Packet::PrintByteTags ( std::ostream & os ) const

Parameters

os	output stream in which the data should be printed.

Iterate over the tags present in this packet, and invoke the Print method of each tag stored in the packet.

Definition at line 397 of file packet.cc.

References GetByteTagIterator(), ns3::TypeId::GetConstructor(), ns3::ByteTagIterator::Item::GetEnd(), ns3::TypeId::GetName(), ns3::ByteTagIterator::Item::GetStart(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::ByteTagIterator::Next(), NS_ASSERT, and ns3::Tag::Print().

Here is the call graph for this function:

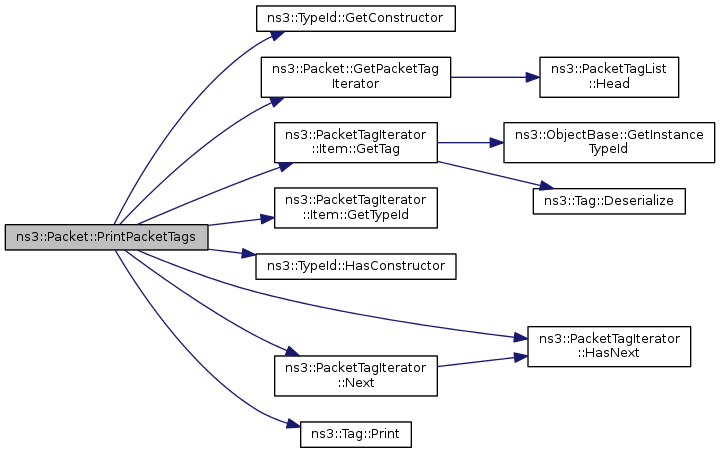

void ns3::Packet::PrintPacketTags ( std::ostream & os ) const

Parameters

os	the stream in which we want to print data.

Print the list of 'packet' tags.

See Also: Packet::AddPacketTag, Packet::RemovePacketTag, Packet::PeekPacketTag, Packet::RemoveAllPacketTags

Definition at line 865 of file packet.cc.

References ns3::TypeId::GetConstructor(), GetPacketTagIterator(), ns3::PacketTagIterator::Item::GetTag(), ns3::PacketTagIterator::Item::GetTypeId(), ns3::TypeId::HasConstructor(), ns3::PacketTagIterator::HasNext(), ns3::PacketTagIterator::Next(), NS_ASSERT, and ns3::Tag::Print().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

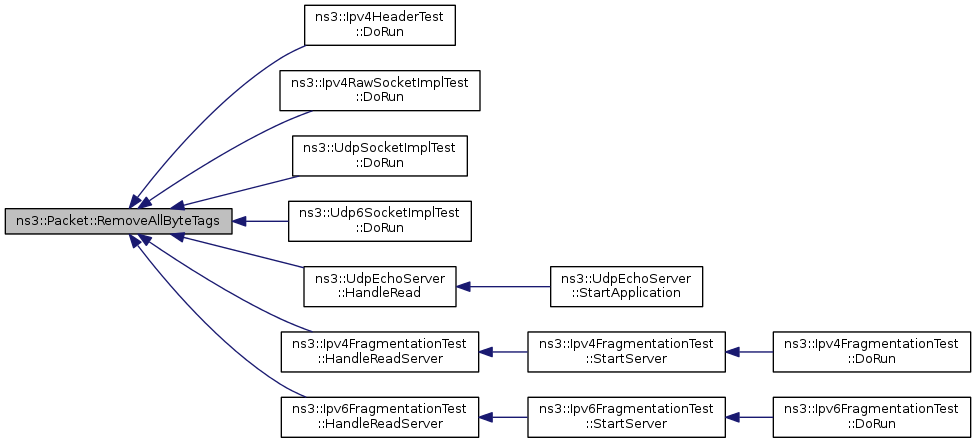

void ns3::Packet::RemoveAllByteTags ( void )

Remove all the tags stored in this packet.

Definition at line 359 of file packet.cc.

References m_byteTagList, NS_LOG_FUNCTION, and ns3::ByteTagList::RemoveAll().

Referenced by ns3::Ipv4HeaderTest::DoRun(), ns3::Ipv4RawSocketImplTest::DoRun(), ns3::UdpSocketImplTest::DoRun(), ns3::Udp6SocketImplTest::DoRun(), ns3::UdpEchoServer::HandleRead(), ns3::Ipv4FragmentationTest::HandleReadServer(), and ns3::Ipv6FragmentationTest::HandleReadServer().

Here is the call graph for this function:

Here is the caller graph for this function:

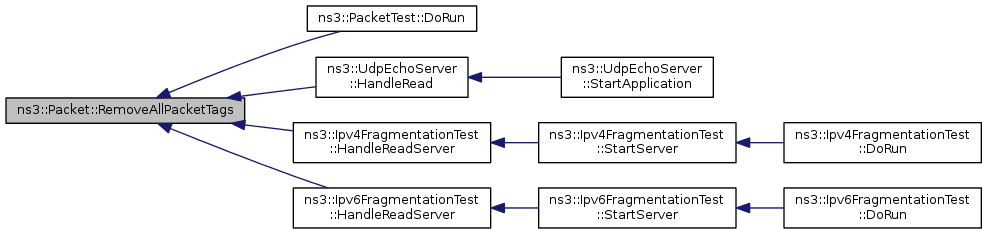

void ns3::Packet::RemoveAllPacketTags ( void )

Remove all packet tags.

Definition at line 858 of file packet.cc.

References m_packetTagList, NS_LOG_FUNCTION, and ns3::PacketTagList::RemoveAll().

Referenced by ns3::PacketTest::DoRun(), ns3::UdpEchoServer::HandleRead(), ns3::Ipv4FragmentationTest::HandleReadServer(), and ns3::Ipv6FragmentationTest::HandleReadServer().

Here is the call graph for this function:

Here is the caller graph for this function:

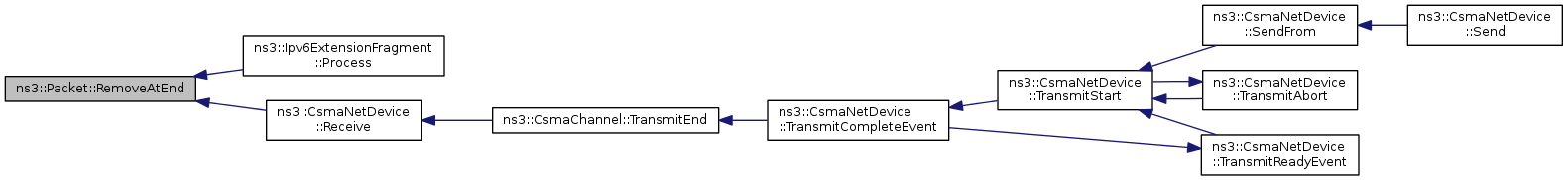

void ns3::Packet::RemoveAtEnd ( uint32_t size )

Remove size bytes from the end of the current packet It is safe to remove more bytes that what is present in the packet.

Parameters

size	number of bytes from remove

Definition at line 344 of file packet.cc.

References m_buffer, m_metadata, NS_LOG_FUNCTION, ns3::PacketMetadata::RemoveAtEnd(), and ns3::Buffer::RemoveAtEnd().

Referenced by ns3::Ipv6ExtensionFragment::Process(), and ns3::CsmaNetDevice::Receive().

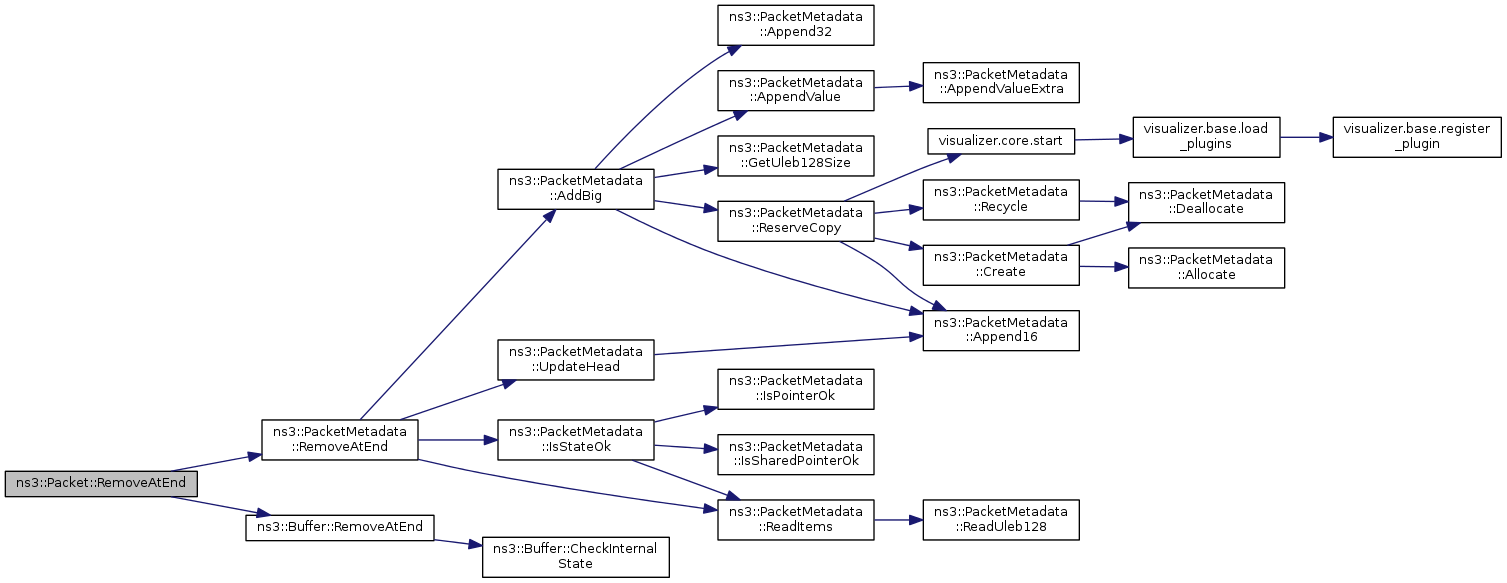

Here is the call graph for this function:

Here is the caller graph for this function:

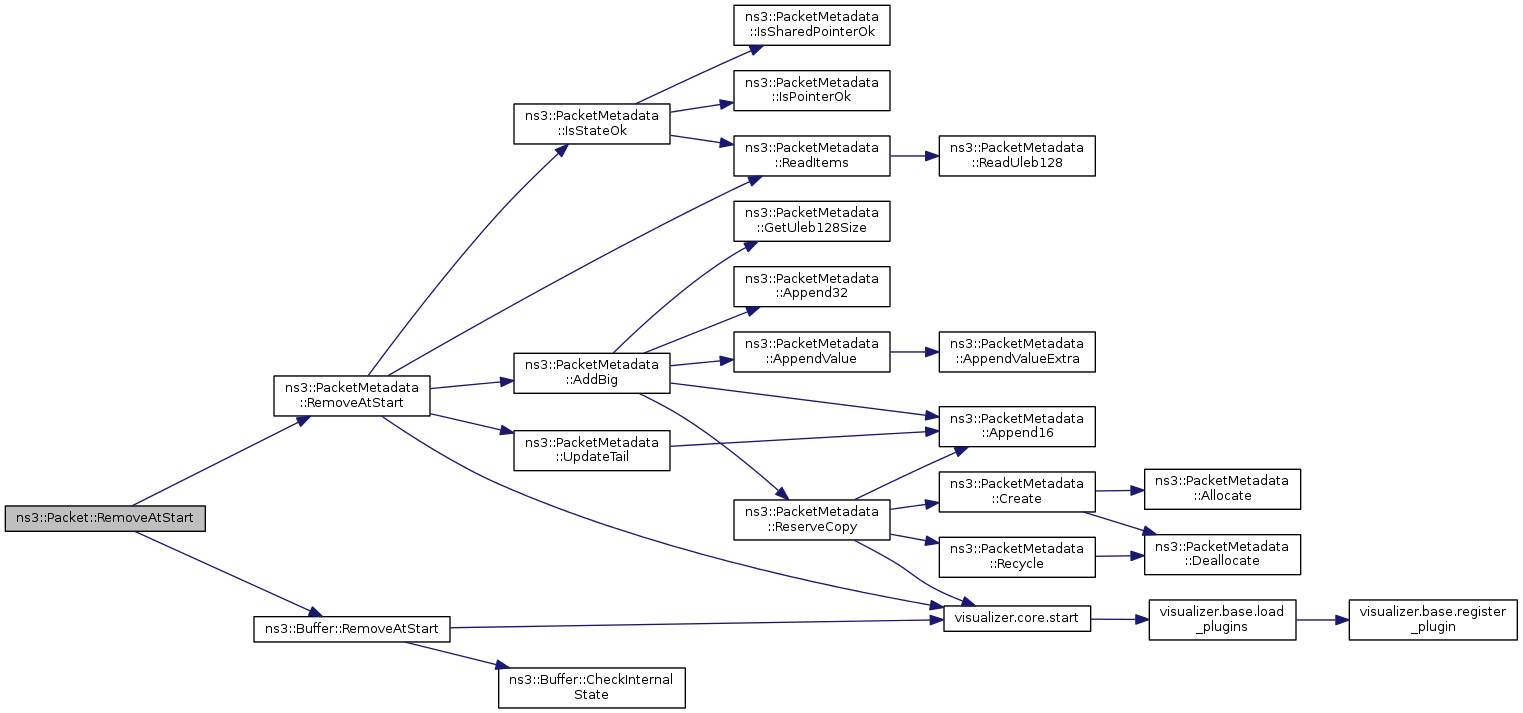

void ns3::Packet::RemoveAtStart ( uint32_t size )

Remove size bytes from the start of the current packet. It is safe to remove more bytes that what is present in the packet.

Parameters

size	number of bytes from remove

Definition at line 351 of file packet.cc.

References m_buffer, m_metadata, NS_LOG_FUNCTION, ns3::PacketMetadata::RemoveAtStart(), and ns3::Buffer::RemoveAtStart().

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::MsduAggregator::Deaggregate(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::PacketTest::DoRun(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::dsr::DsrRouting::NetworkScheduleTimerExpire(), ns3::Ipv6OptionPad1::Process(), ns3::Ipv6OptionPadn::Process(), ns3::Ipv6ExtensionHopByHop::Process(), ns3::Ipv6OptionJumbogram::Process(), ns3::Ipv6ExtensionDestination::Process(), ns3::Ipv6OptionRouterAlert::Process(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv6ExtensionRouting::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6Extension::ProcessOptions(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::LteRlcUm::ReassembleAndDeliver(), ns3::LteRlcAm::ReassembleAndDeliver(), ns3::dsr::DsrRouting::Receive(), ns3::Ipv4RawSocketImpl::RecvFrom(), ns3::Ipv6RawSocketImpl::RecvFrom(), ns3::dsr::DsrRouting::SalvagePacket(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

Here is the call graph for this function:

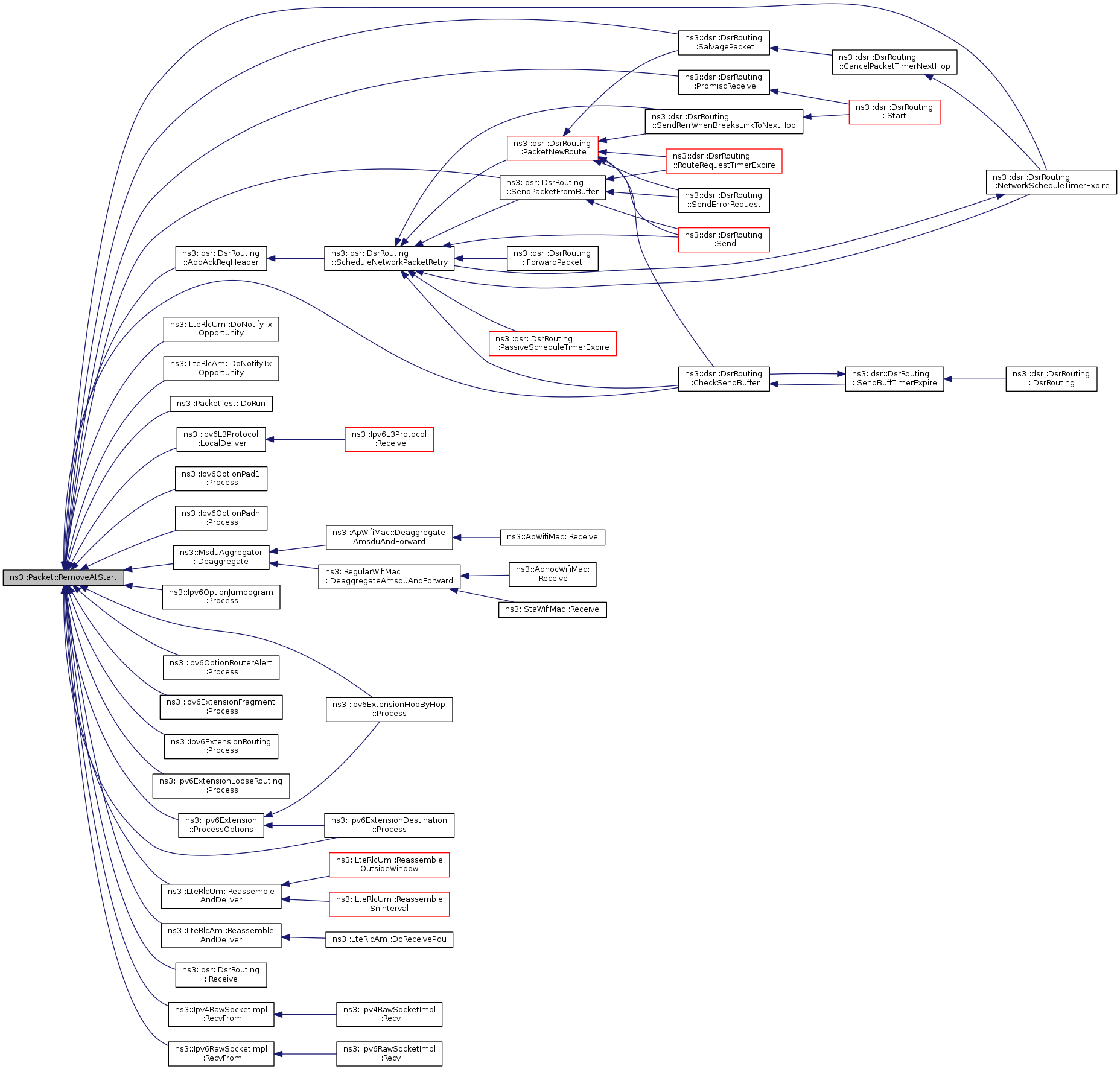

Here is the caller graph for this function:

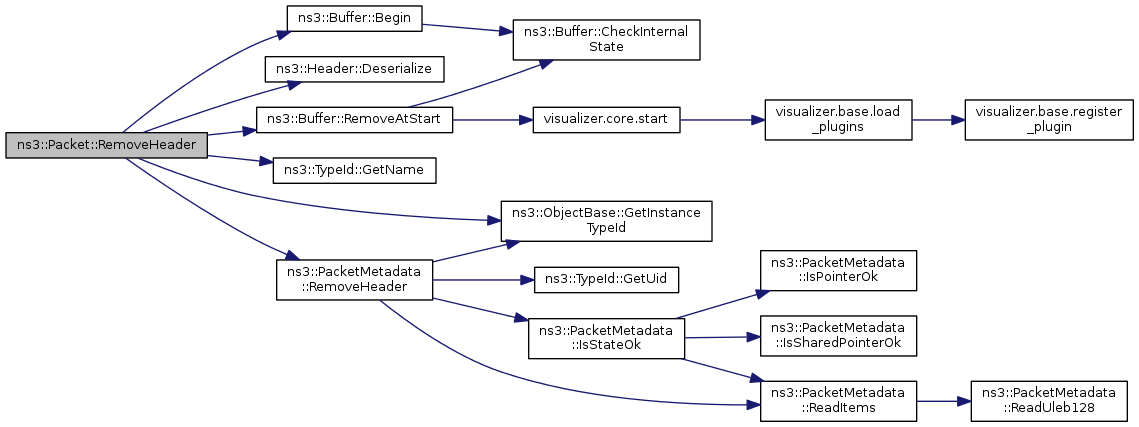

uint32_t ns3::Packet::RemoveHeader ( Header & header )

Deserialize and remove the header from the internal buffer. This method invokes Header::Deserialize.

Parameters

header a reference to the header to remove from the internal buffer.

Returns: the number of bytes removed from the packet.

Definition at line 266 of file packet.cc.

References ns3::Buffer::Begin(), ns3::Header::Deserialize(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), m_buffer, m_metadata, NS_LOG_FUNCTION, ns3::Buffer::RemoveAtStart(), and ns3::PacketMetadata::RemoveHeader().

Here is the call graph for this function:

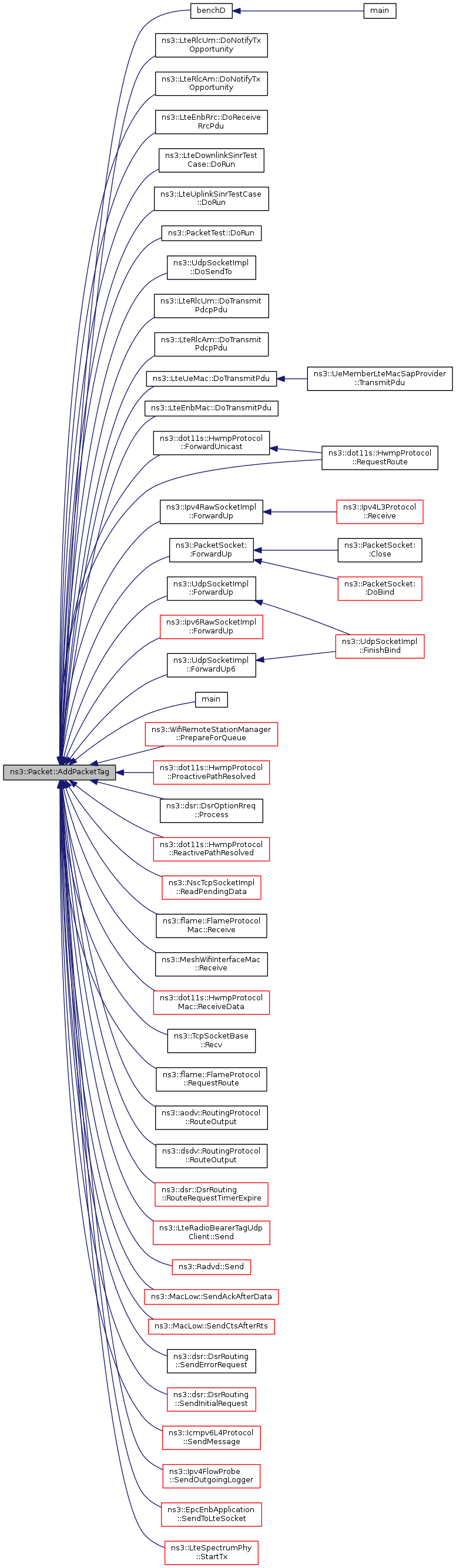

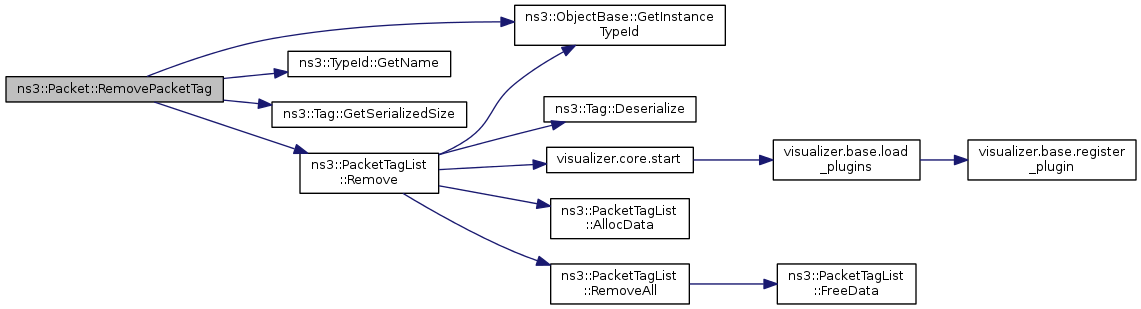

bool ns3::Packet::RemovePacketTag ( Tag & tag )

Parameters

tag	the tag to remove from this packet

Returns: true if the requested tag is found, false otherwise.

Remove a tag from this packet. This method calls Tag::Deserialize if the tag is found.

Definition at line 845 of file packet.cc.

References ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Tag::GetSerializedSize(), m_packetTagList, NS_LOG_FUNCTION, and ns3::PacketTagList::Remove().

Referenced by benchD(), ns3::LteRlcUm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteUeMac::DoReceivePhyPdu(), ns3::LteEnbMac::DoReceivePhyPdu(), ns3::PacketTest::DoRun(), ns3::UdpSocketImpl::DoSendTo(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), Tunnel::N0SocketRecv(), Tunnel::N1SocketRecv(), Tunnel::N3SocketRecv(), ns3::dot11s::HwmpProtocol::ProactivePathResolved(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), ns3::MacLow::ReceiveOk(), ns3::EpcEnbApplication::RecvFromLteSocket(), ns3::EpcEnbApplication::RecvFromS1uSocket(), ns3::EpcSgwPgwApplication::RecvFromS1uSocket(), ns3::dot11s::HwmpProtocol::RemoveRoutingStuff(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), ns3::dot11s::HwmpProtocol::RequestRoute(), ns3::flame::FlameProtocol::RequestRoute(), ns3::Ipv6PacketInfoTagTest::RxCb(), ns3::Ipv4PacketInfoTagTest::RxCb(), ns3::Ipv6L3Protocol::Send(), ns3::Ipv4L3Protocol::Send(), ns3::LteEnbRrc::Send(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), ns3::LteSpectrumPhy::StartRx(), ns3::flame::FlameProtocolMac::UpdateOutcomingFrame(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the call graph for this function:

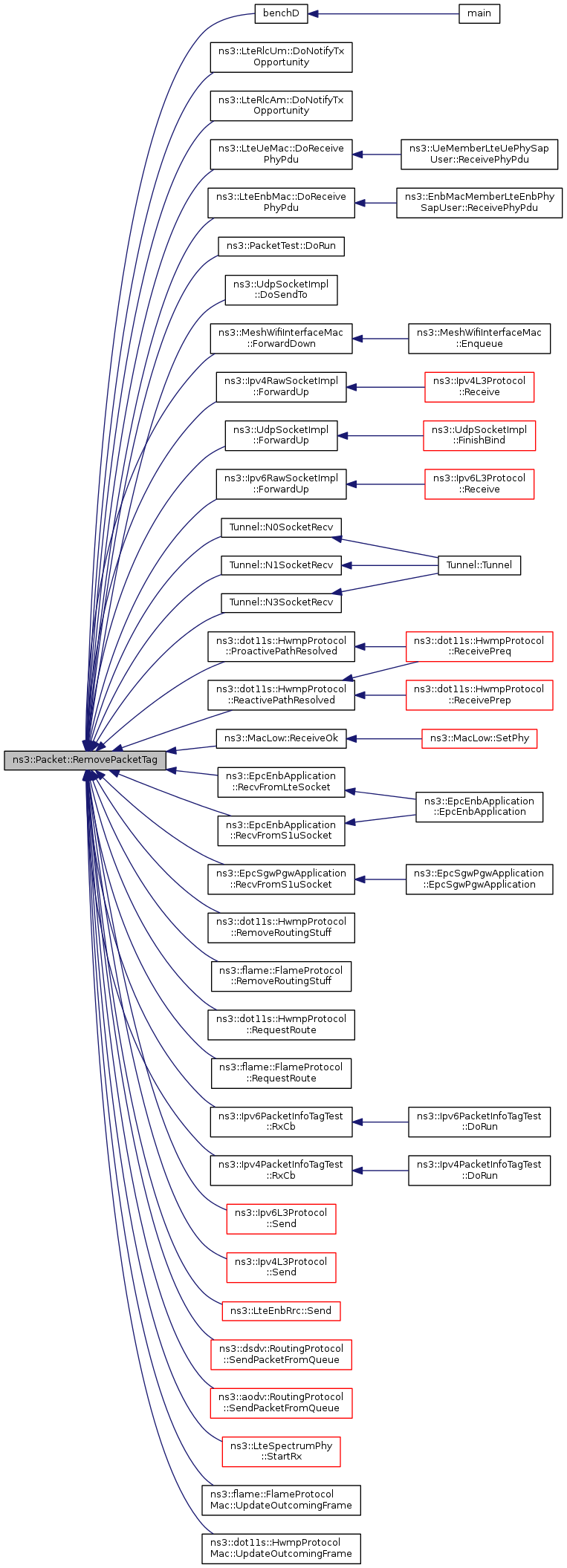

Here is the caller graph for this function:

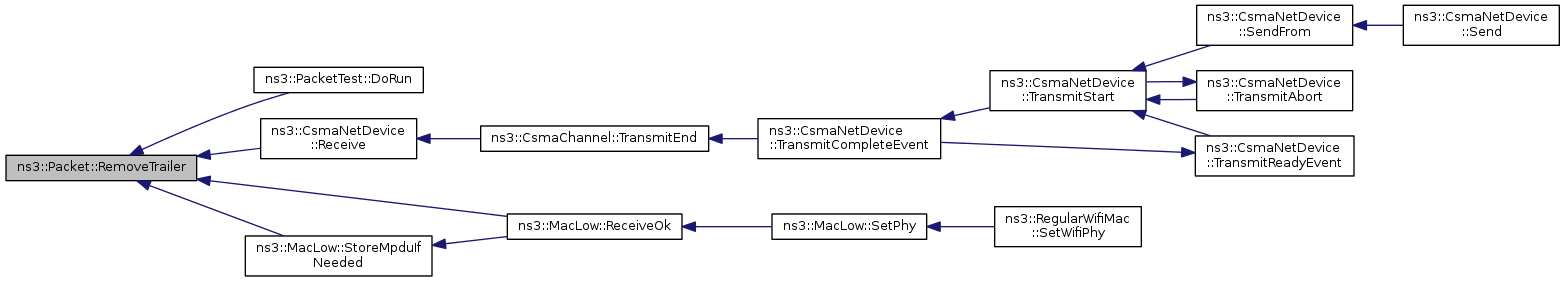

uint32_t ns3::Packet::RemoveTrailer ( Trailer & trailer )

Remove a deserialized trailer from the internal buffer. This method invokes the Deserialize method.

Parameters

trailer a reference to the trailer to remove from the internal buffer.

Returns: the number of bytes removed from the end of the packet.

Definition at line 298 of file packet.cc.

References ns3::Trailer::Deserialize(), ns3::Buffer::End(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetName(), m_buffer, m_metadata, NS_LOG_FUNCTION, ns3::Buffer::RemoveAtEnd(), and ns3::PacketMetadata::RemoveTrailer().

Referenced by ns3::PacketTest::DoRun(), ns3::CsmaNetDevice::Receive(), ns3::MacLow::ReceiveOk(), and ns3::MacLow::StoreMpduIfNeeded().

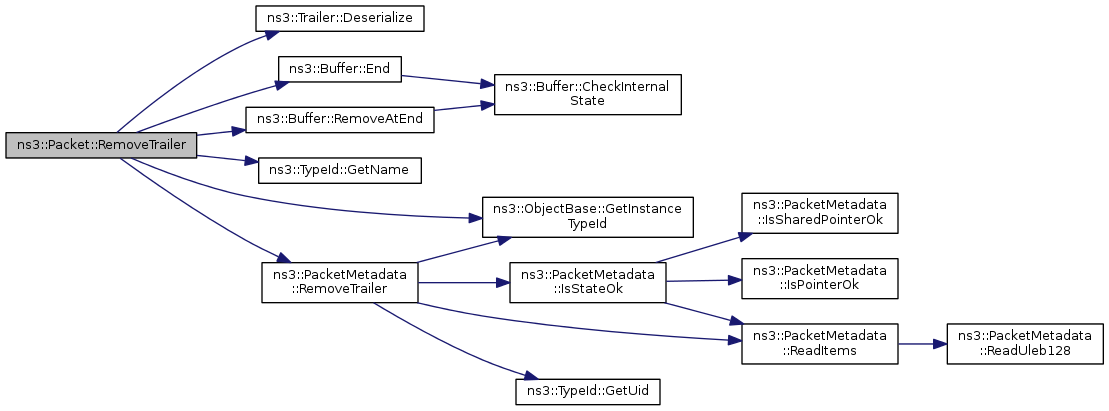

Here is the call graph for this function:

Here is the caller graph for this function:

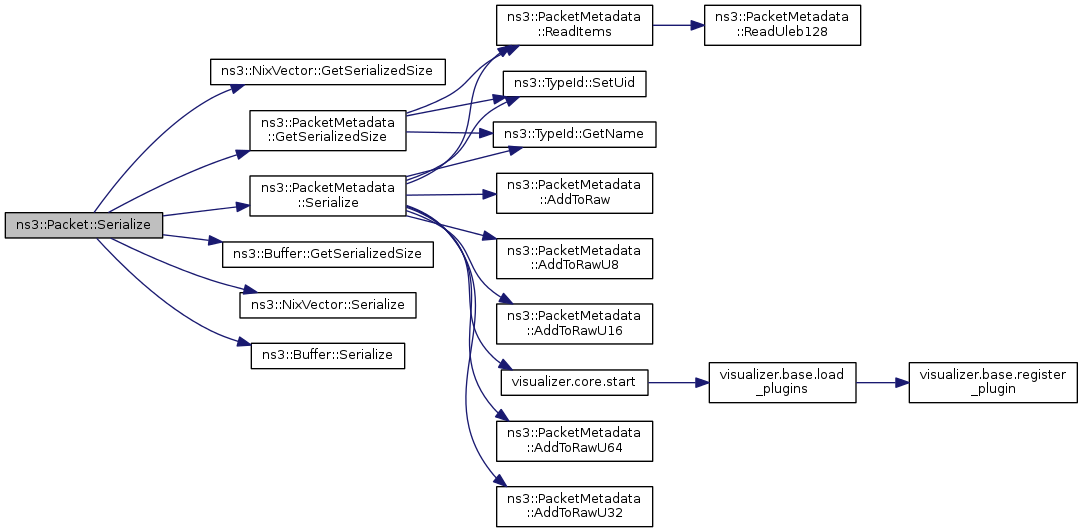

uint32_t ns3::Packet::Serialize	(	uint8_t *	buffer,
		uint32_t	maxSize
	)		const

Definition at line 606 of file packet.cc.

References ns3::NixVector::GetSerializedSize(), ns3::PacketMetadata::GetSerializedSize(), ns3::Buffer::GetSerializedSize(), m_buffer, m_metadata, m_nixVector, ns3::NixVector::Serialize(), ns3::PacketMetadata::Serialize(), and ns3::Buffer::Serialize().

Referenced by ns3::MpiInterface::SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Packet::SetNixVector ( Ptr< NixVector > nixVector )

Definition at line 239 of file packet.cc.

References m_nixVector.

Referenced by ns3::Ipv4NixVectorRouting::RouteOutput().

Here is the caller graph for this function:

Member Data Documentation

Buffer ns3::Packet::m_buffer

private

Definition at line 562 of file packet.h.

Referenced by AddAtEnd(), AddByteTag(), AddHeader(), AddPaddingAtEnd(), AddTrailer(), BeginItem(), CopyData(), CreateFragment(), Deserialize(), GetByteTagIterator(), GetSerializedSize(), GetSize(), operator=(), Packet(), PeekData(), PeekHeader(), PeekTrailer(), Print(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), RemoveTrailer(), and Serialize().

ByteTagList ns3::Packet::m_byteTagList

private

Definition at line 563 of file packet.h.

Referenced by AddAtEnd(), AddByteTag(), AddHeader(), AddPaddingAtEnd(), AddTrailer(), CreateFragment(), GetByteTagIterator(), operator=(), PeekData(), and RemoveAllByteTags().

uint32_t ns3::Packet::m_globalUid = 0

staticprivate

Definition at line 570 of file packet.h.

Referenced by Packet().

PacketMetadata ns3::Packet::m_metadata

private

Definition at line 565 of file packet.h.

Referenced by AddAtEnd(), AddHeader(), AddPaddingAtEnd(), AddTrailer(), BeginItem(), CreateFragment(), Deserialize(), GetSerializedSize(), GetUid(), operator=(), Print(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), RemoveTrailer(), and Serialize().

Ptr<NixVector> ns3::Packet::m_nixVector

private

Definition at line 568 of file packet.h.

Referenced by Deserialize(), GetNixVector(), GetSerializedSize(), operator=(), Packet(), Serialize(), and SetNixVector().

PacketTagList ns3::Packet::m_packetTagList

private

Definition at line 564 of file packet.h.

Referenced by AddPacketTag(), CreateFragment(), GetPacketTagIterator(), operator=(), PeekPacketTag(), RemoveAllPacketTags(), and RemovePacketTag().

The documentation for this class was generated from the following files:

src/network/model/packet.h
src/network/model/packet.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
