Protocol header serialization and deserialization. More...

#include <header.h>

Inherited by anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase, BenchHeader< N >, MyHeader, ns3::AlohaNoackMacHeader, ns3::AmsduSubframeHeader, ns3::anonymous_namespace{packet-test-suite.cc}::ATestHeaderBase, ns3::aodv::RerrHeader, ns3::aodv::RrepAckHeader, ns3::aodv::RrepHeader, ns3::aodv::RreqHeader, ns3::aodv::TypeHeader, ns3::ArpHeader, ns3::BandwidthRequestHeader, ns3::CtrlBAckRequestHeader, ns3::CtrlBAckResponseHeader, ns3::Dcd, ns3::DlMap, ns3::dot11s::MeshHeader, ns3::dot11s::PeerLinkFrameStart, ns3::DsaAck, ns3::DsaReq, ns3::DsaRsp, ns3::dsdv::DsdvHeader, ns3::dsr::DsrFsHeader, ns3::dsr::DsrOptionHeader, ns3::EthernetHeader, ns3::flame::FlameHeader, ns3::FragmentationSubheader, ns3::GenericMacHeader, ns3::GrantManagementSubheader, ns3::GtpuHeader, ns3::Icmpv4DestinationUnreachable, ns3::Icmpv4Echo, ns3::Icmpv4Header, ns3::Icmpv4TimeExceeded, ns3::Icmpv6Header, ns3::Icmpv6OptionHeader, ns3::Ipv4Header, ns3::Ipv6ExtensionHeader, ns3::Ipv6Header, ns3::Ipv6OptionHeader, ns3::LlcSnapHeader, ns3::LtePdcpHeader, ns3::LteRlcAmHeader, ns3::LteRlcHeader, ns3::MacHeaderType, ns3::ManagementMessageType, ns3::MgtAddBaRequestHeader, ns3::MgtAddBaResponseHeader, ns3::MgtAssocRequestHeader, ns3::MgtAssocResponseHeader, ns3::MgtDelBaHeader, ns3::MgtProbeRequestHeader, ns3::MgtProbeResponseHeader, ns3::OfdmDownlinkFramePrefix, ns3::olsr::MessageHeader, ns3::olsr::PacketHeader, ns3::PppHeader, ns3::RadiotapHeader, ns3::RngReq, ns3::RngRsp, ns3::SeqTsHeader, ns3::TcpHeader, ns3::Tlv, ns3::UanHeaderCommon, ns3::UanHeaderRcAck, ns3::UanHeaderRcCts, ns3::UanHeaderRcCtsGlobal, ns3::UanHeaderRcData, ns3::UanHeaderRcRts, ns3::Ucd, ns3::UdpHeader, ns3::UlMap, ns3::WifiActionHeader, ns3::WifiInformationElementVector, ns3::WifiMacHeader, ns3::WimaxMacToMacHeader, and ns3::SimpleRefCount< PbbPacket, Header >.

Collaboration diagram for ns3::Header:

Public Member Functions
virtual	~Header ()
virtual uint32_t	Deserialize (Buffer::Iterator start)=0
virtual uint32_t	GetSerializedSize (void) const =0
virtual void	Print (std::ostream &os) const =0
virtual void	Serialize (Buffer::Iterator start) const =0

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Header.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Protocol header serialization and deserialization.

Every Protocol header which needs to be inserted or removed from a Packet instance must derive from this base class and implement the pure virtual methods defined here.

Sample code which shows how to create a new type of Header, and how to use it, is shown in the sample file samples/main-packet-header.cc

Definition at line 42 of file header.h.

Constructor & Destructor Documentation

ns3::Header::~Header ( )

virtual

Definition at line 7 of file header.cc.

Member Function Documentation

virtual uint32_t ns3::Header::Deserialize ( Buffer::Iterator start )

pure virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Chunk.

Referenced by ns3::Packet::PeekHeader(), and ns3::Packet::RemoveHeader().

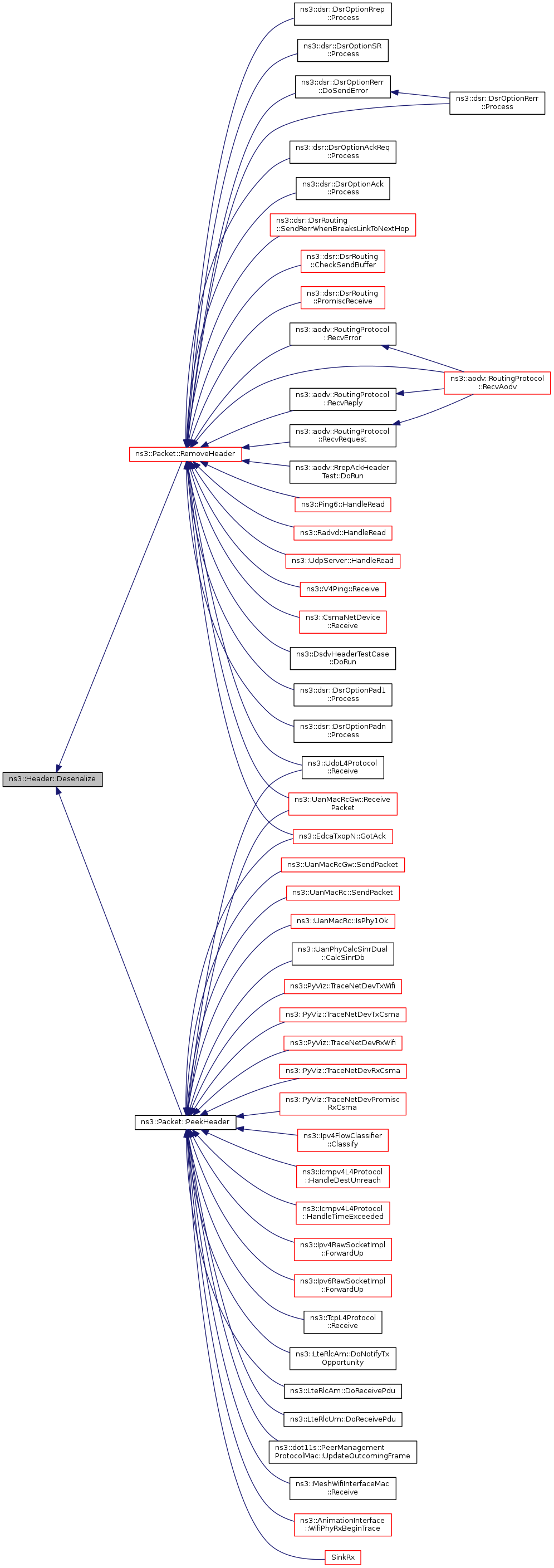

Here is the caller graph for this function:

virtual uint32_t ns3::Header::GetSerializedSize ( void ) const

pure virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Referenced by ns3::Packet::AddHeader(), and ns3::PcapFile::Write().

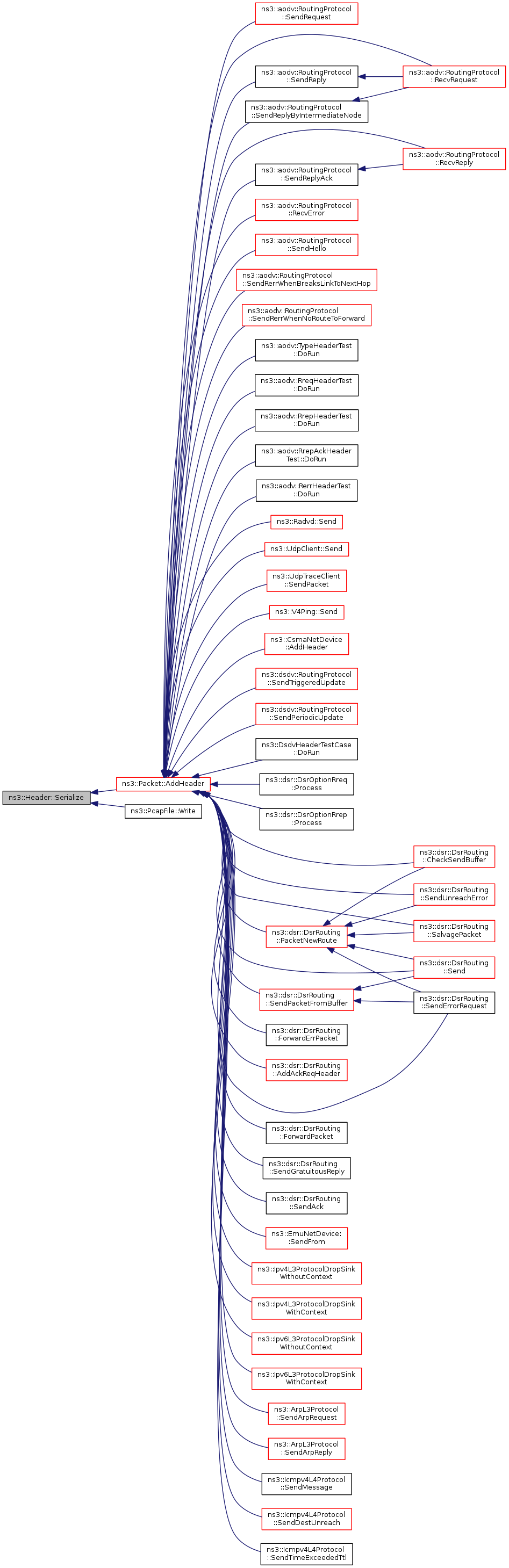

Here is the caller graph for this function:

TypeId ns3::Header::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Header.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Chunk.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, ns3::Icmpv6OptionMtu, ns3::dsr::DsrOptionAckHeader, ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::dsr::DsrOptionAckReqHeader, ns3::Icmpv6TooBig, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::dsr::DsrOptionRerrHeader, ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::PbbPacket, ns3::dsr::DsrOptionSRHeader, ns3::Icmpv6RA, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::RngReq, ns3::dsr::DsrOptionRrepHeader, ns3::Icmpv6NA, ns3::Ipv6ExtensionRoutingHeader, ns3::DsaAck, ns3::DsaRsp, ns3::MgtDelBaHeader, ns3::Icmpv6NS, ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::UanHeaderRcAck, ns3::UlMap, ns3::DlMap, ns3::MgtAddBaResponseHeader, ns3::DsaReq, ns3::aodv::RerrHeader, ns3::dsr::DsrRoutingHeader, ns3::Ipv6ExtensionDestinationHeader, ns3::dsr::DsrOptionRreqHeader, ns3::FragmentationSubheader, ns3::Ipv6OptionJumbogramHeader, ns3::MgtAddBaRequestHeader, ns3::UanHeaderRcCts, ns3::aodv::RrepAckHeader, ns3::Icmpv6OptionHeader, ns3::WifiActionHeader, ns3::Dcd, ns3::GrantManagementSubheader, ns3::Ipv6ExtensionHopByHopHeader, ns3::Ipv4Header, ns3::Ucd, ns3::Ipv6OptionPadnHeader, ns3::dsr::DsrOptionPadnHeader, ns3::olsr::MessageHeader, ns3::UanHeaderRcCtsGlobal, ns3::aodv::RrepHeader, ns3::RngRsp, ns3::BandwidthRequestHeader, ns3::Ipv6OptionPad1Header, ns3::dsr::DsrOptionPad1Header, ns3::TcpHeader, ns3::Icmpv4TimeExceeded, ns3::MgtProbeResponseHeader, ns3::LteRlcAmHeader, ns3::Icmpv6Header, ns3::UdpHeader, ns3::aodv::RreqHeader, ns3::MgtProbeRequestHeader, ns3::UanHeaderRcRts, ns3::GenericMacHeader, ns3::CtrlBAckResponseHeader, ns3::EthernetHeader, ns3::Icmpv4DestinationUnreachable, ns3::olsr::PacketHeader, ns3::WifiMacHeader, ns3::anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >, ns3::dsr::DsrFsHeader, ns3::MgtAssocResponseHeader, ns3::LteRlcHeader, ns3::Icmpv4Echo, anonymous_namespace{packet-metadata-test.cc}::HistoryHeader< N >, ns3::dot11s::PeerLinkFrameStart, ns3::ManagementMessageType, ns3::dsr::DsrOptionHeader, ns3::dsdv::DsdvHeader, ns3::Ipv6Header, ns3::PppHeader, ns3::aodv::TypeHeader, ns3::LtePdcpHeader, ns3::Ipv6OptionHeader, ns3::MacHeaderType, ns3::SeqTsHeader, ns3::UanHeaderRcData, ns3::MgtAssocRequestHeader, ns3::ArpHeader, ns3::RadiotapHeader, ns3::CtrlBAckRequestHeader, ns3::Icmpv4Header, ns3::UanHeaderCommon, ns3::WifiInformationElementVector, ns3::LlcSnapHeader, ns3::flame::FlameHeader, ns3::Ipv6ExtensionHeader, ns3::GtpuHeader, ns3::dot11s::MeshHeader, ns3::WimaxMacToMacHeader, ns3::AmsduSubframeHeader, ns3::AlohaNoackMacHeader, BenchHeader< N >, anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase, and MyHeader.

Definition at line 12 of file header.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::Tlv::GetInstanceTypeId(), and ns3::PacketMetadata::ItemIterator::Next().

Here is the call graph for this function:

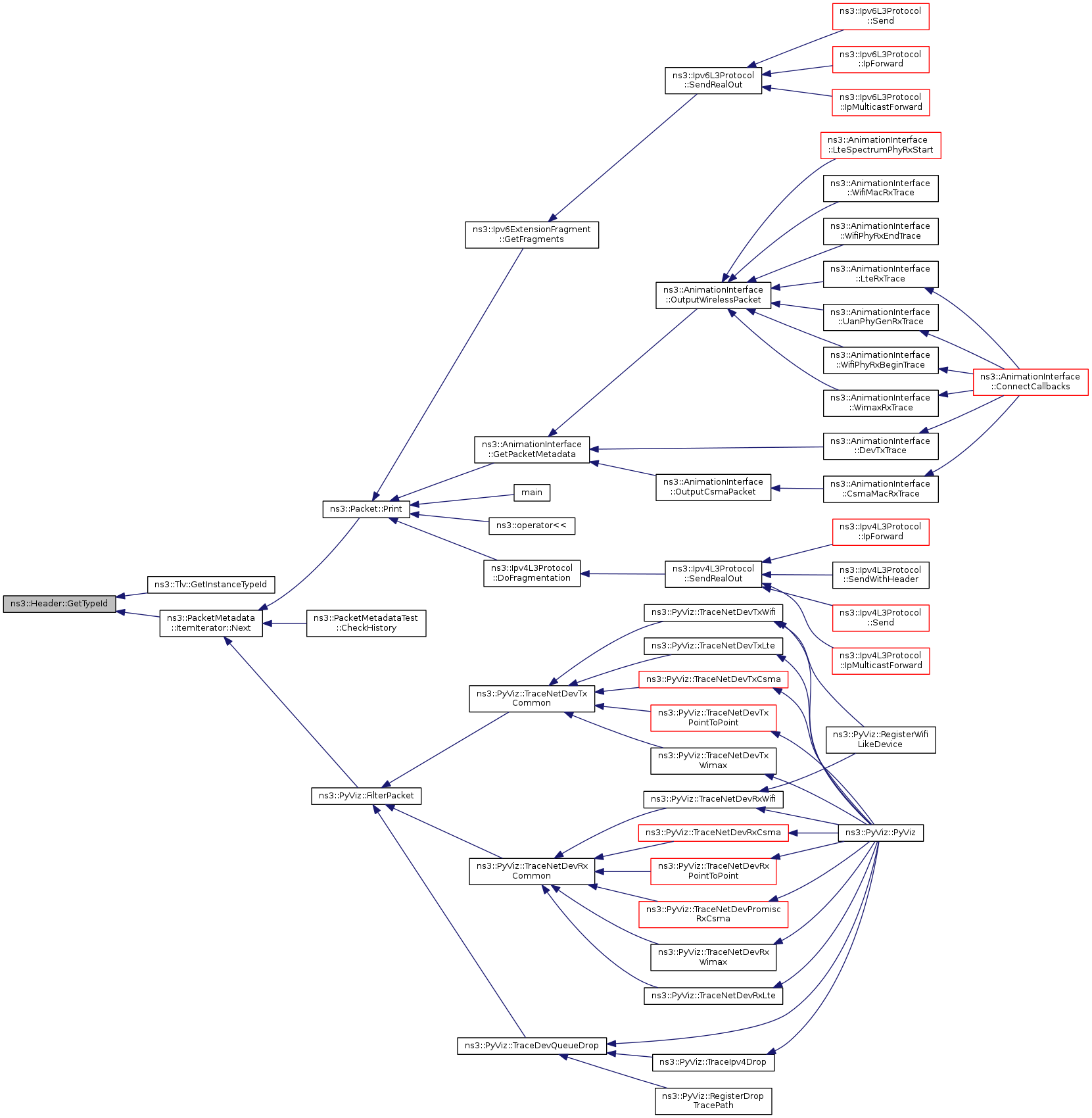

Here is the caller graph for this function:

virtual void ns3::Header::Print ( std::ostream & os ) const

pure virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Chunk.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

virtual void ns3::Header::Serialize ( Buffer::Iterator start ) const

pure virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Referenced by ns3::Packet::AddHeader(), and ns3::PcapFile::Write().

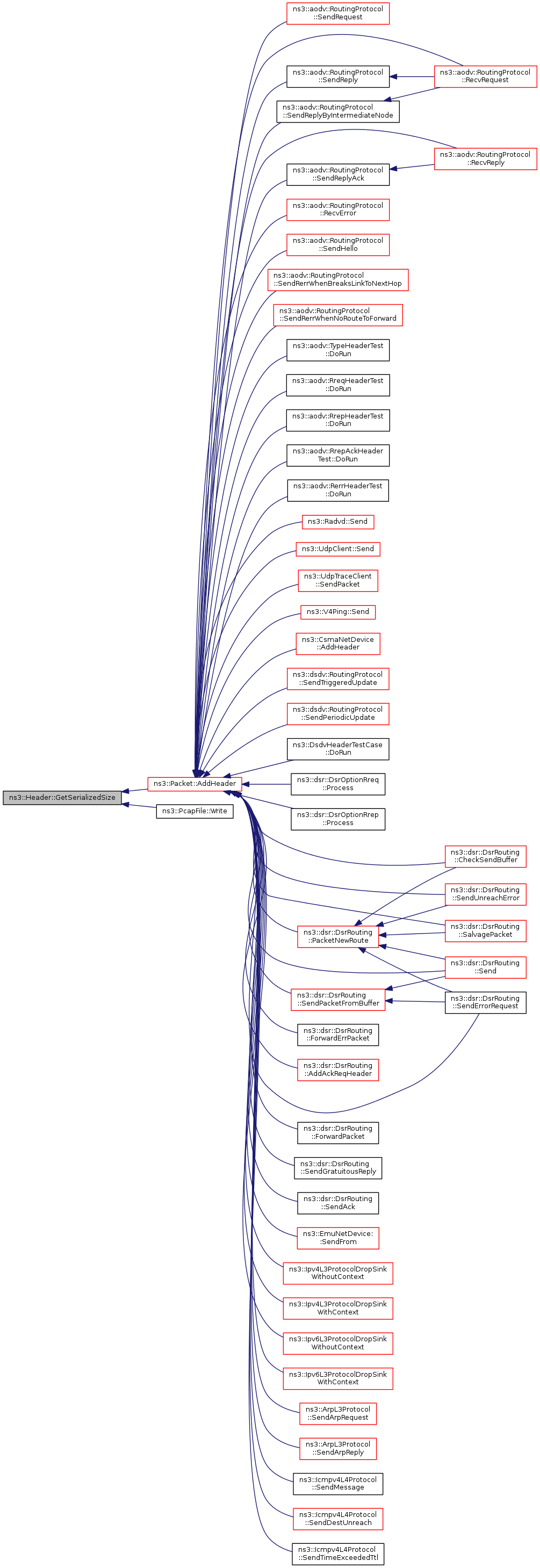

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/network/model/header.h
doc/introspected-doxygen.h
src/network/model/header.cc
