#include <dl-mac-messages.h>

Inheritance diagram for ns3::DlMap:

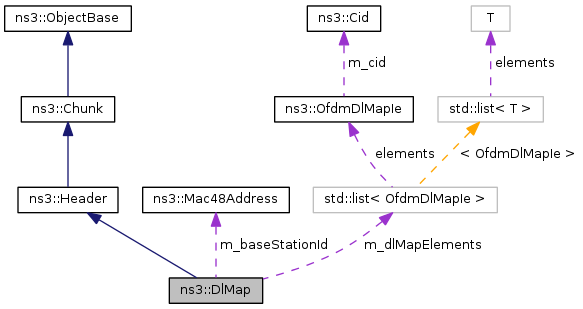

Collaboration diagram for ns3::DlMap:

Public Member Functions
	DlMap (void)
	This class implements DL-map ie as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402.
virtual	~DlMap (void)
void	AddDlMapElement (OfdmDlMapIe dlMapElement)
uint32_t	Deserialize (Buffer::Iterator start)
Mac48Address	GetBaseStationId (void) const
uint8_t	GetDcdCount (void) const
std::list< OfdmDlMapIe >	GetDlMapElements (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetBaseStationId (Mac48Address baseStationID)
void	SetDcdCount (uint8_t dcdCount)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::DlMap.

Private Attributes
Mac48Address	m_baseStationId
uint8_t	m_dcdCount
std::list< OfdmDlMapIe >	m_dlMapElements

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 312 of file dl-mac-messages.h.

Constructor & Destructor Documentation

ns3::DlMap::DlMap ( void )

This class implements DL-map ie as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402.

Definition at line 549 of file dl-mac-messages.cc.

ns3::DlMap::~DlMap ( void )

virtual

Definition at line 555 of file dl-mac-messages.cc.

Member Function Documentation

void ns3::DlMap::AddDlMapElement ( OfdmDlMapIe dlMapElement )

Definition at line 572 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::BaseStationNetDevice::CreateDlMap(), and Deserialize().

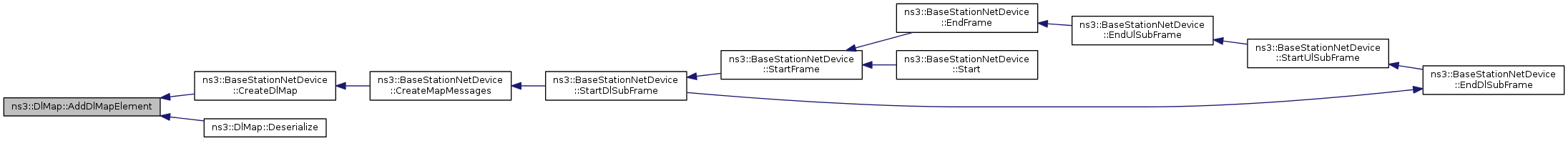

Here is the caller graph for this function:

uint32_t ns3::DlMap::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 656 of file dl-mac-messages.cc.

References AddDlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmDlMapIe::GetDiuc(), m_baseStationId, m_dcdCount, m_dlMapElements, ns3::OfdmDlMapIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

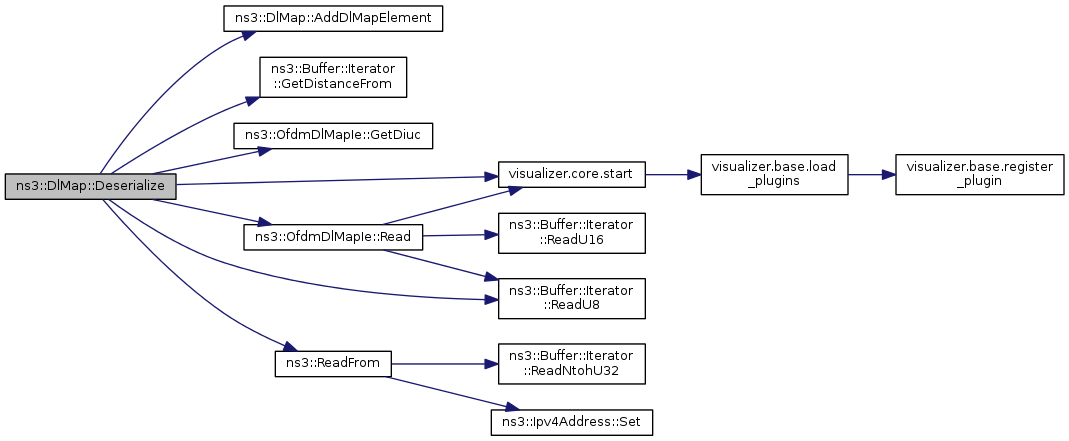

Here is the call graph for this function:

Mac48Address ns3::DlMap::GetBaseStationId ( void ) const

Definition at line 584 of file dl-mac-messages.cc.

References m_baseStationId.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

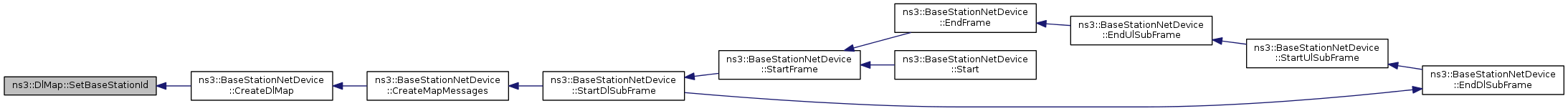

Here is the caller graph for this function:

uint8_t ns3::DlMap::GetDcdCount ( void ) const

Definition at line 578 of file dl-mac-messages.cc.

References m_dcdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

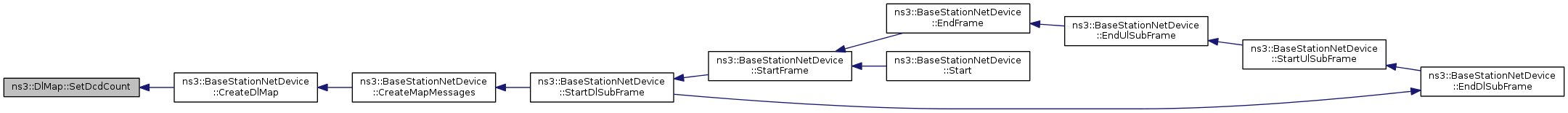

Here is the caller graph for this function:

std::list< OfdmDlMapIe > ns3::DlMap::GetDlMapElements ( void ) const

Definition at line 590 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

Here is the caller graph for this function:

TypeId ns3::DlMap::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 612 of file dl-mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DlMap::GetName ( void ) const

Definition at line 596 of file dl-mac-messages.cc.

uint32_t ns3::DlMap::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 626 of file dl-mac-messages.cc.

References ns3::OfdmDlMapIe::GetSize(), and m_dlMapElements.

Here is the call graph for this function:

TypeId ns3::DlMap::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::DlMap.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 602 of file dl-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DlMap::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 618 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, and m_dlMapElements.

void ns3::DlMap::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 641 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, m_dlMapElements, visualizer.core::start(), ns3::OfdmDlMapIe::Write(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

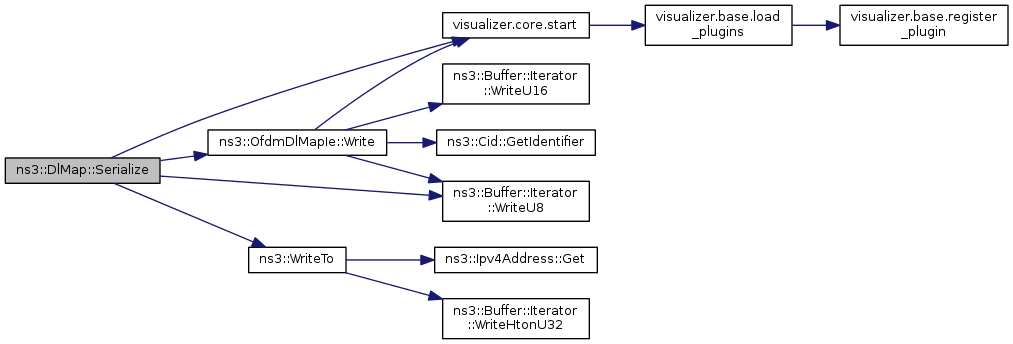

Here is the call graph for this function:
