#include <mac-messages.h>

Inheritance diagram for ns3::DsaReq:

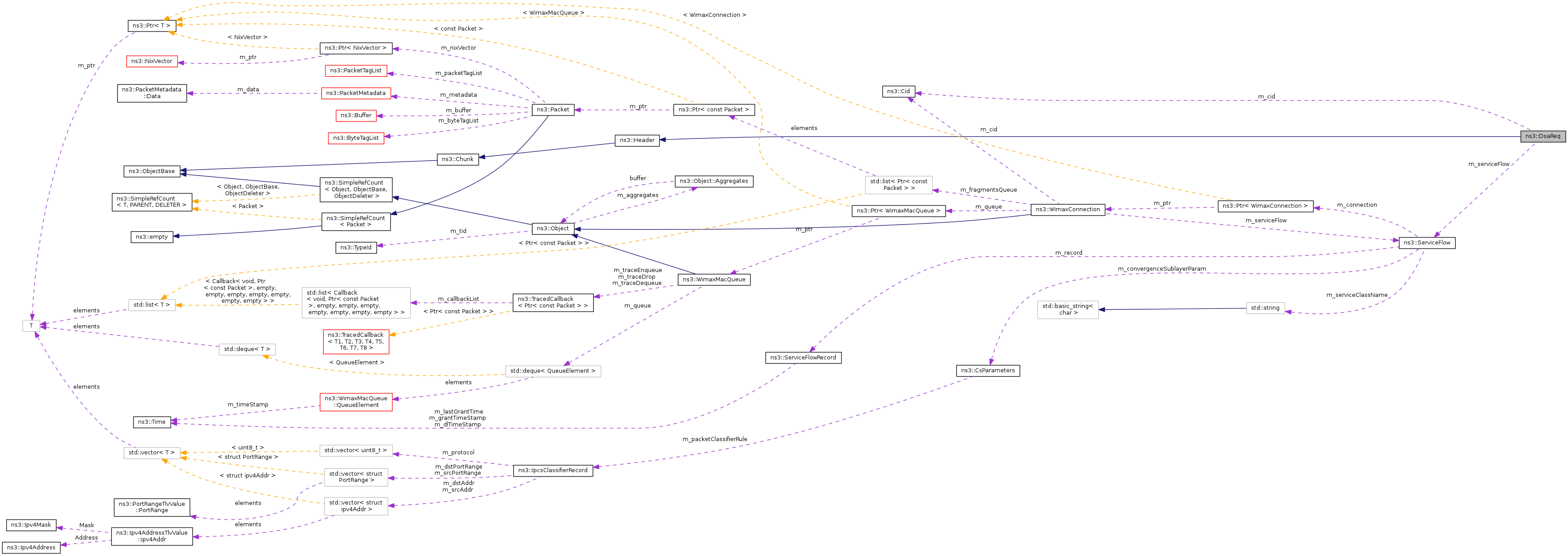

Collaboration diagram for ns3::DsaReq:

Public Member Functions
	DsaReq ()
	This class implements the ranging request message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.7 Registration request (REG-REQ) message, page 51.
	DsaReq (ServiceFlow sf)
	~DsaReq ()
uint32_t	Deserialize (Buffer::Iterator start)
Cid	GetCid (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
ServiceFlow	GetServiceFlow (void) const
uint32_t	GetSfid (void) const
uint16_t	GetTransactionId (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetCid (Cid cid)
	set the connection identifier

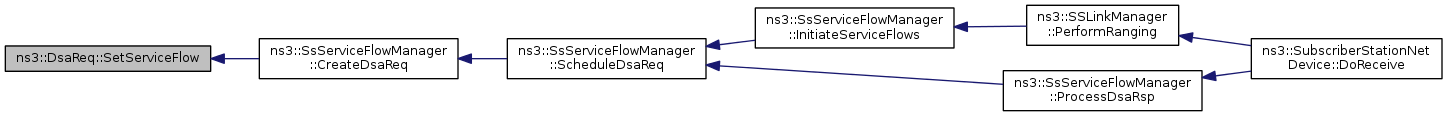

void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message
void	SetSfid (uint32_t sfid)
	set the service flow identifier

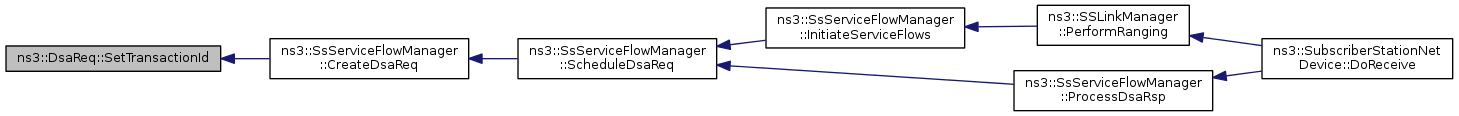

void	SetTransactionId (uint16_t transactionId)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::DsaReq.

Private Attributes
Cid	m_cid
ServiceFlow	m_serviceFlow
uint32_t	m_sfid
uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 262 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaReq::DsaReq ( void )

This class implements the ranging request message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.7 Registration request (REG-REQ) message, page 51.

Definition at line 502 of file mac-messages.cc.

ns3::DsaReq::~DsaReq ( void )

Definition at line 516 of file mac-messages.cc.

ns3::DsaReq::DsaReq ( ServiceFlow sf )

Definition at line 510 of file mac-messages.cc.

References m_serviceFlow, and m_transactionId.

Member Function Documentation

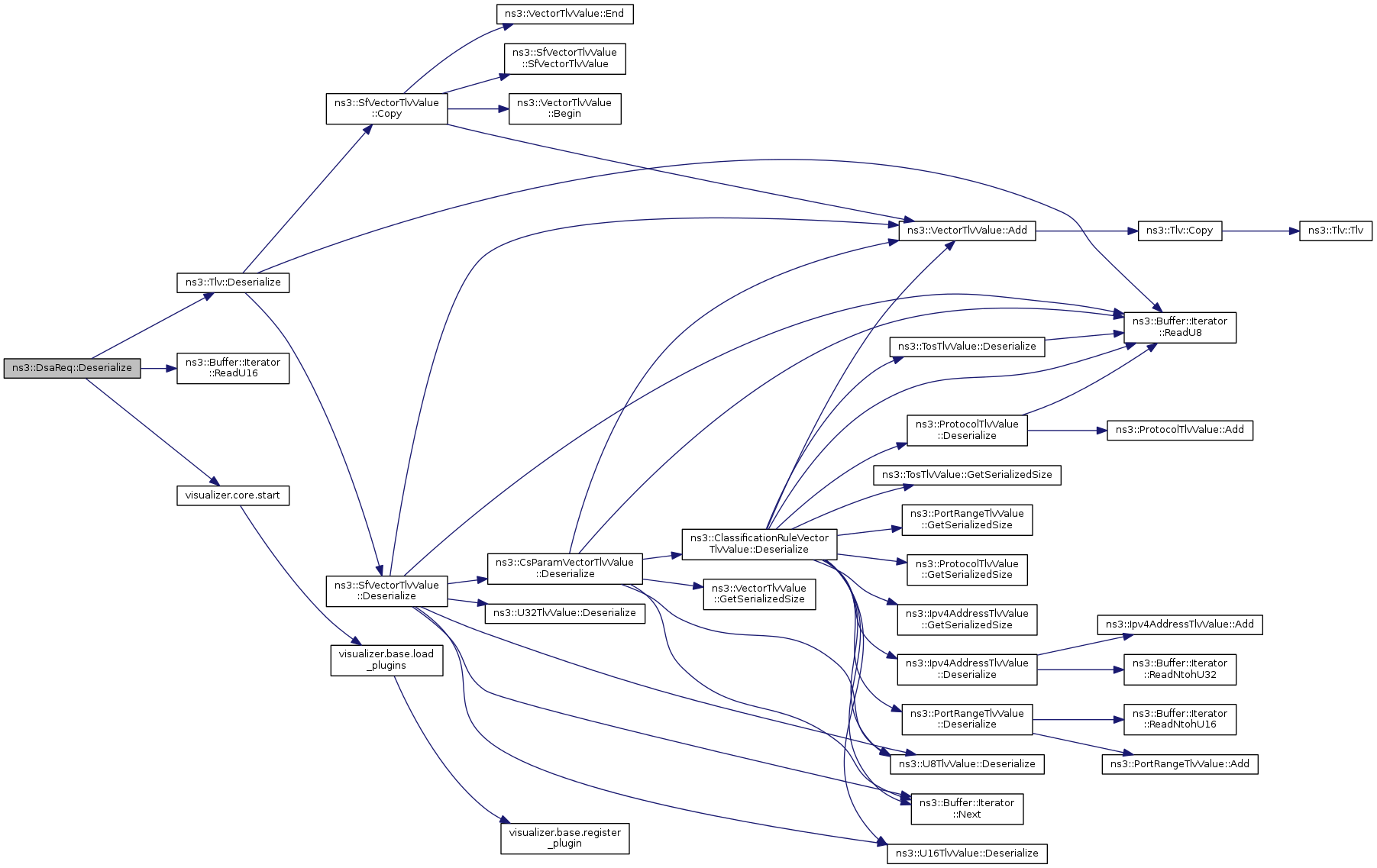

uint32_t ns3::DsaReq::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 610 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), and visualizer.core::start().

Here is the call graph for this function:

Cid ns3::DsaReq::GetCid ( void ) const

Returns: the connection identifier

Definition at line 551 of file mac-messages.cc.

References m_cid.

TypeId ns3::DsaReq::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 571 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DsaReq::GetName ( void ) const

Definition at line 558 of file mac-messages.cc.

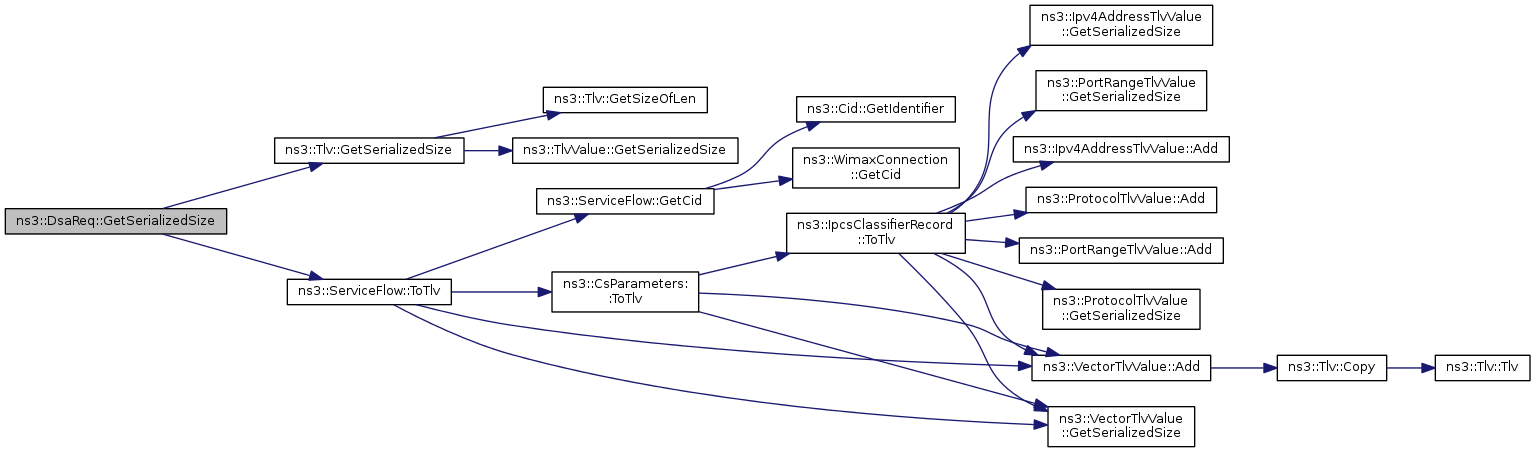

uint32_t ns3::DsaReq::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 593 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

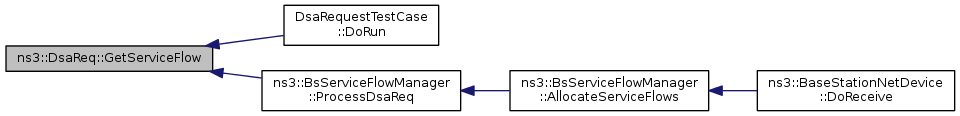

ServiceFlow ns3::DsaReq::GetServiceFlow ( void ) const

Returns: the service flow requested by this message

Definition at line 621 of file mac-messages.cc.

References m_serviceFlow.

Referenced by DsaRequestTestCase::DoRun(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

uint32_t ns3::DsaReq::GetSfid ( void ) const

Returns: the service flow identifier

Definition at line 539 of file mac-messages.cc.

References m_sfid.

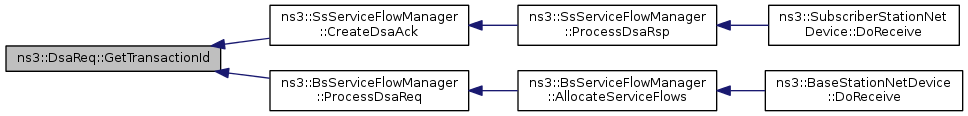

uint16_t ns3::DsaReq::GetTransactionId ( void ) const

Definition at line 527 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::CreateDsaAck(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

TypeId ns3::DsaReq::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::DsaReq.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 564 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaReq::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 577 of file mac-messages.cc.

References m_cid, m_sfid, and m_transactionId.

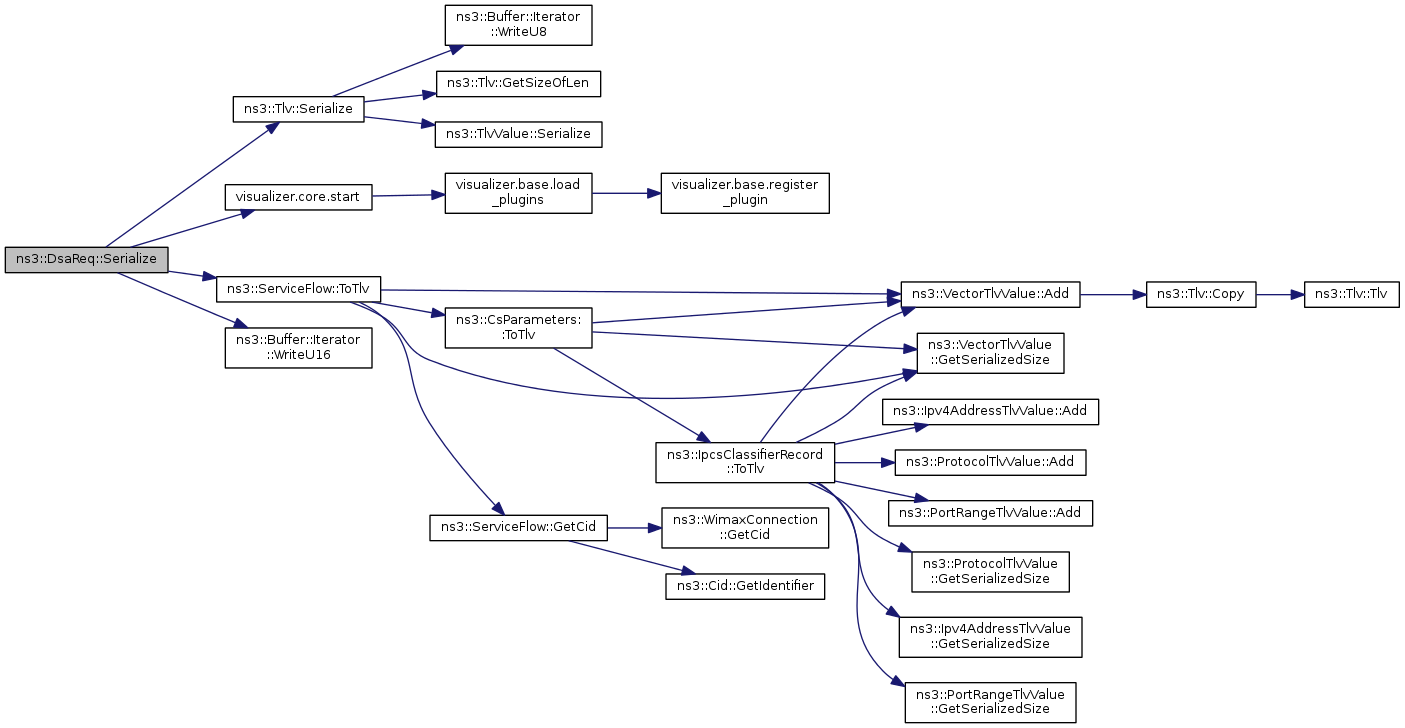

void ns3::DsaReq::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 601 of file mac-messages.cc.

References m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), visualizer.core::start(), ns3::ServiceFlow::ToTlv(), and ns3::Buffer::Iterator::WriteU16().

Here is the call graph for this function:
