Header for the LLC/SNAP encapsulation. More...

#include <llc-snap-header.h>

Inheritance diagram for ns3::LlcSnapHeader:

Collaboration diagram for ns3::LlcSnapHeader:

Public Member Functions
	LlcSnapHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint16_t	GetType (void)
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetType (uint16_t type)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LlcSnapHeader.

Private Attributes
uint16_t	m_etherType

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header for the LLC/SNAP encapsulation.

Definition at line 40 of file llc-snap-header.h.

Constructor & Destructor Documentation

ns3::LlcSnapHeader::LlcSnapHeader ( )

Definition at line 29 of file llc-snap-header.cc.

Member Function Documentation

uint32_t ns3::LlcSnapHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 82 of file llc-snap-header.cc.

References GetSerializedSize(), m_etherType, ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

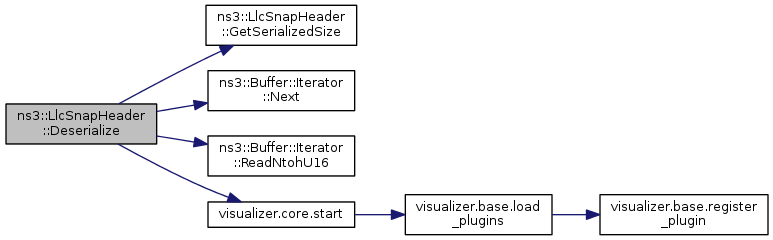

Here is the call graph for this function:

TypeId ns3::LlcSnapHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 60 of file llc-snap-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::LlcSnapHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 45 of file llc-snap-header.cc.

References ns3::LLC_SNAP_HEADER_LENGTH.

Referenced by Deserialize(), ns3::TapBridge::Filter(), and ns3::EmuNetDevice::ForwardUp().

Here is the caller graph for this function:

uint16_t ns3::LlcSnapHeader::GetType ( void )

Definition at line 39 of file llc-snap-header.cc.

References m_etherType.

Referenced by ns3::TapBridge::Filter(), ns3::WifiNetDevice::ForwardUp(), ns3::WimaxNetDevice::ForwardUp(), ns3::EmuNetDevice::ForwardUp(), and ns3::CsmaNetDevice::Receive().

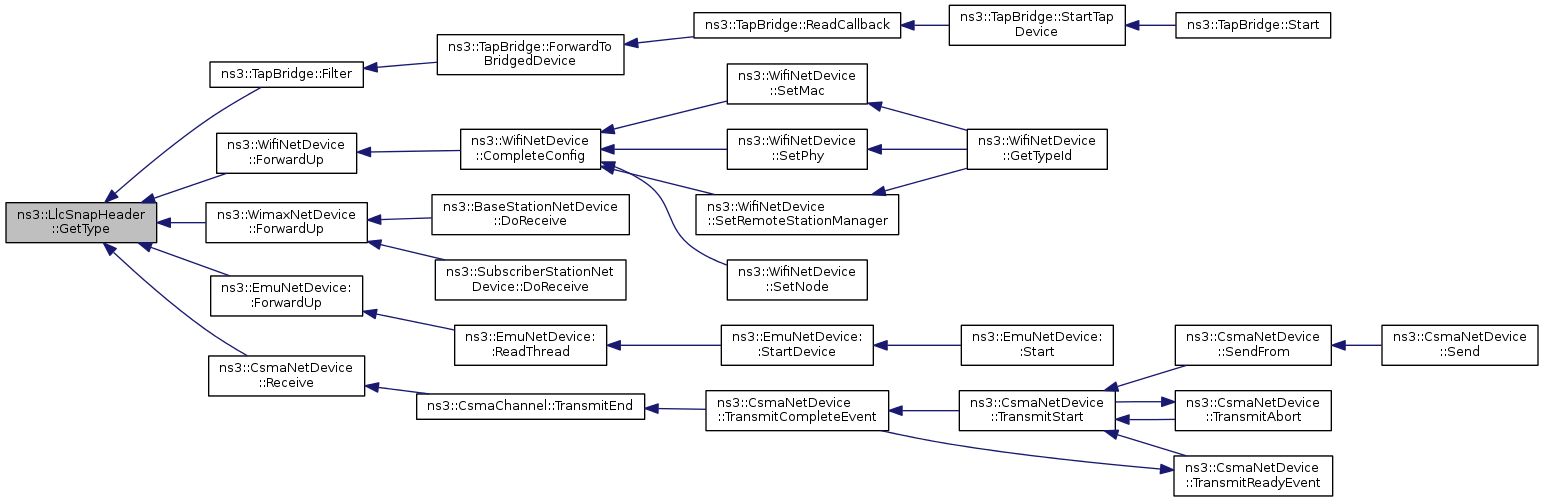

Here is the caller graph for this function:

TypeId ns3::LlcSnapHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LlcSnapHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 51 of file llc-snap-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LlcSnapHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 65 of file llc-snap-header.cc.

References m_etherType.

void ns3::LlcSnapHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 74 of file llc-snap-header.cc.

References m_etherType, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteHtonU16().

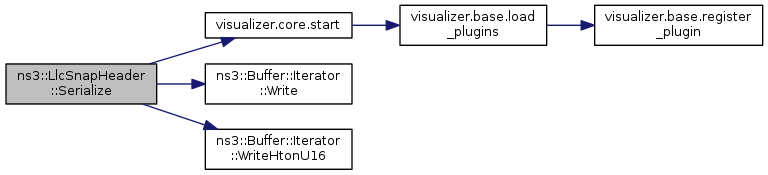

Here is the call graph for this function:
